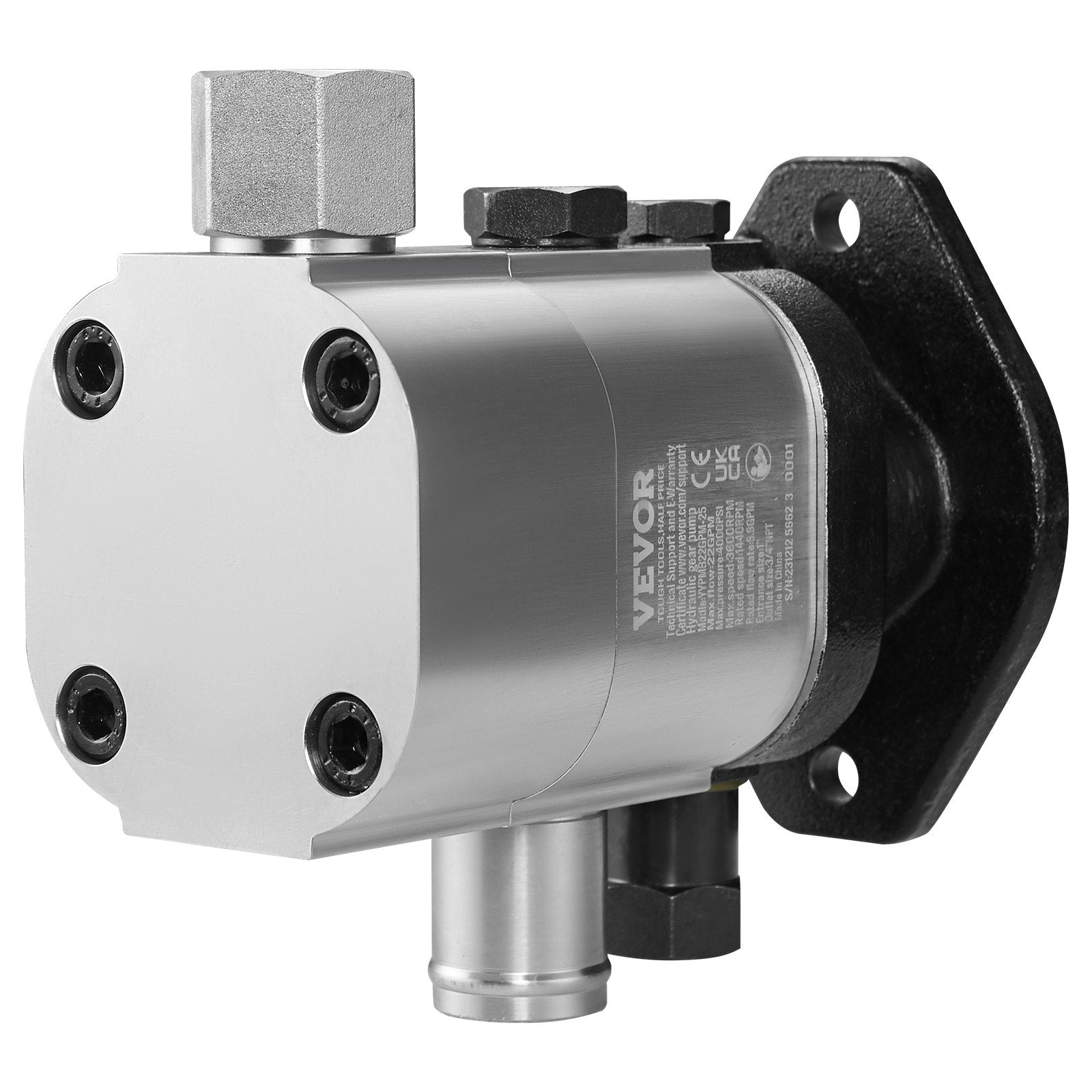

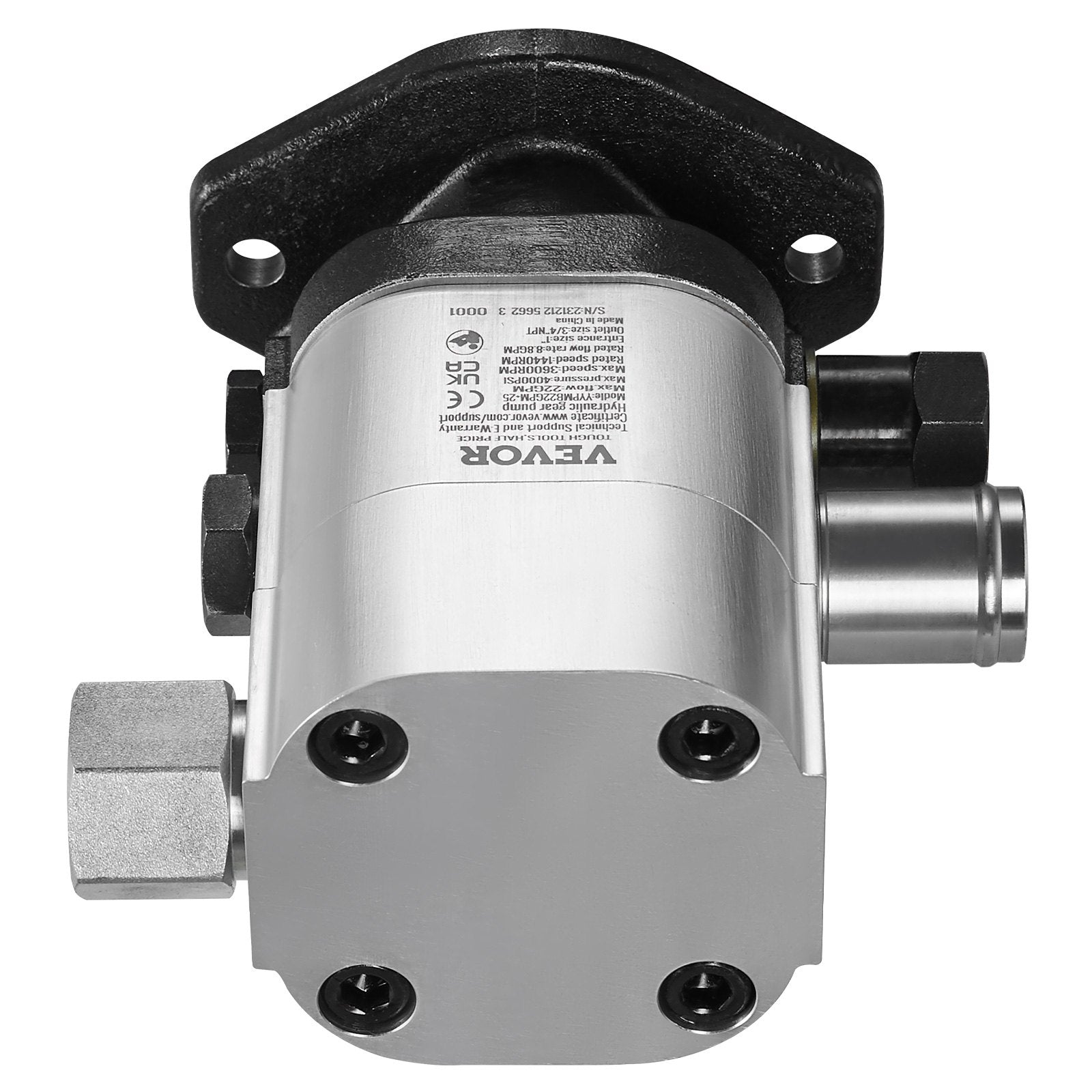

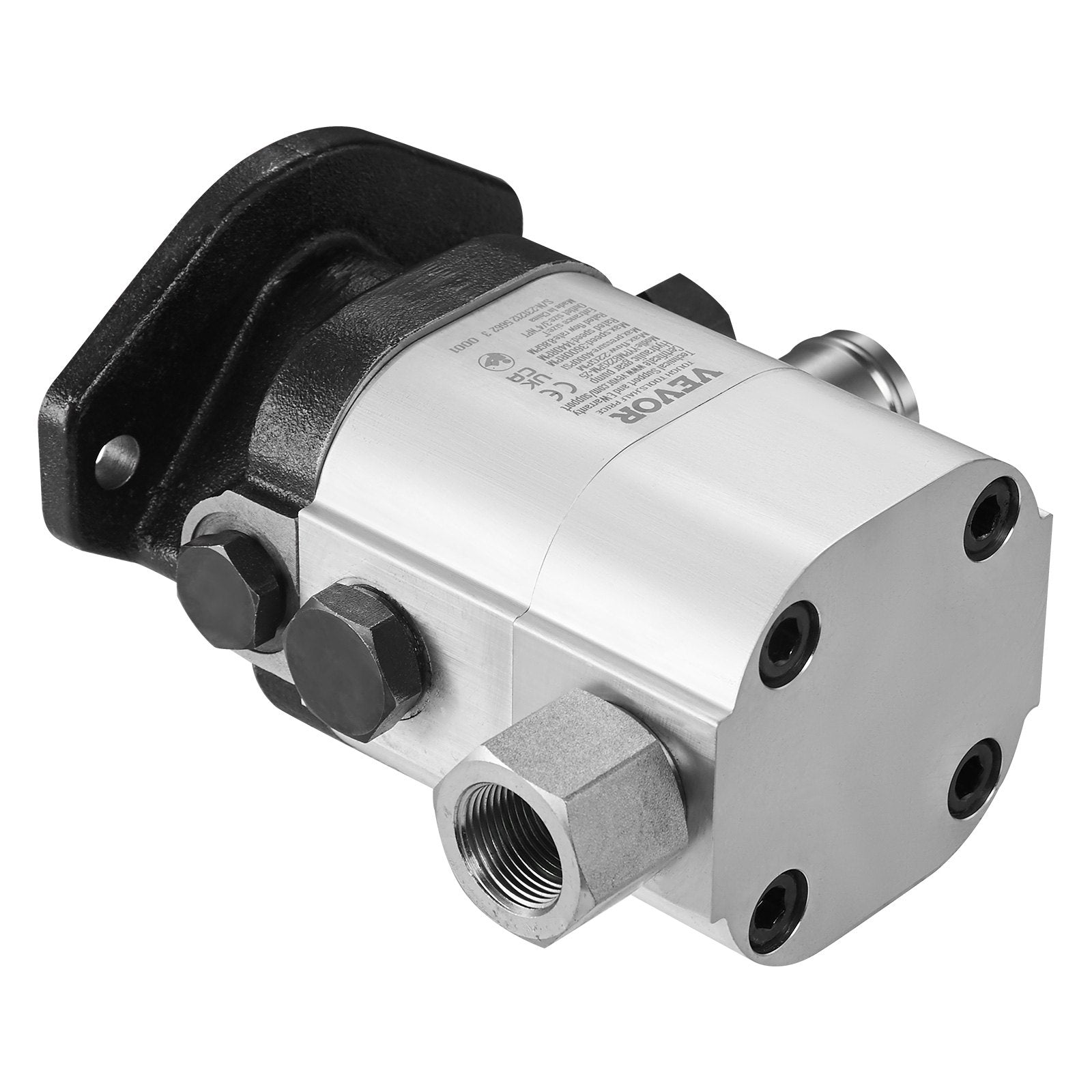

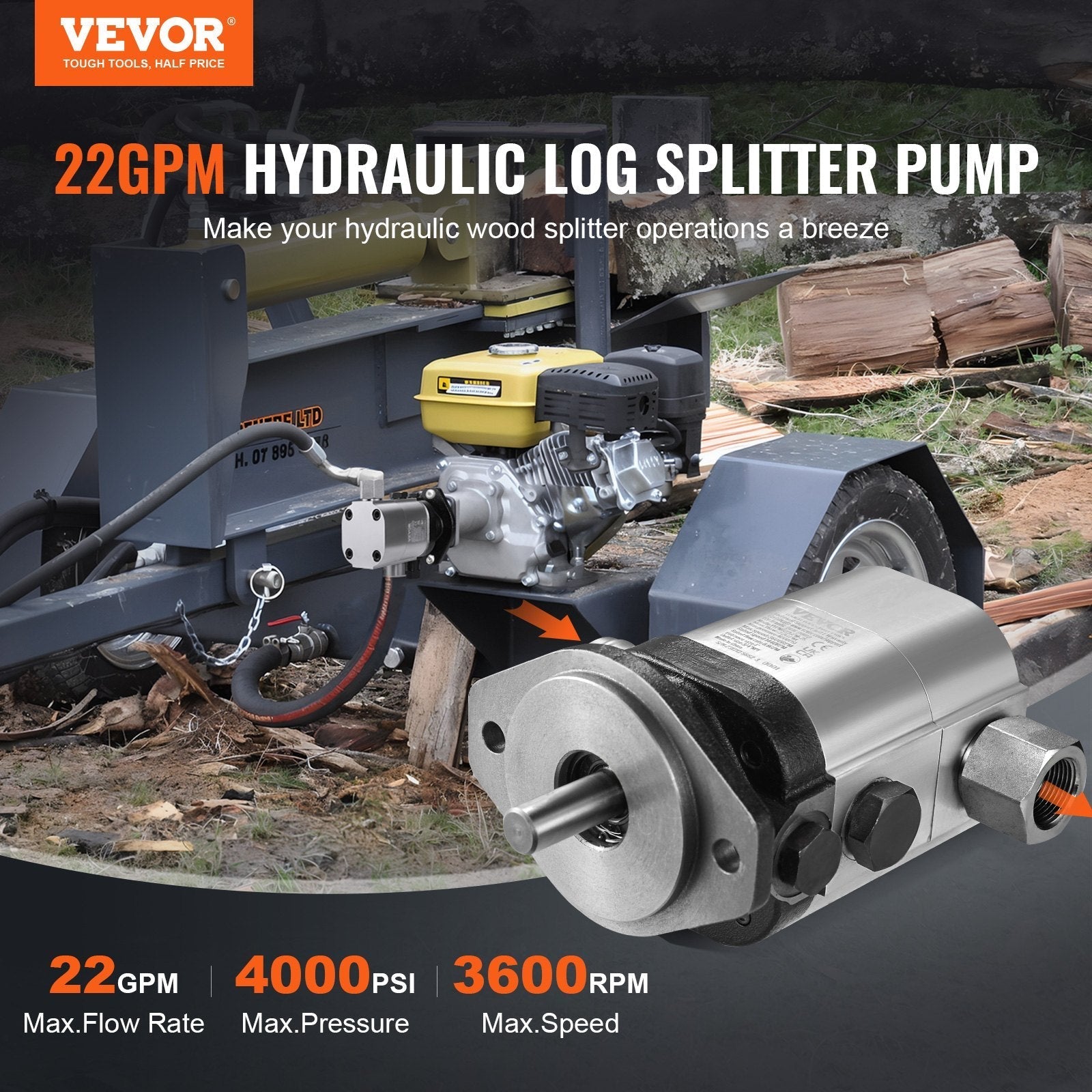

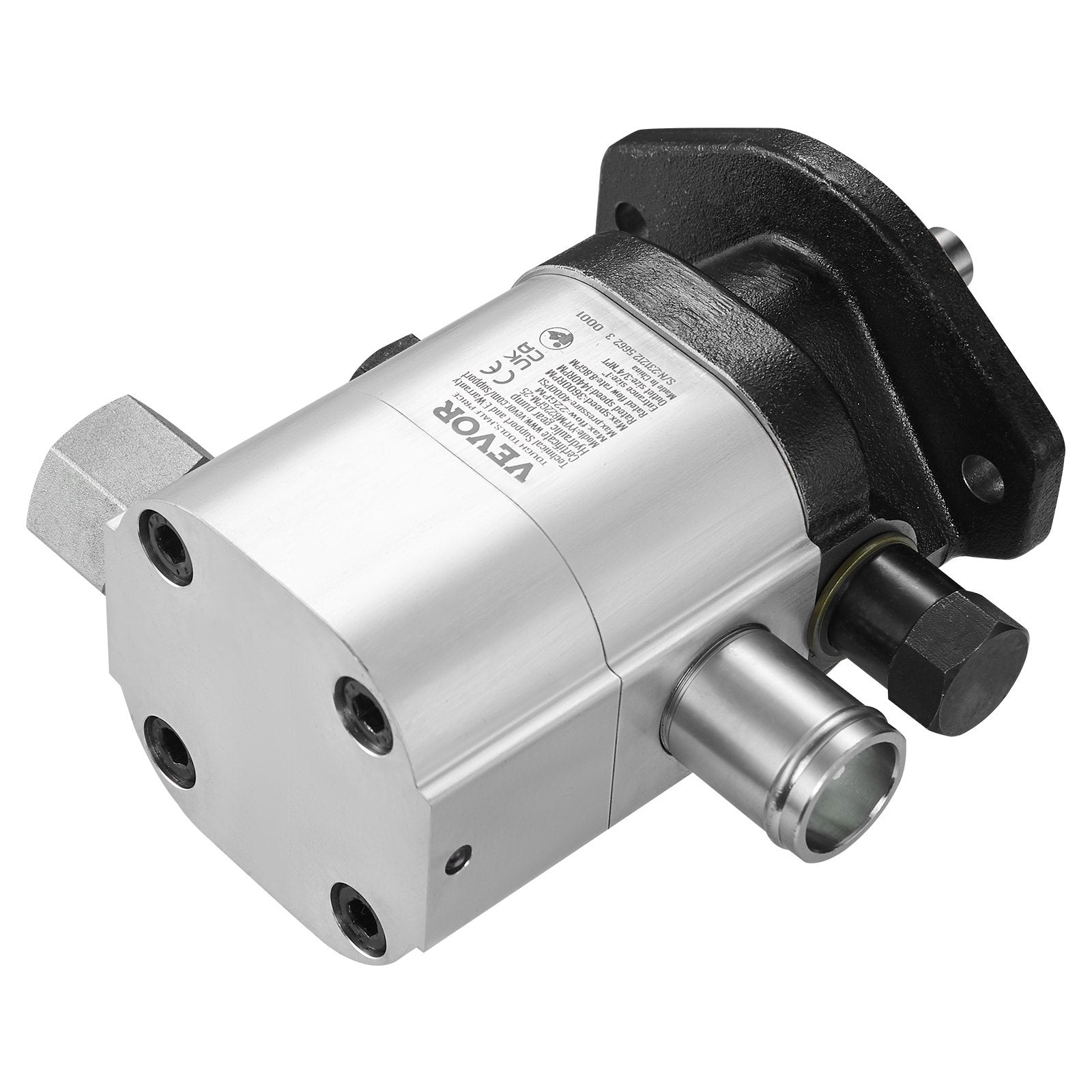

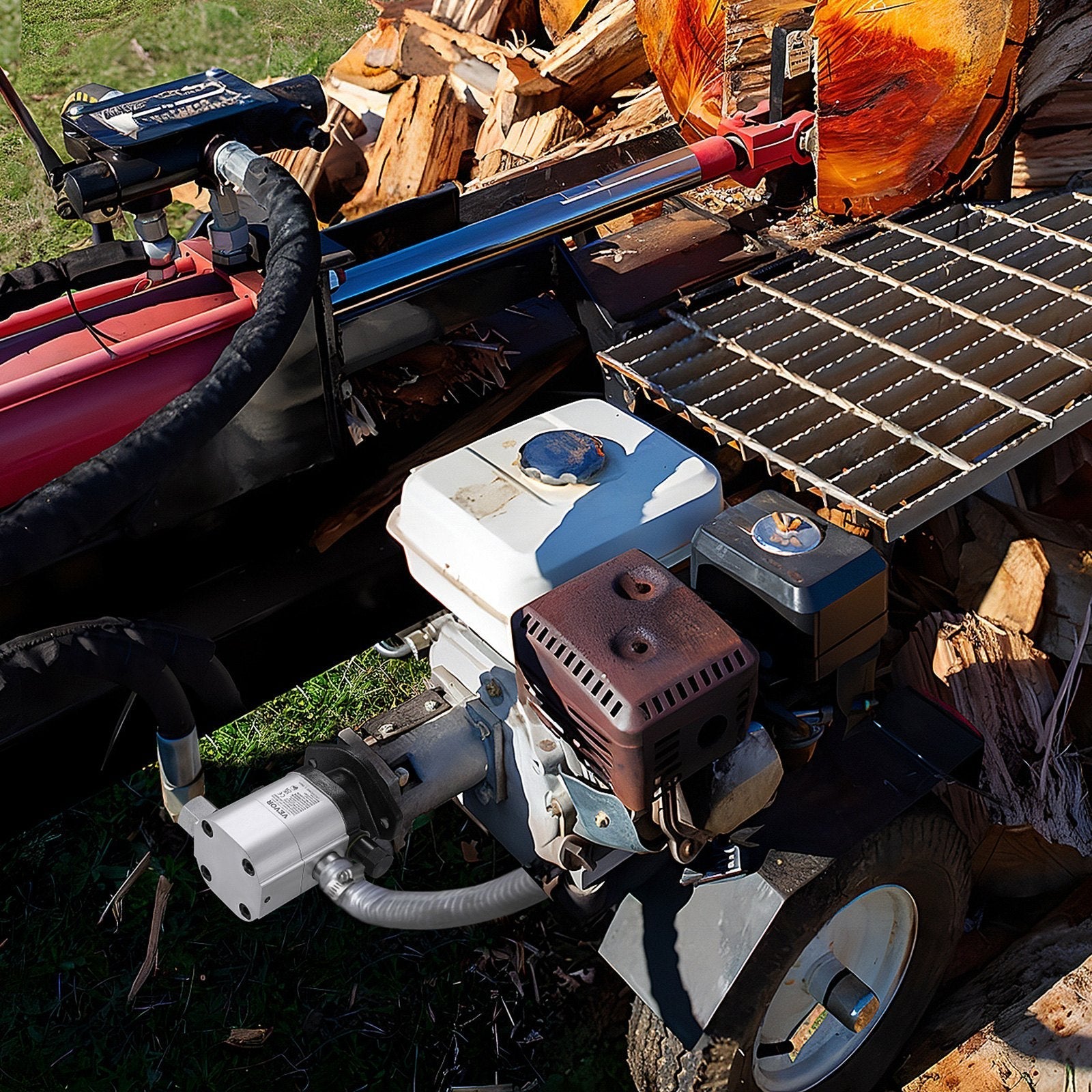

The VEVOR Hydraulic Log Splitter Pump is a powerful, high-performance pump designed for wood log splitters, snowplows, and other small engine applications. With a flow rate of 22 GPM and a maximum operating pressure of 4000 PSI, this two-stage hydraulic gear pump provides superior force for efficient log splitting. The 1” inlet and 3/4” NPT outlet ports, combined with the 3600 RPM operating speed, ensure rapid performance. The aluminum alloy housing offers durability while reducing the pump's weight for easy installation and transport. A low-noise operation adds comfort during use, making this pump an ideal choice for both professional and DIY applications.
Features
-
Outstanding Performance: Delivers a maximum flow rate of 22 GPM and a pressure of up to 4000 PSI for powerful, reliable operation.
-
High Precision Design: Two-stage hydraulic gear pump ensures smooth performance with excellent efficiency.
-

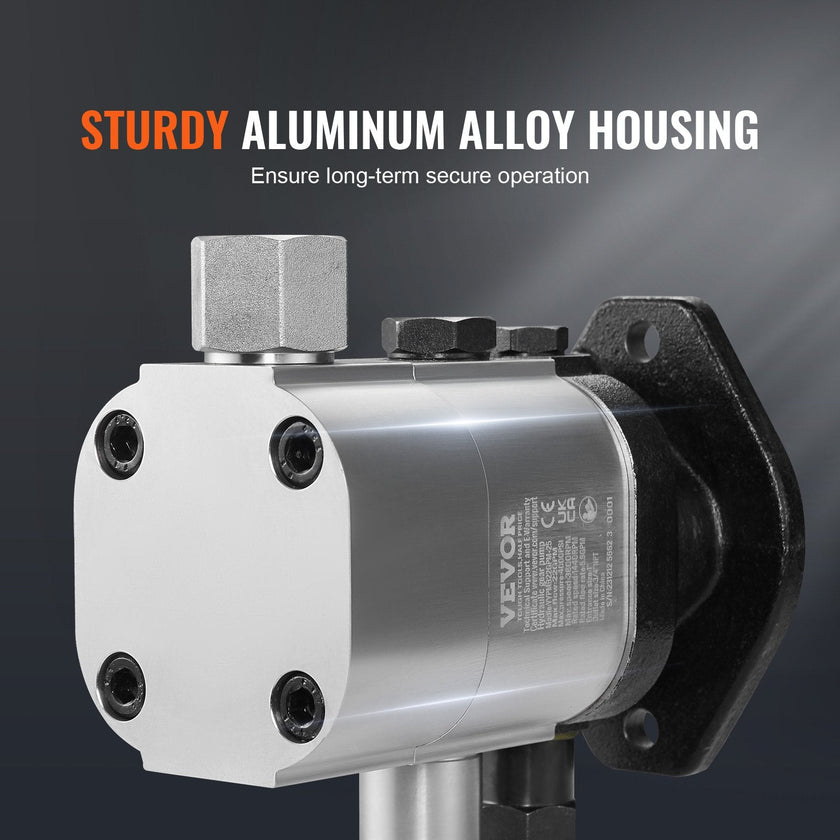

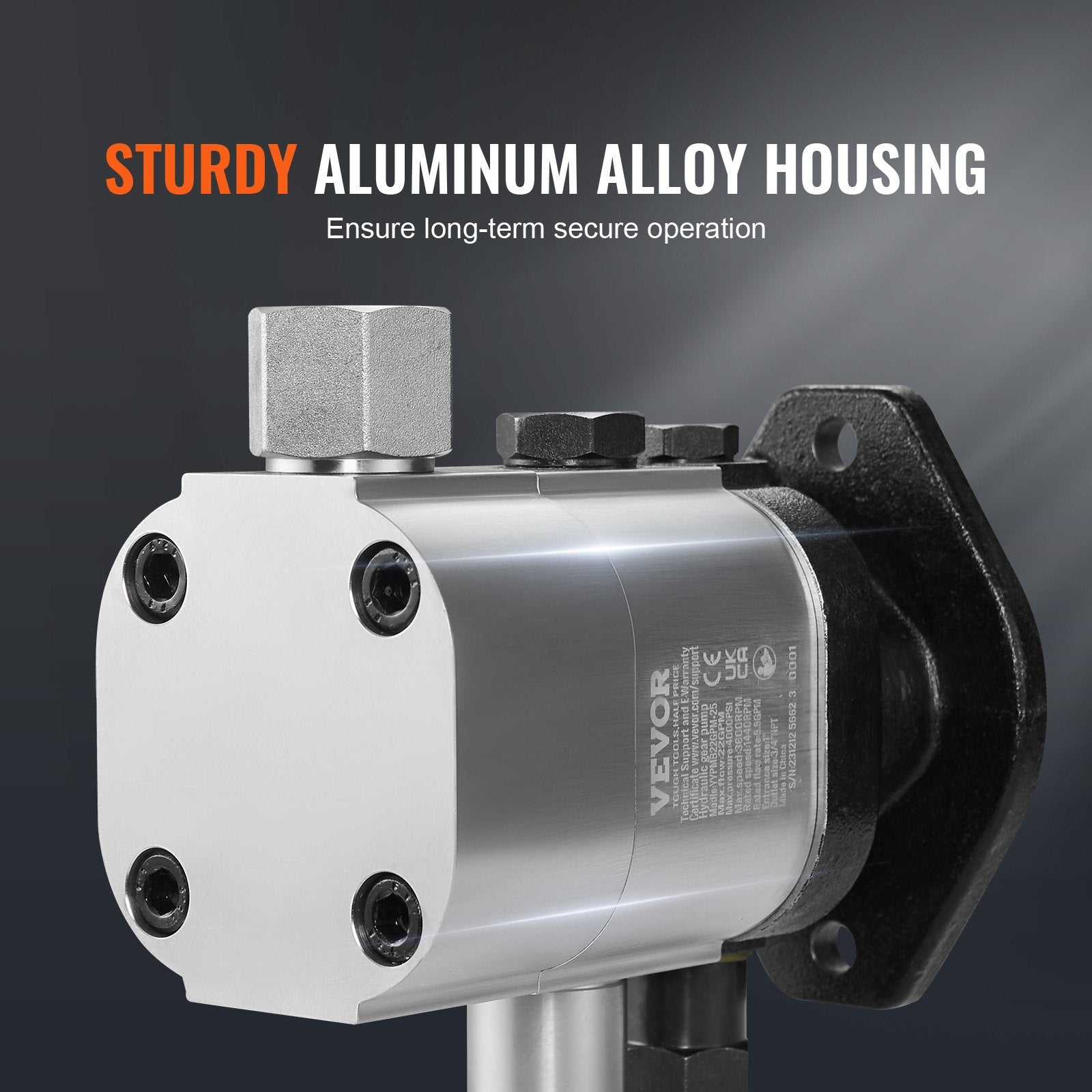

Robust Materials: Constructed from durable aluminum alloy, built to withstand tough environments and heavy-duty tasks.
-
Easy Installation: The pump is designed for hassle-free installation, compatible with small engine mountings.
-

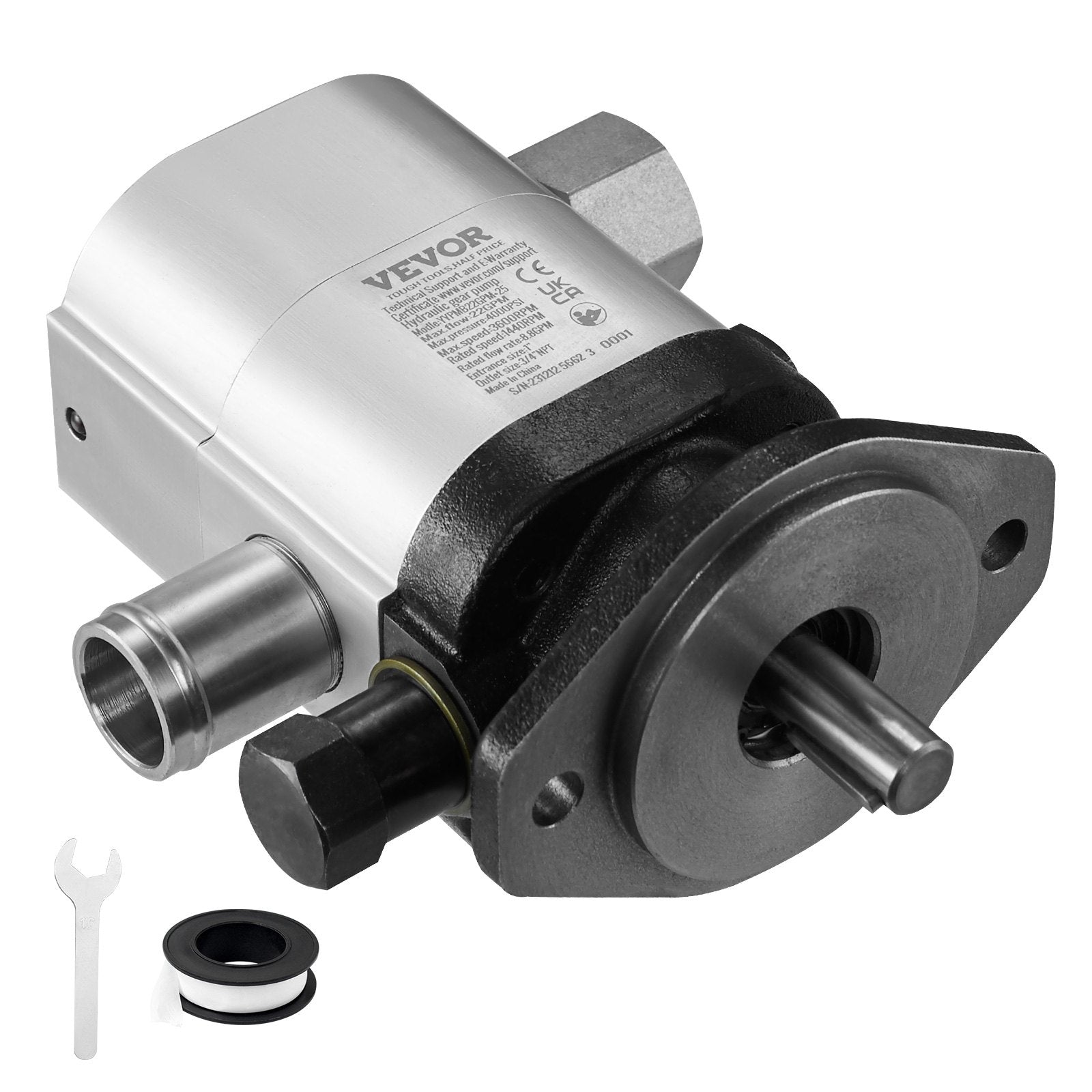

Comprehensive Accessories: Includes all necessary accessories for a complete installation setup.
-

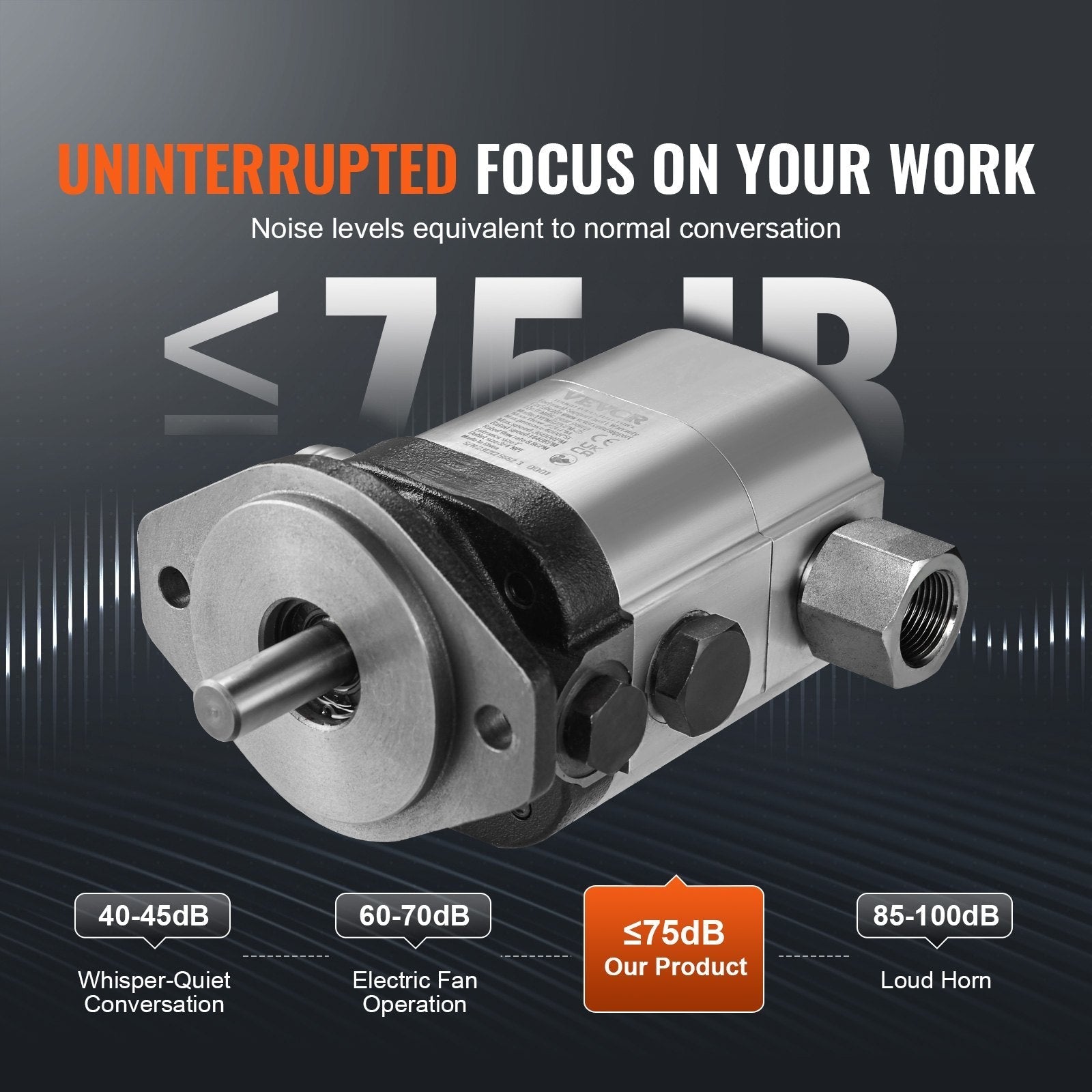

Low Noise Operation: Designed to operate quietly, minimizing disruption during use.

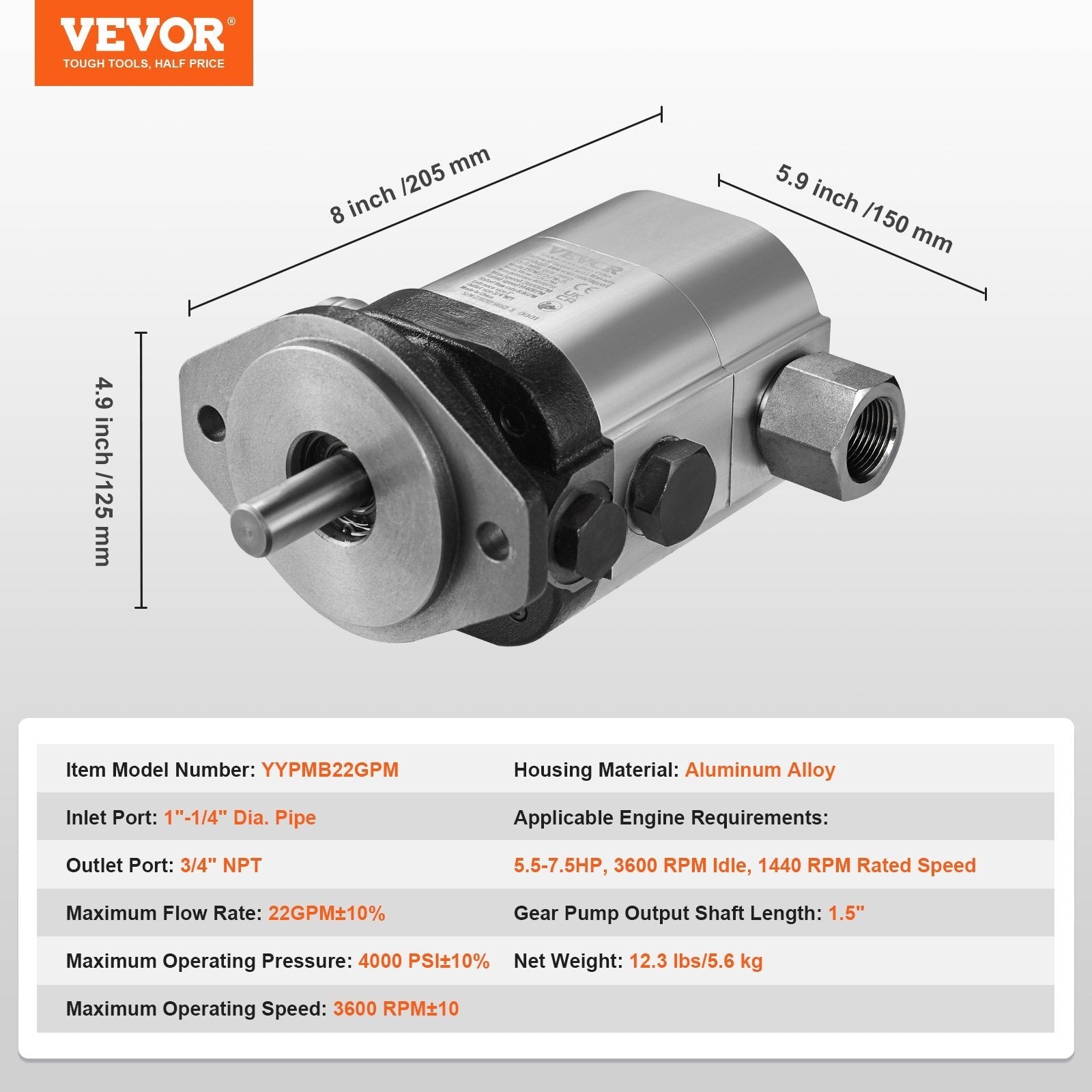

Specifications
-
Gear Pump Output Shaft Length: 1.5 in
-

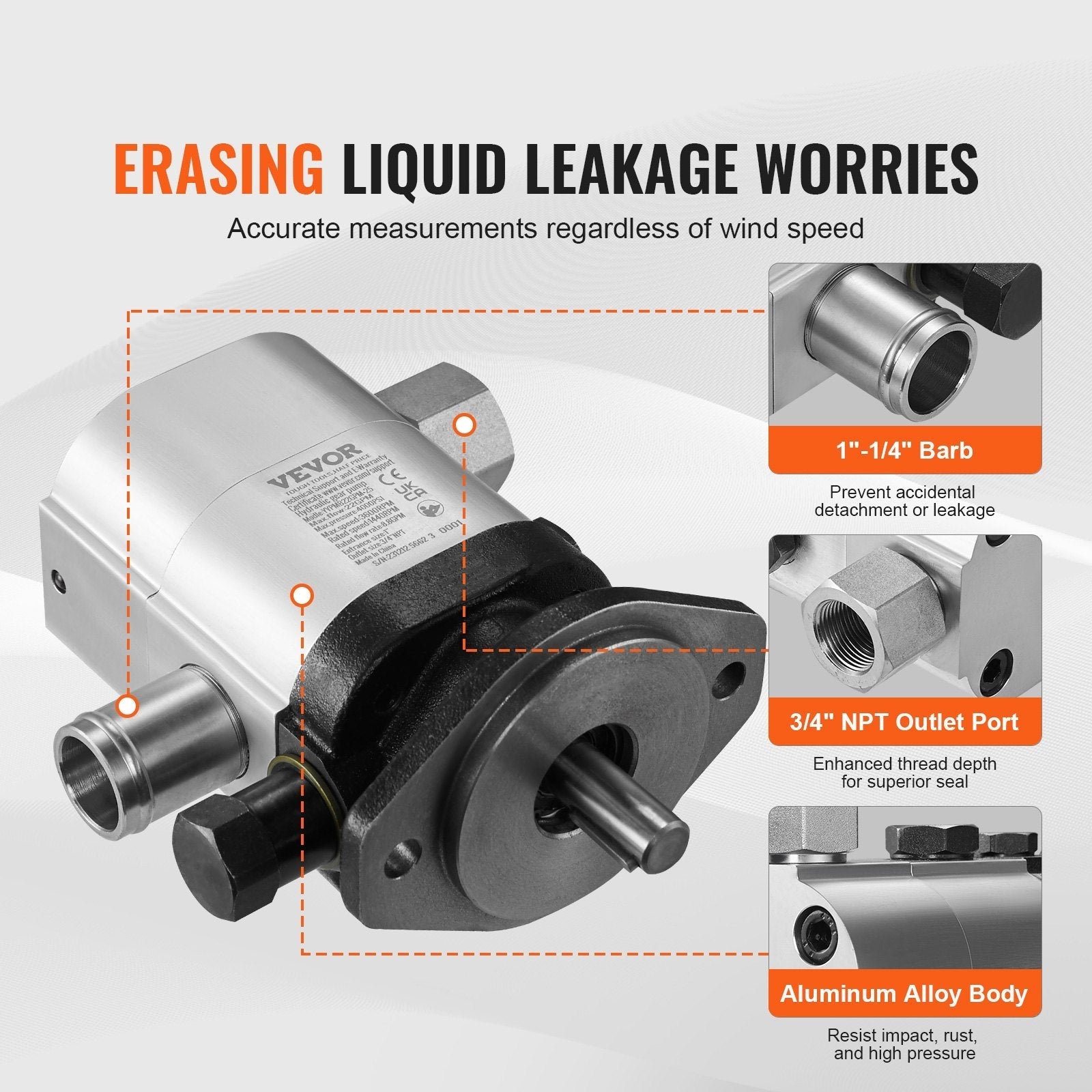

Outlet Port: 3/4" NPT
-
Inlet Port: 1" Dia. Pipe
-
Housing Material: Aluminum Alloy
-
Maximum Flow Rate: 22 GPM ±10%
-
Maximum Operating Speed: 3600 RPM ±10%
-
Maximum Operating Pressure: 4000 PSI ±10%
-
Item Model Number: YYPMB22GPM
-
Product Dimensions: 4.9 x 5.9 x 8 in / 125 x 150 x 205 mm
-
Net Weight: 12.3 lbs / 5.6 kg
-
Applicable Engine Requirements: 5.5-7.5 HP, 3600 RPM Idle, 1440 RPM Rated Speed
