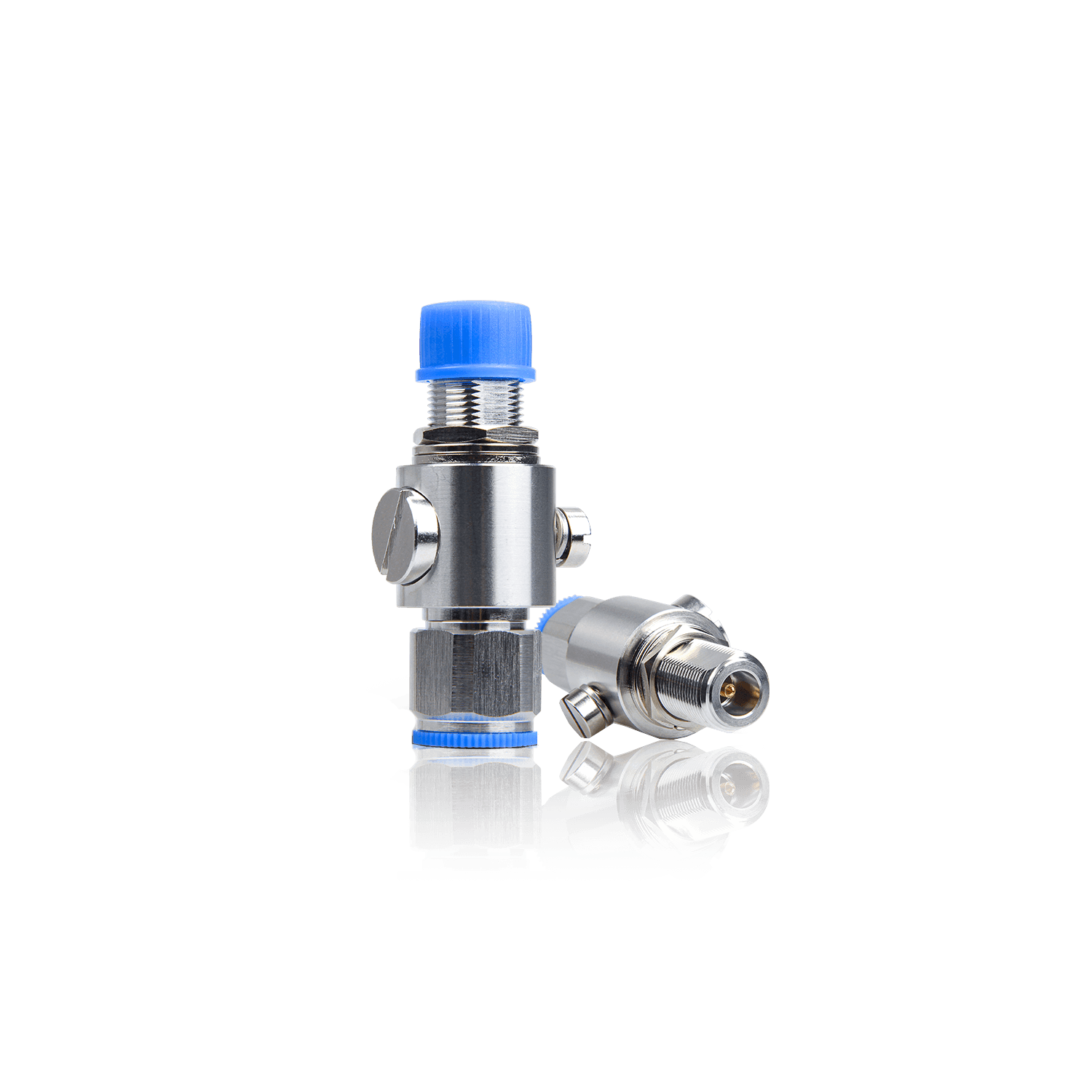

This is a surge protective device for securing transceivers against over-voltage and surge current induced by bolts of lightning.
For the purpose of protecting the indoor equipment and circuitry connected to the LoRa gateway, you need to install an Ethernet Port Surge Protection Device (SPD).
RAKwireless recommends installing a lightning arrestor on all N-type antenna terminals including LoRa, LTE, and 2.4G Wi-Fi antennas. Please refer to the technical manual for wire type and gauge recommendations.
- Connector Type: N-type male to N-type female
- Impedance: 50 Ω

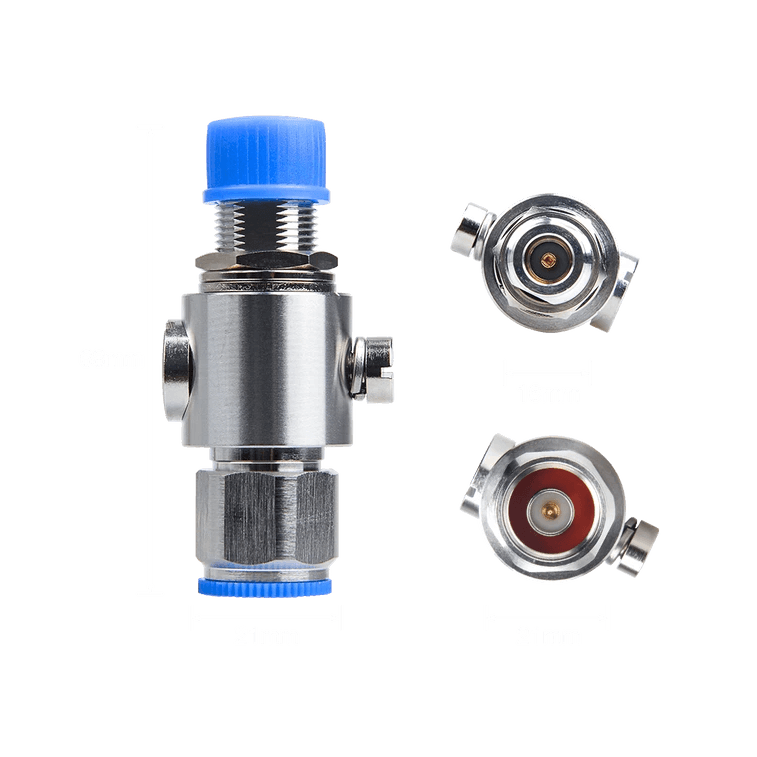

- Size: Height 68mm Width 21mm
- Frequency range: 0-2700 MHz
- Power loss 0-2000 MHz: ≤ 0.2 dB
- Ingress protection: IP67
- Nominal discharge current In: 10 kA
- Maximum discharge current Imax: 20 kA
- Voltage protection Level Up: ≤ 1200 V
- SKU: 910033
