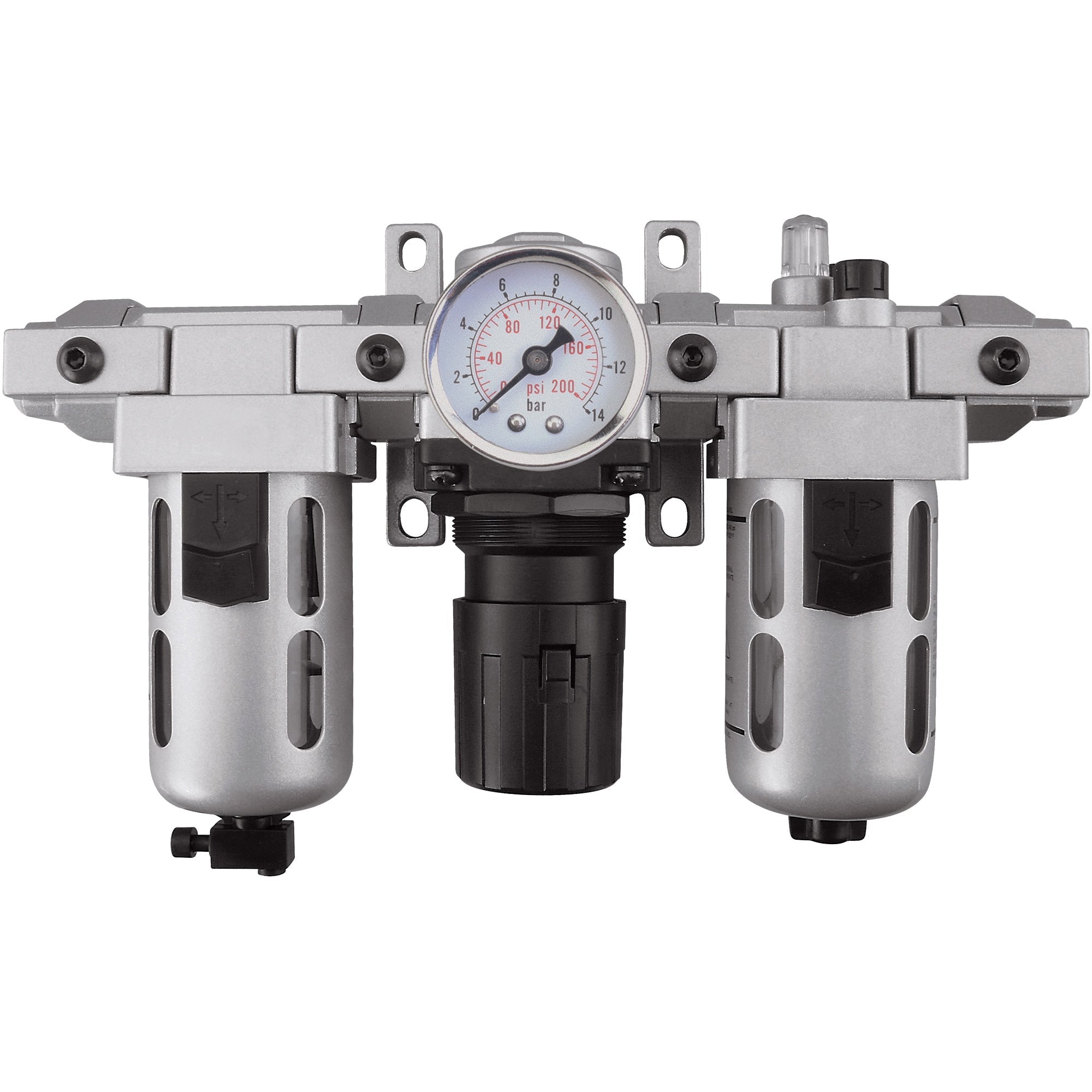

    Modular Filter, Regulator & Lubricator (Gauge Included), 3/8" NPT

    Art: TYY182
      shopSafety.ca

      Modular Filter, Regulator & Lubricator (Gauge Included), 3/8" NPT

      Art: TYY182
      Size:
      割引価格 $178.00定価 $0.00
      定価 $178.00

      Description

      • Assembly of all three individual components
      • Components are attached in series using spacers and piping adapters, which make the individual components easily removable and mountable without disturbing the pipe line
      • Comes complete with wall mounting bracket
      • Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
      • Filter used to separate dust, dirt, moisture and other contaminants from compressed air
      • Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
      • Filter has sintered bronze, 40-micron filtering element
      • Lubricator used to feed lubricants to pneumatic equipment and maintain a constant oil-to-air density over a wide range of flow
      • Fog/Micro Mist type lubricator, up to 50' pipe runs
      • Air filter, regulator and lubricator come with NPT threads and gauge
      • Connection Size: 3/8" NPT
      • Max. Air Flow: 71 SCFM @ 105 PSI
      • Operating Pressure: 7-145 PSI
      • Bowl Material: Polycarbonate
      • Bowl Capacity: 1.93 fl. oz.
      • Filter Bowl Capacity: 1.08 oz.
      • Lubricator Bowl Capacity: 1.93 oz.
      • Series: FRL200
