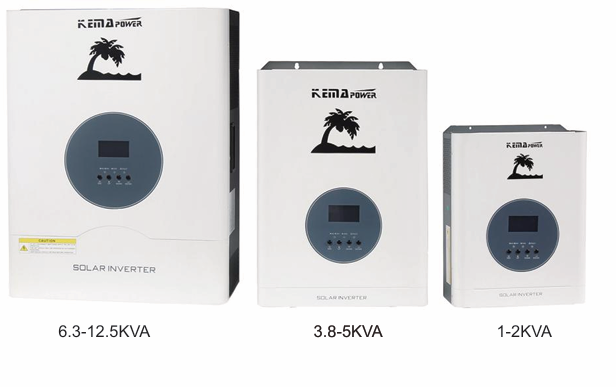

| Model Name |
ISP1K-12A(M) |
ISP1.25K-12A(M) |
ISP1.5K-12A(M) |
ISP2K-24A(M) |
ISP3K-24A |
ISP5K-48A |
ISP6.3K-48A |
ISP10K-48A(P) |
ISP12.5K-48A(P) |
| INPUT |
Rated Power(VA/W) |
1KVA |
1.3KVA |
1.5KVA |
2KVA |
3KVA |
5KVA |
6.3KVA |
10KVA |
12.5KVA |
| 0.8KW |
1KW |
1.2KW |
1.6KW |
2.4KW |
4KW |
5KW |
8KW |
10KW |
| Rated Voltage(VAC) |
110 or 220V |
| Voltage Range |
77-132VAC or 154-275VAC±5V |
| Frequency |
50/60Hz±5% |
| OUTPUT |
Voltage Range |
110VAC, 220VAC or 110V+220V Two hot line,Three type for Choice ; ±10%( UPS mode) |
| Frequency |
50/60Hz±5% |
| Output Wave |
Pure Sine Wave |
| Transfer Time |
<8ms |
| Output Voltage Regulation |
10% ms |
| Other Output Mode |
statis Bypass Mode/ power Saver Mode |
| Efficiency |
>98% |
| Load Peak Ratio |
(MAX)3:1 |
| Protection Function |
Under inverter: overload protection,short circuit protection,low voltage protection,
(with battery anti-reverse connection, board) |
| BATTERY & AC CHARGER |
Rated Voltage(VDC) |
12VDC |
24VDC |
48VDC |
| Charging Voltage |
13.75VDC |
27.4VDC |
54.8VDC |
| AC Charge Current |
20A |
25A |
30A |
20A |
30A |
24A |
29A |
48A |
60A |
| DC High Voltage Alarm and Fault |
16V |
32V |
64V |
| DC High Voltage Recovery |
15V |
30V |
60V |

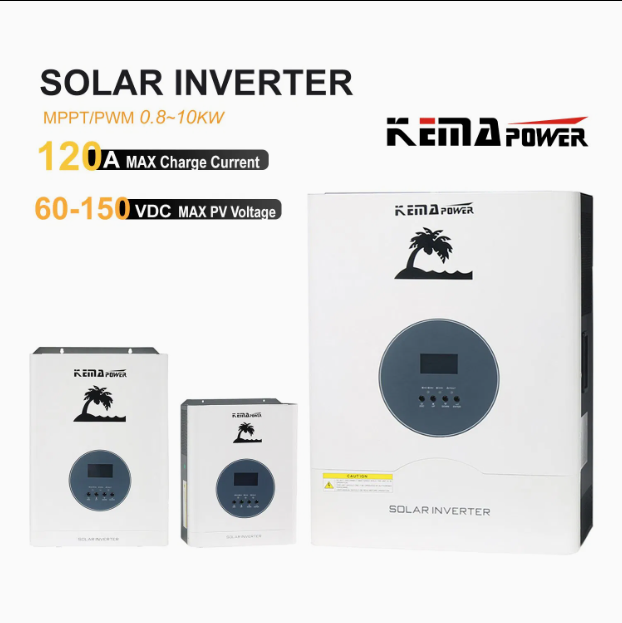

| SOLAR CONTROLLER |
Type |
PWM (MPPT optional) |
MPPT only |
| Working Range |
12V PWM 15V-50VDC
12V MPPT 15V-150VDC |
24V PWM 30V-105VDC
24V MPPT 30V-150VDC |
48V MPPT 60V-150VDC |
| Rated Current |
60A |
120A |
| Efficiency |
≥99% |
| Max PV Power |
800W |
1600W |
6400W |
| Max PV VOC |
PWM 50VDC; MPPT 150VDC, 200V option |
MPPT 150VDC, 200V option |
| PV Work Voltage Range |
12V PWM 15-30VDC
12V MPPT 15-105VDC |
24V PWM 30-60VDC
24V MPPT 30-105VDC |
48V MPPT 60-105VDC |

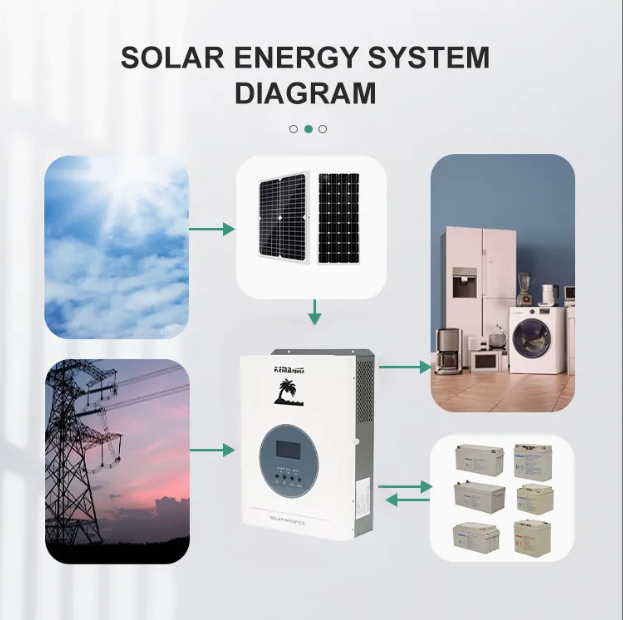

| WORKING MODE |
Utility Priority |
UTI, UTILITY power priority, BATTERY and SOALR power as supplement (U on,U to Loads , U Off , B+S to loads ) |
| Solar Priority |
SOL,SOLAR power priority, UTILITY and BATTERY as supplement (S enough, S to Loads; S Not Enough, U+B to loads; No S, U to Loads too; No B , then U to loads ) |
| Battery Priority |
SBU, Battery Priority,(S Enough, S to Loads, S not enough,S+B to loads, B out of Power, U to loads) |
| KEY SETUP |
Power Saver |
Load > 5% continous output, < 5% no output and detect load per 10MS |
| Charge Mode |
CUT, UTILITY priority,U+S charge Bat ;CSO, SOLAR priority, U Charge Bat when Bat Low Voltage only; OSO, SOLAR charge only . |
| Charge Current |
Solar and Mains Charge Current is adjustable |
| Charge Voltage |
setable Boost/Float and LVD Voltage,UTILITY charge bat VDC point , BAT Low Restart VDC, |
| Battery Type |
SEL GEL, FLD USER,TER.LIF ( different lead-acid battery or lithium battery ) |
| LED DISPLAY |
AC/INV, Charge and Fault |

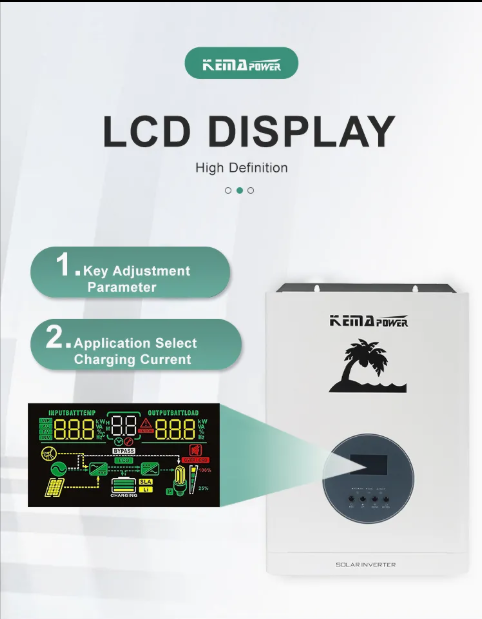

| LCD DISPLAY |
Working Mode, input and output VAC, HZ, BAT %, Load %, setup working mode, battery type ,PV Amp , PV VDC PV Watt, Buzzing icon, Fault |
| ALARM |
Low Battery Protection |
buzzer long beep |
| Low Battery |
buzzer beeps every second |
| Machine Fault |
buzzer long beeps |
| Overload |
< 130%, beeps once / second,turned off after 30s; >150%,turn off after 300ms. |

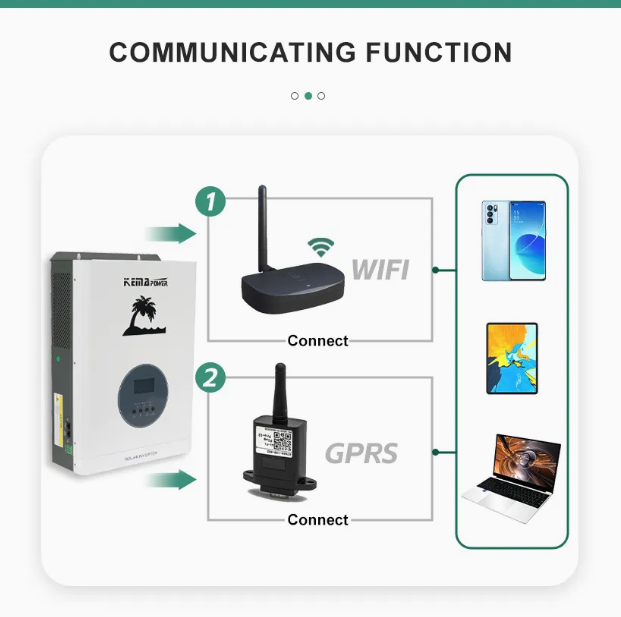

| Communication |
RS232, BMS/RS485, Dry Connector for 2-12.5KVA, wired Communication to PC or wireless Mobile App by WiFi or GPRS plug |
| Operating Ambient Temperature |
0-40ºC |
| Storage Ambient Temperature |
-15 - +50ºC |
| Operating / Storage Environment |
0-90% No Condensation |
| Product Size :W * D * H (mm) |
345*254*105 |
465*310*135 |
545*400*200 |
| Packing size: W * D * H (mm) |
430*333*173 |
530*385*200 |
565*385*200 |
660*460*270 |
| Net Weight (KG) |
8.46 |
8.46 |
8.41 |
13.53 |
10.79 |
15.69 |
27.46 |
39.18 |
51.03 |
| Gross Weight (KG) |
9.21 |
9.21 |
9.15 |
14.88 |
12.42 |
16.59 |
30.91 |
42.63 |
54.68 |
| Remark |
ISP---Integrated Solar Power ; M---MPPT; (P)-Parallel type |
