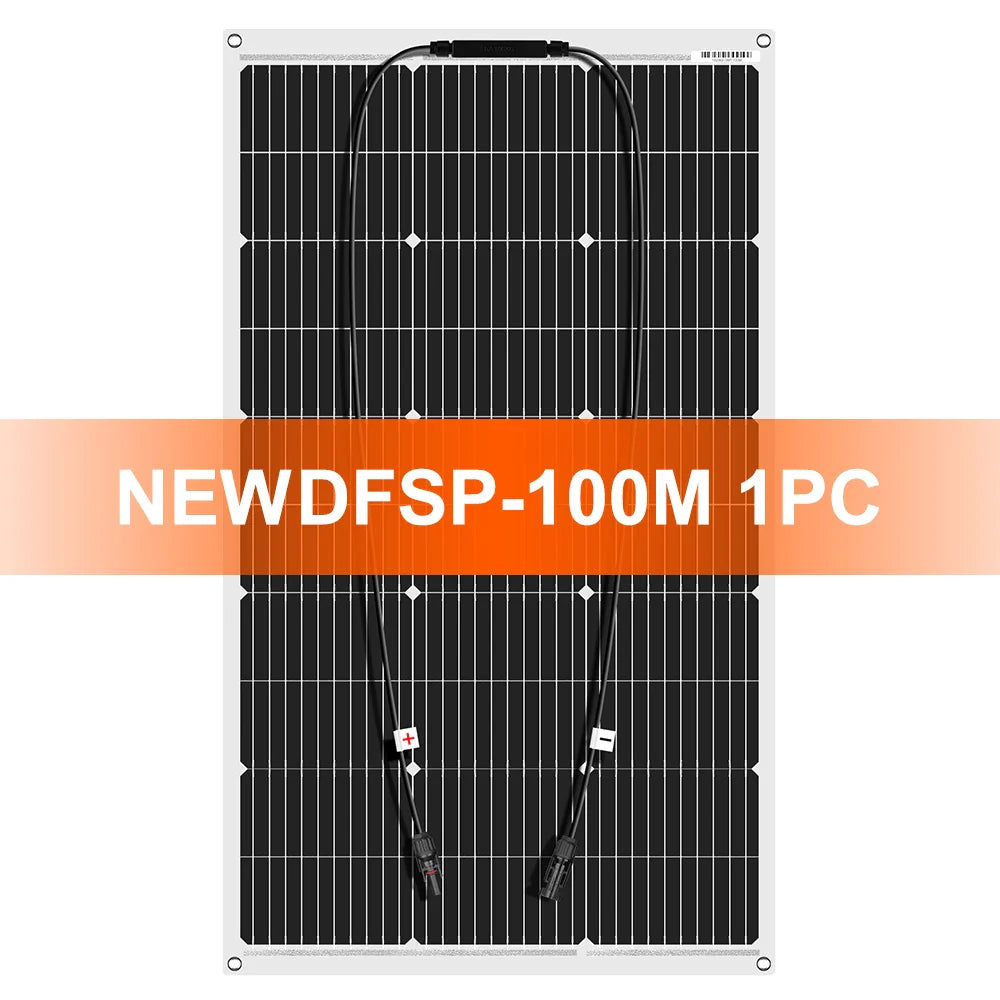

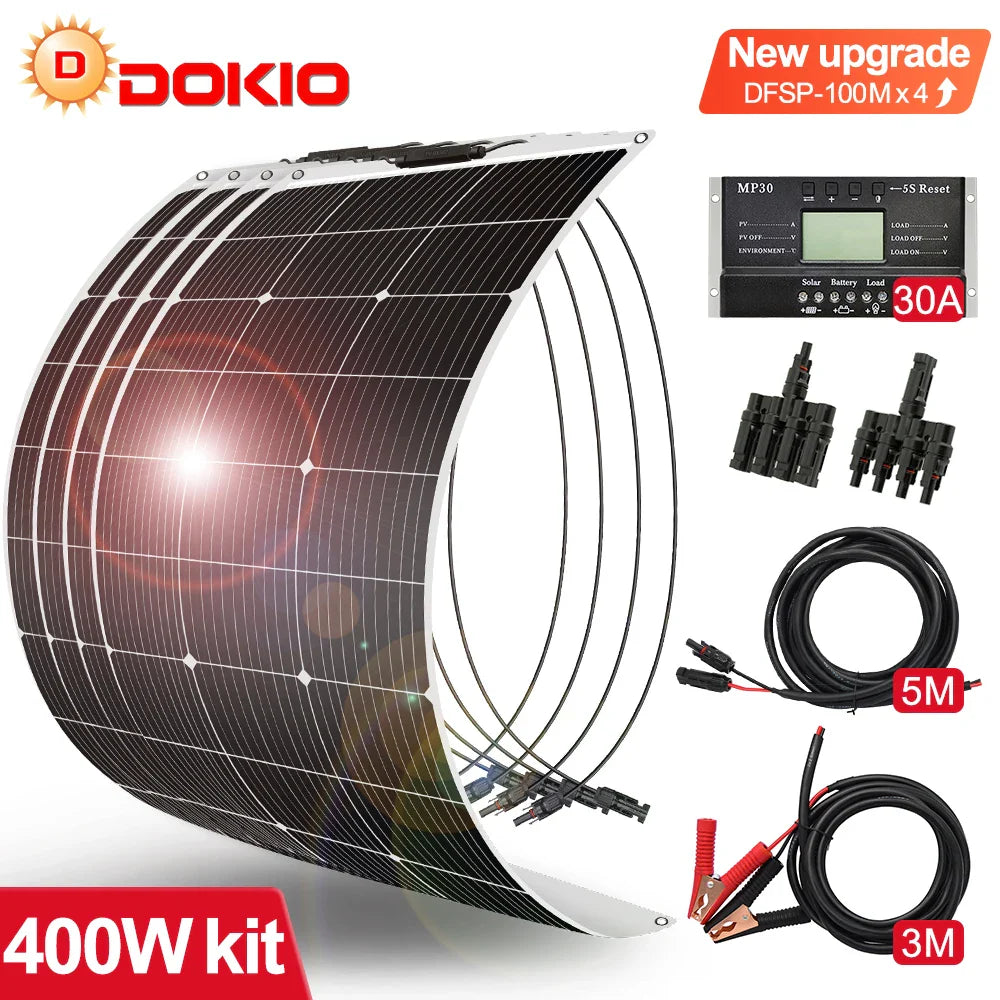

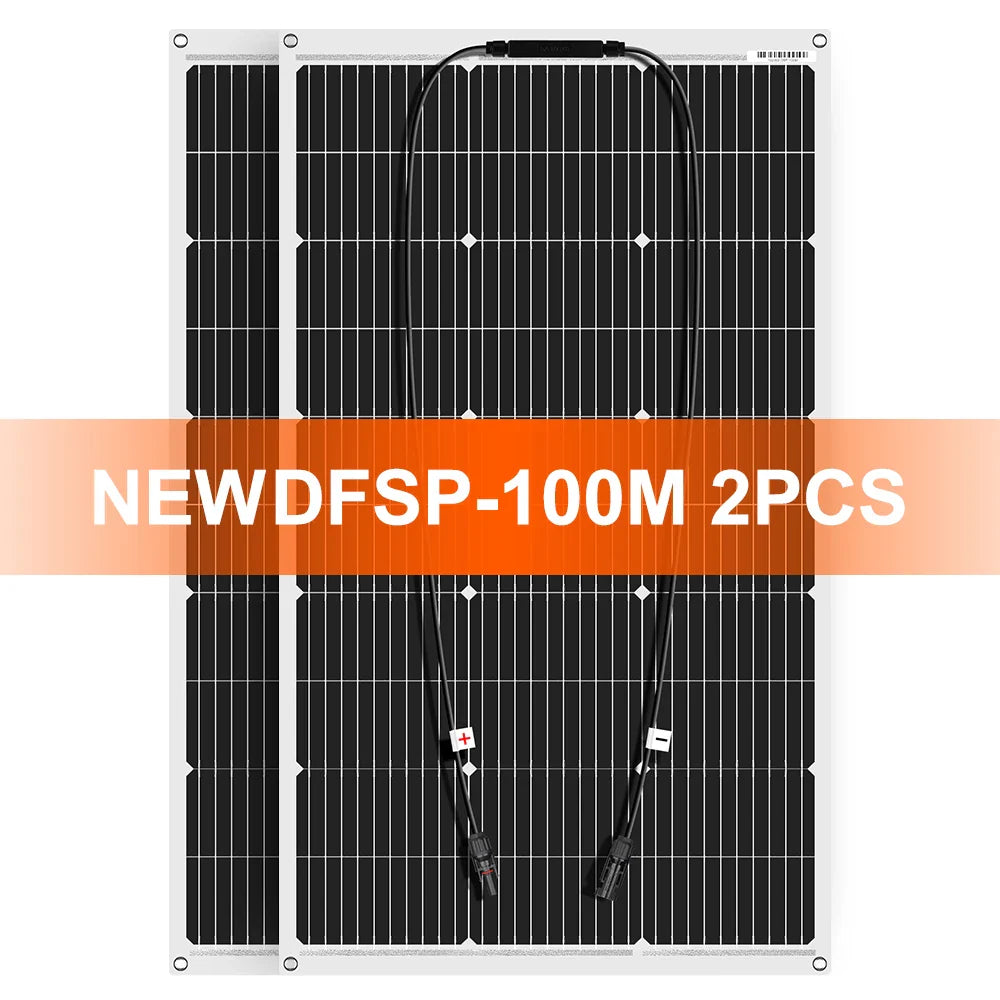

Model: DFSP-100M
Material: Monocrystalline Silicon
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp): 18.00V
Maximum Power Current (Imp): 5.56A
Open-Circuit Voltage (Voc): 20.5V
Short-Circuit Current (Isc): 6.5A
Maximum System Voltage: DC1000V
Maximum Series Fuse: 15A
Nominal Operating Cell Temp.(NOCT): -45 to 80℃
Net Weight: 1.02kg

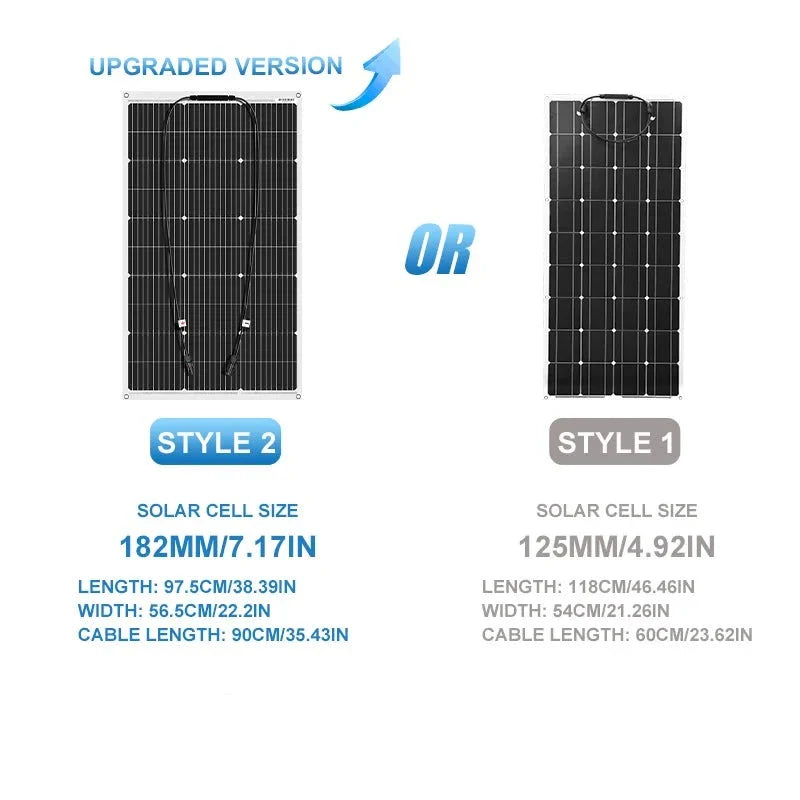

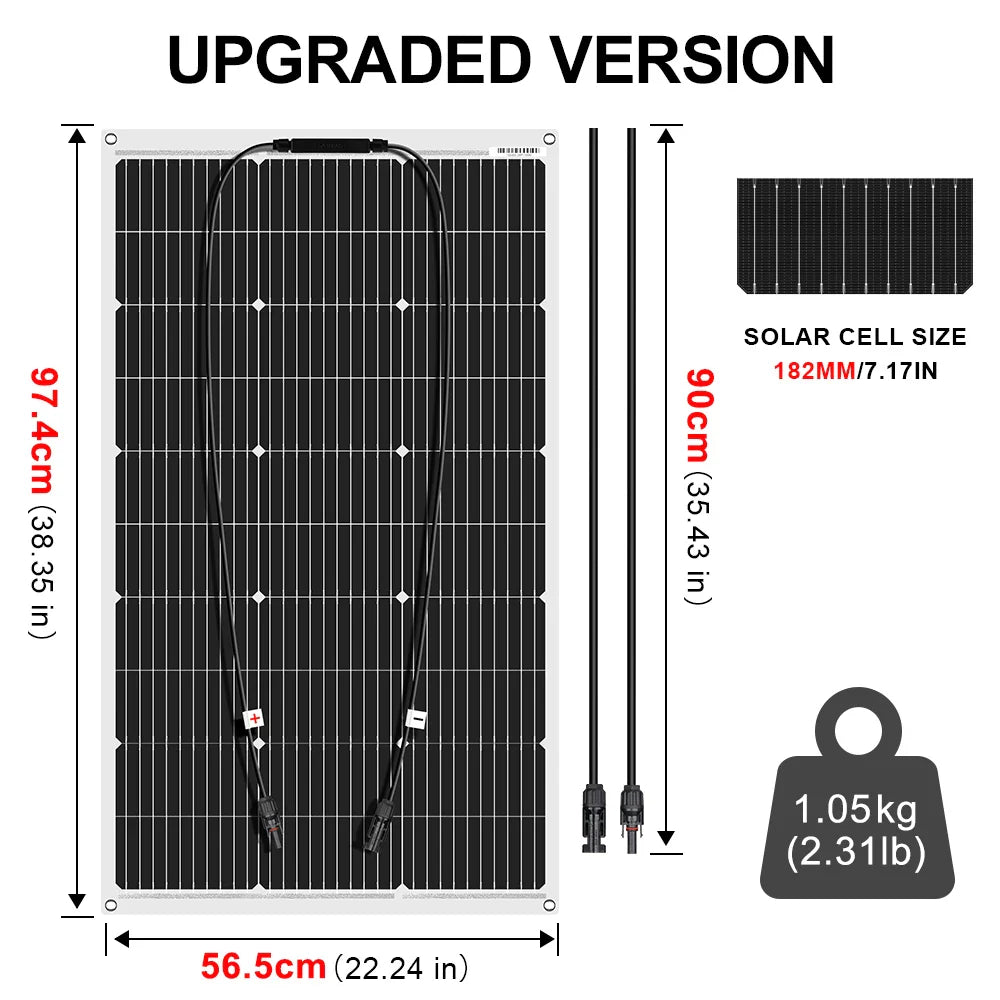

Dimension: 974*565mm
Package Dimension: 980*580*35mm
Material structure：
1 floor: ETFE
2 floor: EVA Film
3 floor: High Efficiency Solar Cell
4 floor: EVA Film
5 floor: TPT Backsheet
waterproof level：IP67（Junction Box）
(The above data is based on the laboratory standard test environment)
For field connections, use minimum No.12AWG copper wires insulated for A minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured)

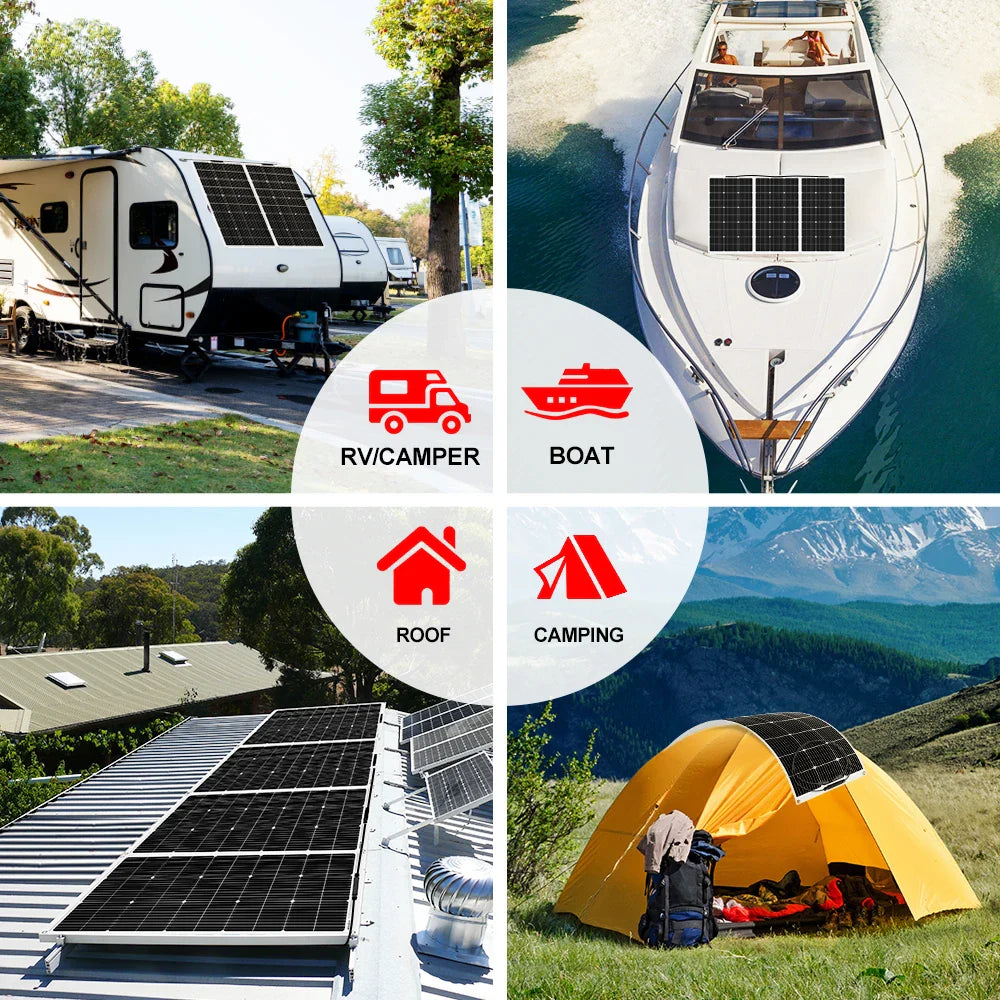

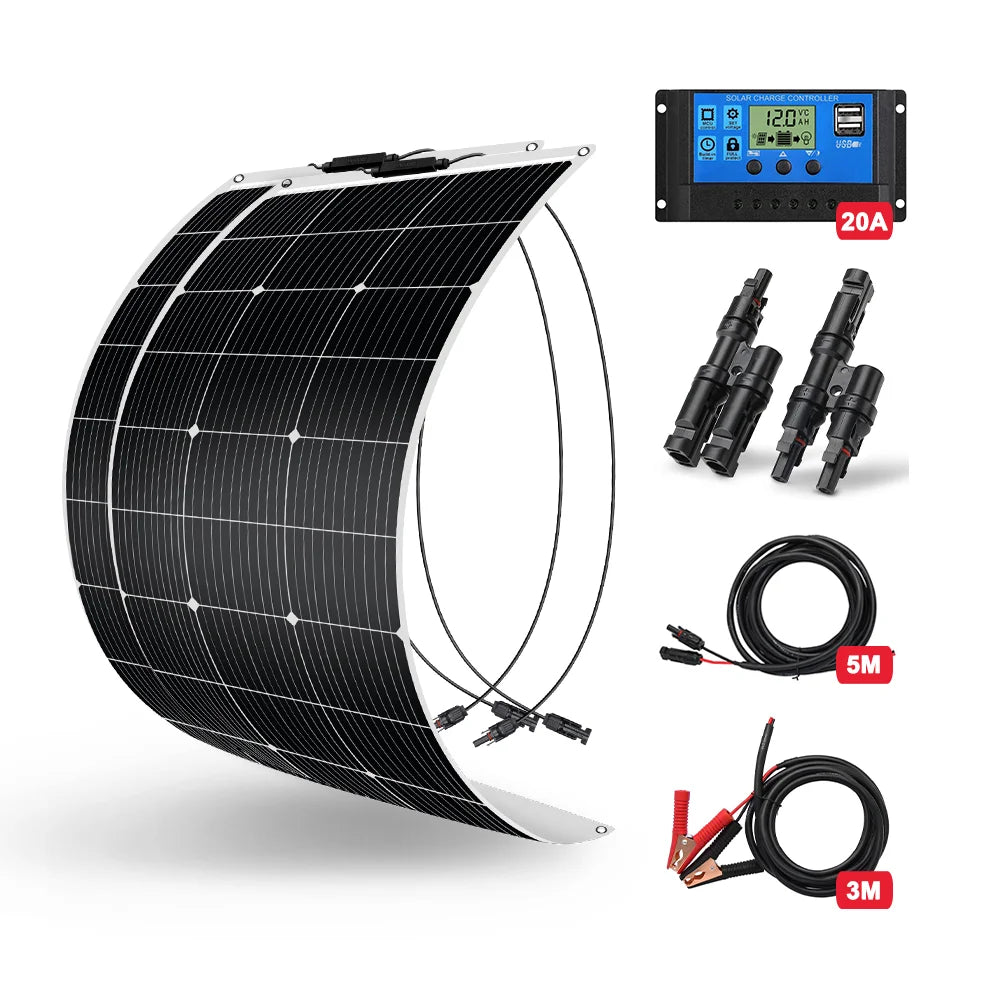

Easy to use: Semi-flexible panels can be mounted on irregular surfaces such as RV roofs, boats, tents, vaulted roofs, etc. Up to 30 degrees.
High efficiency, Light weight: only 1.5mm thick, weight 1.1kg, easy to hang, disassemble and carry.

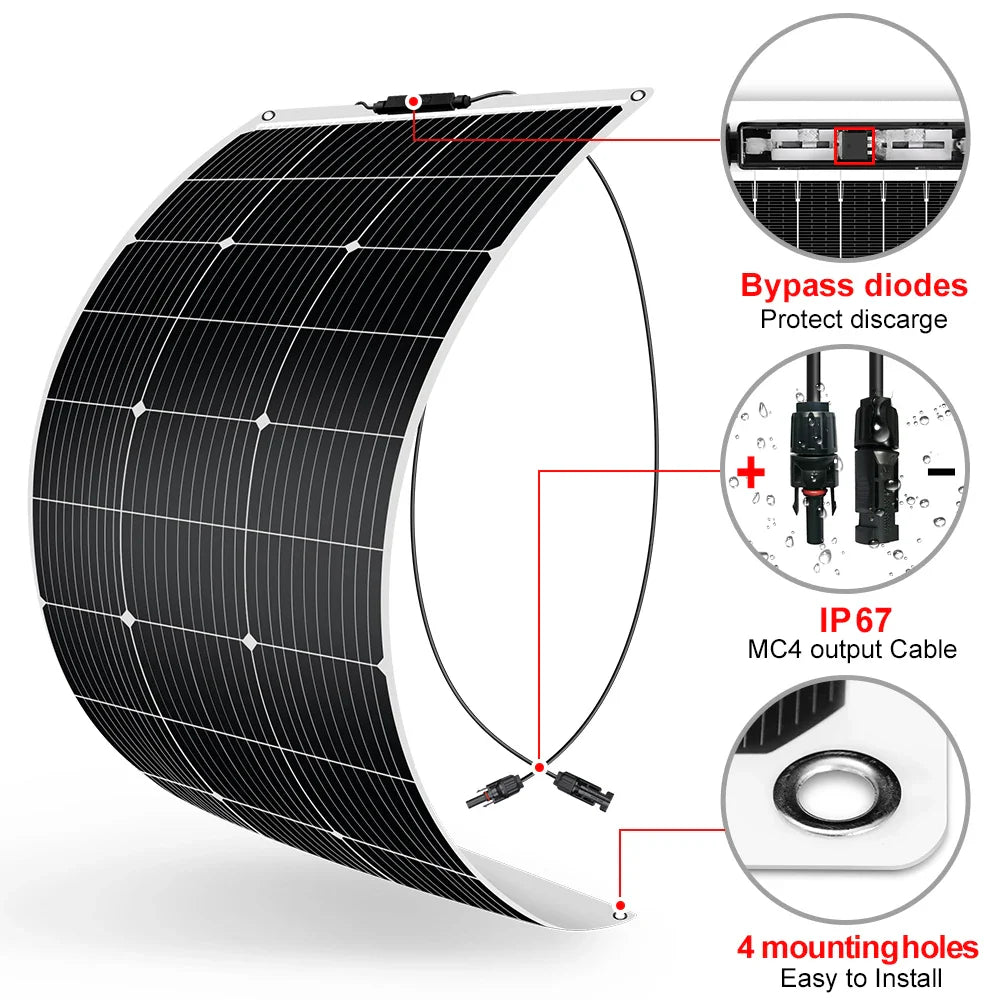

Easy to install: Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times.
As a professional solar panel manufacturer with more than ten years of production experience. Choose us, your interests will be the best protection.
Our Advantages
The surface is made of ETFE advanced materials. It is more durable than the PET materials used by other sellers on the Aliexpress.
The junction box on the back of the solar panel is IP67 rated, and the waterproof rating is the same as IPHONE X and IPHONE 8 PLUS.
The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.
About Transportation:
For Brazilian Customers: Since the size of this product exceeds the size limit of Brazil Post, we need to use other logistics delivery. Other logistics companies will charge an additional fee.
If you are willing to pay additional fees, please send us the address information and CPF before placing the order. We will ask the logistics provider for the amount.
The transportation method of the product is for reference only. Aliexpress standard shipping has listed solar panels as prohibited products.
We will choose EMS, DHL, UPS, FEDEX, DPEX and other commercial express according to the specific situation.
