Black Sheep Industries Inc.

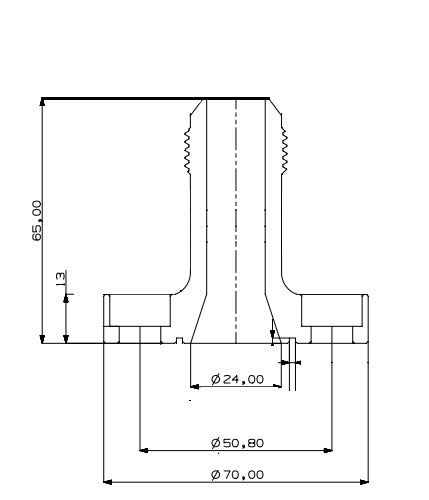

This is our 65mm -12AN billet oil turbo drain flange. We feel we solved as many minor issues as possible when installing a turbo drain. It's not too tall. It's not too short. It is just right. That means install of your turbo drain lines are a breeze!
Features include:
- Machined from 26XX series forged extrusion.
Why? Well its home is one of the extreme heat locations on your vehicle. Continuous heat cycles on 6061 extended drains can be susceptible to stress cracking depending on mounting locations and plumbing.
- Captured High temp O-ring Seal (No more paper gaskets, no more RTV, and unlike the China drains this O-ring wont fall out during install). RTV + Oil Drain = bad practice.
- 12AN Male Connection feed with a tapered bore to maximize draining.
- 2" on center bolt hole spacing. With counter sunk slotted holes to guarantee proper fitment and drain hole alignment.
- M8-1.25x16mm Stainless hardware supplied. (S300's, S500 typically will need 3/8-16 Hardware)
What does it fit?!
We designed this unit to fit all mid frame turbochargers. With a slotted 2" bolt center, Allowing for +/- 0.065" for perfect alignment.
True North Turbos, Borg Warner (S300,S400,S500), Bullseye, Comp Turbo, CX Racing, Garrett (GT/GTX and G series variants), On3 Performance, PTE, VS Racing, and many more.

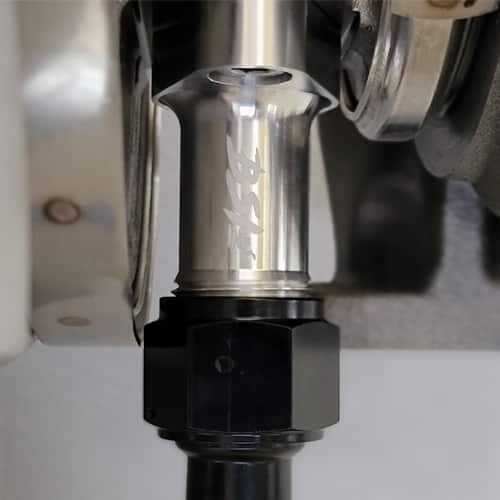

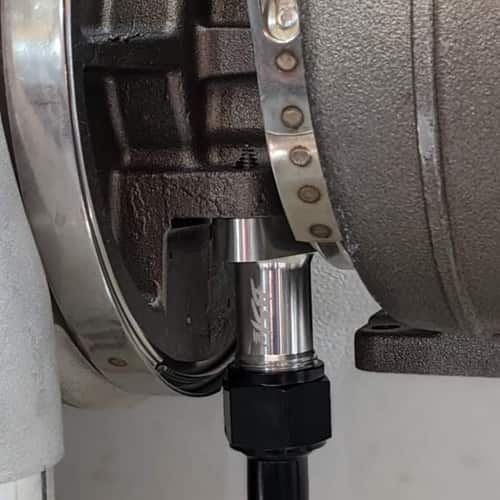

PICTURED IS INSTALLED ON A S400 T6
