    18v Flexible solar panels 50/ 100/ 120w solar - 12v battery charger waterproof

    Art: 1005005293529470-18V 120W-CZECH REPUBLIC
      Saja Kaizen Inc.

      18v Flexible solar panels 50/ 100/ 120w solar - 12v battery charger waterproof

      Art: 1005005293529470-18V 120W-CZECH REPUBLIC
      Color: 18V 120W
      Ships From:
      割引価格 $230.66定価 $0.00
      定価 $230.66

      Description

      SPECIFICATIONS



      Brand Name: BOGUANG

      Number of Panels: 1

      Flexible Solar Panel: Yes

      Foldable Solar Panel: No

      High-concerned Chemical: None

      Type: Solar Panel

      Module Efficiency: 24%

      Model: Flexible Solar Panels

      Material: Monocrystalline Silicon

      Nominal Capacity: 18V /19.8V

      Number of Cells: 36 solar cell

      Max. Power: 50W / 120W /120W

      Customisable: Yes

      50W Flexible Solar Panel: 19.8V 50W

      100W Flexible Solar Panel: 19.8V 100W

      120W Flexible Solar Panel: 18v 120W



      Dimensions:

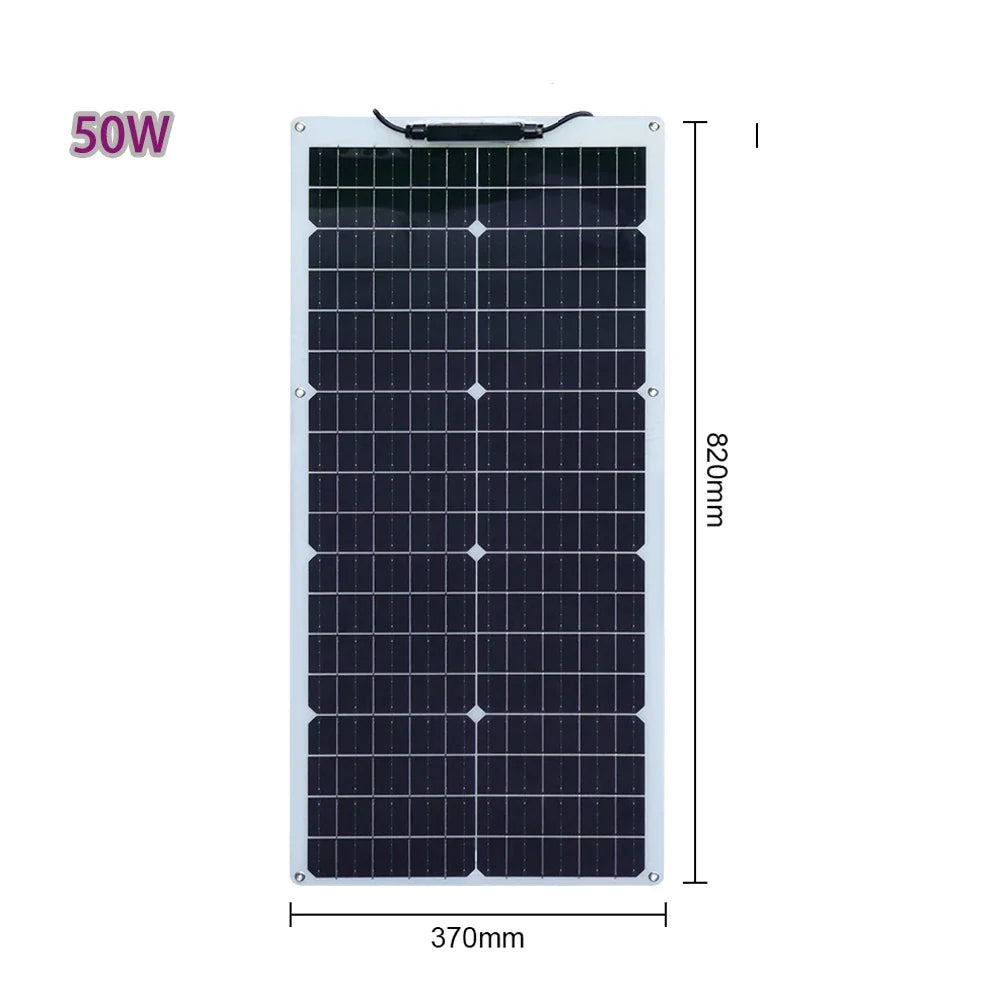

      50W Flexible Solar Panel size: 820x370x3mm

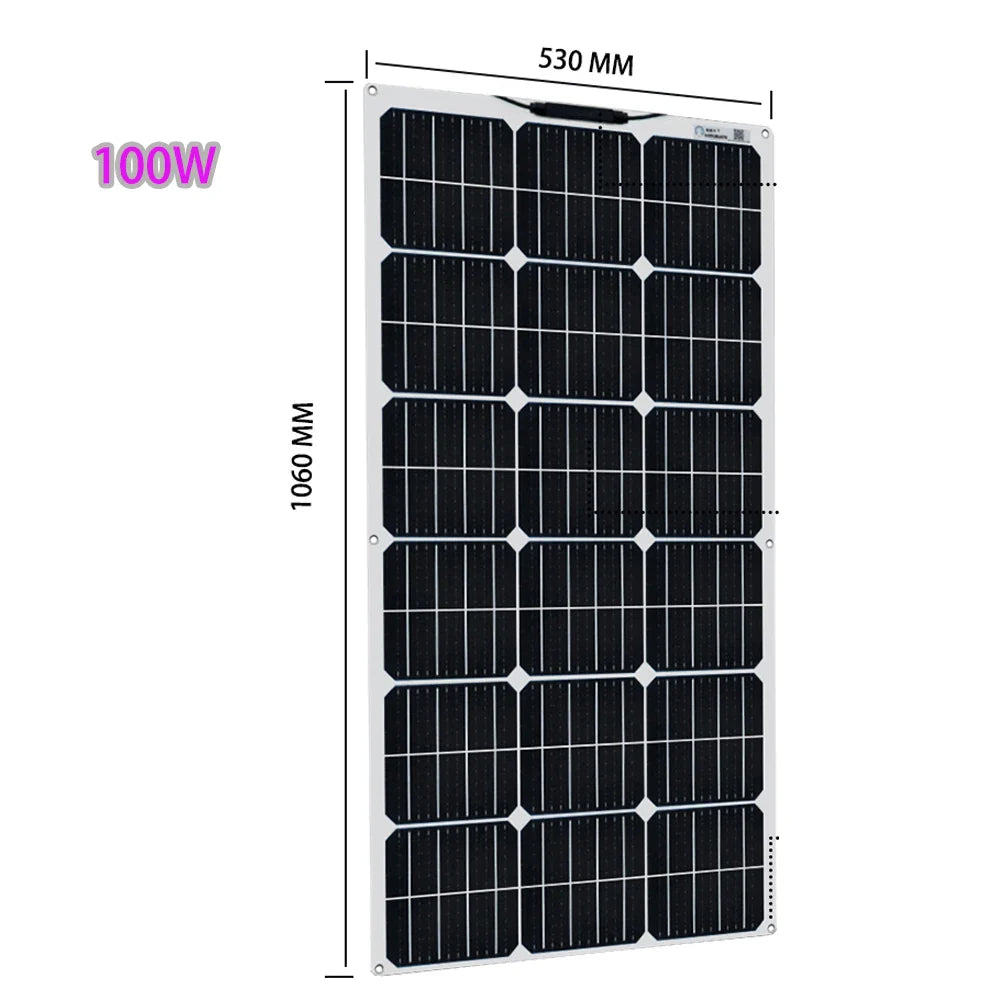

      100W Flexible Solar Panel size: 1060x530x3mm

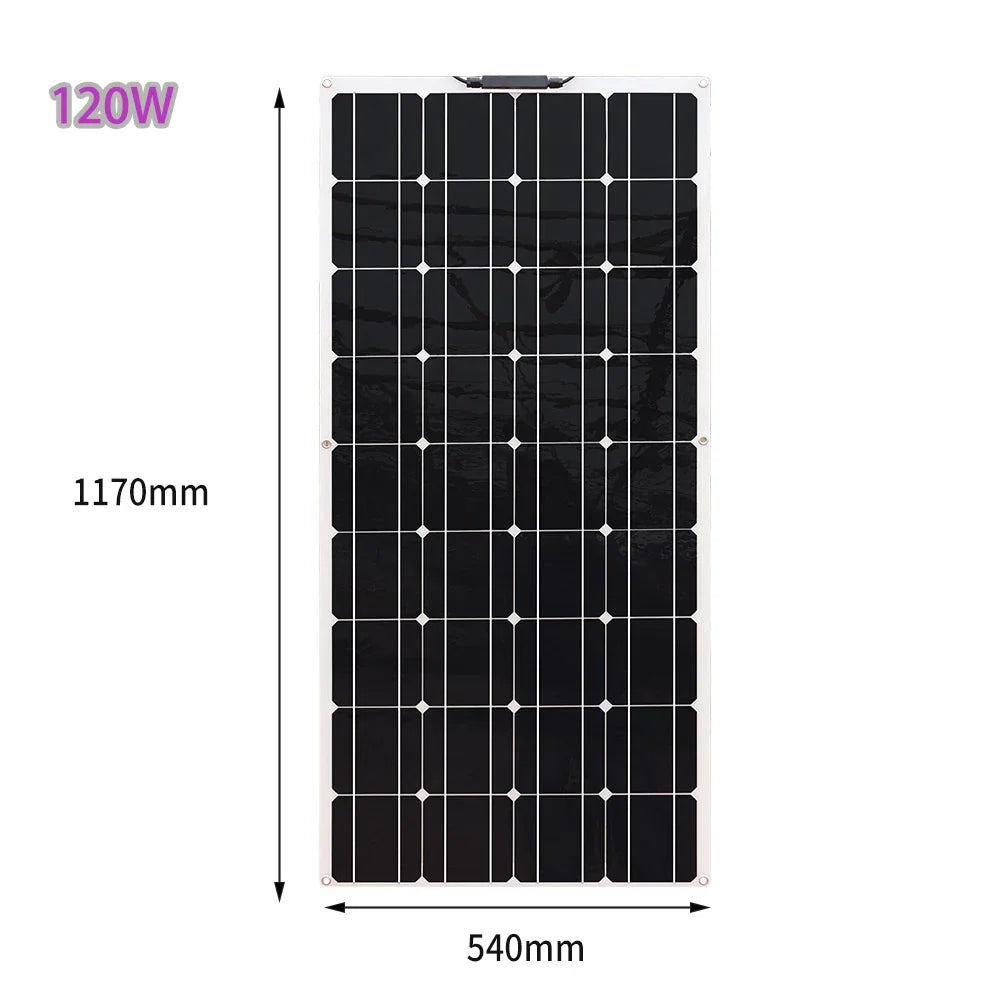

      120W Flexible Solar Panel size: 1170x540x3mm

      Solar Panel: Semi-Flexible

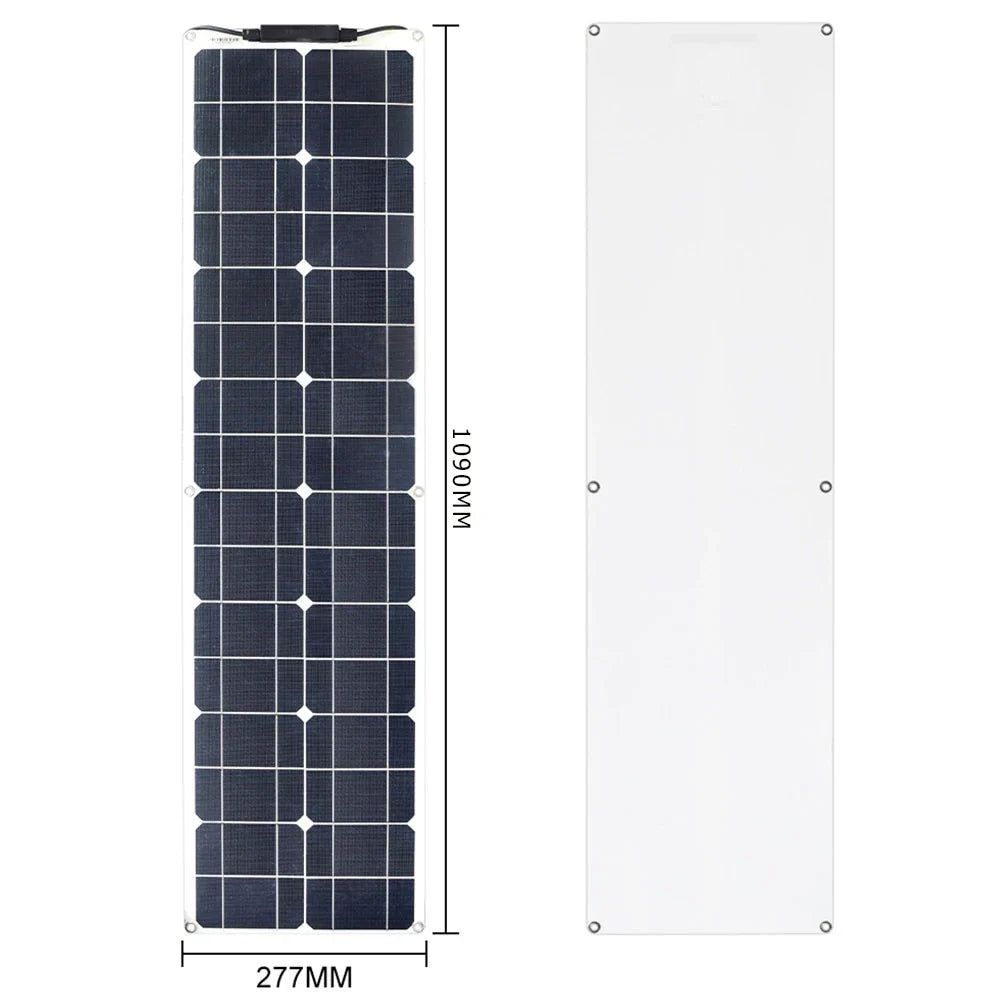

      16V 50W Flexible Solar Panel size: 1090*277*3mm



      Features:

      • Conversion efficiency 21%.
      • Generate electricity all day in the sun.
      • Can be used for fish tank circulation system, monitoring group, household photovoltaic energy storage
      • Lightweight and easy to install.
      •  Outdoor photovoltaic power generation portable device.
      • Wide range of compatibility: sailboats, yachts, marine applications, motorhomes, expedition vehicles, commercial trucks, caravans, off-grid and telematics sites, etc.


      19.8V 50W Specification:

      Cell material: Monocrystalline silicon
      Pmax (Power at Maximum under STC):50W
      Imp (Current at Max Power, A): 2.52A
      Vmp(Voltage at Max Power, V): 19.8V
      Voc(Voltage at Open Circuit): 21.8V
      Isc (Current at Short Circuit, A): 2.65A
      Solar Cell Efficiency: 24%
      Size of module: 820*370*3mm

      Net Weight: 2.56Ib (1.1kg)
      Length of Cables: 50.038cm

      19.8V 100W Specifications

      Maximum power(Pmax)                           100W
      Output tolerance                                  ± 3%
      Maximum system voltage                       700V DC
      Open circuit voltage(Voc)                        23.7V
      Short circuit current(Isc)                          5.55A
      Maximum power voltage(Vmp)              19.8V
      Maximum power current(Imp)                 5.05A
      Cell efficiency                                        24%
      Operating temperature(NOCT)          45±2℃
      Temperature range                                 -40℃~+80℃
      Number of cells                                      33pcs
      Weight                                              1950g
      Size                                              1060*530*3 mm
      Colour: Black
      Standard Test Conditions: Irradiance 1000w/m2,Temperature 25℃,AM=1.5

      18V 120W Specification

      Maximum Power(Pmax): 120W

      Output Tolerance: ± 3%

      Maximum System Voltage: 700V DC

      Open Circuit Voltage(Voc): 21.6V

      Maximum Power Voltage(Vmp): 18V

      Short Circuit Current(Isc) 6.8 A

      Maximum Power Current(Imp) 6.5A

      Cell Efficiency: 21%

      Operating Temperature(NOCT): 45±2℃

      Temperature Range: -40℃~+80℃

      Number Of Cells: 36pcs

      Weight: 2100g

      Size: 1170*540*2.5 mm
      Standard Test Conditions: Irradiance 1000w/m2,Temperature 25℃,AM=1.5
