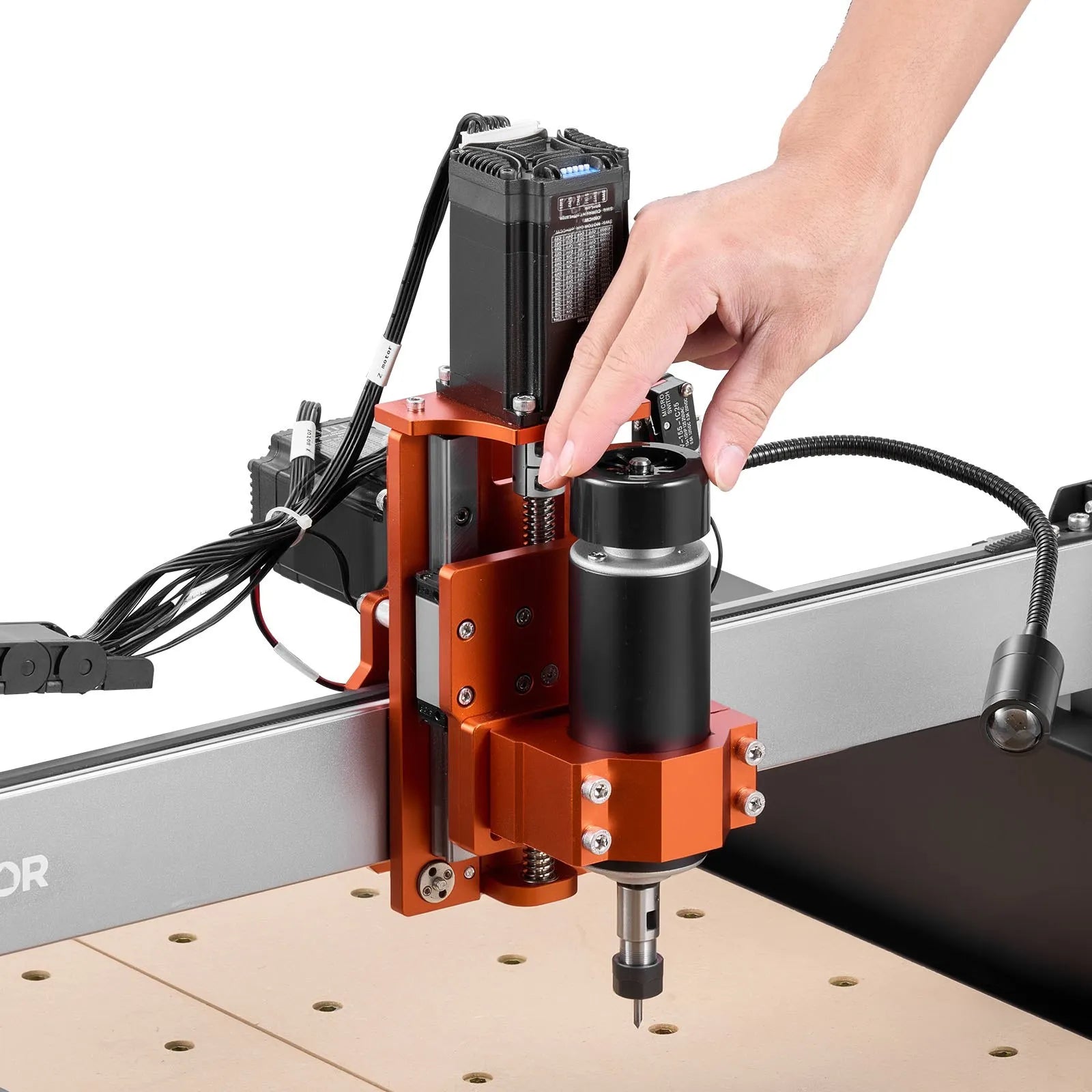

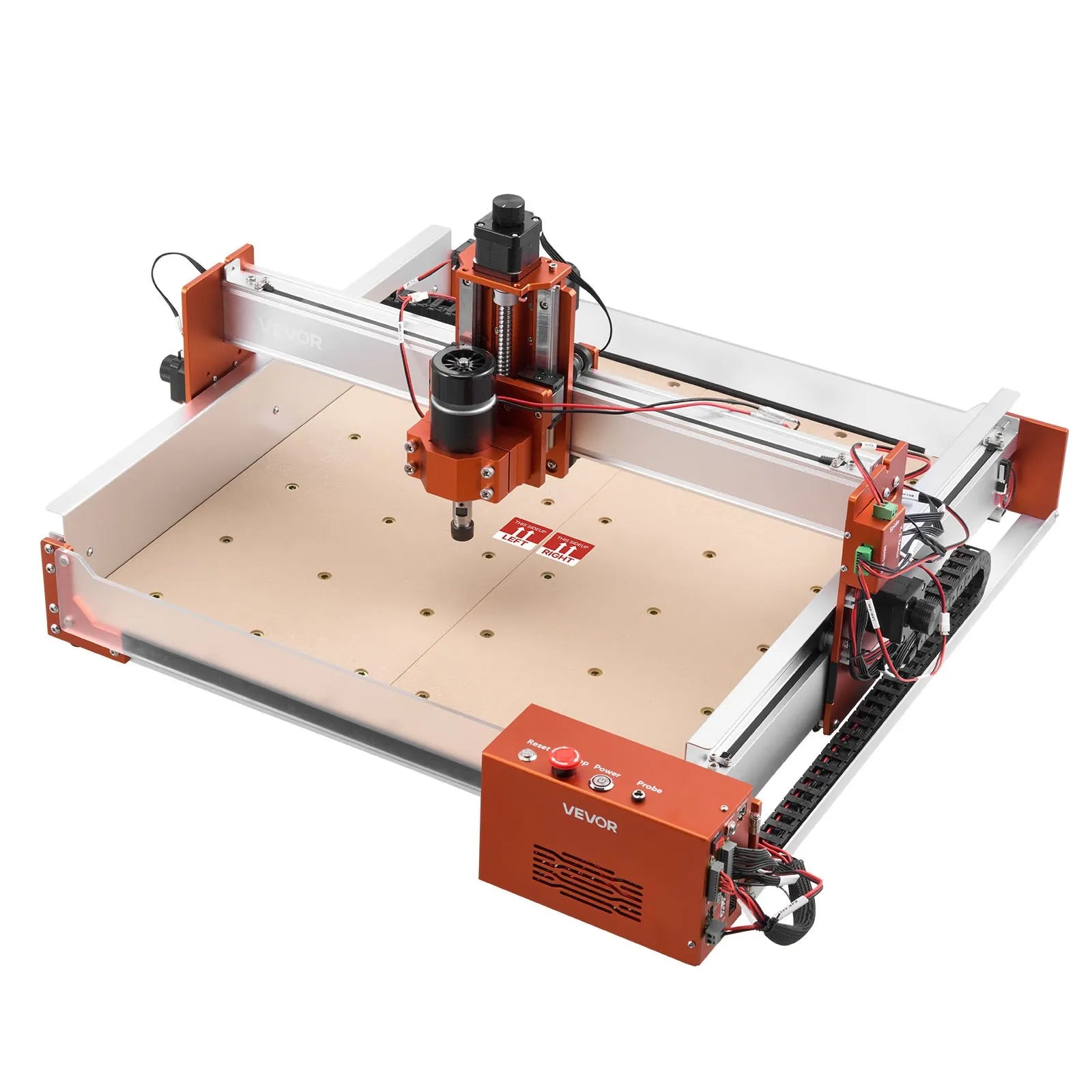

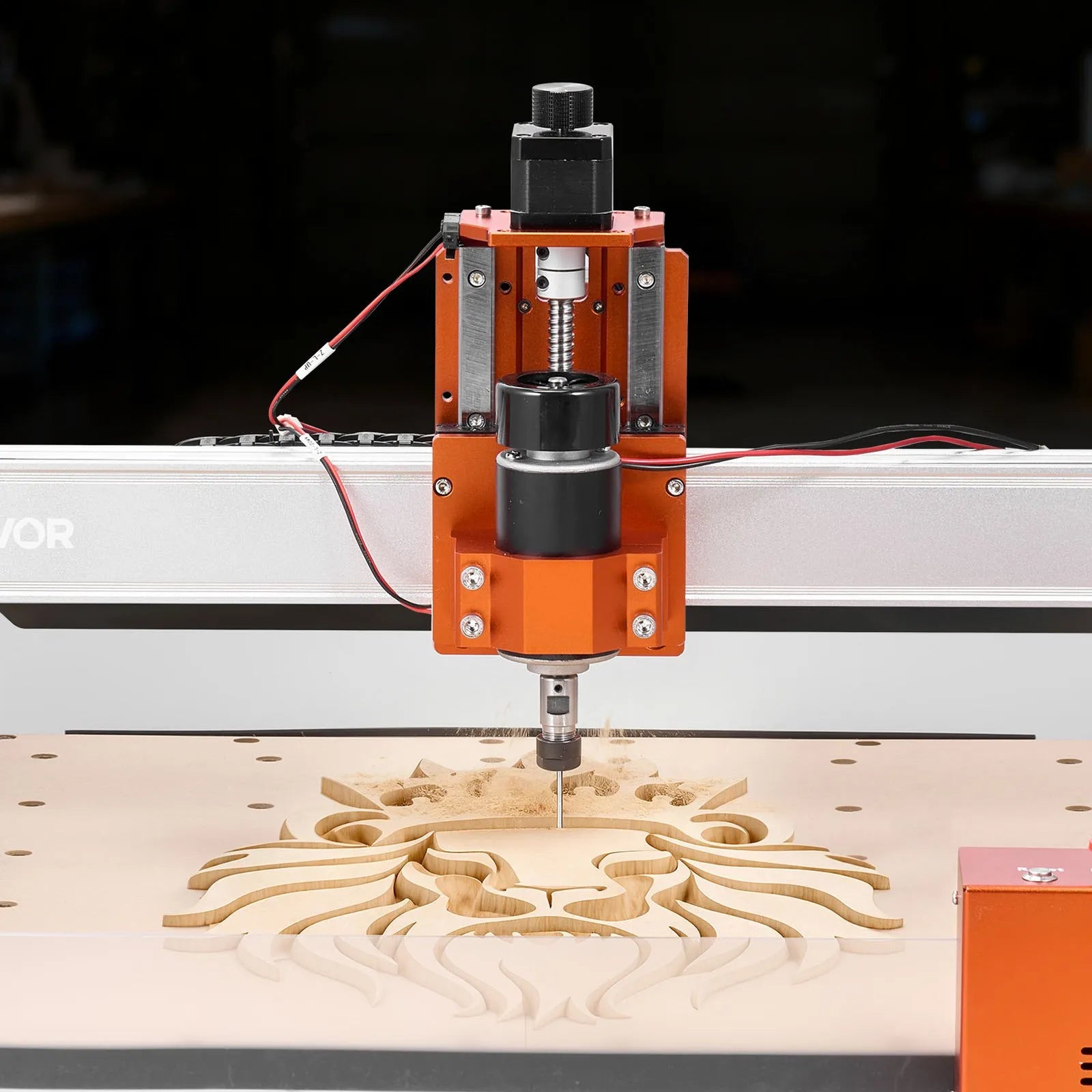

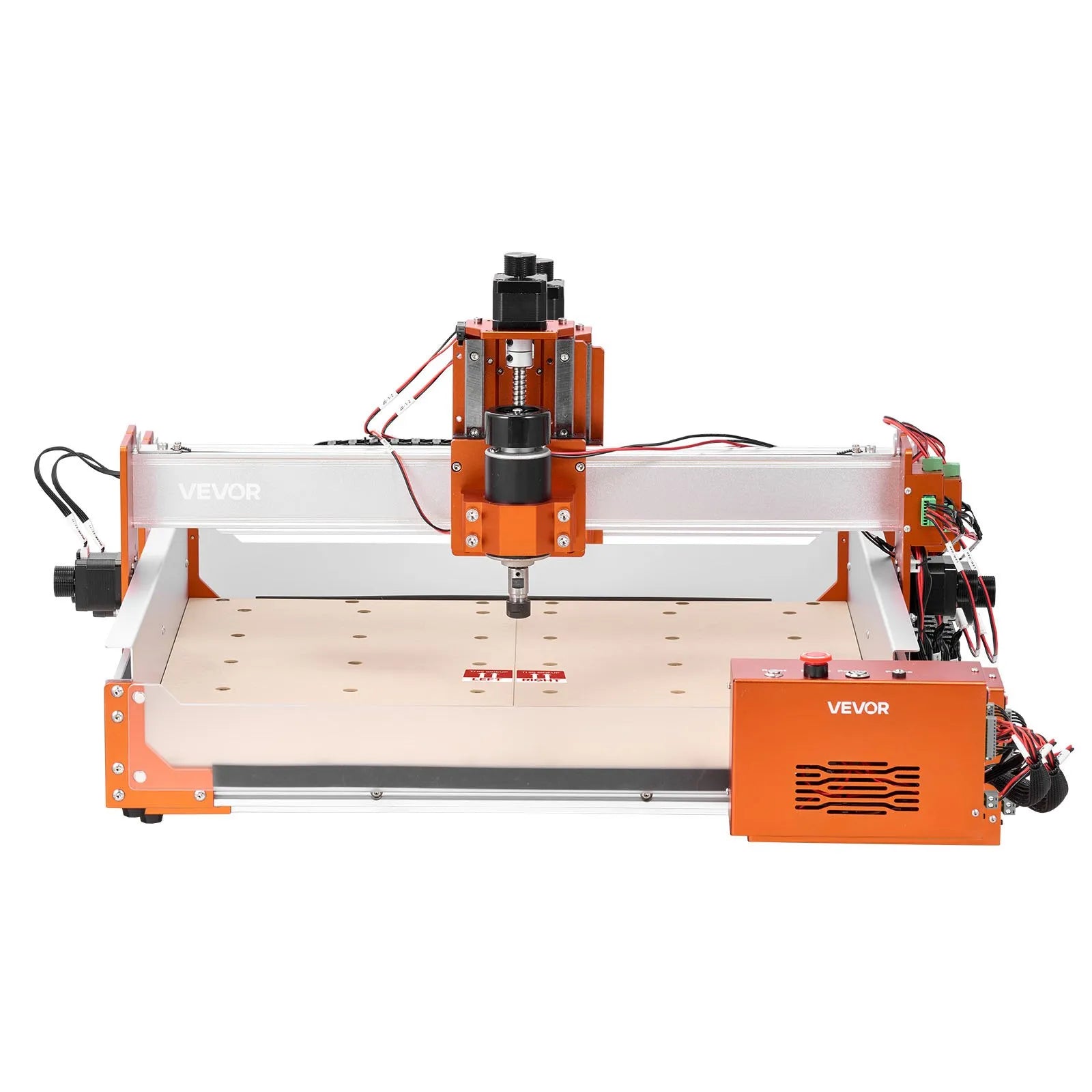

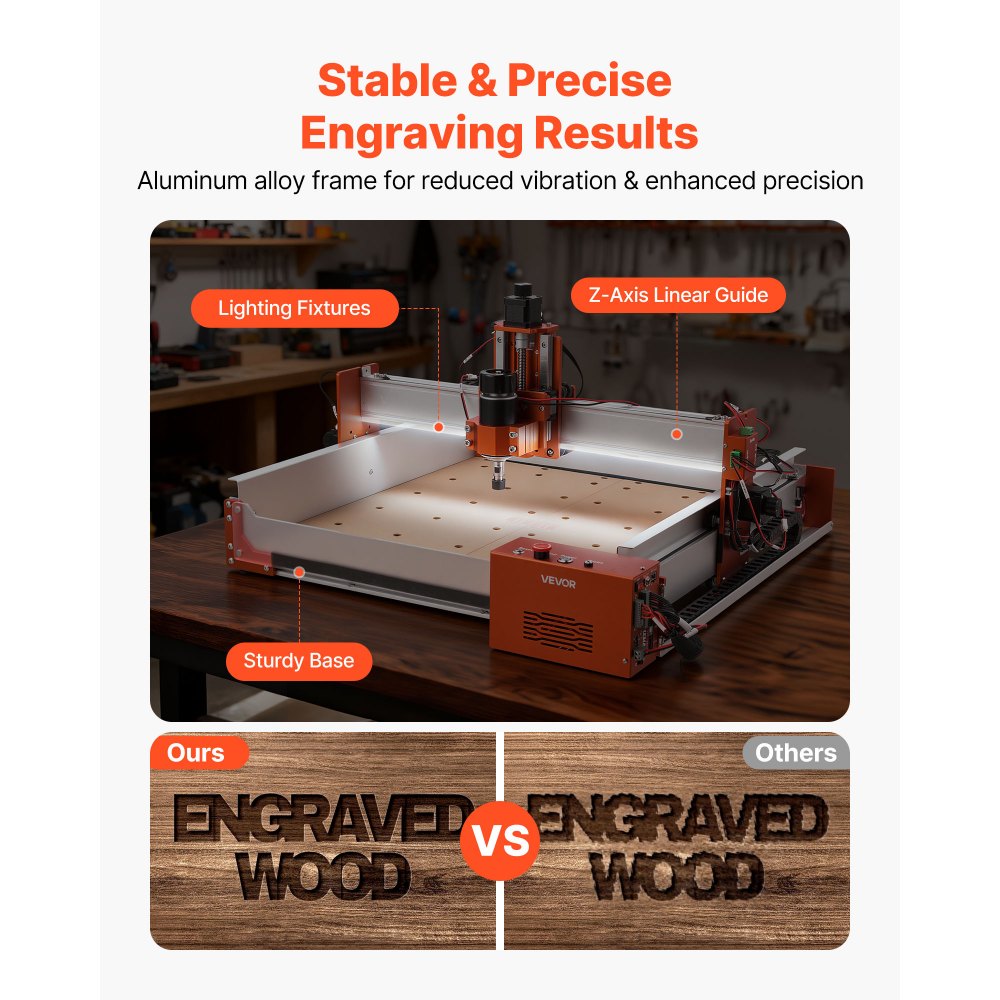

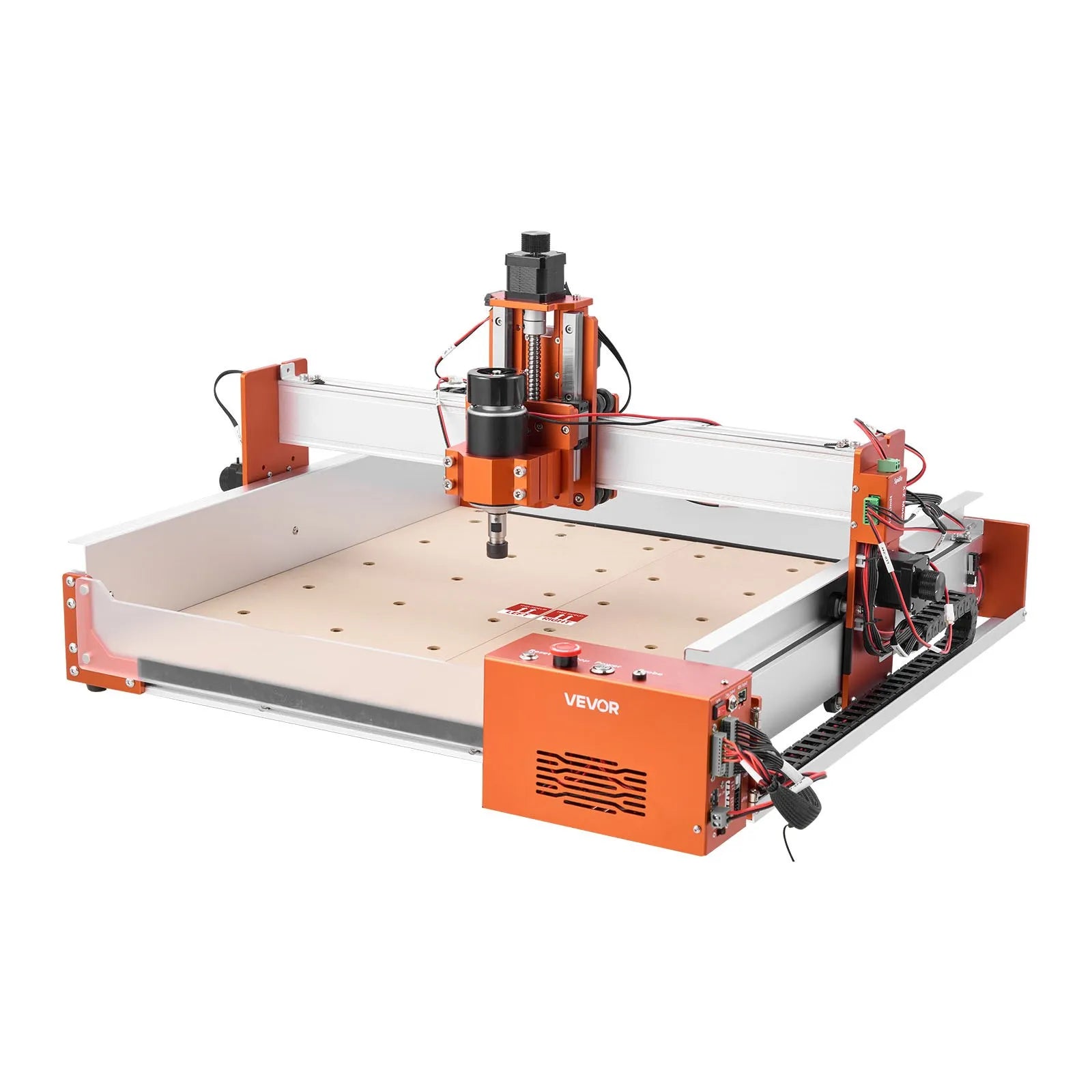

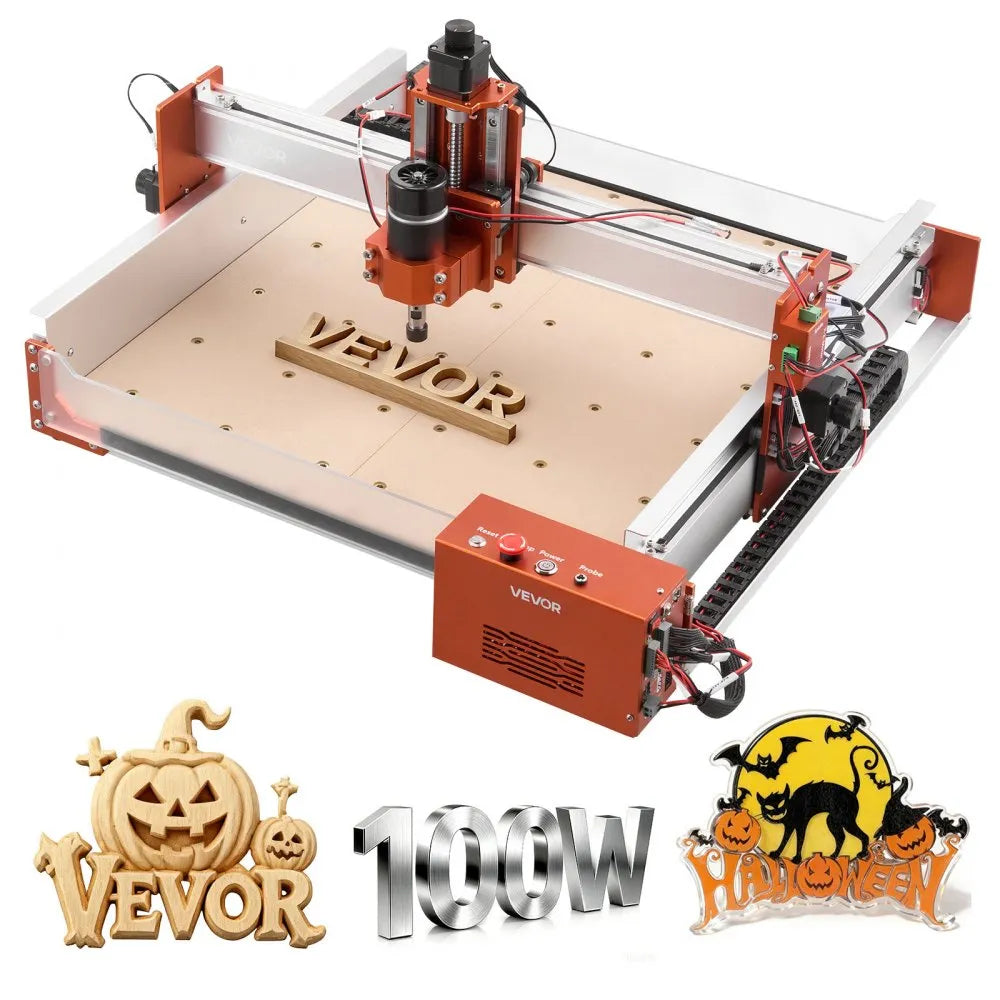

The VEVOR 4040PRO CNC Router Machine is a high-precision 3-axis desktop engraving and milling solution built for stability, accuracy, and expansion. Featuring a rigid aluminum alloy frame, Z-axis linear rail, and a 100W spindle, this CNC router delivers smooth, consistent results for makers, hobbyists, and small workshops. Its large 400 × 400 mm work area makes it ideal for signs, panels, crafts, and detailed projects.

Features:

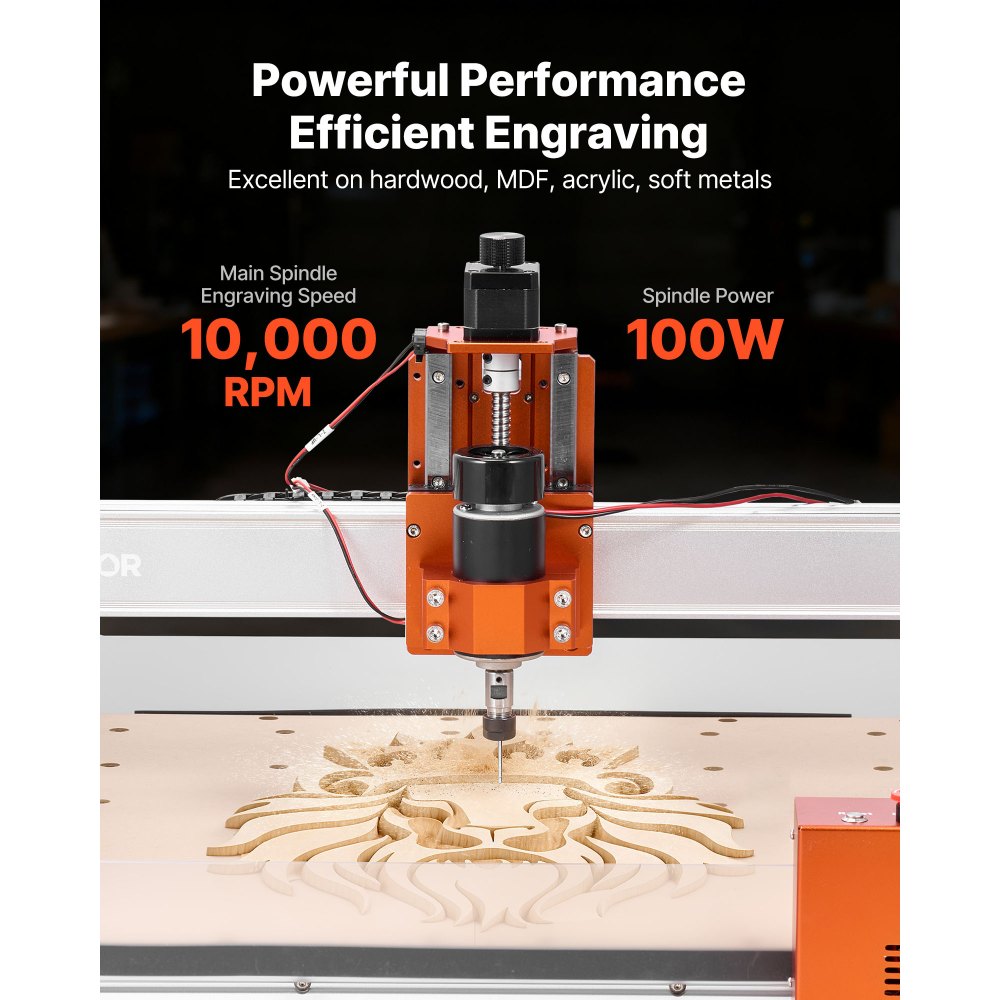

• High Precision Engraving: 100W spindle, Z-axis linear rail, and 32-bit control board deliver ≤0.05 mm repeat positioning accuracy

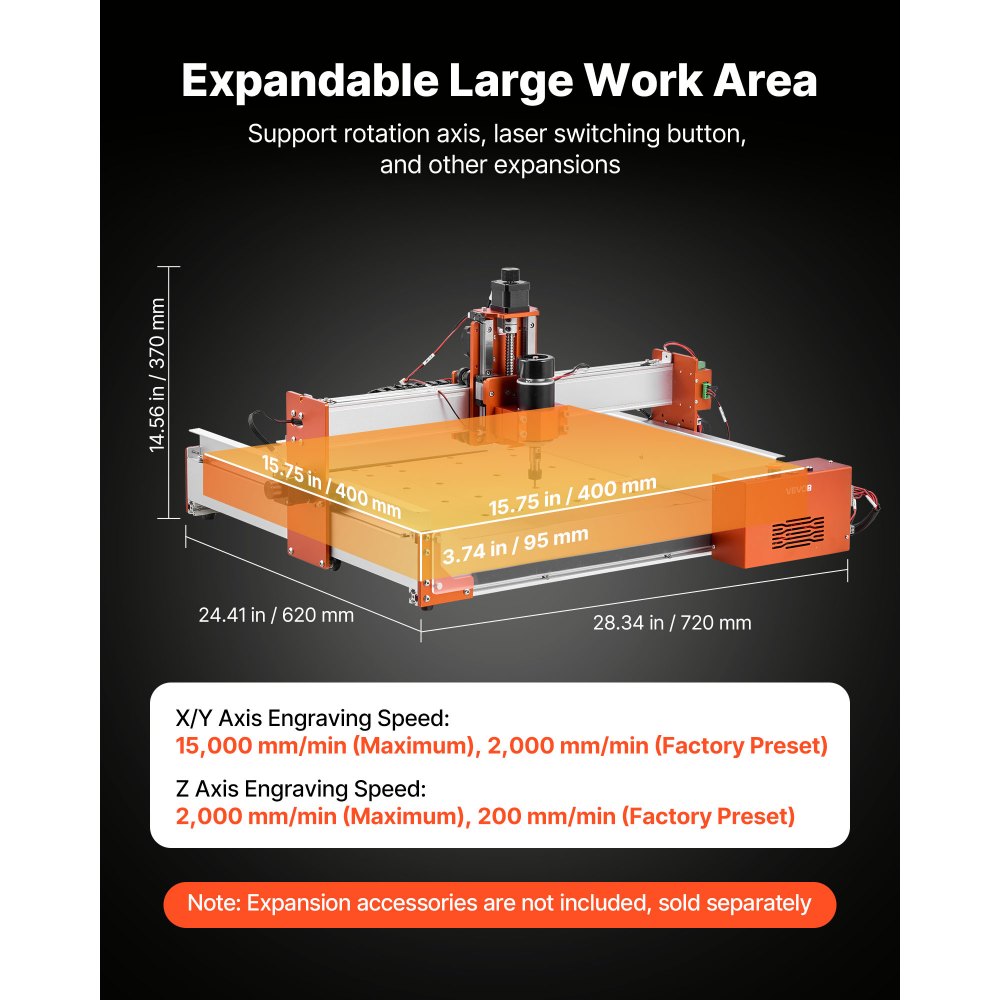

• Large 4040 Work Area: Spacious 400 × 400 × 95 mm work area supports larger projects and thicker materials

• Expandable Design: Supports optional laser module and rotary axis expansion (sold separately)

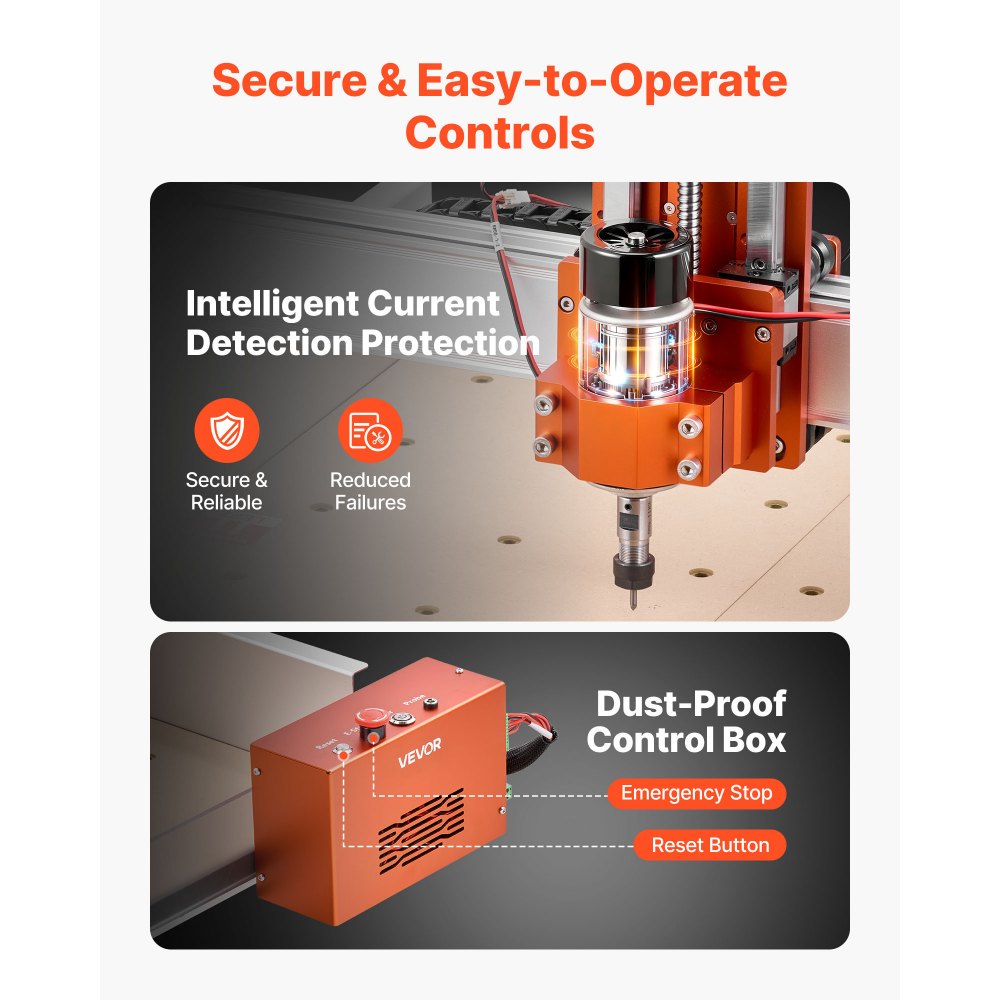

• Durable & Safe Operation: Current-detection spindle protection extends lifespan up to 5,000 hours; includes dust guard, emergency stop, and home buttons

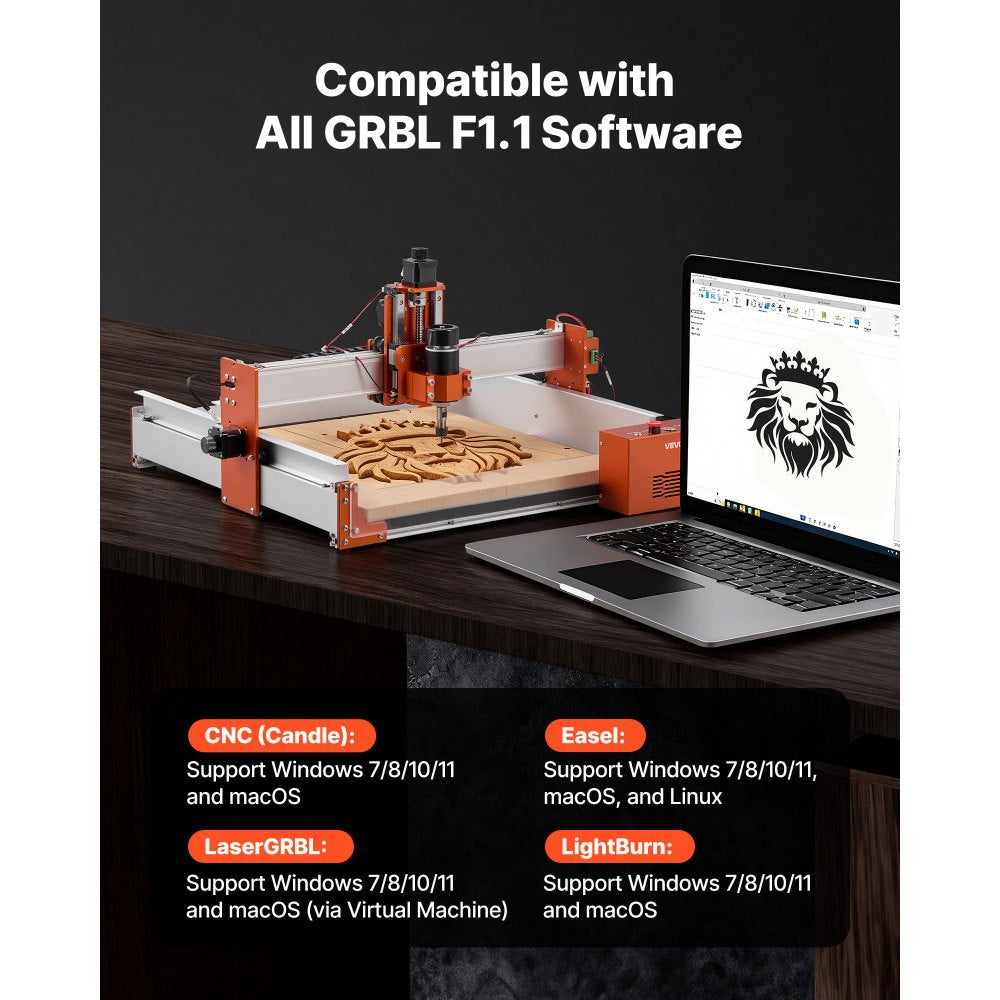

• Wide Software Compatibility: Supports GRBL f1.1 firmware and works with Candle (included), Easel, LaserGRBL, and LightBurn on Windows, macOS, and Linux

• Easy Setup & Visibility: Pre-assembled components allow fast installation; built-in LED lighting improves visibility and reduces shadows

• Precise Speed Control: Rotary knob enables accurate spindle speed adjustments

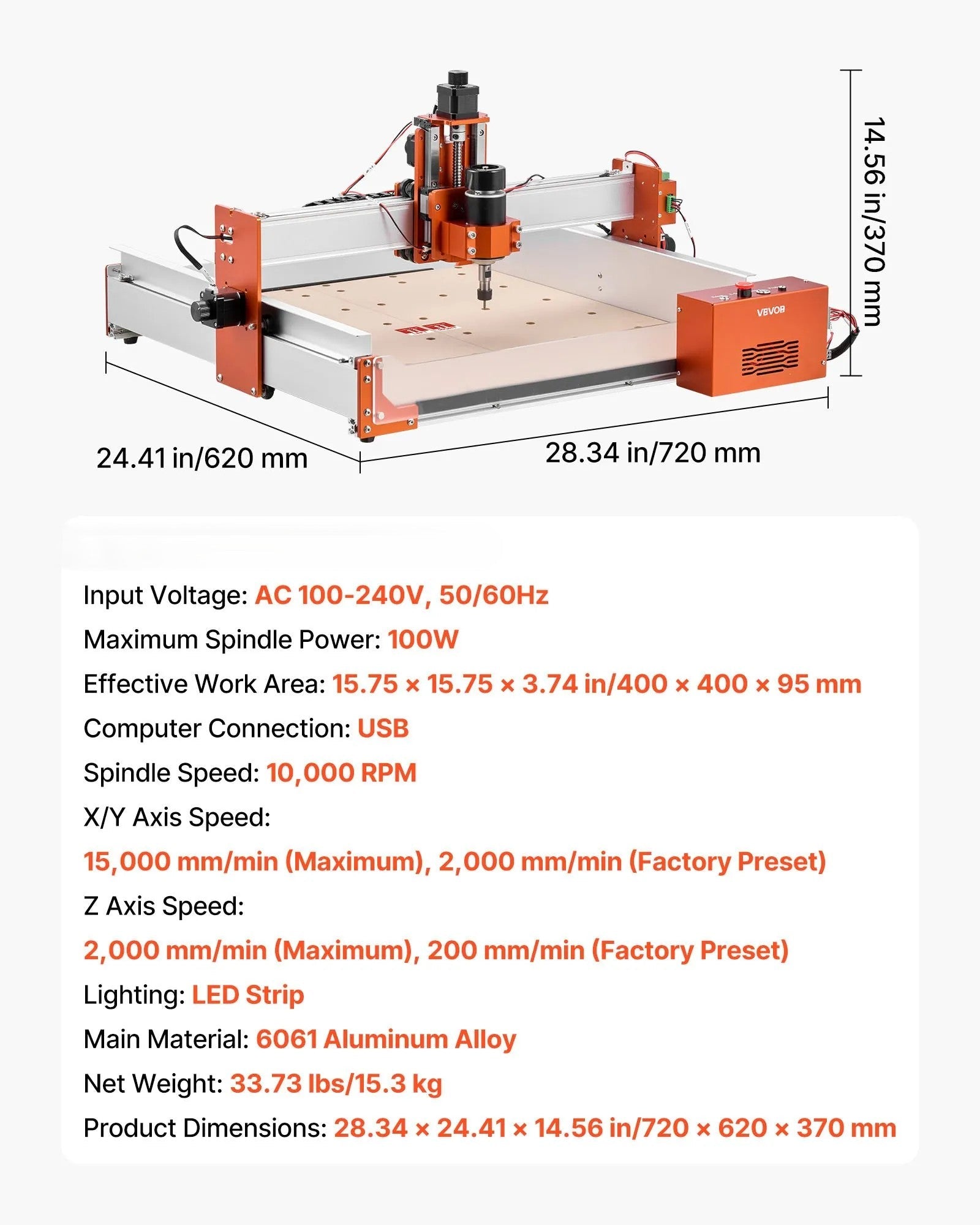

Specifications:

• Item Model Number: 4040PRO

• Input Voltage: AC 100–240V, 50/60Hz

• Maximum Spindle Power: 100W

• Spindle Speed: 10,000 RPM

• Effective Work Area: 400 × 400 × 95 mm (15.75 × 15.75 × 3.74 in)

• X/Y Axis Speed: Up to 15,000 mm/min (2,000 mm/min preset)

• Z Axis Speed: Up to 2,000 mm/min (200 mm/min preset)

• Computer Connection: USB

• Lighting: LED strip

• Main Material: 6061 Aluminum Alloy
