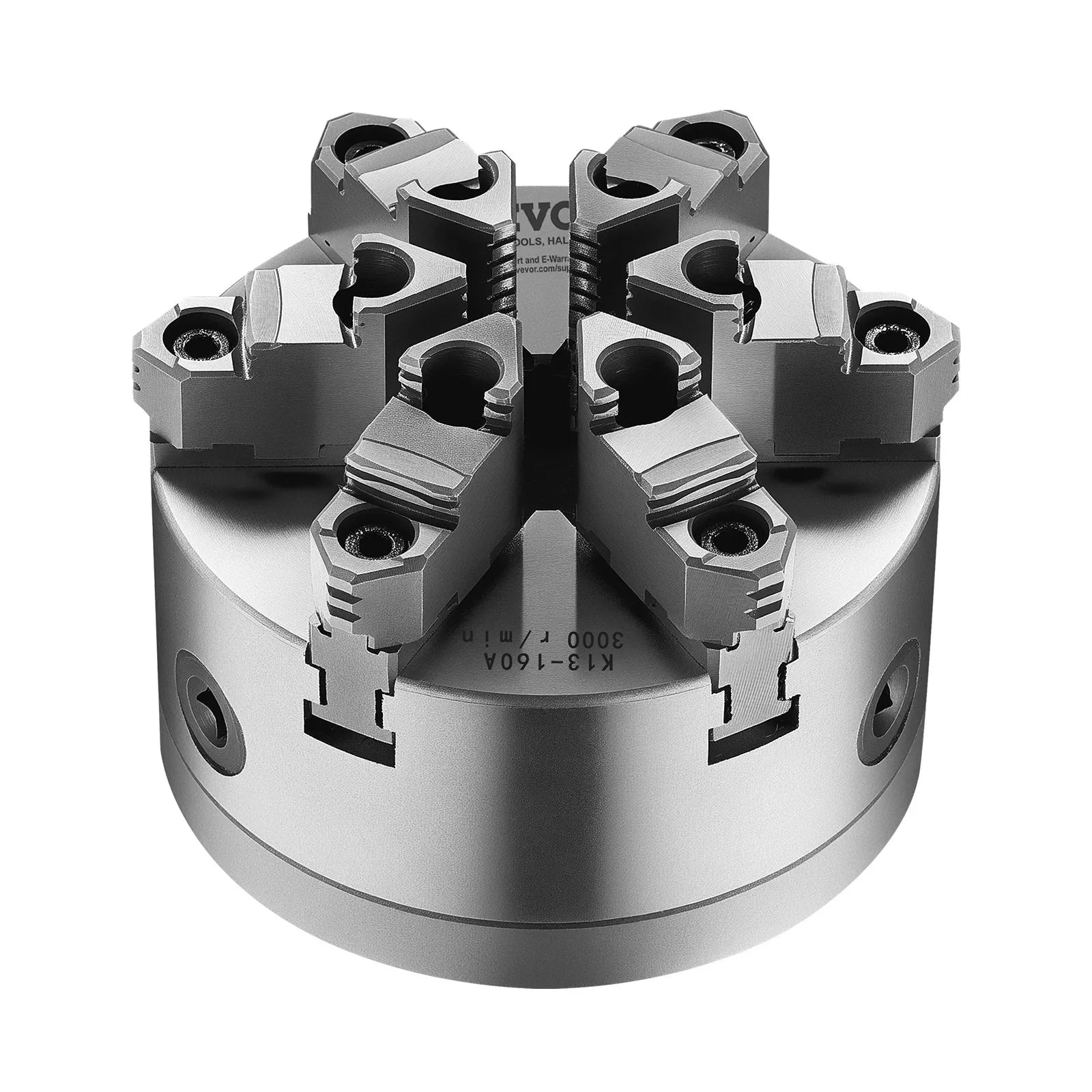

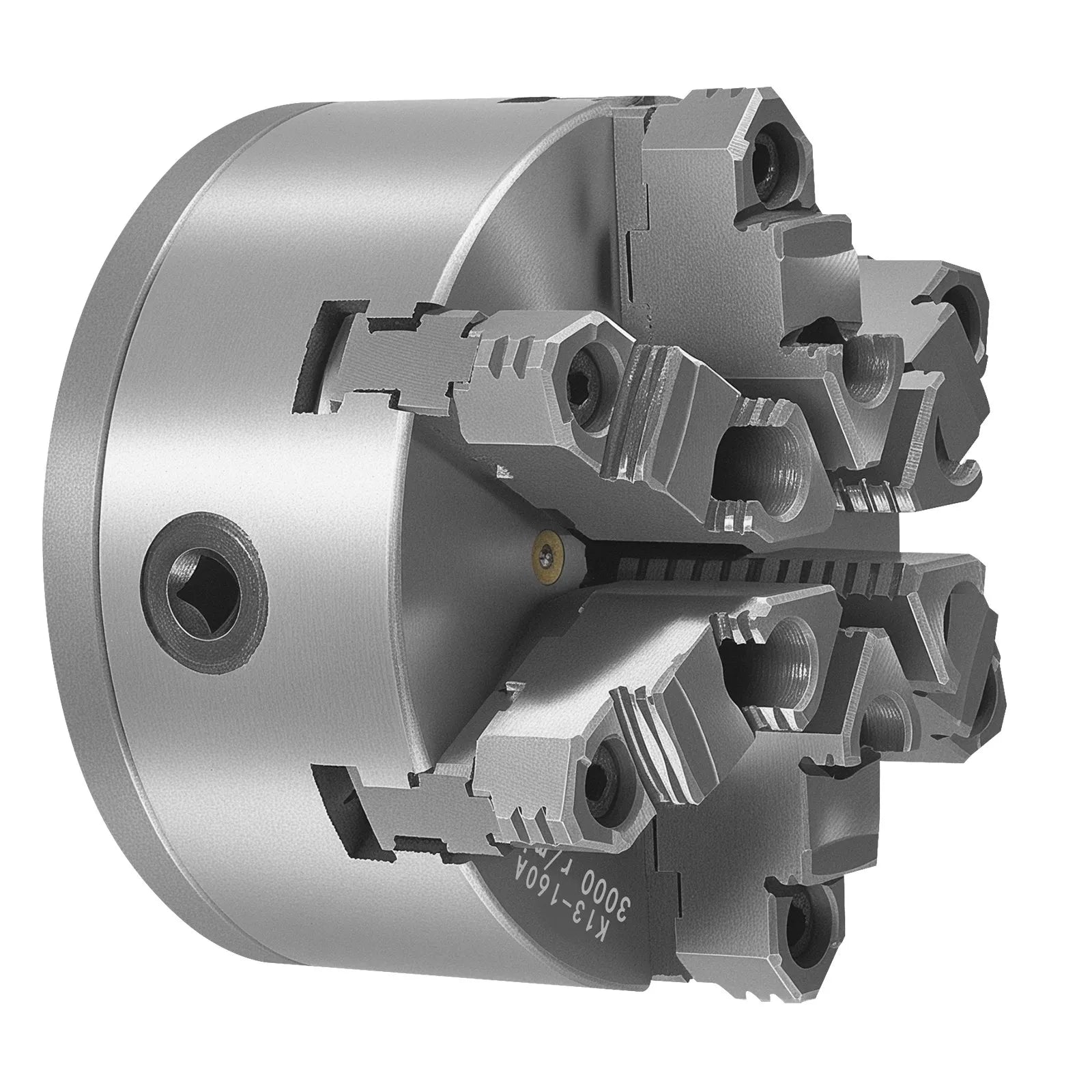

The VEVOR 6 in 6-Jaw Self-Centering Lathe Chuck with D1-4 Cam Lock Backing Plate is engineered for precision and stability. Ideal for metalworking, it allows accurate clamping of round, square, or irregular workpieces. With its durable HT300 cast iron construction and simple operation, it’s perfect for lathes requiring high rigidity and reliable performance.
Key Features
-

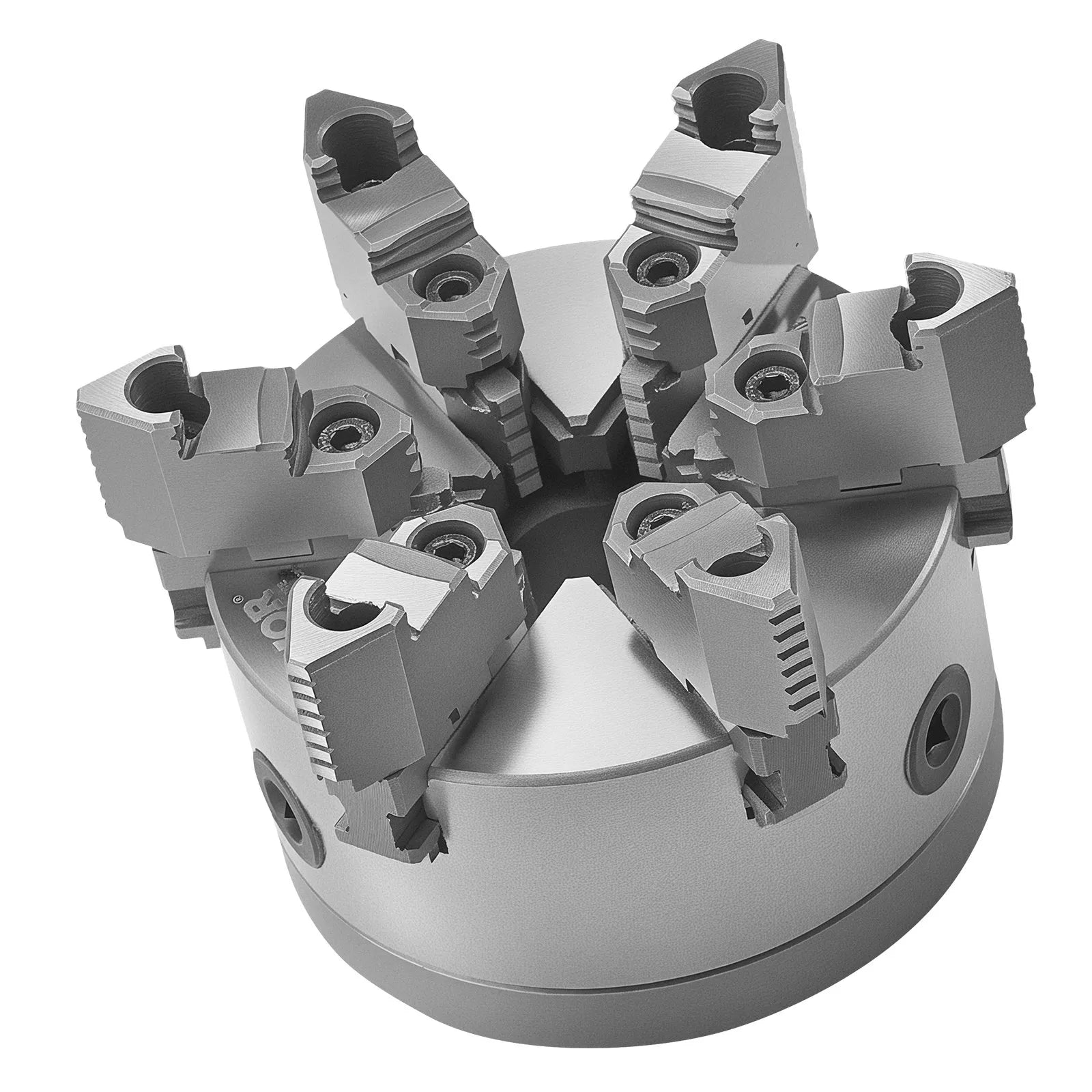

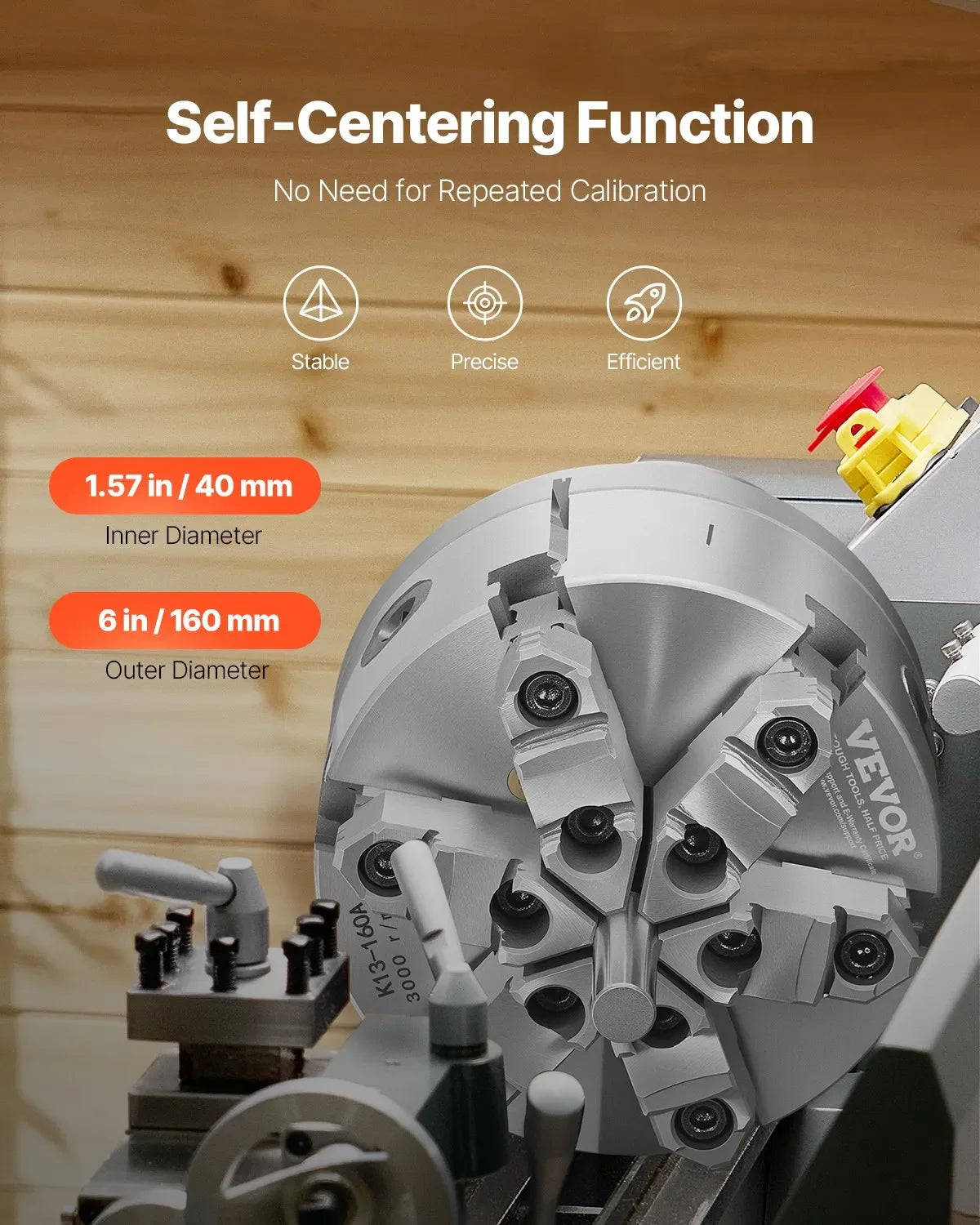

Self-centering 6-jaw design for uniform clamping and precision machining
-

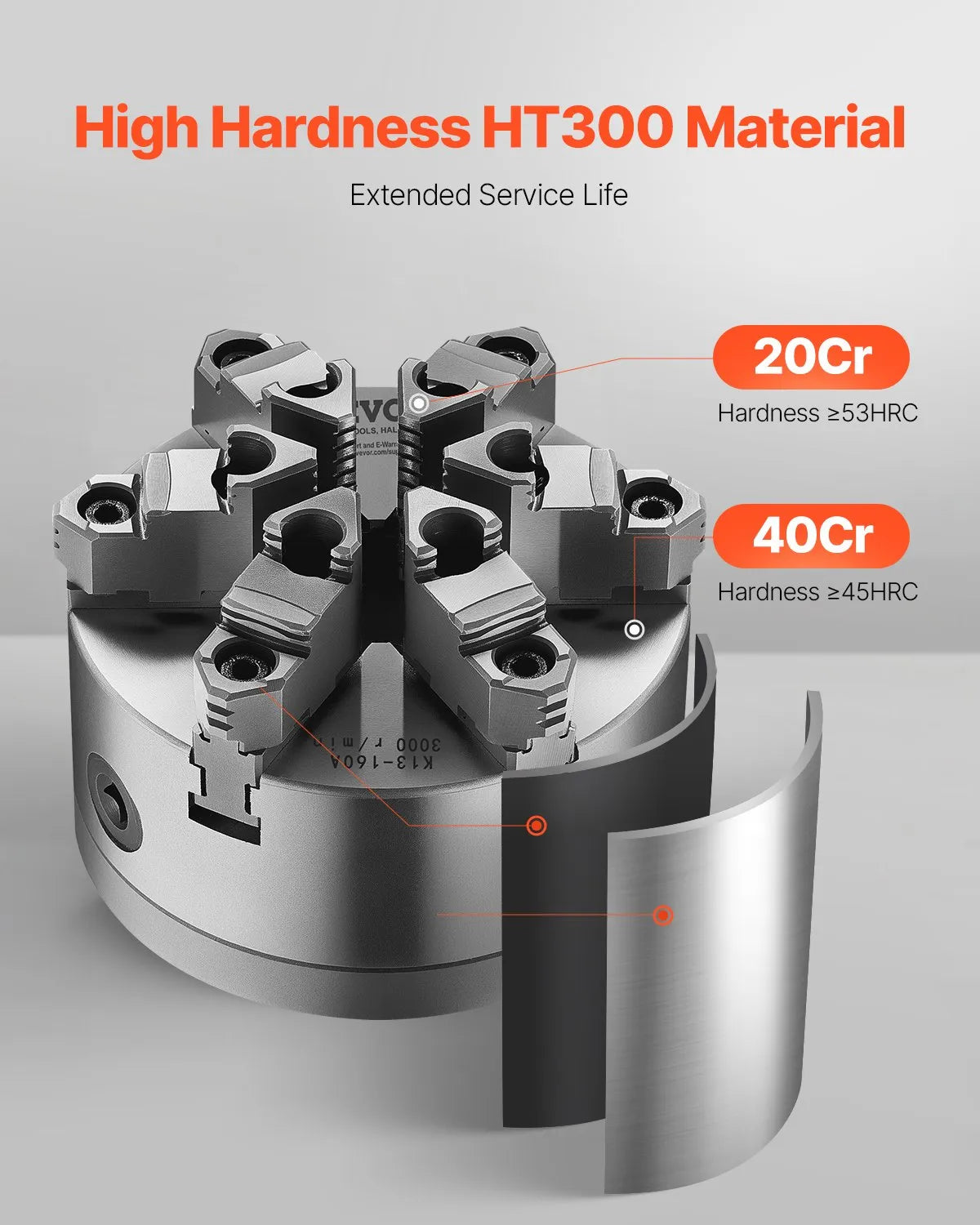

High hardness HT300 material for long-lasting durability
-
Suitable for both internal and external clamping tasks
-
Separate jaws for versatile applications
-

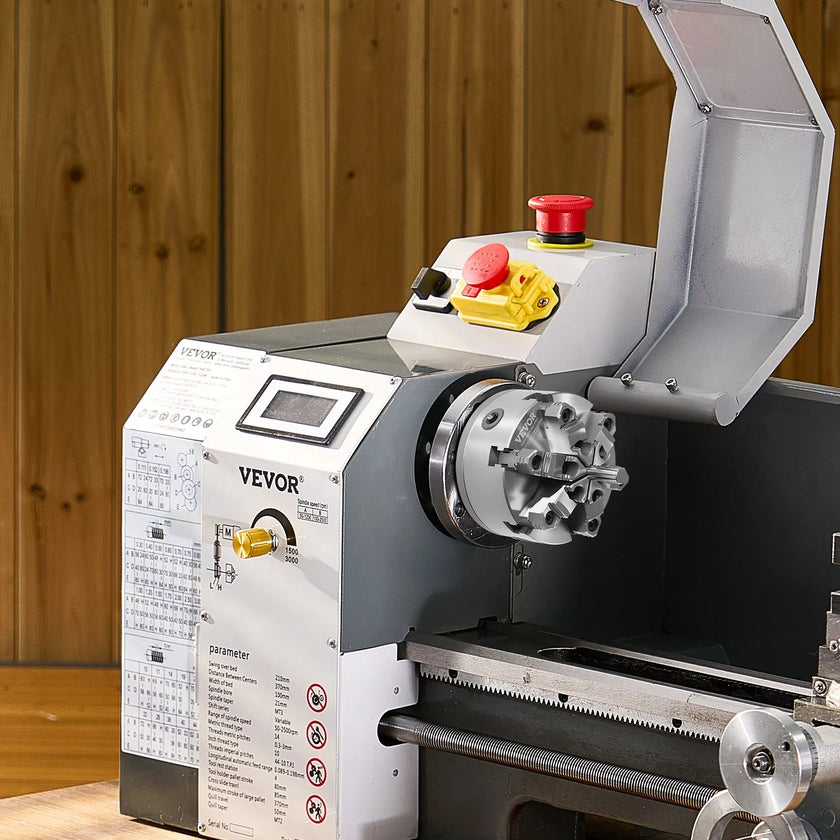

D1-4 Cam Lock Backing Plate for secure lathe mounting
-

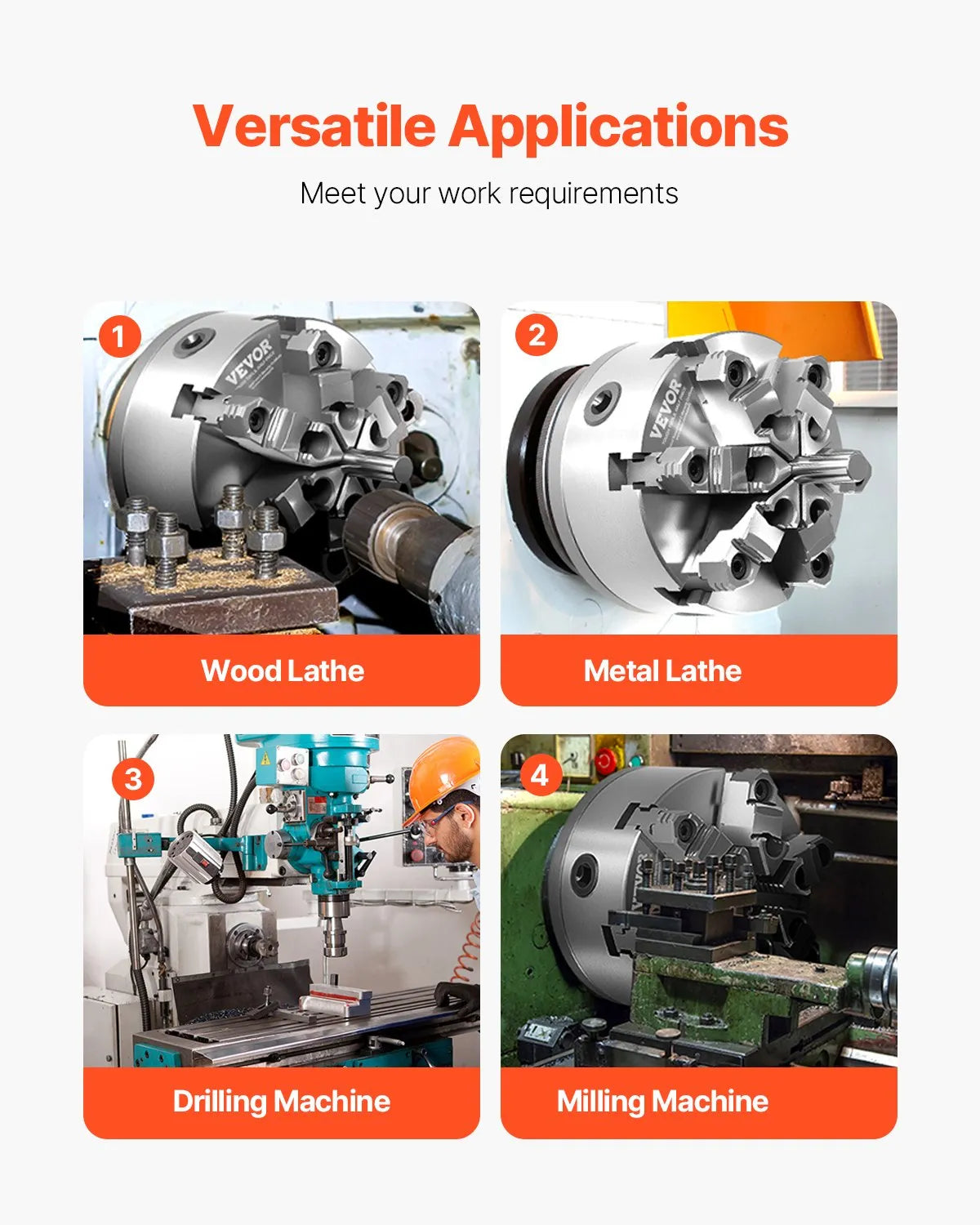

Wide application: metalworking, woodturning, and industrial machining
-

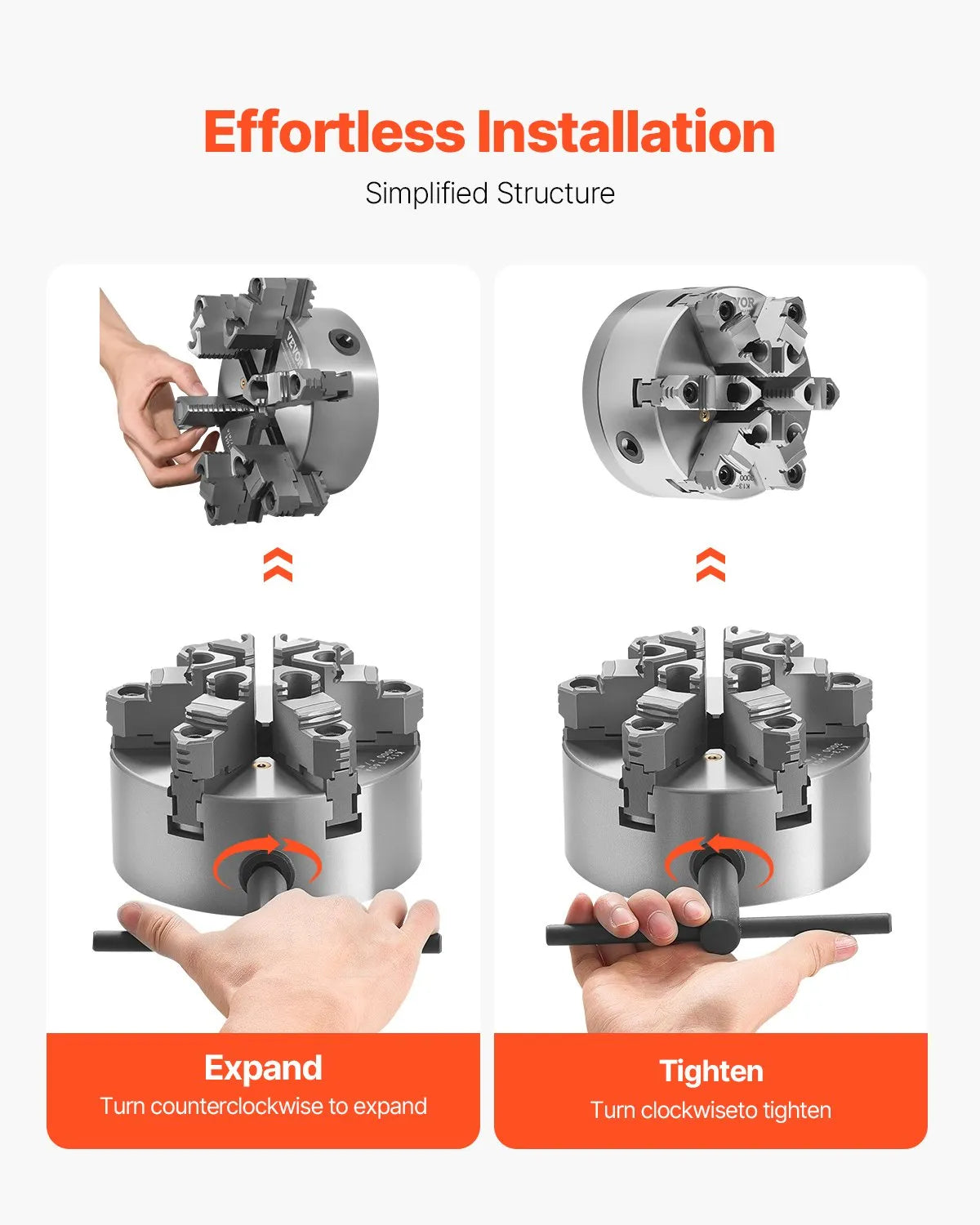

Simple operation with stable and reliable performance

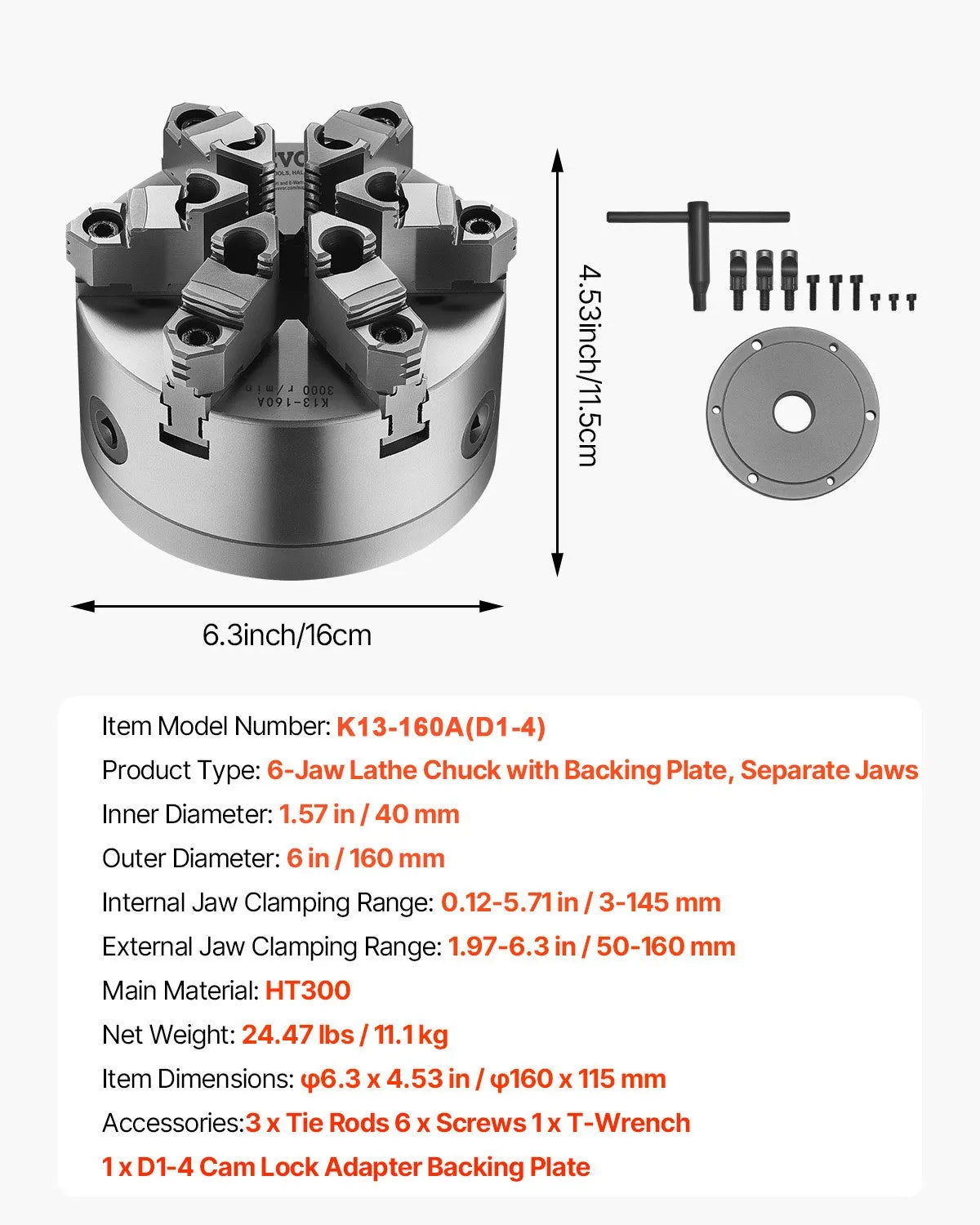

Specifications
-
Outer Diameter: 6 in / 160 mm
-
Inner Diameter: 1.57 in / 40 mm
-

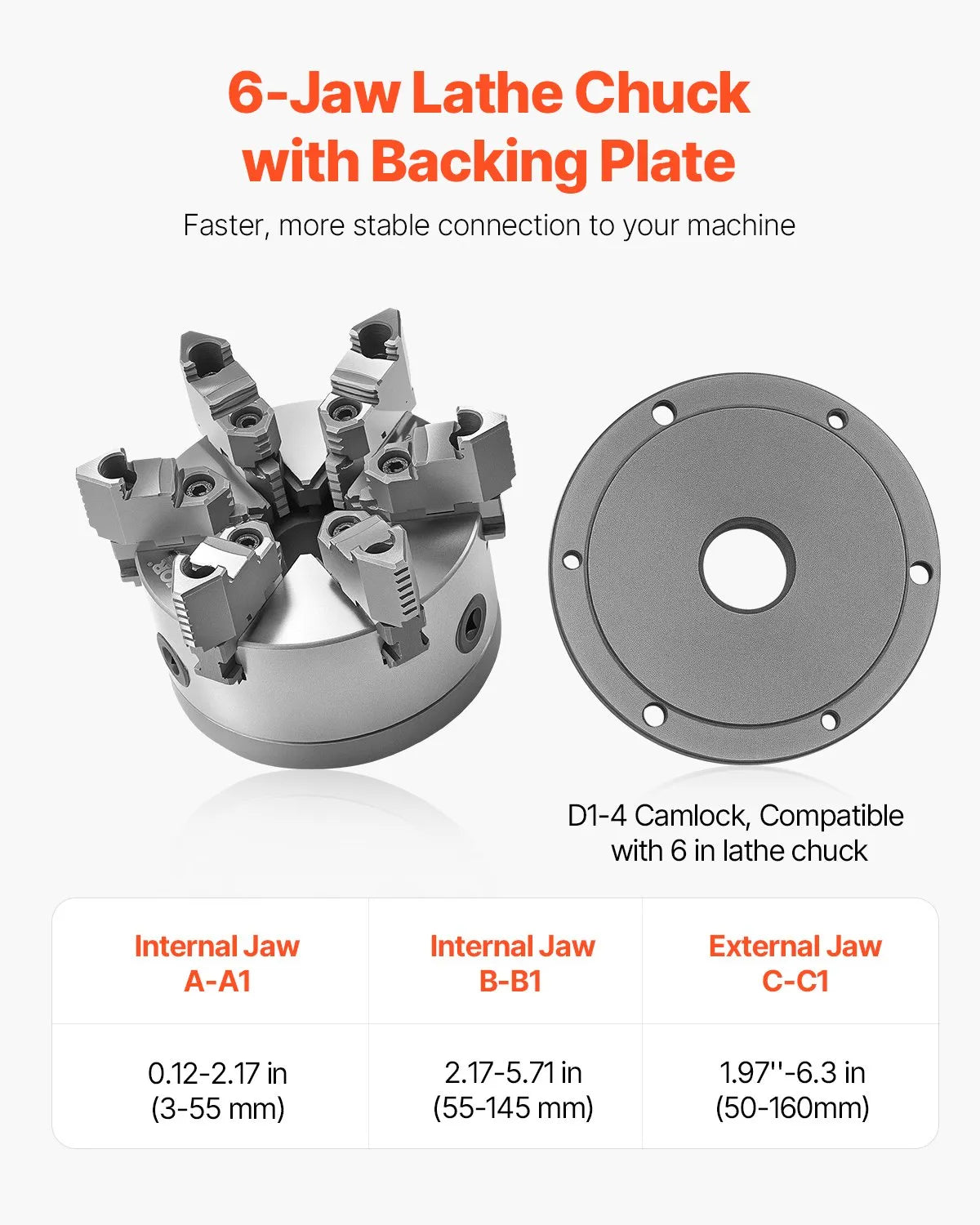

Internal Jaw Clamping Range: 0.12-5.71 in / 3-145 mm
-
External Jaw Clamping Range: 1.97-6.3 in / 50-160 mm
-
Product Dimensions: φ6.3 x 4.53 in / φ160 x 115 mm
-
Product Type: 6-Jaw Lathe Chuck with Backing Plate
-
Item Model Number: K11 160A（D1-4）
-
Net Weight: 24.47 lbs / 11.1 kg
-
Main Material: HT300 Cast Iron
