Description
Streamline oil dispensing and fluid transfer tasks with the VEVOR 1/2" x 33 ft Retractable Oil Hose Reel. Designed for professional workshops, maintenance facilities, fleet service centers, and industrial environments, this heavy-duty hose reel provides reliable performance for handling engine oil, gear oil, hydraulic oil, and petroleum-based fluids.

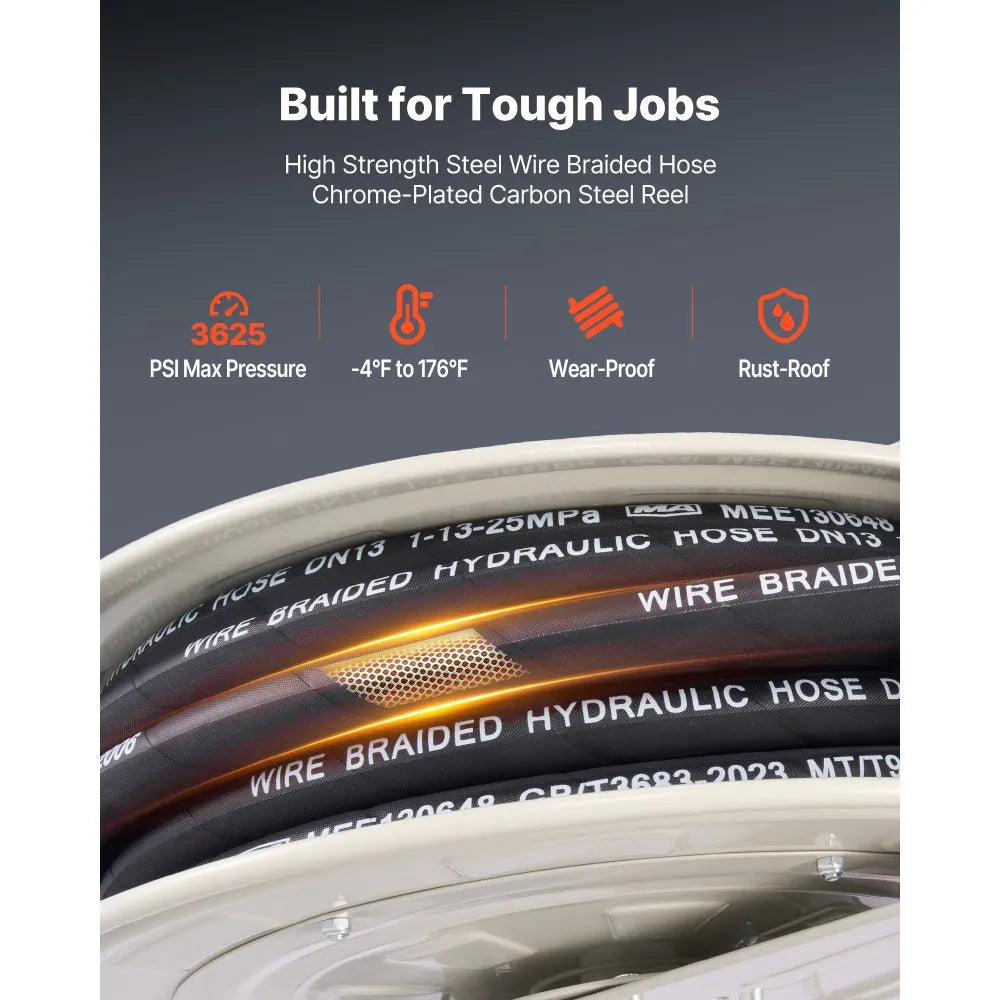

Built with a durable SAE 100R1AT steel wire braided hose, the reel is rated for pressures up to 3625 PSI, making it ideal for demanding fluid transfer applications. The heavy-duty powder-coated steel drum features rolled edges and reinforced dual-sided support brackets to withstand high-pressure operation, oil exposure, and everyday wear.

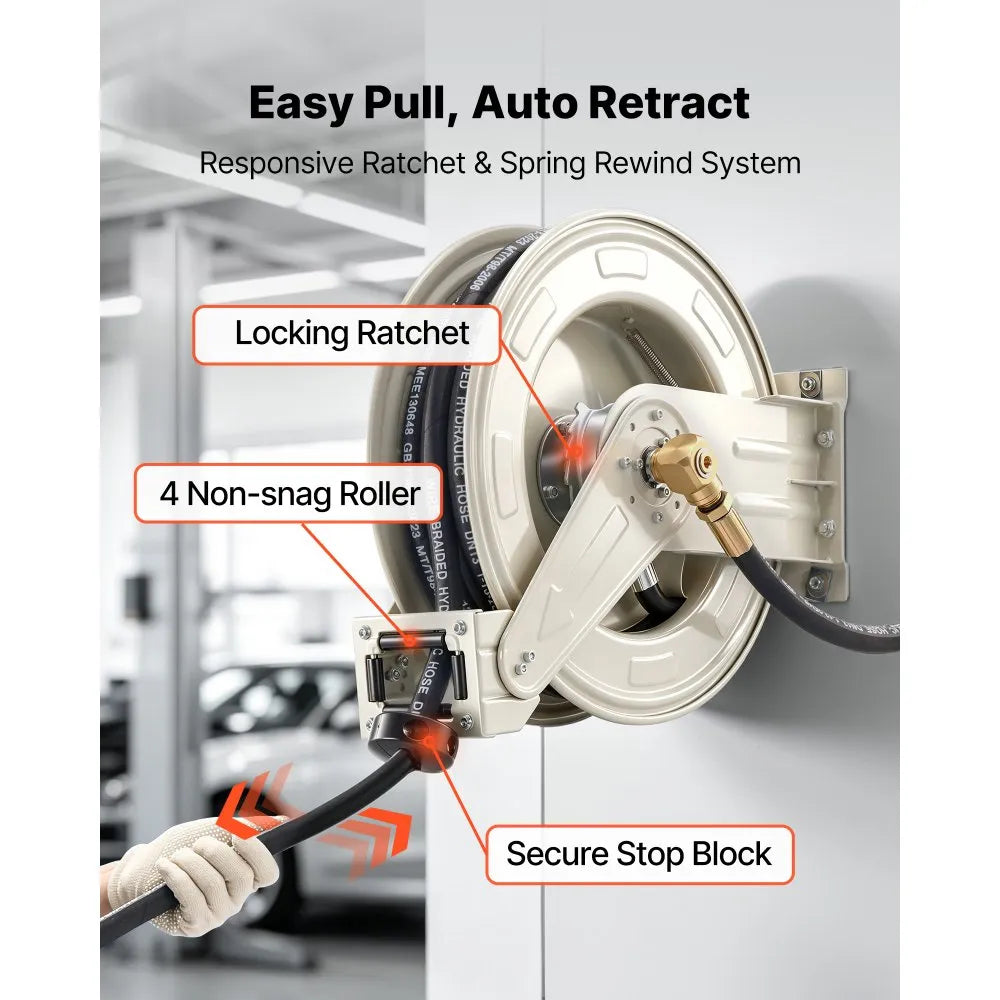

A high-strength manganese steel spring powers the automatic rewind system, allowing the hose to retract smoothly and efficiently after use. The integrated ratchet locking mechanism secures the hose at virtually any working length, while the adjustable guide arm and roller system help reduce hose wear and improve operational flexibility.

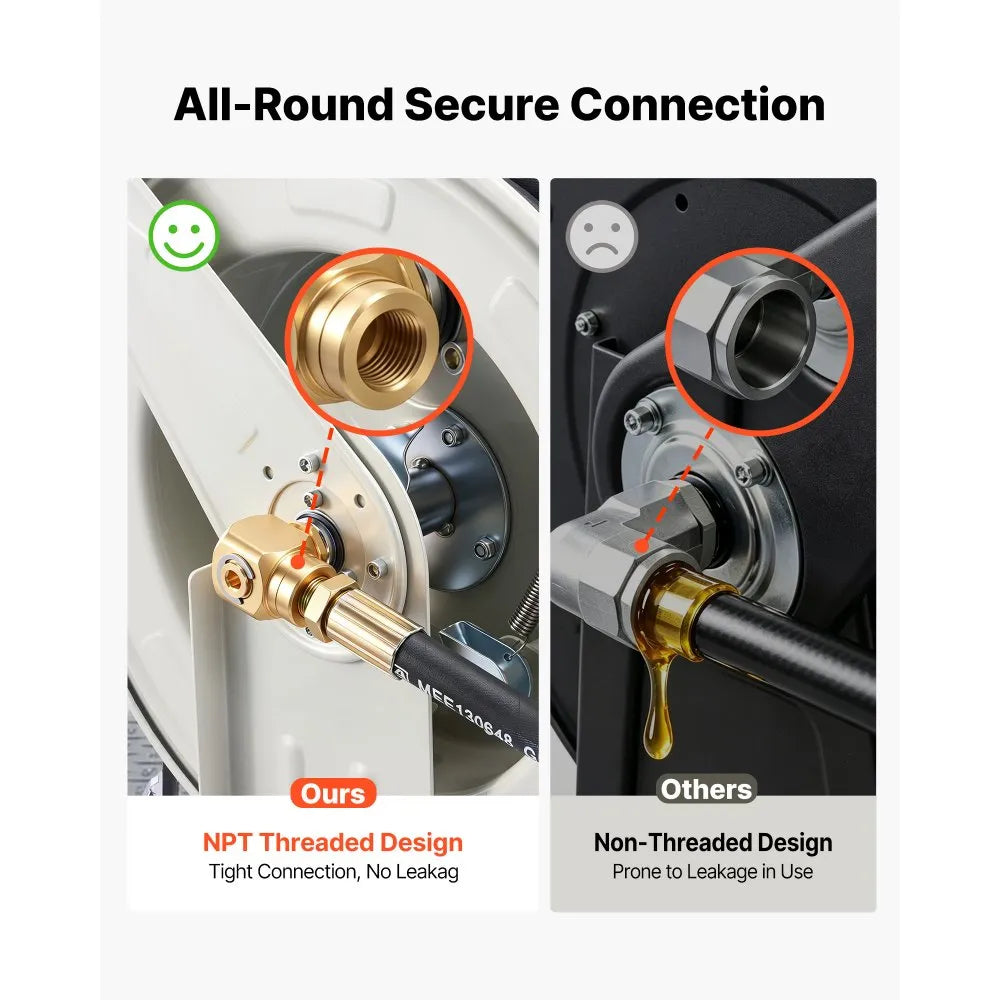

Precision-engineered brass and chrome-plated steel fittings provide secure fluid connections while minimizing the risk of leaks. Included thread seal tape simplifies installation and helps ensure dependable operation.
Whether servicing vehicles, maintaining construction equipment, or supporting industrial machinery, this retractable oil hose reel delivers durability, convenience, and reliable fluid handling performance.
Features
- Heavy-duty 33 ft retractable oil hose reel
- Steel wire braided SAE 100R1AT hose construction
- Rated for pressures up to 3625 PSI (250 Bar)
- Suitable for engine oil, gear oil, hydraulic oil, and petroleum fluids
- Spring-driven automatic rewind system
- Ratchet locking mechanism secures hose at desired length
- Adjustable guide arm for flexible installation options
- Roller guide system helps reduce hose wear
- Powder-coated steel drum resists corrosion and damage
- Reinforced dual-sided mounting brackets for added stability
- Leak-resistant threaded fittings
- Includes thread seal tape for installation
- Designed for commercial, industrial, and automotive environments
Specifications
- Model: 1224BT-100-11
- Fluid Compatibility: Motor Oil, Gear Oil, Hydraulic Oil, Petroleum
- Hose Length: 33 ft (9900 mm)
- Hose Size (ID x OD): 1/2 x 13/16 in (12.7 x 20.5 mm)
- Hose Material: SAE 100R1AT Steel Wire Braided Hose
- Maximum Working Pressure: 3625 PSI / 25 MPa / 250 Bar
- Temperature Range: -4°F to 176°F (-20°C to 80°C)
- Inlet Connection: 1/2 in FNPT
- Outlet Connection: 1/2 in MNPT
- Reel Construction: Powder-Coated Carbon Steel
- Rewind Type: Spring-Driven Automatic Rewind
Package Includes
- 1 x Retractable Oil Hose Reel
- 1 x 33 ft Steel Braided Oil Hose
- Thread Seal Tape
- Mounting Hardware
- User Manual
