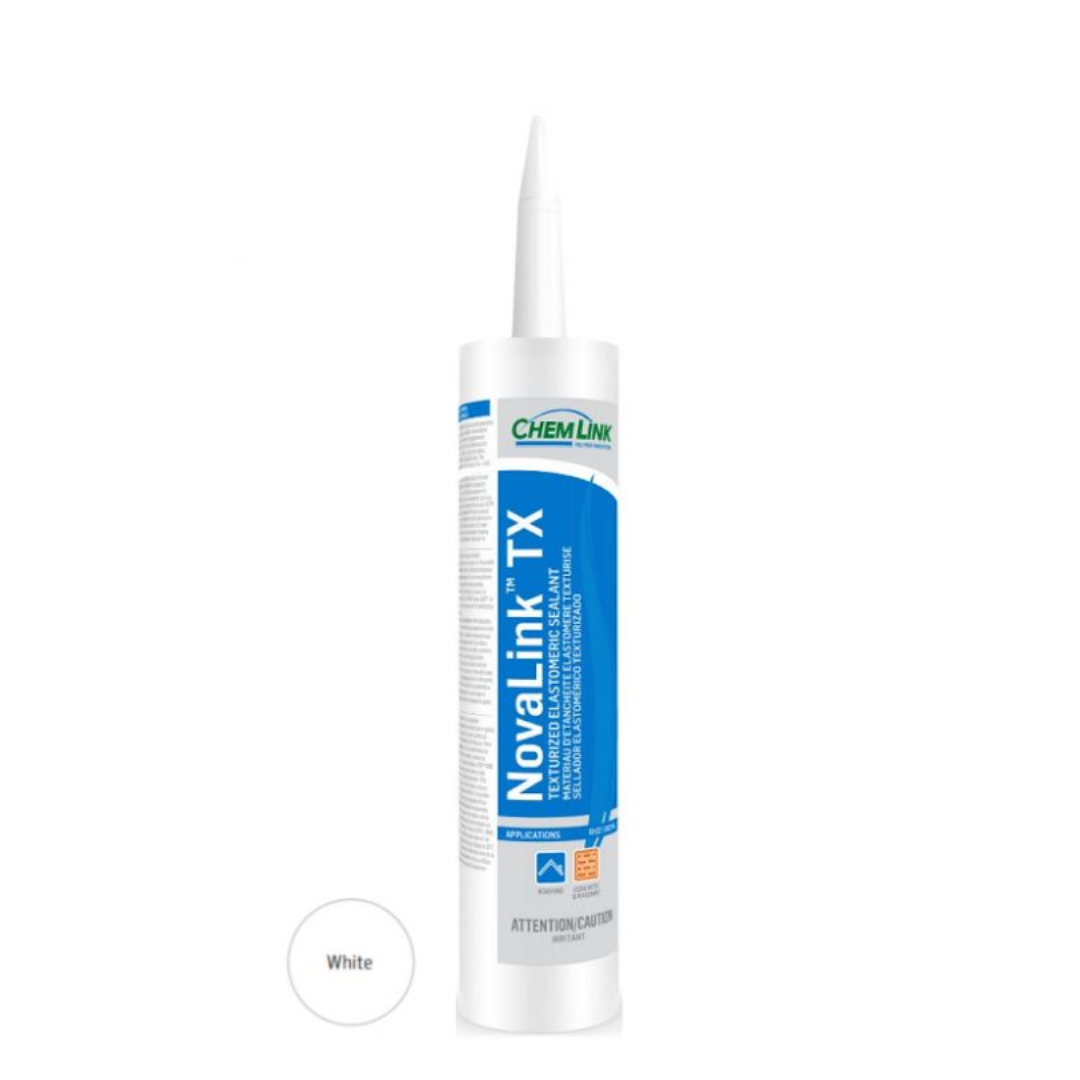

NovaLink TX: Moisture Curing, Polyether Elastomeric Joint Sealant
Product Description
NovaLink TX is a versatile, moisture-curing sealant for damp, dry, or cold climates. This polyether elastomeric sealant is solvent-free, contains no isocyanates, and will not shrink or discolor upon curing. It offers excellent adhesion to most construction materials and accommodates joint movement in excess of 35%. NovaLink TX can be applied in wet or dry conditions and at temperatures as low as 32°F (0°C), making it ideal for challenging construction environments.
Basic Uses
- Expansion Joints
- Pre-cast Concrete
- Block and Masonry
- Cementitious Siding
- Cove Joints
- Weather Sealing
Test and evaluate to ensure adequate adhesion.
Features & Benefits
-
Solvent-Free: Will not shrink.
-
Textured Appearance: Complements rough surfaces.
-
No Outgassing: Can be applied on damp surfaces without bubbling.
-
Single-Component: Reduces labor costs.
-
No Primer Required: Adheres to most construction materials without a primer.
-
Paintable: Can be painted within 24 hours.
-
Joint Movement: Accommodates +/- 35%.
-
Made in the USA: ISO 9001:2015 certified.
Specifications
- ASTM C920, Type S, Grade NS, Class 35, Uses NT, T2, M, G, A & O
- Federal Specification TT-S-00230-C Type II, Class B
- Corps of Engineers CRD-C-541, Type II, Class B
- Canadian Standards Board CAN 19, 13-M82
Regulatory Compliance
- Conforms to OTC Rule for Sealants
- Meets requirements of California Regs: CARB, BAAQMD, and SCAQMD
- Does not contain cancer-causing chemicals listed in California Proposition 65
- Conforms to USDA Requirements for Non-food Contact
Green Standards
- LEED 2.2 for New Construction and Major Renovations: Low Emitting Materials (Section 4.1) 1 Point
- NAHB Model Green Home Building Guidelines: 5 Global Impact Points
- VOC Content: Less than 20 grams/liter ASTM D2369 EPA Method 24 (tested at 240°F / 115°C)
Typical Physical Properties
-
Viscosity: 1,220,000 cp +/- 300,000 cp (Brookfield RVF TF Spindle, 4 RPM, 73°F)
-
Density: 12.4 +/- 0.2 lbs per gallon
-
Tack Free Time: 32 min (45 +/- 5 % R.H.)
-
Elongation at Break: 528%
-
Hardness (Shore A): 22
-
Tensile Strength: 130 psi
-
Low Temp Flex: Pass -15°F (-26°C) (1/4 inch mandrel)
-
Shrinkage: No visible shrinkage after 14 days
-
Service Temperature: -40°F to 200°F (-40°C to 93°C)
Compatible Substrates*
- Concrete
- Block & Brick
- Stone
- Masonry
- Tile
- Aluminum & Galvanized Metal
- Wood
- Engineered Plastics, PVC
- EPS Foam
- EIFS, Stucco
Packaging
Available in various sizes:
- 10.1 oz (300 ml)
- 20 oz (600 ml)
-
2 and 5 gallon pails or 50 gallon drums (special order)
