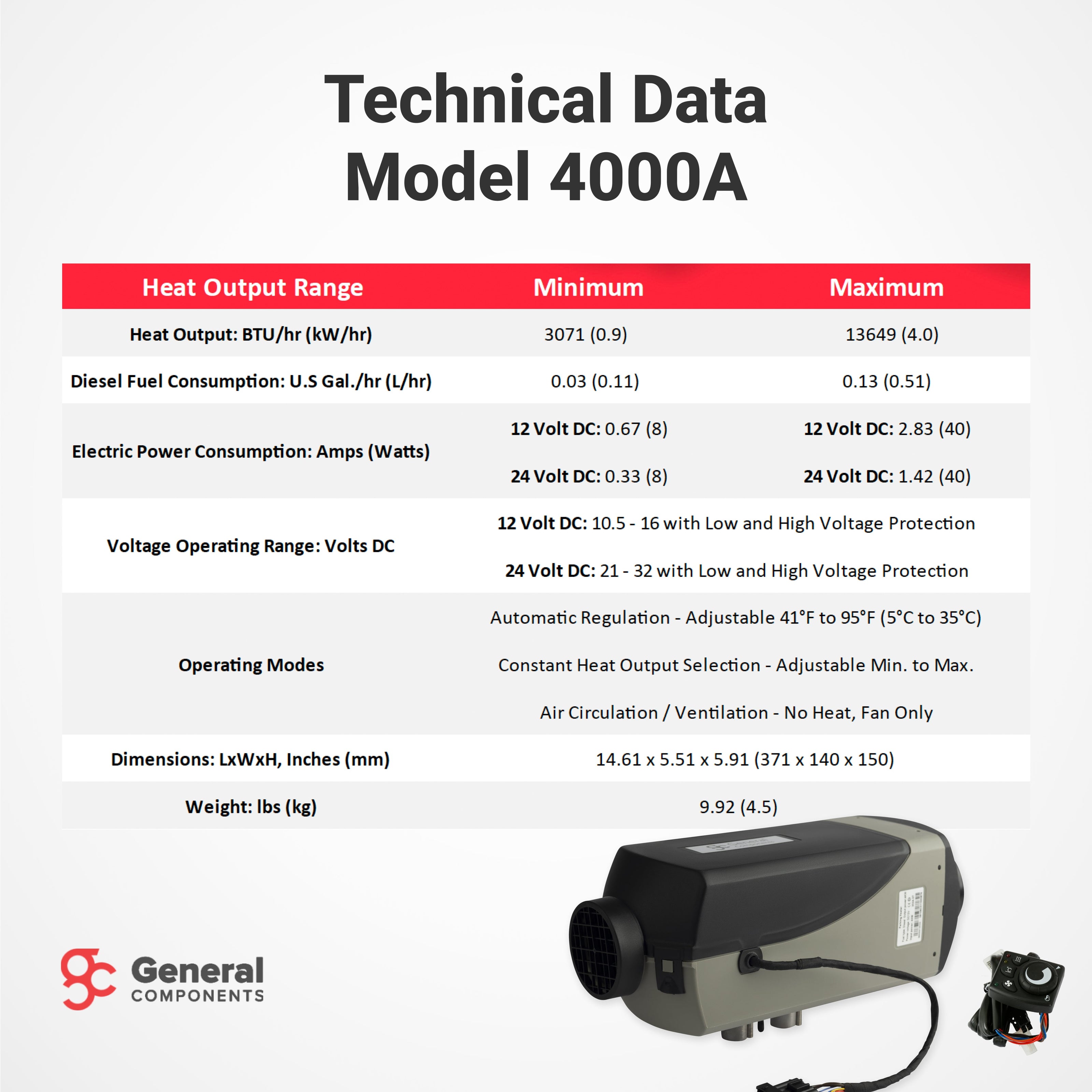

| Specification |
Value |
| Heat Output: BTU/hr (kW/hr) |
3071 (0.9) – 13649 (4.0) |
| Diesel Fuel Consumption: U.S Gal./hr (L/hr) |
0.03 (0.11) 0.13 (0.51) |
| Electric Power Consumption: Amps (Watts) @12VDC |
0.67 (8) 2.83 (40) |
| Electric Power Consumption: Amps (Watts) @24VDC |
0.33 (8) 1.42 (40) |
| Voltage Operating Range: Volts DC (for 12V models) |
10.5 – 16 with Low and High Voltage Protecton |
| Voltage Operating Range: Volts DC (for 24V models) |
21 – 32 with Low and High Voltage Protecton |

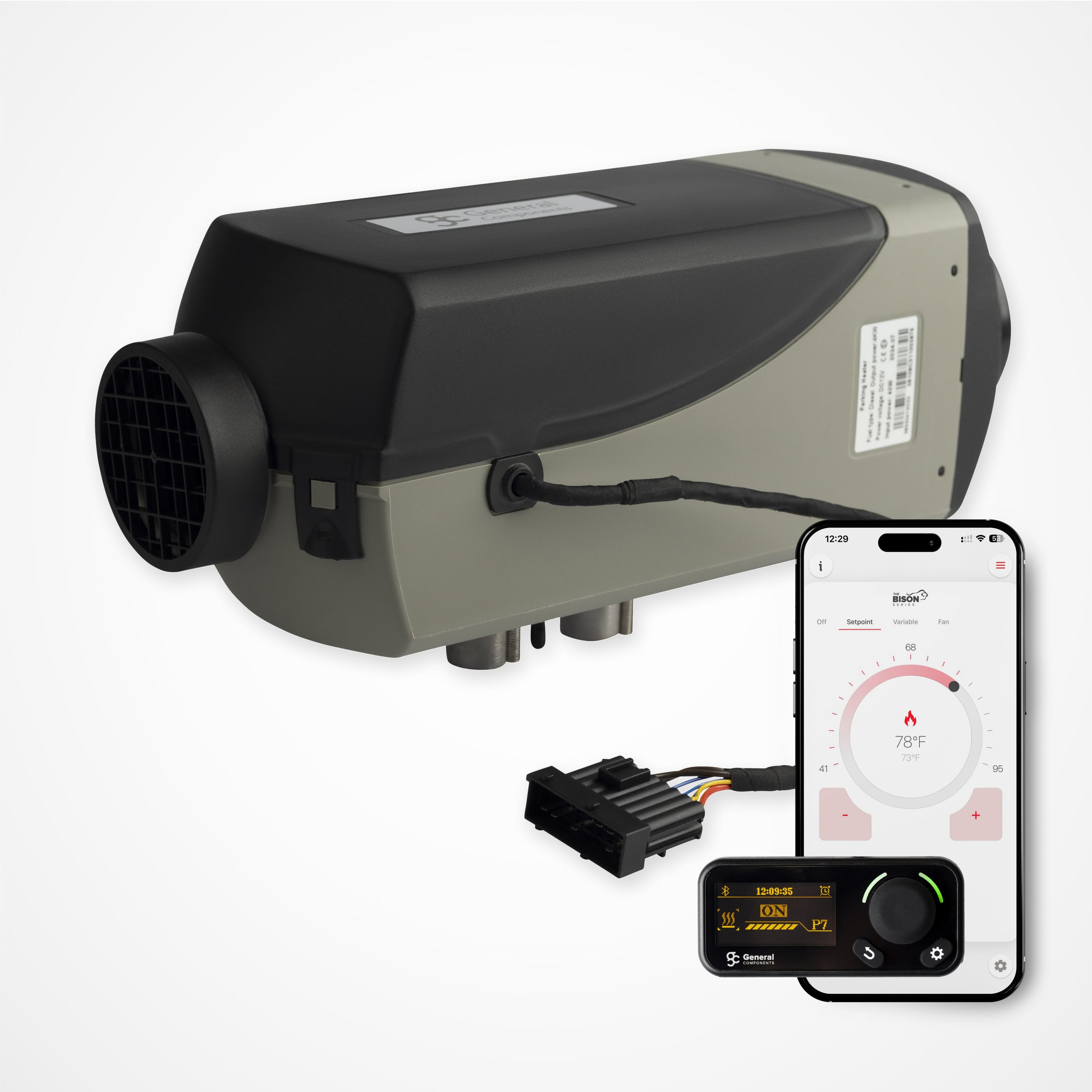

| Operating Modes |
Setpoint – Adjustable 41°F to 95°F (5°C to 35°C) Constant Heat Output Selection – Adjustable Min. to Max. Air Circulation / Ventilation – No Heat, Fan Only |

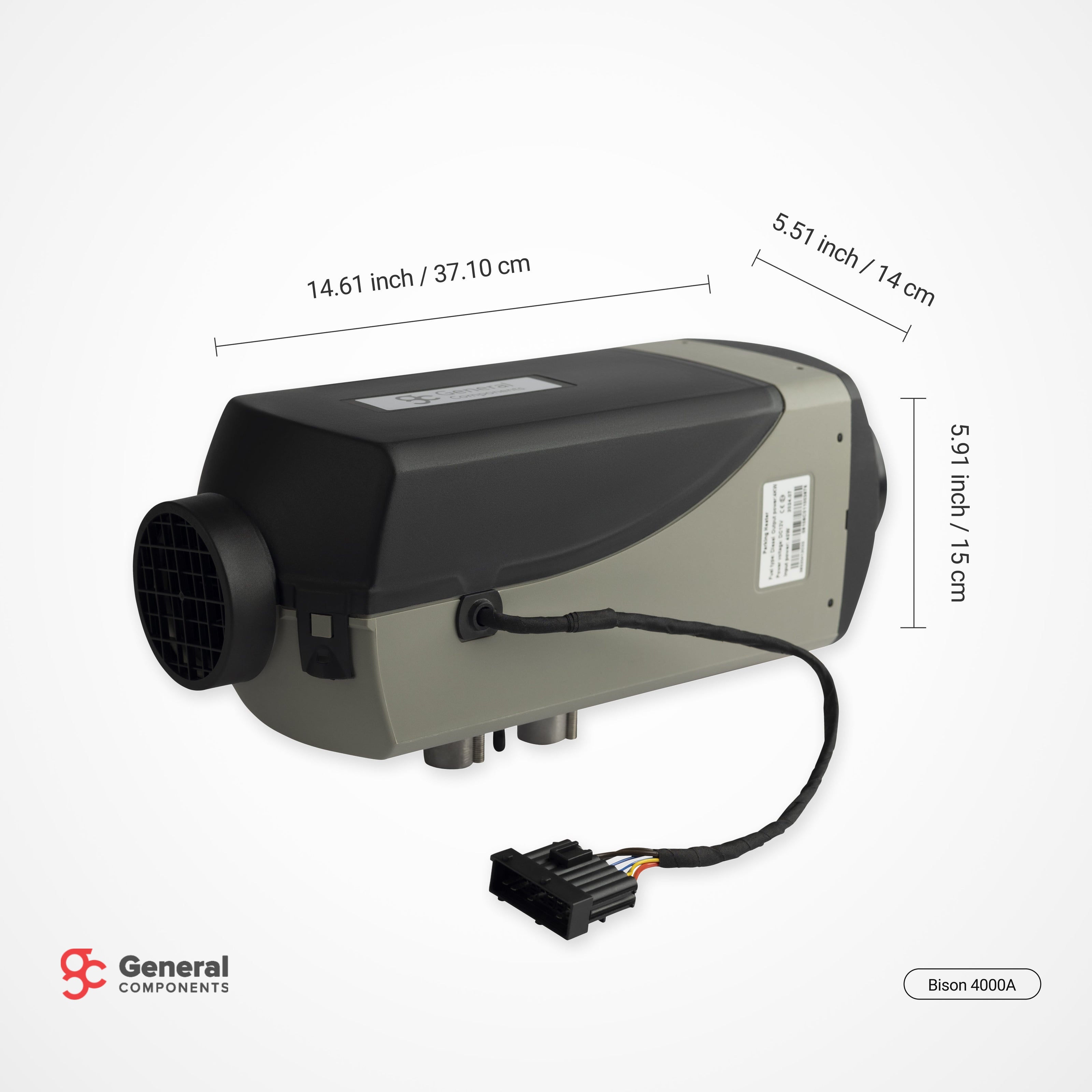

| Unit Dimensions: LxWxH, Inches (mm) |
14.61 x 5.51 x 5.91 (371 x 140 x 150) |
| Unit Weight: lbs (kg) |
9.92 (4.5) |
