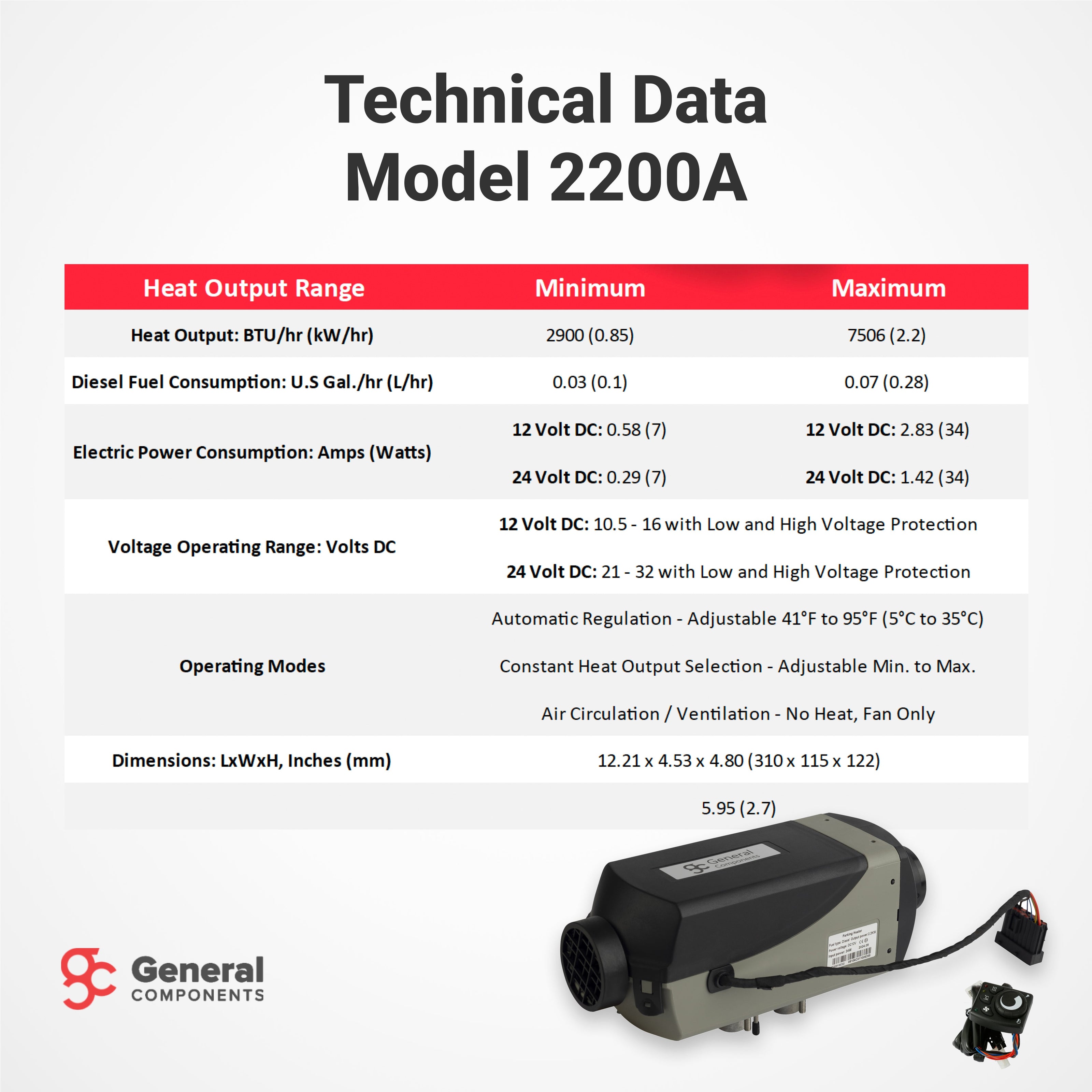

| Specification |
Value |
| Heat Output: BTU/hr (kW/hr) |
2900(0.85) – 7506(2.2) |
| Diesel Fuel Consumption: U.S Gal./hr (L/hr) |
0.03 (0.1) – 0.07 (0.28) |
| Electric Power Consumption: Amps (Watts) @12VDC |
0.58 (7) – 2.83 (34) |
| Electric Power Consumption: Amps (Watts) @24VDC |
0.29 (7) – 1.42 (34) |
| Voltage Operating Range: Volts DC (for 12V models) |
10.5 – 16 with Low and High Voltage Protecton |
| Voltage Operating Range: Volts DC (for 24V models) |
21 – 32 with Low and High Voltage Protecton |
| Operating Modes |
Setpoint – Adjustable 41°F to 95°F (5°C to 35°C) Constant Heat Output Selection – Adjustable Min. to Max. Air Circulation / Ventilation – No Heat, Fan Only |

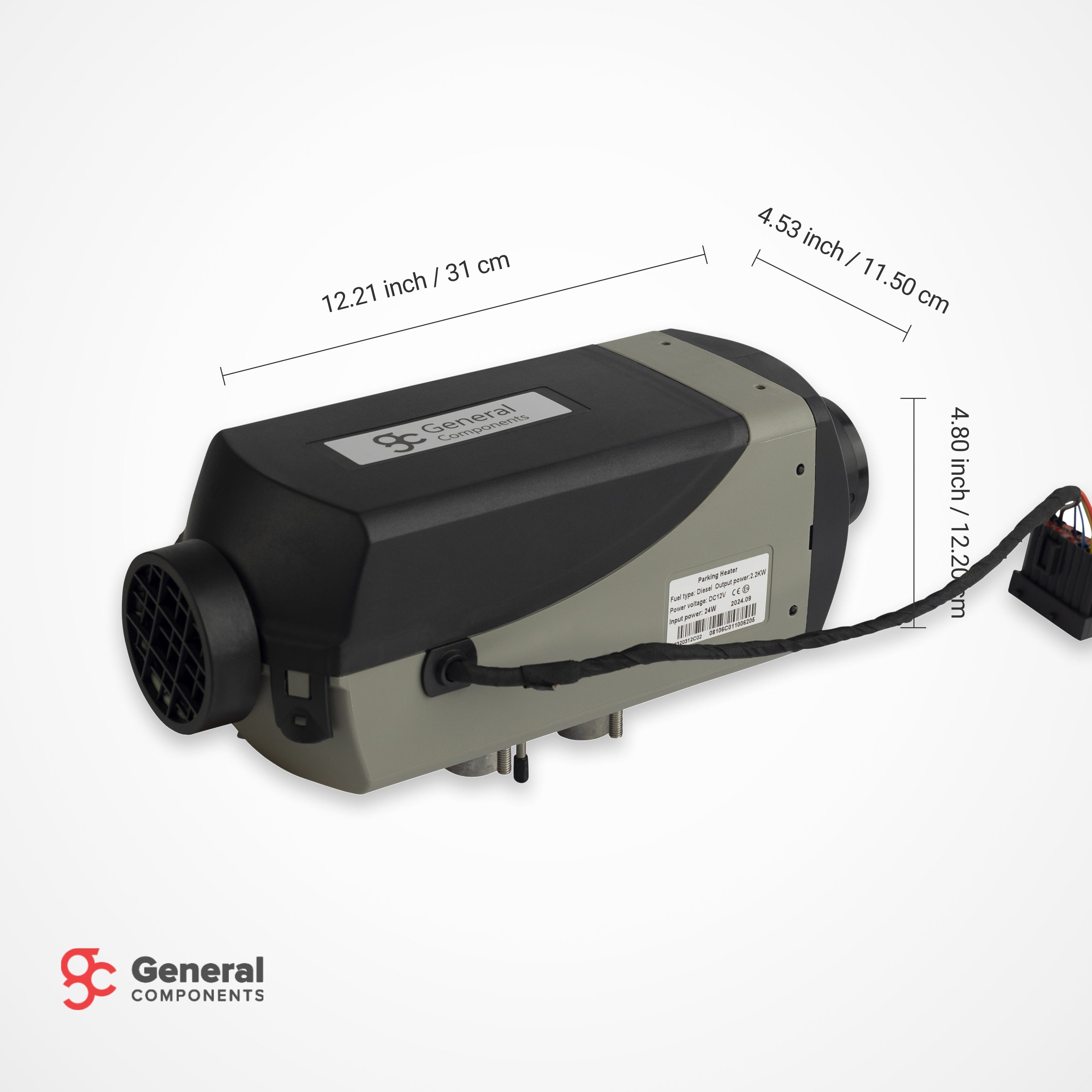

| Unit Dimensions: LxWxH, Inches (mm) |
12.21 x 4.53 x 4.80 (310 x 115 x 122) |
| Unit Weight: lbs (kg) |
5.95 (2.7) |
