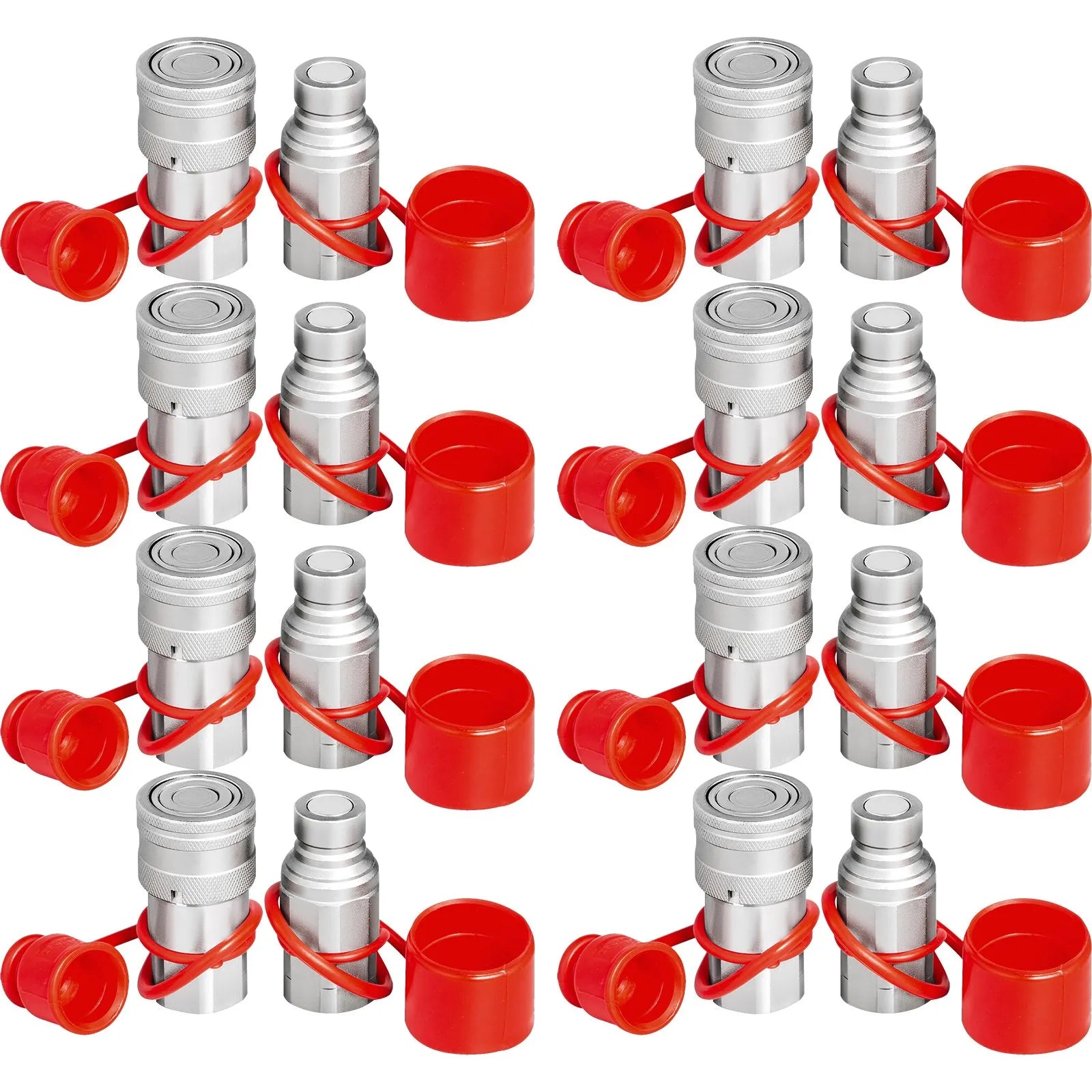

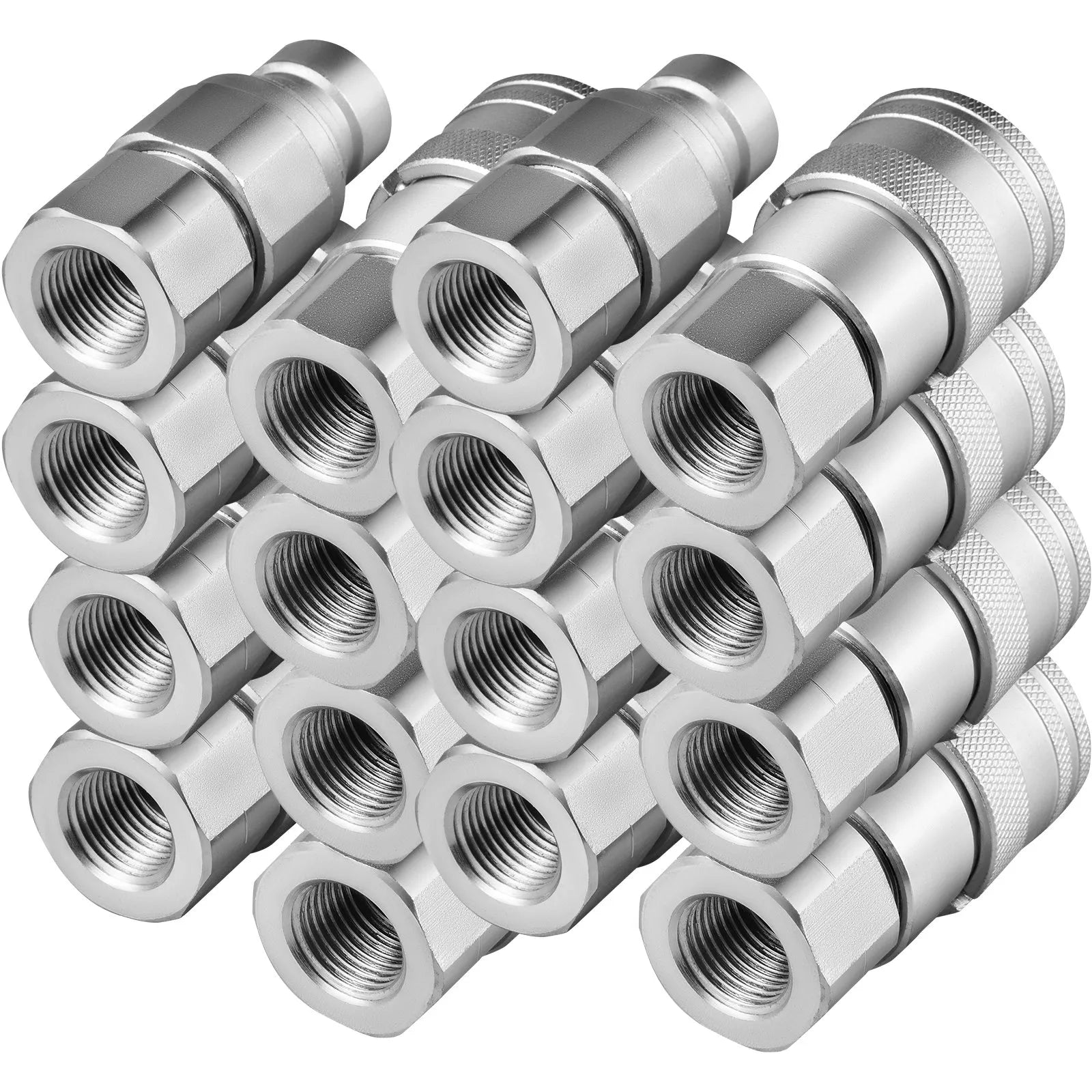

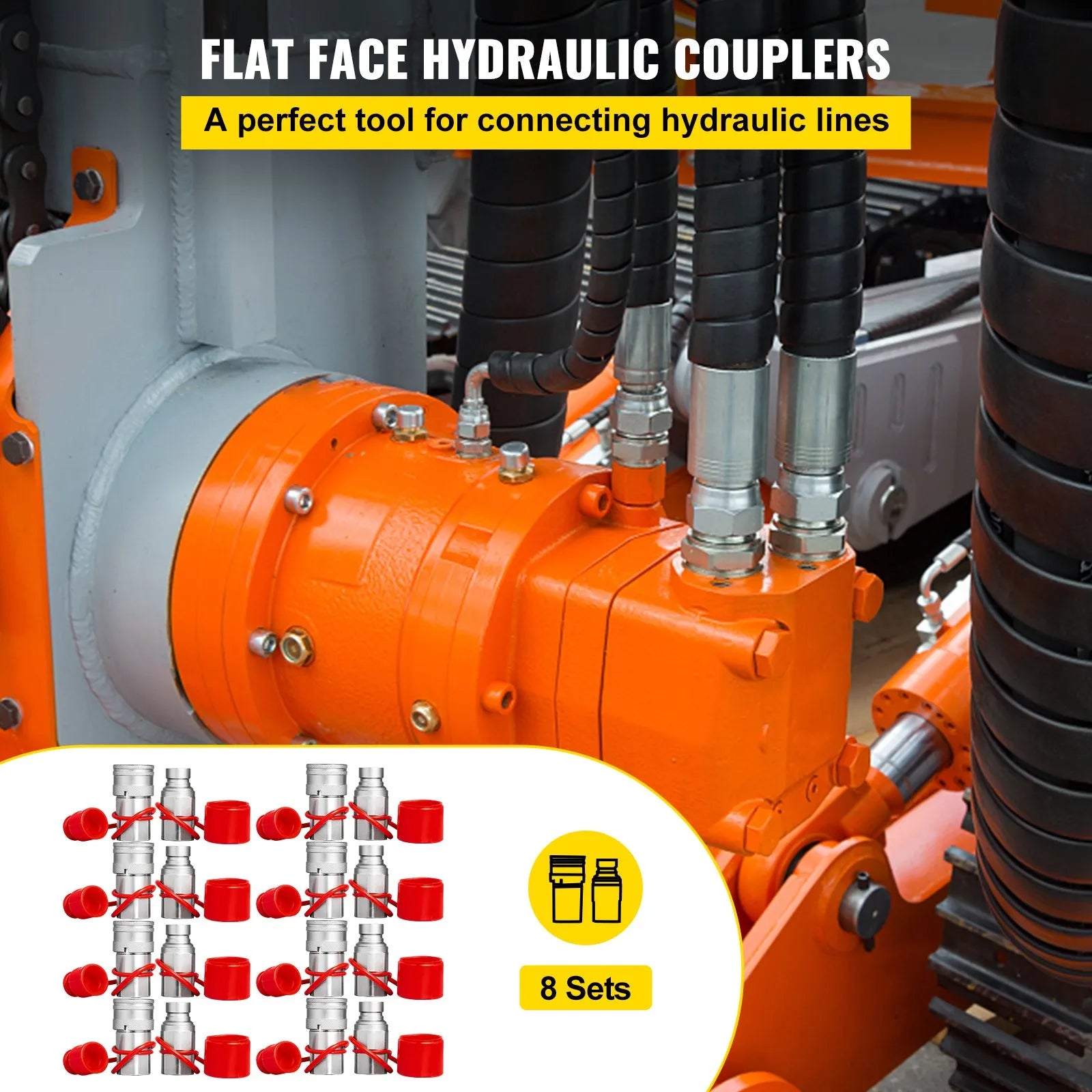

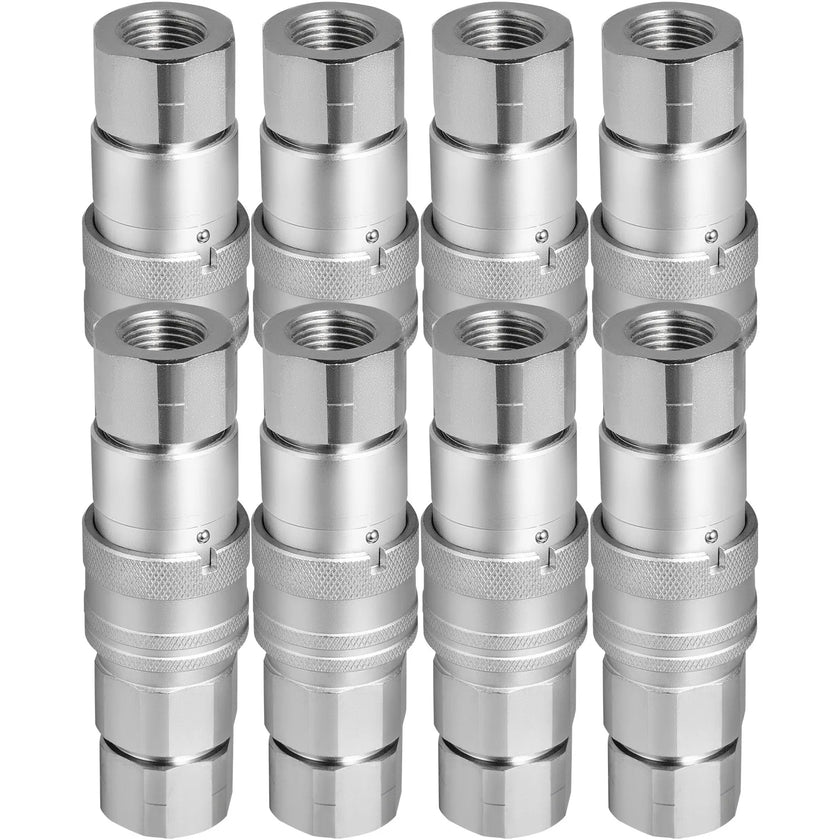

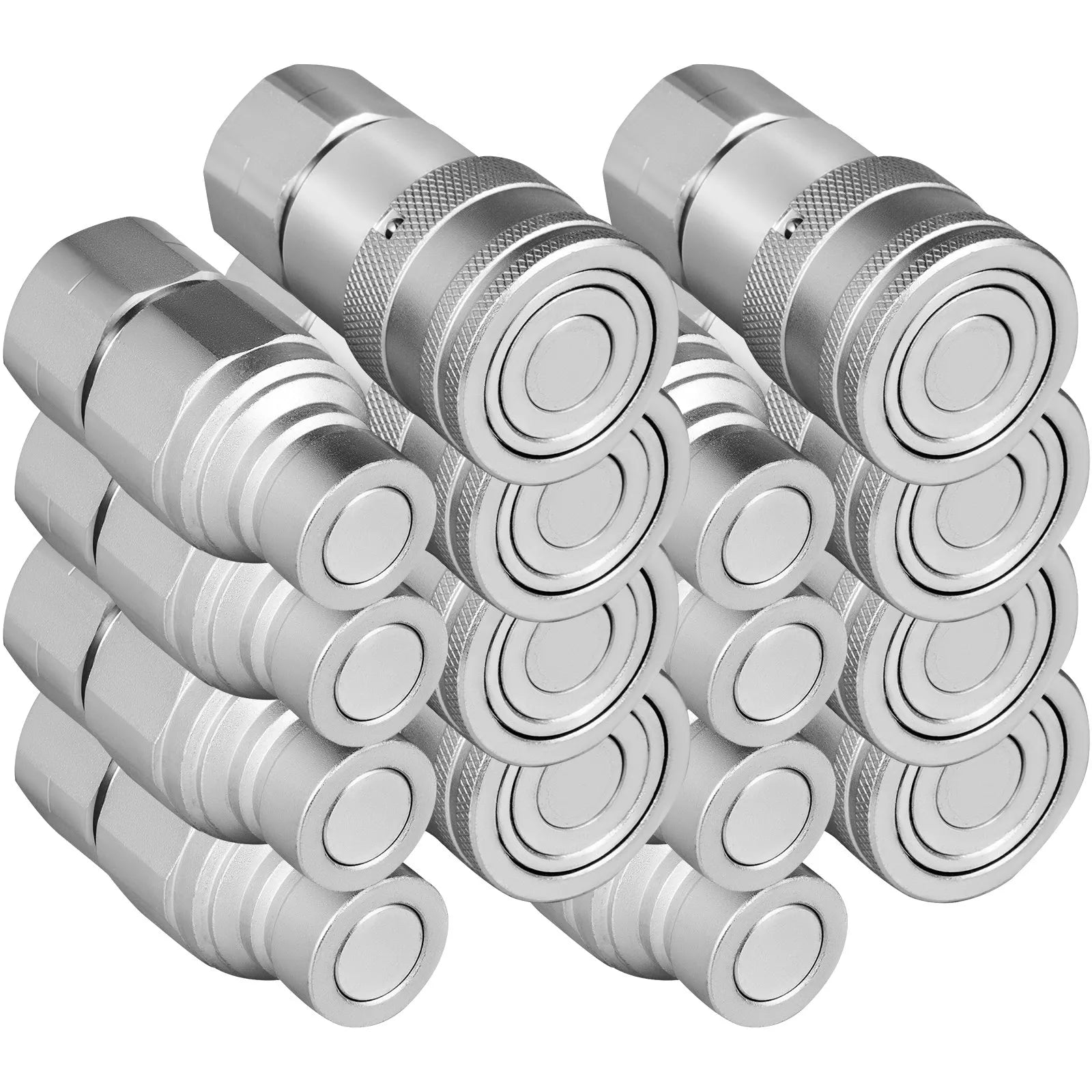

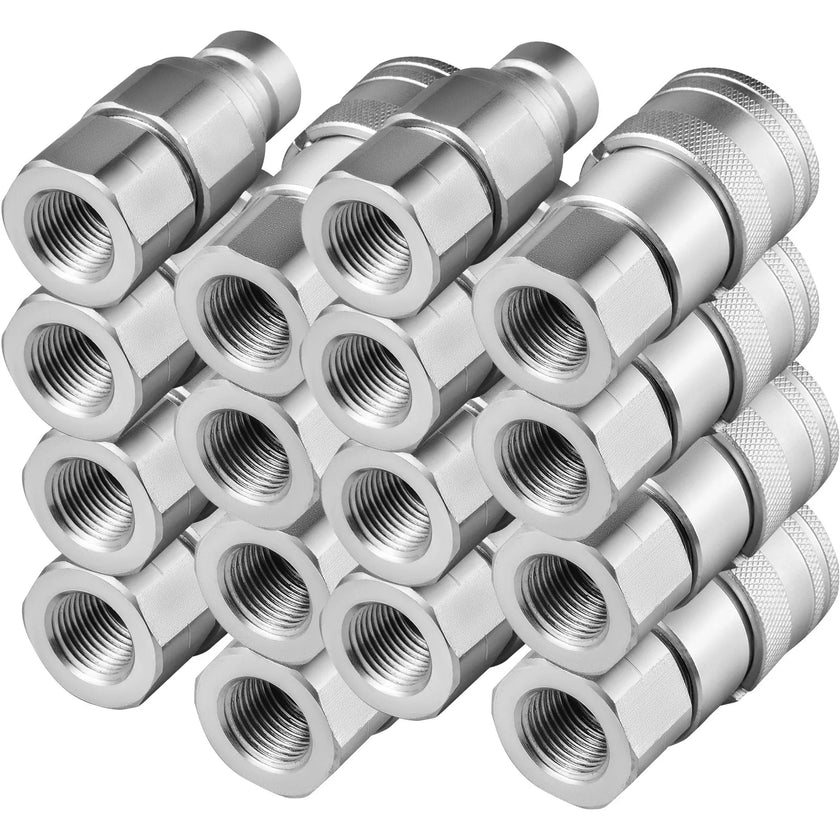

The VEVOR Skid Steer Hydraulic Quick Connect Coupler Set is designed for efficient and reliable hydraulic connections in skid steer loaders and other hydraulic equipment. This set includes 8 pairs of 1/2" body hydraulic couplers with 1/2" NPT threads, built to meet ISO 16028 standards for compatibility and performance. Engineered for high-pressure applications with a 5076 PSI (27.6 MPa) rating, these couplers provide secure and leak-resistant connections. Featuring a sleeve locking system and durable steel construction, they are built for long-lasting performance in demanding environments. Dust covers are included to keep the couplers clean and protected when not in use. Ideal for use with most skid steer loaders including Bobcat, John Deere, CAT, Case, New Holland, Kubota, and more.
Key Features:
-
8 Pairs Hydraulic Couplers: Complete set for multiple hydraulic connections
-
High Pressure Performance: Rated up to 5076 PSI (27.6 MPa) for demanding hydraulic systems
-
ISO 16028 Standard: Ensures compatibility with most skid steer loaders and attachments
-

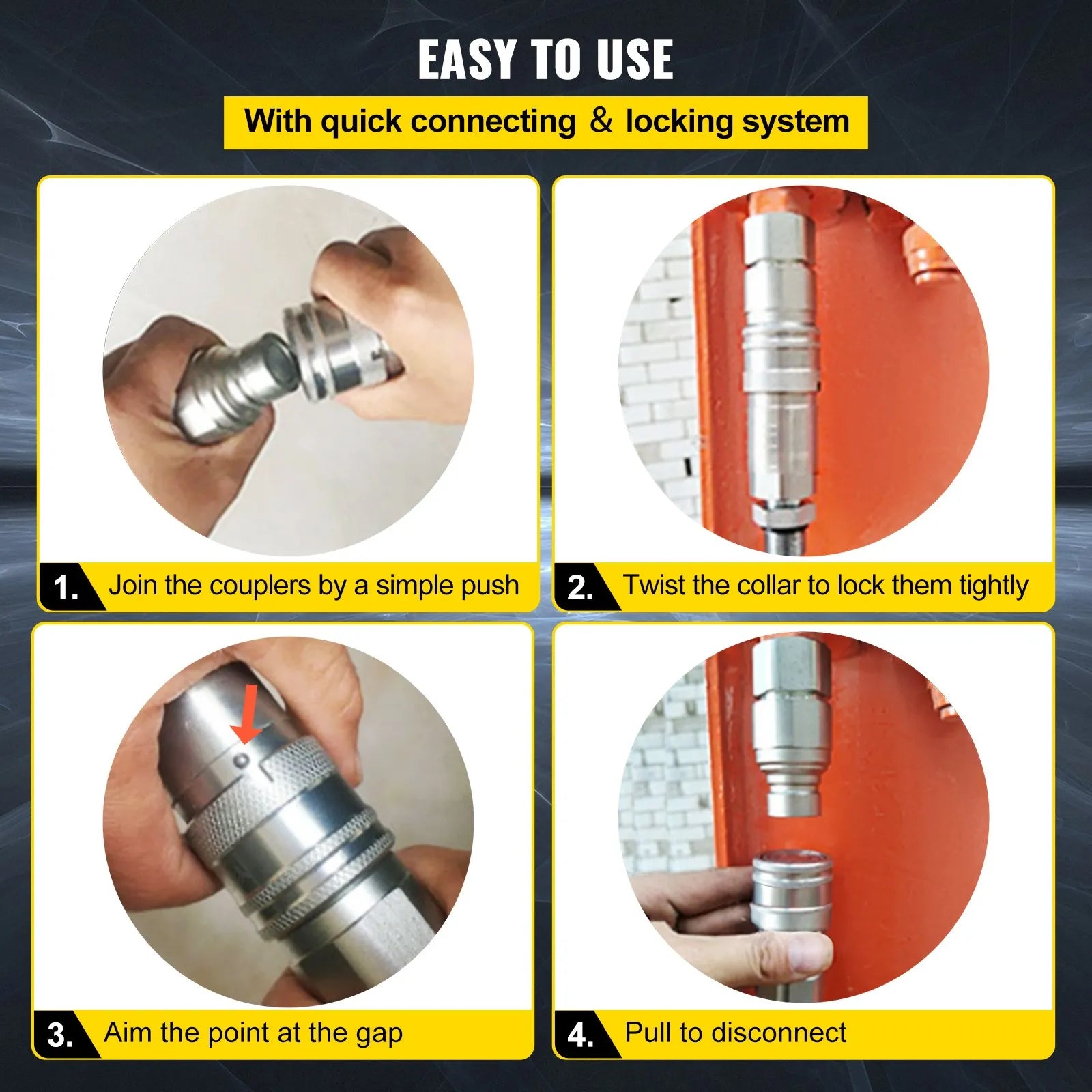

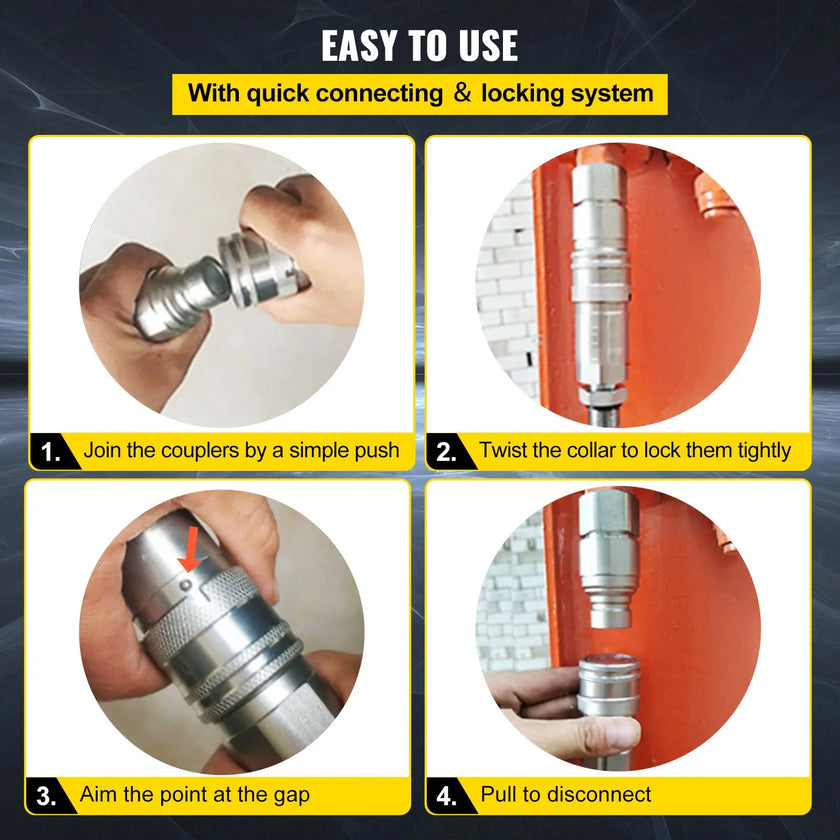

Sleeve Locking System: Provides secure, quick, and easy connection and disconnection
-

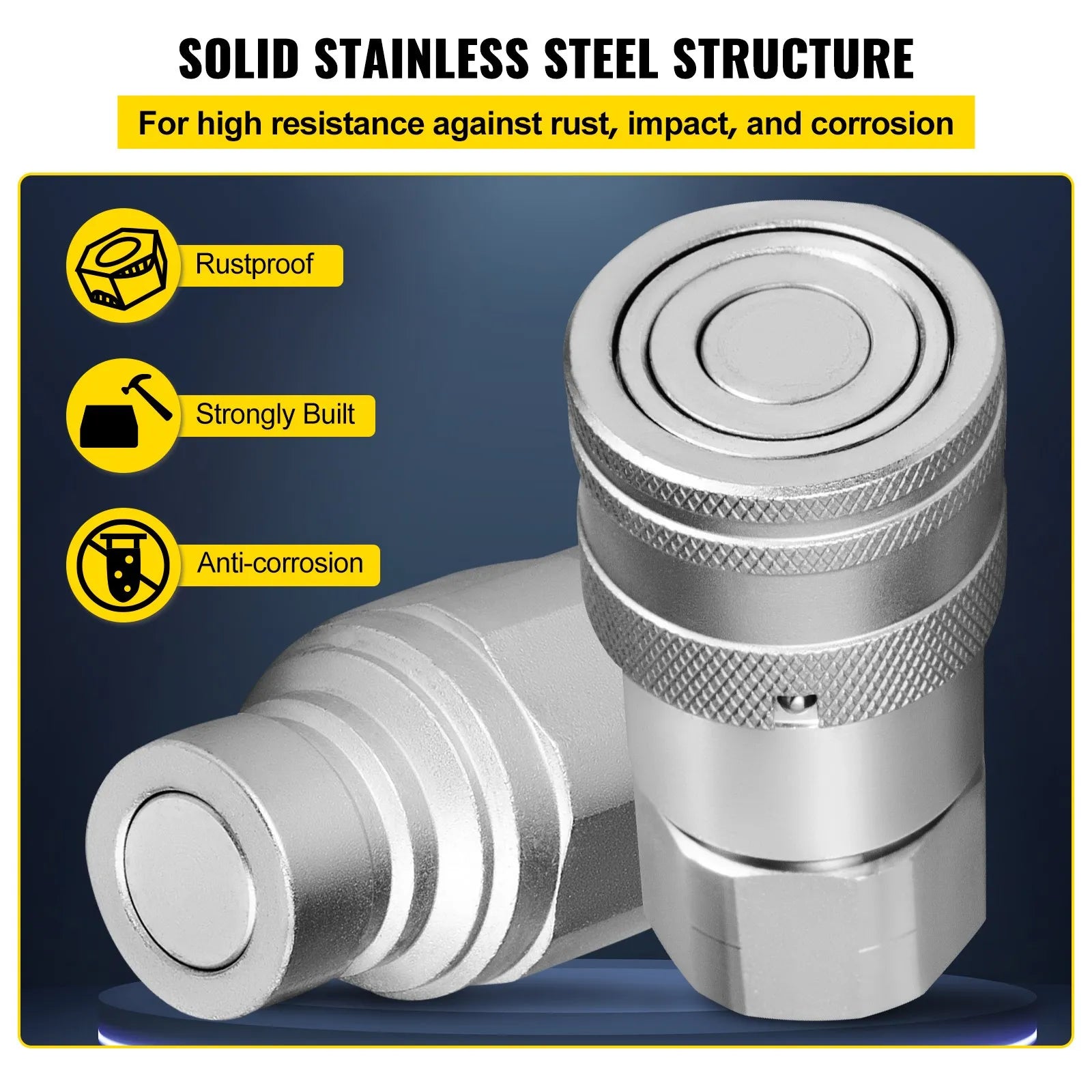

Durable Steel Construction: Built to withstand heavy-duty industrial use
-

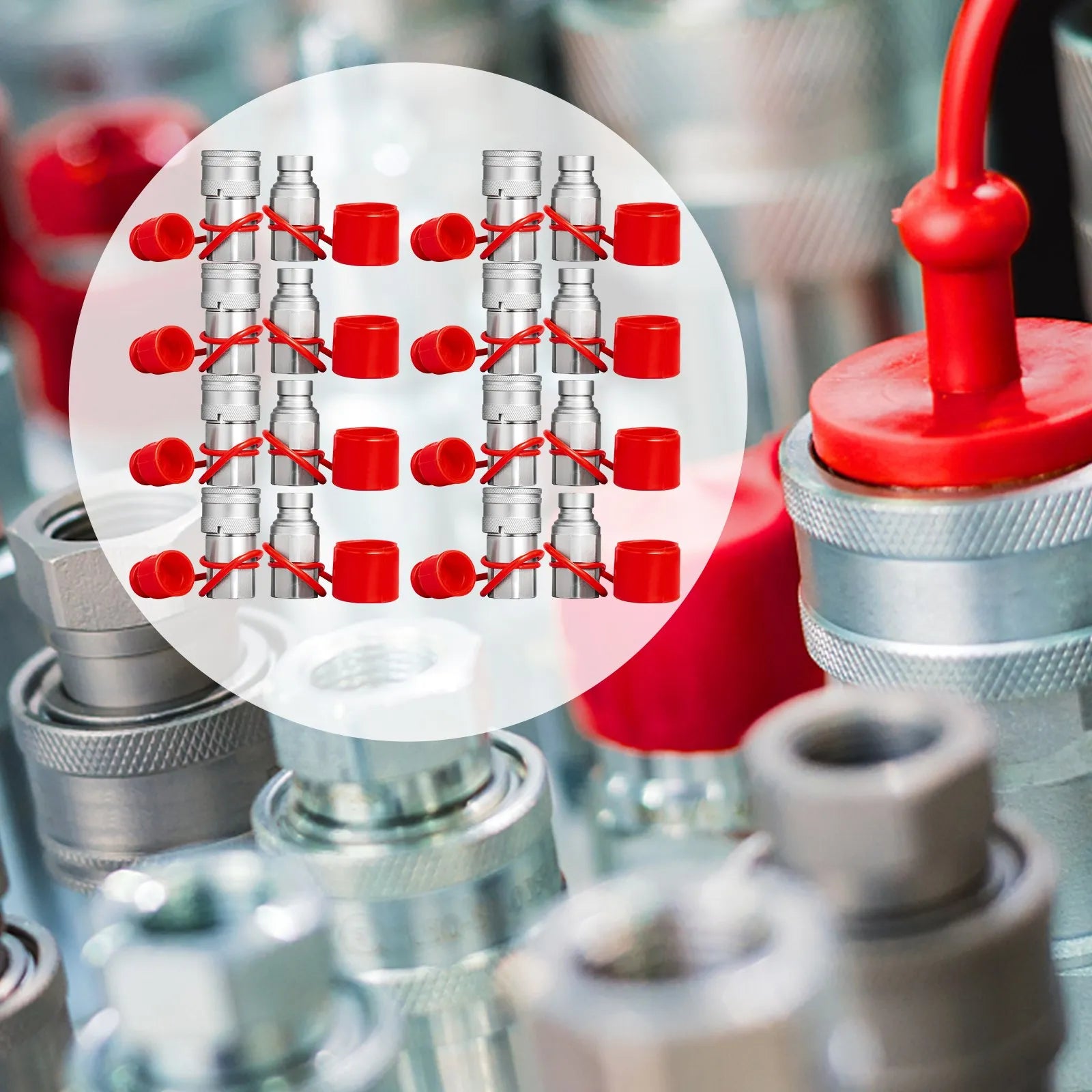

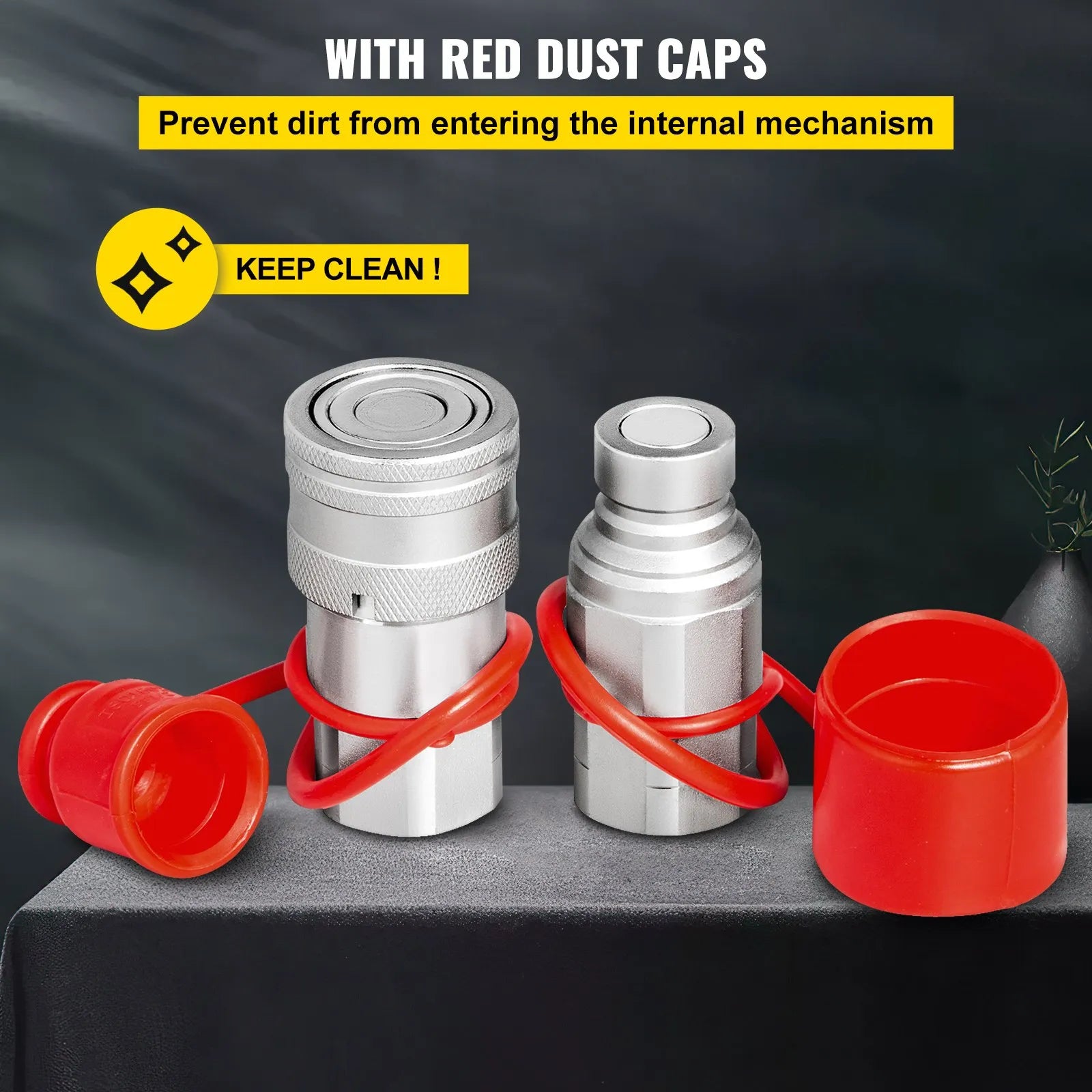

Dust Covers Included: Protects couplers from dirt, dust, and debris
-
Wide Compatibility: Suitable for Bobcat, John Deere, CAT, Case, New Holland, Kubota, and more

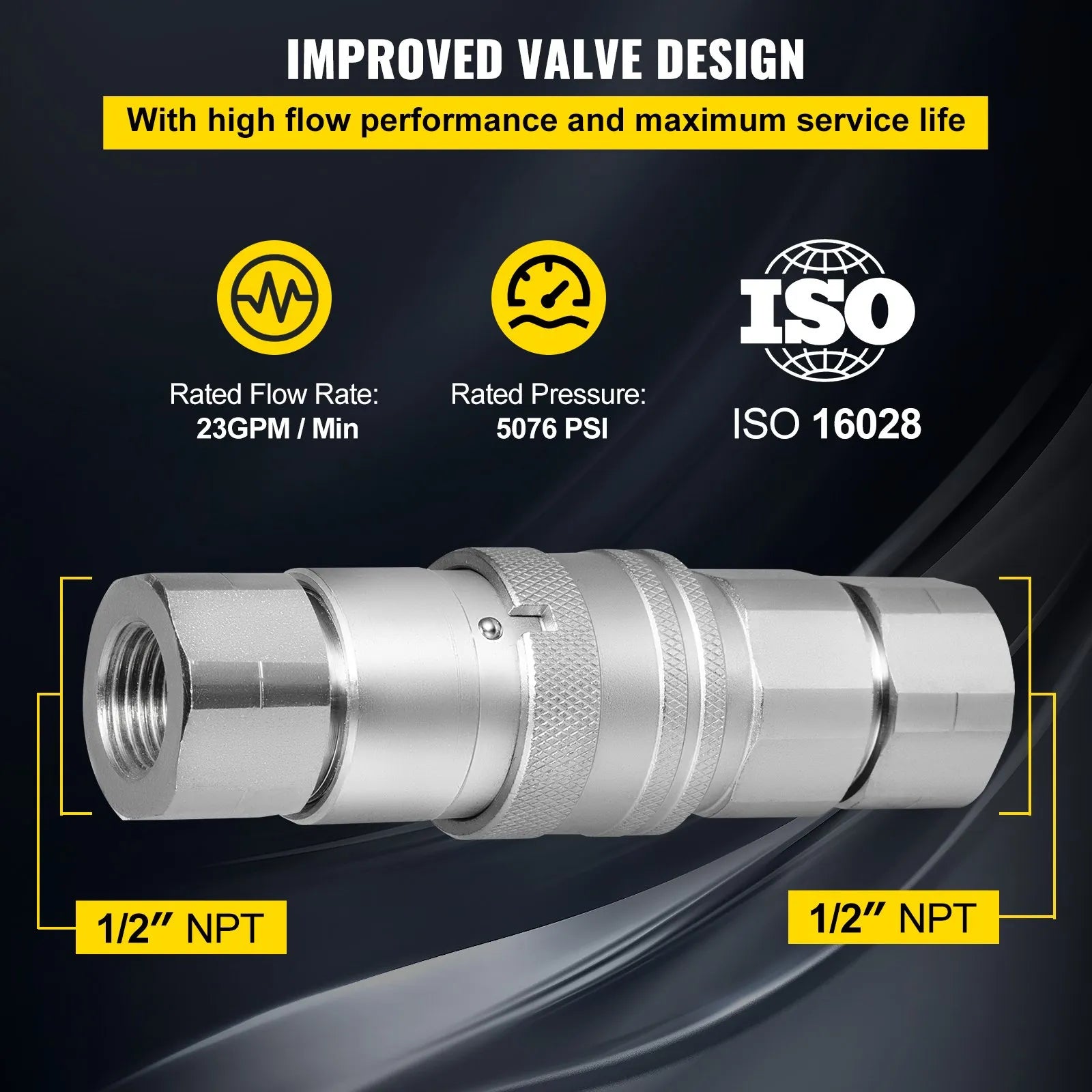

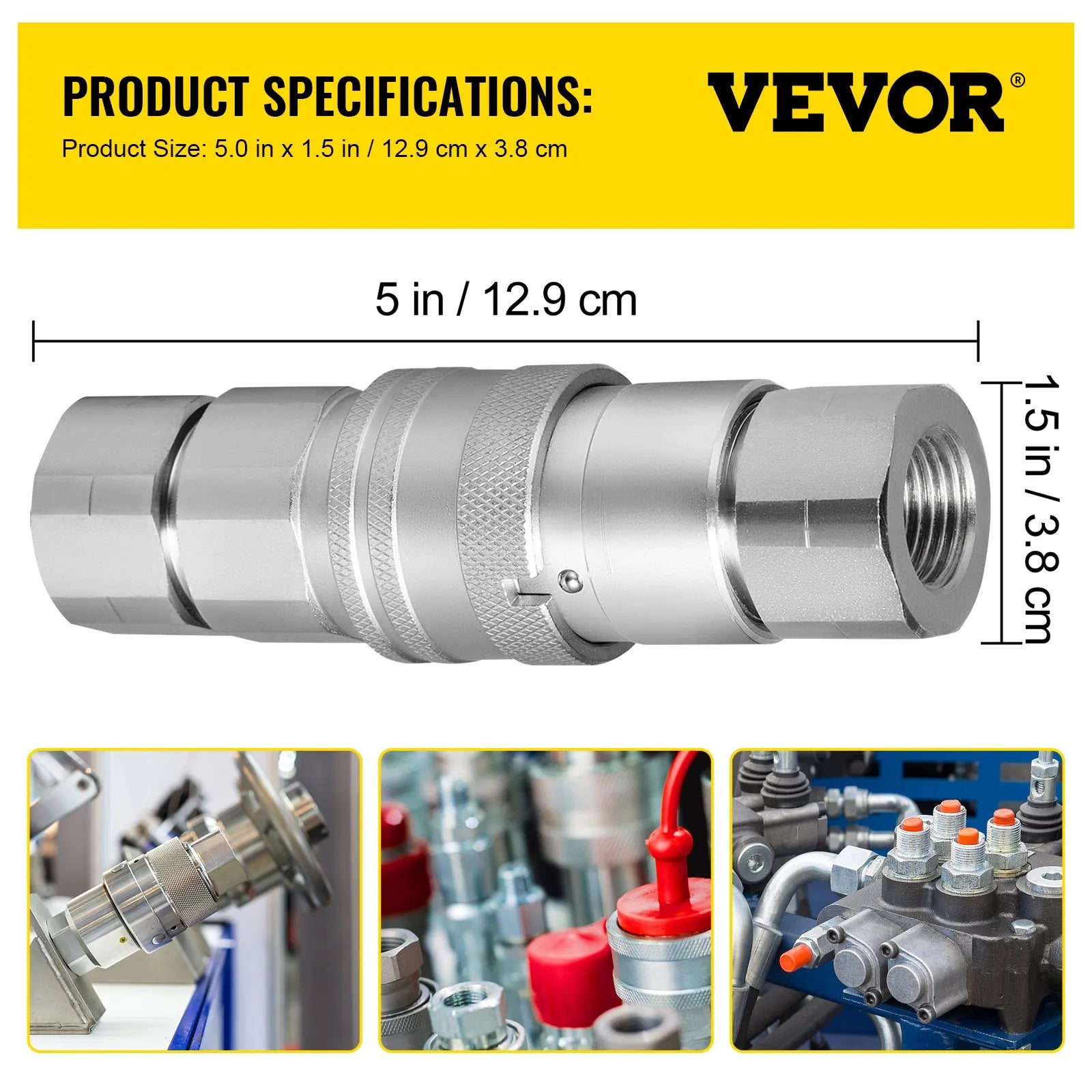

Specifications:
-
Product Type: Hydraulic Quick Connect Coupler Set
-
Body Size: 1/2 inch
-
Thread Size: 1/2" NPT
-
Pressure Rating: 5076 PSI (27.6 MPa)
-
Operating Temperature: Up to 250°F
-
Standard: ISO 16028
-
Material: Steel
-

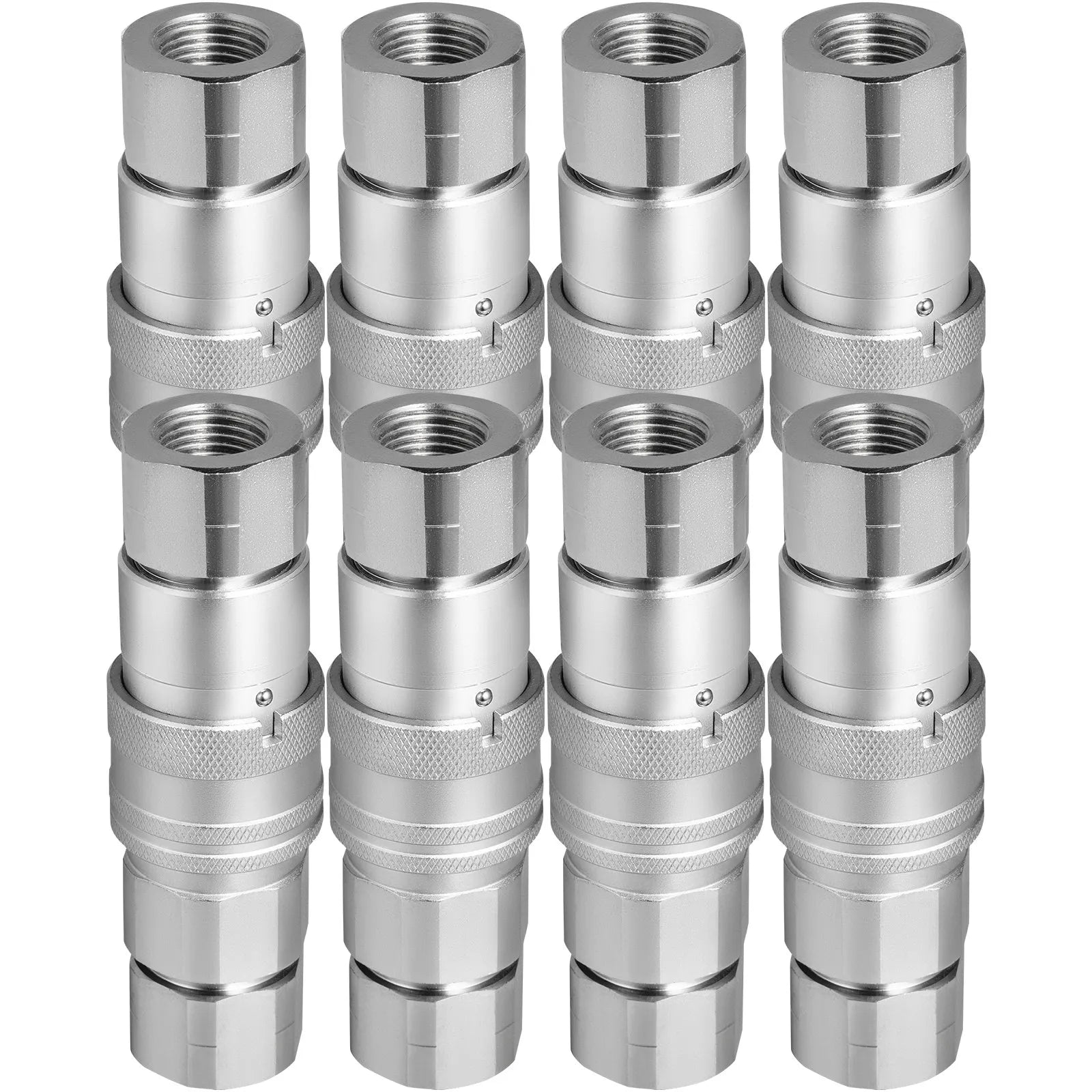

Quantity: 8 Pairs
-
Packing: Strong carton + SKU + plastic bag
Compatible OEM Replacements:
-
Parker FE Series: FEM-502-8FP, FEM-501-8FP
-
Safeway FFE49 Series: FFE491-4, FFE495-4
-
Faster FFH Series: FFH08 12NPT M, FFH08 12NPT F
-
Eaton Aeroquip FD89: FD89-1002-08-08, FD89-1001-08-08
-
Snap-Tite 74 Series: 74N8-8F, 74C8-8F
-
Stucchi FIG Series: 800801007, 800801006
-
Dixon HT Series: HT4F4, 4HTF4
