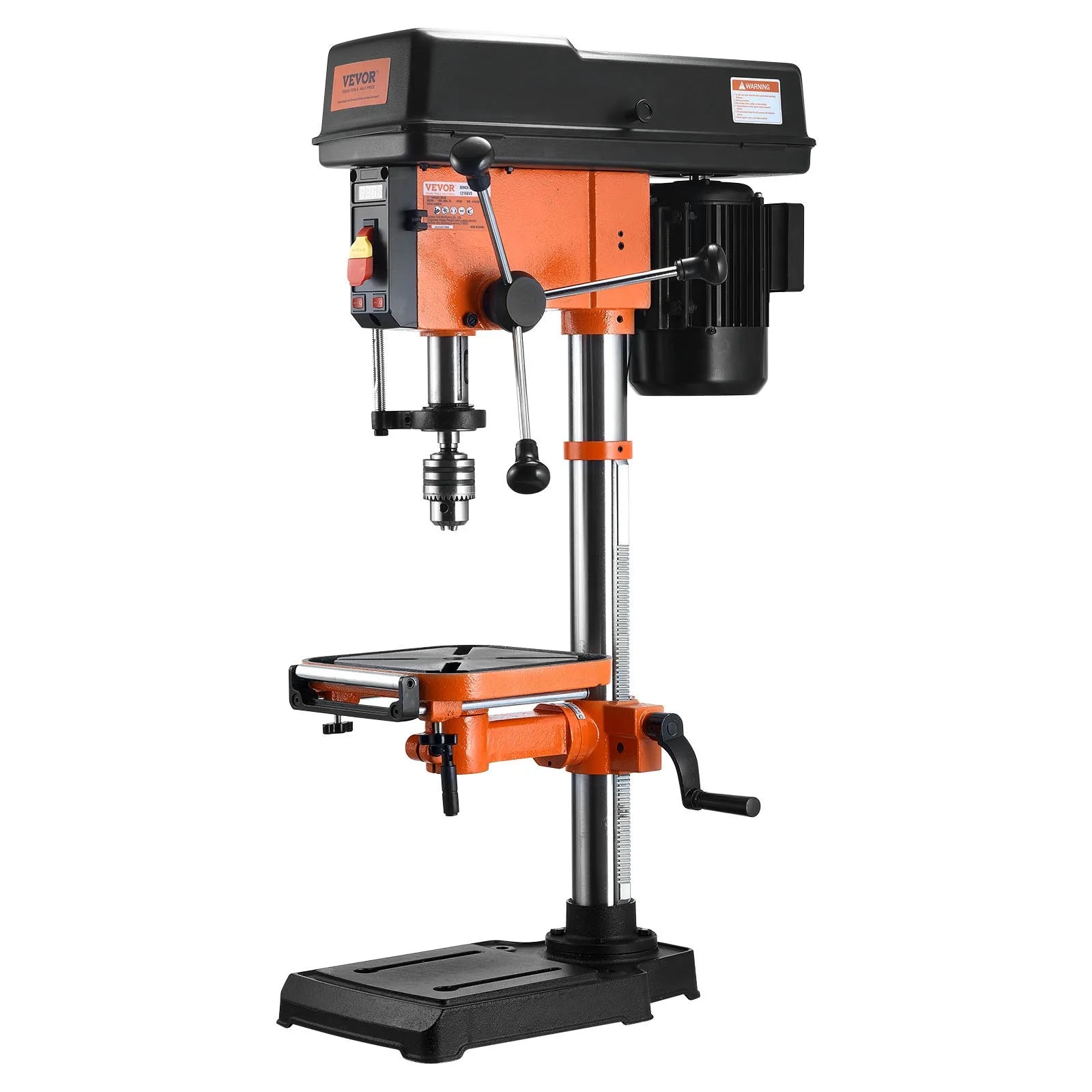

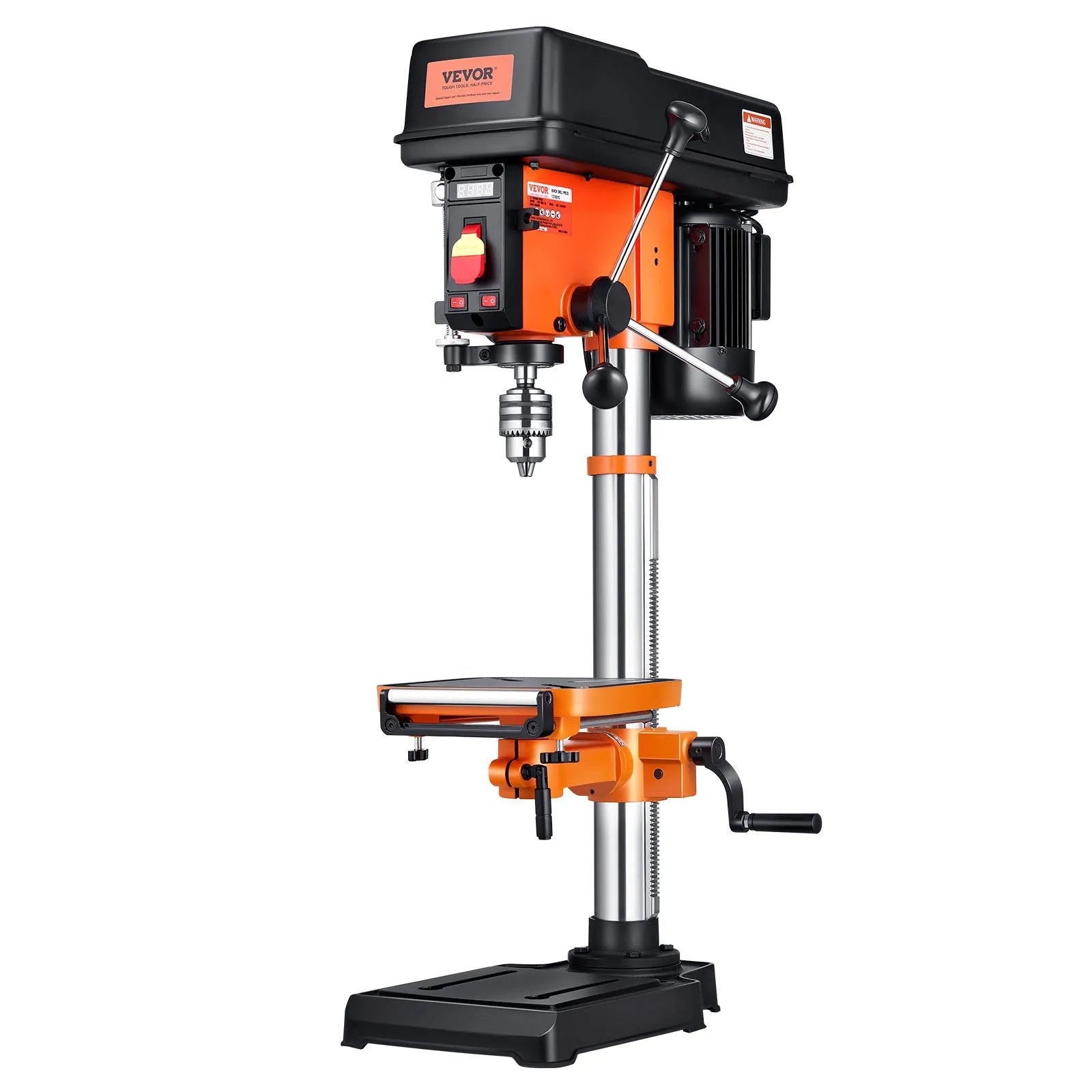

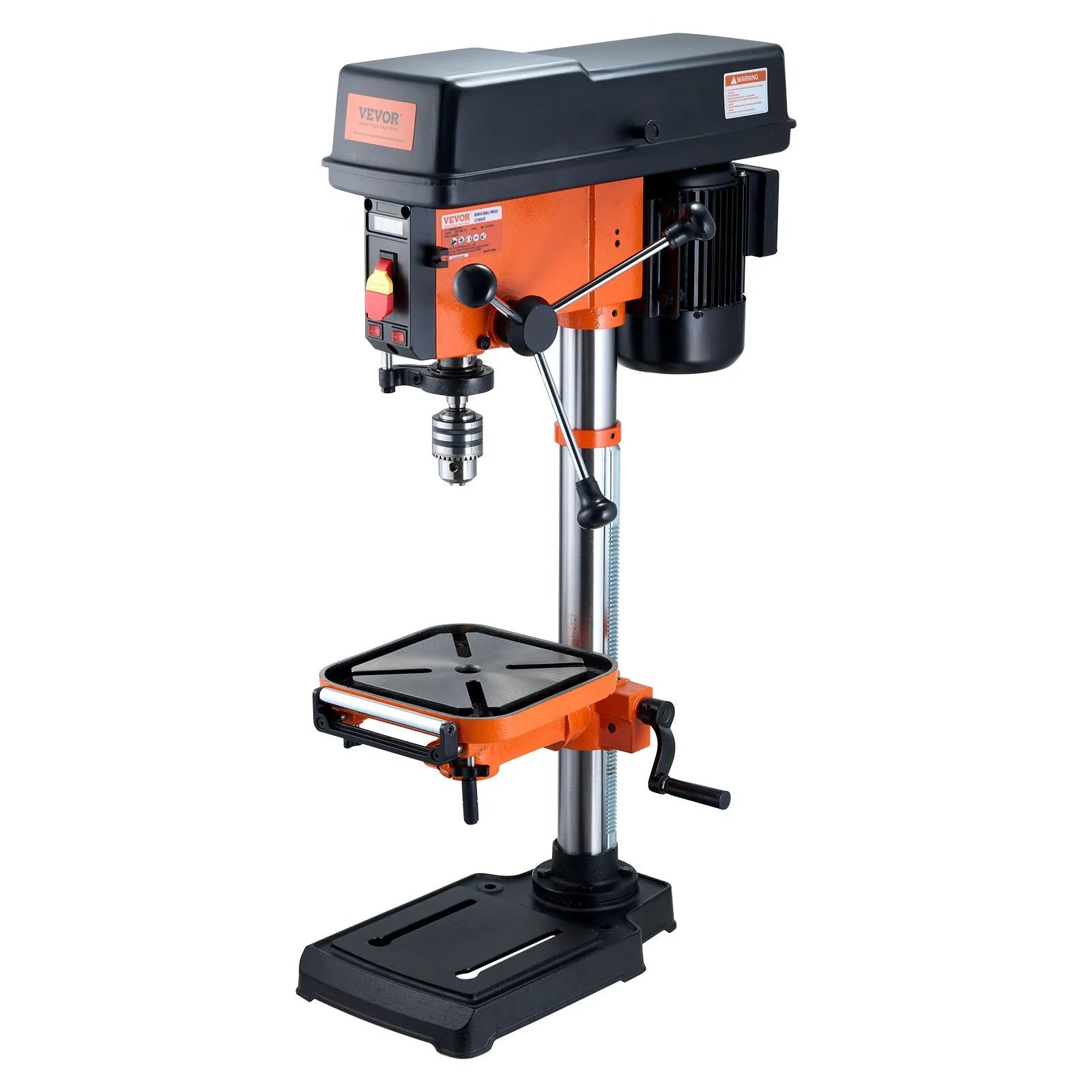

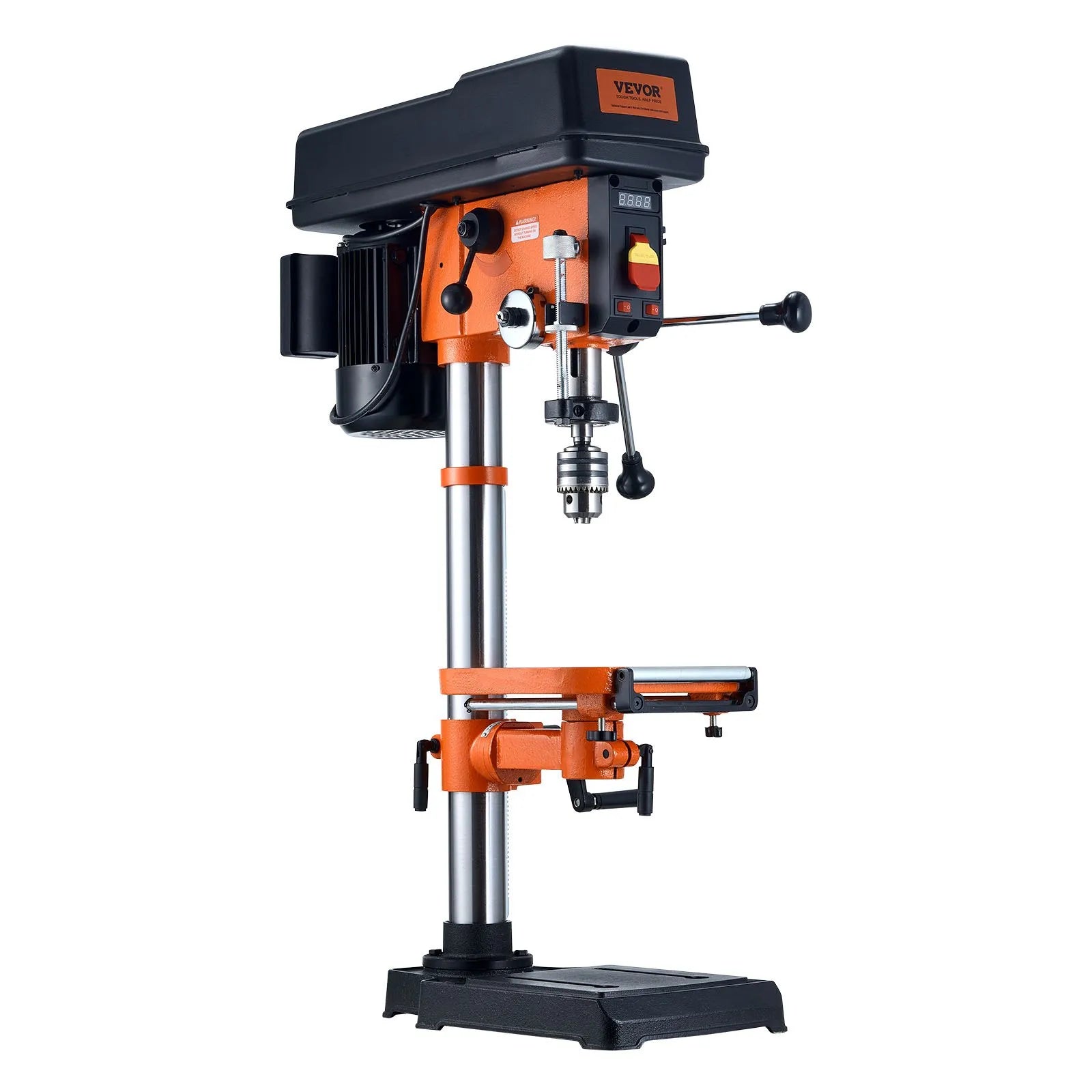

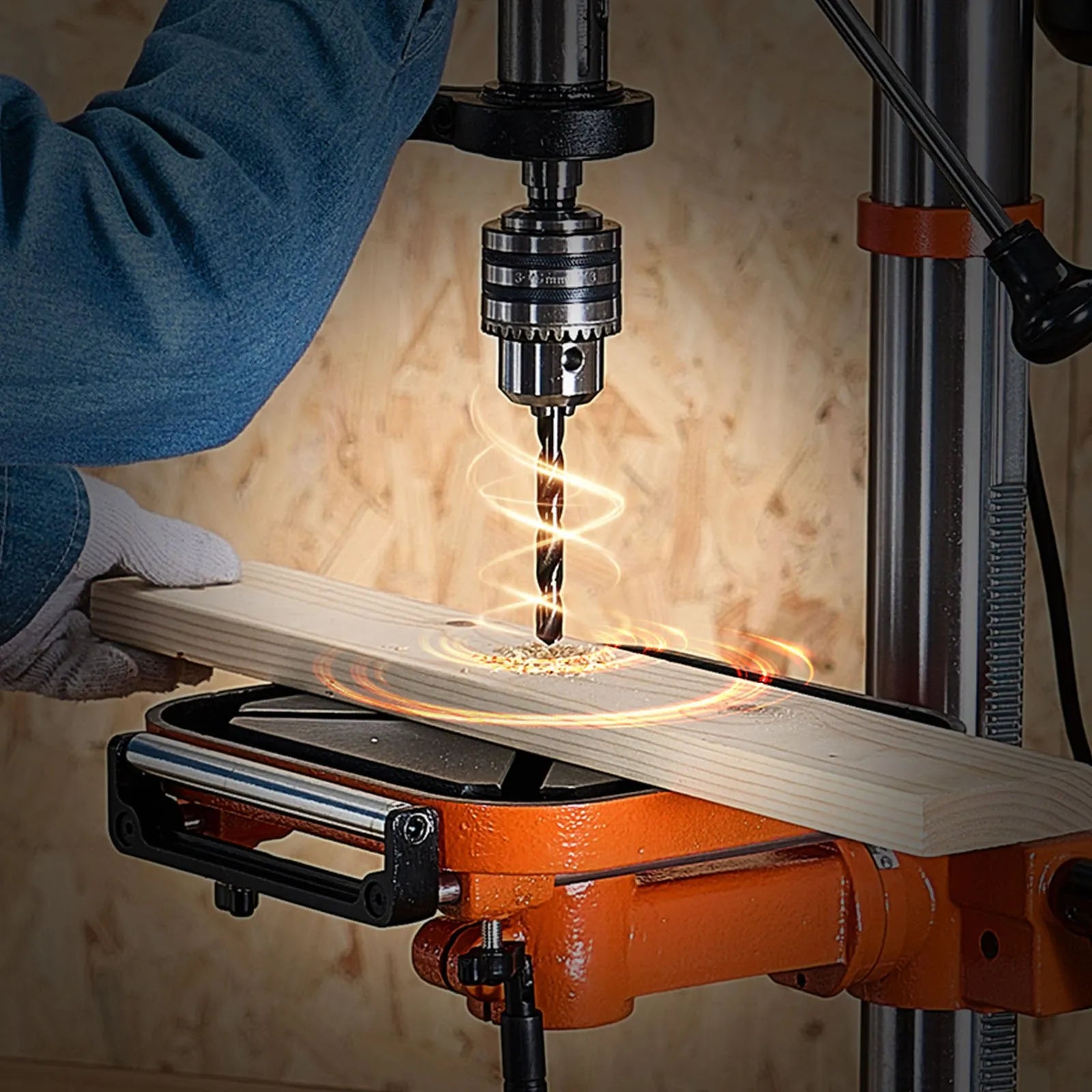

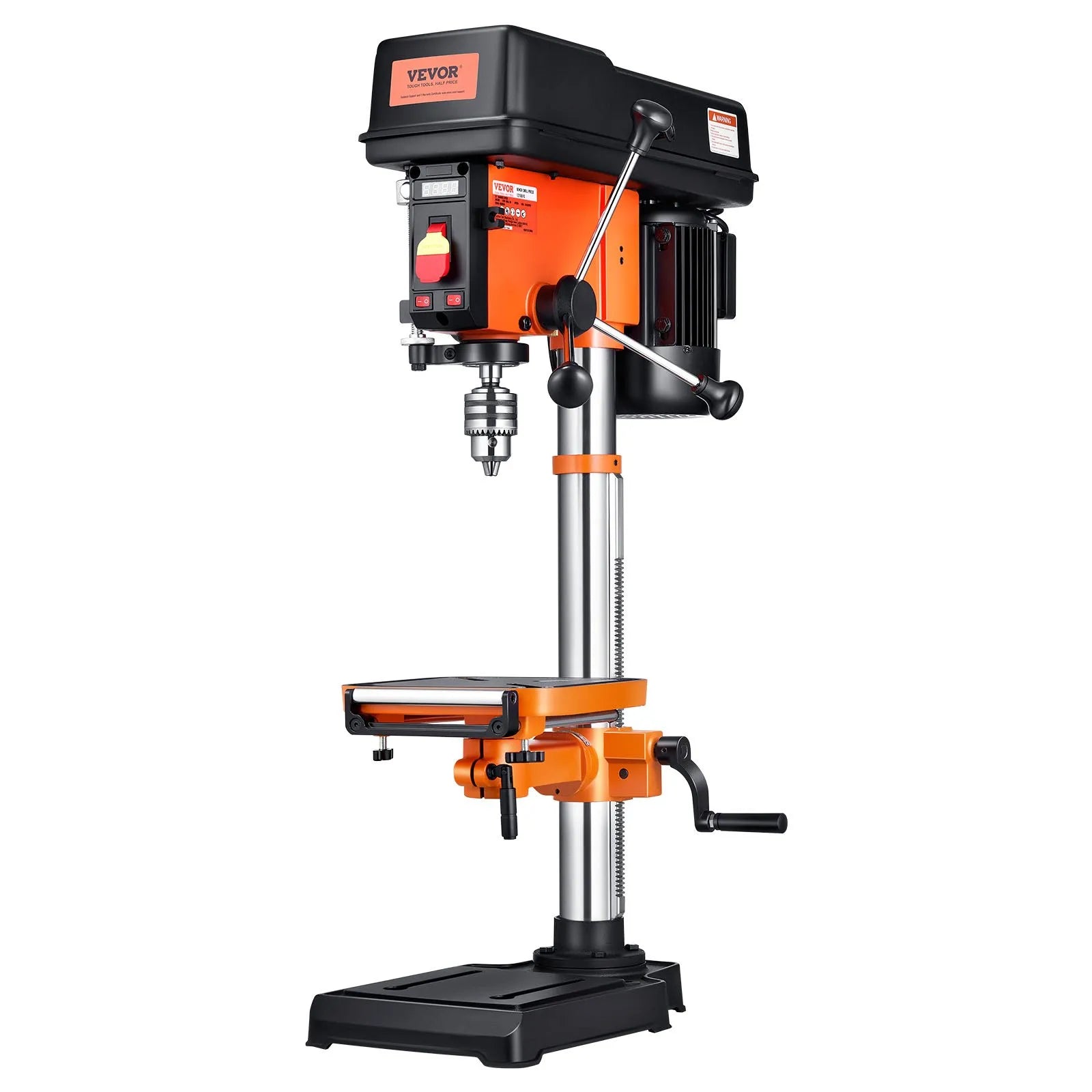

The VEVOR 12 in Benchtop Drill Press is a powerful and precise tabletop drilling machine designed for woodworking and metalworking applications. Equipped with a 5 Amp 120V motor and continuously variable speed control from 580 to 3200 RPM, it delivers smooth and accurate drilling performance. The 12-inch swing distance and 0–45° tilting worktable provide flexibility for angled and complex drilling tasks. Built with a durable cast iron construction, this bench drill press ensures stability and reduced vibration. Featuring a Class III laser work light for enhanced accuracy and a superior cooling system for extended operation, it is ideal for workshops, garages, and DIY projects.
Key Features
-

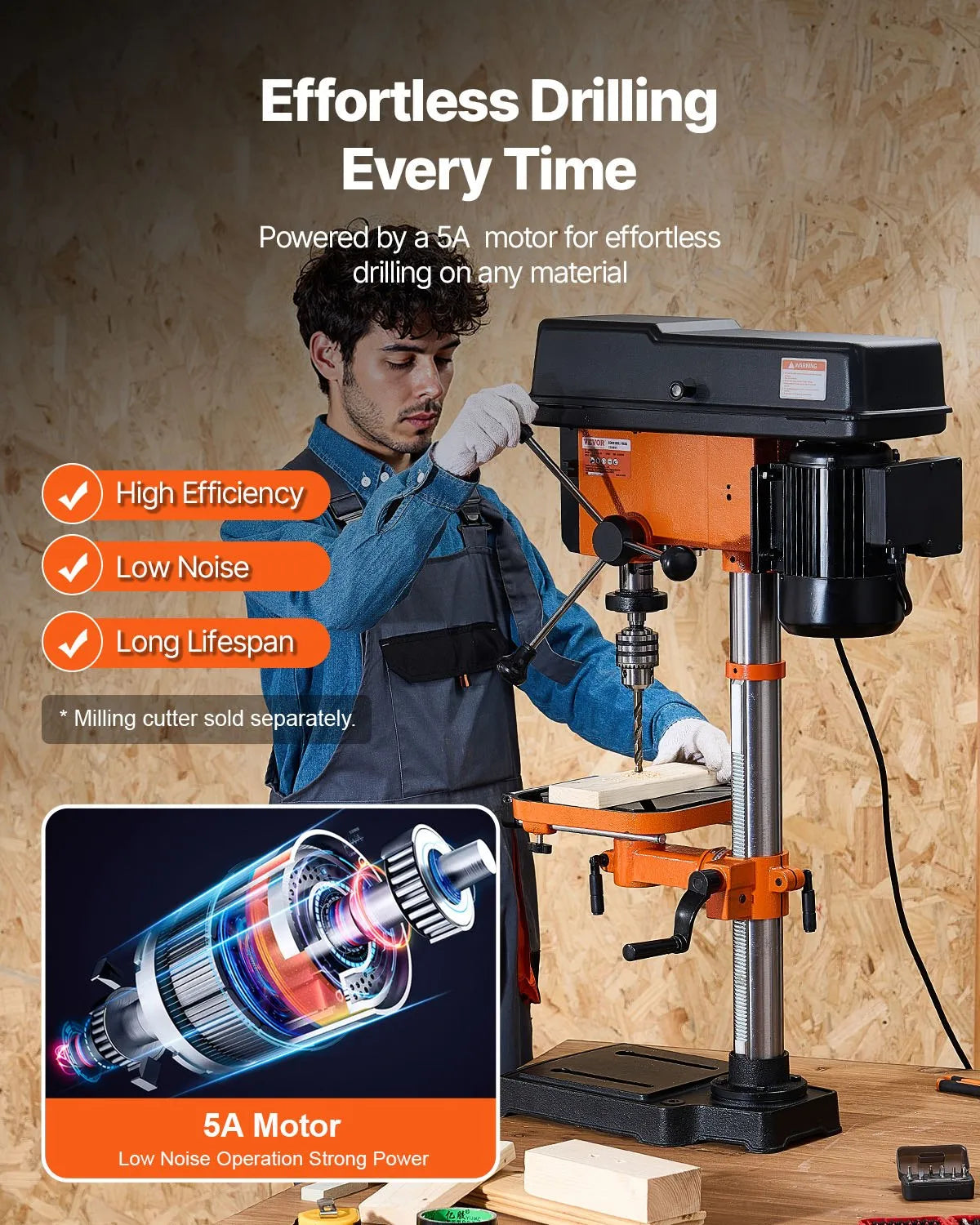

5 Amp powerful motor for consistent drilling performance
-
Variable speed control from 580–3200 RPM
-
12-inch swing distance for versatile drilling capacity
-

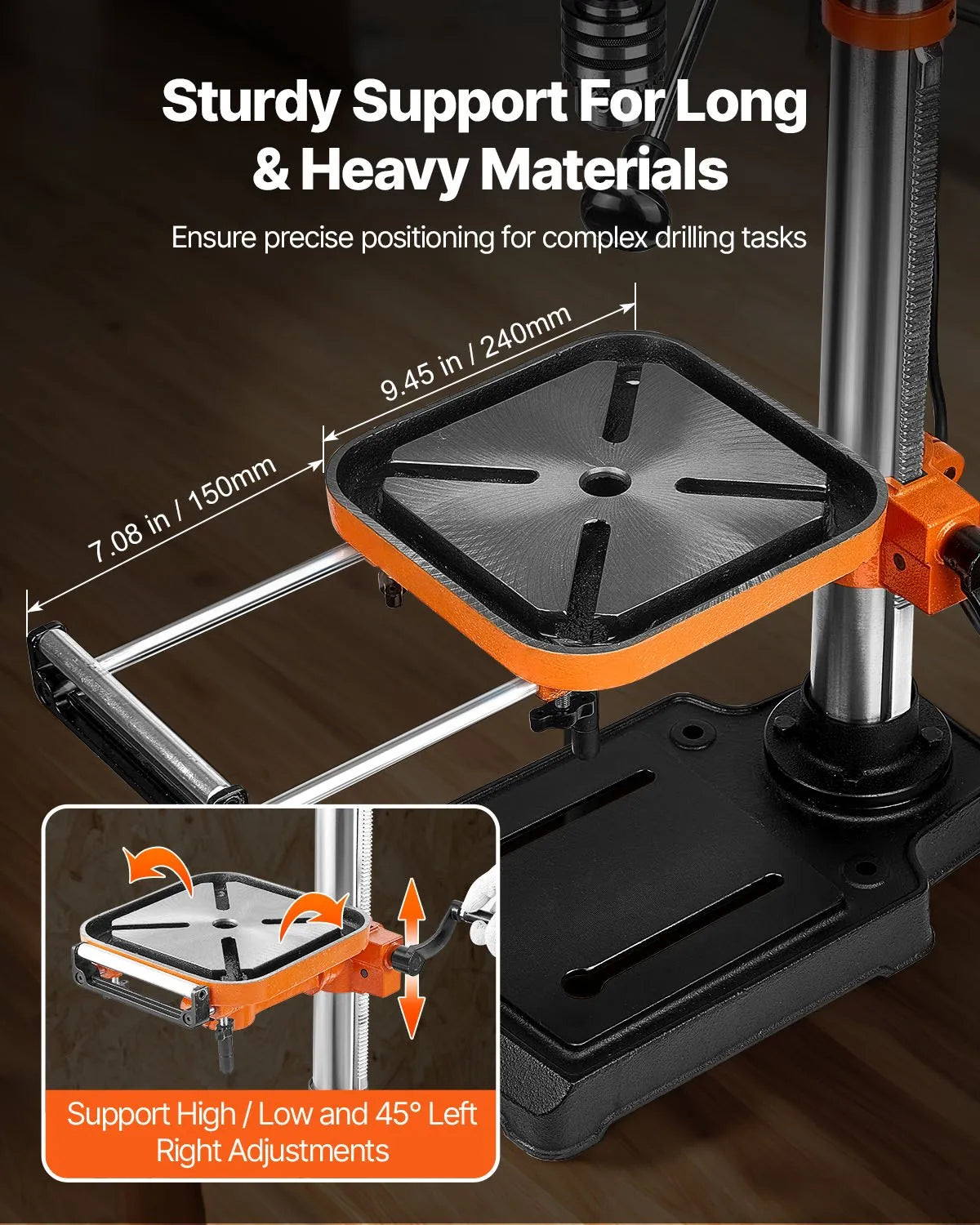

0–45° tilting worktable (left and right) for angled drilling
-

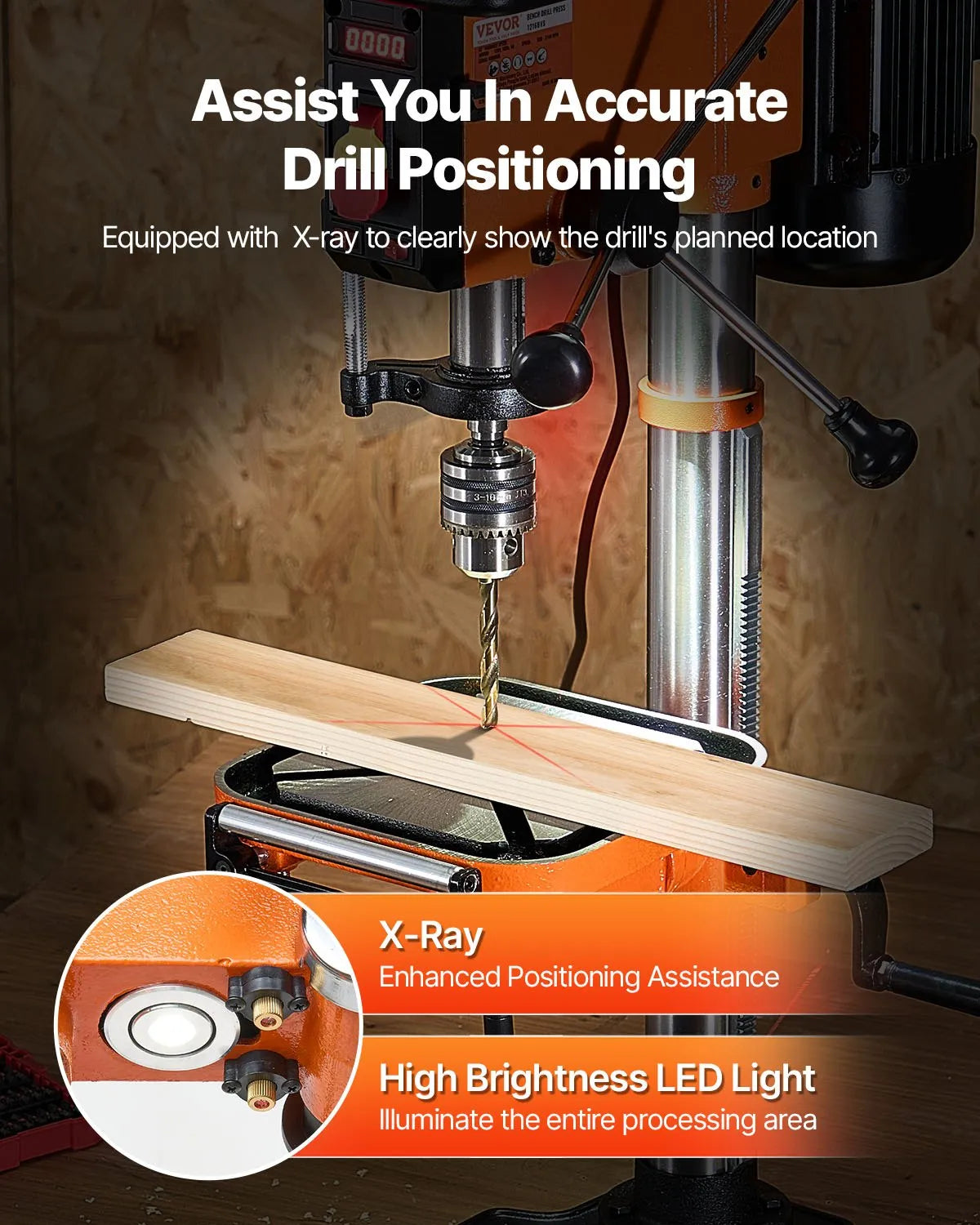

High drilling accuracy with integrated Class III laser guide
-
Durable cast iron construction for stability
-
3-1/8 in / 80 mm stroke depth for deeper drilling
-
Superior cooling system for extended use
-
Large 23 in capacity from chuck to base
-
Suitable for wood, metal, and various materials
Specifications
-
Model: DP12VL
-
Rated voltage: 120V
-
Frequency: 60 Hz
-
Current: 5A
-
Speed range: 580–3200 RPM
-
Swing: 12 in
-
Stroke: 3-1/8 in / 80 mm
-

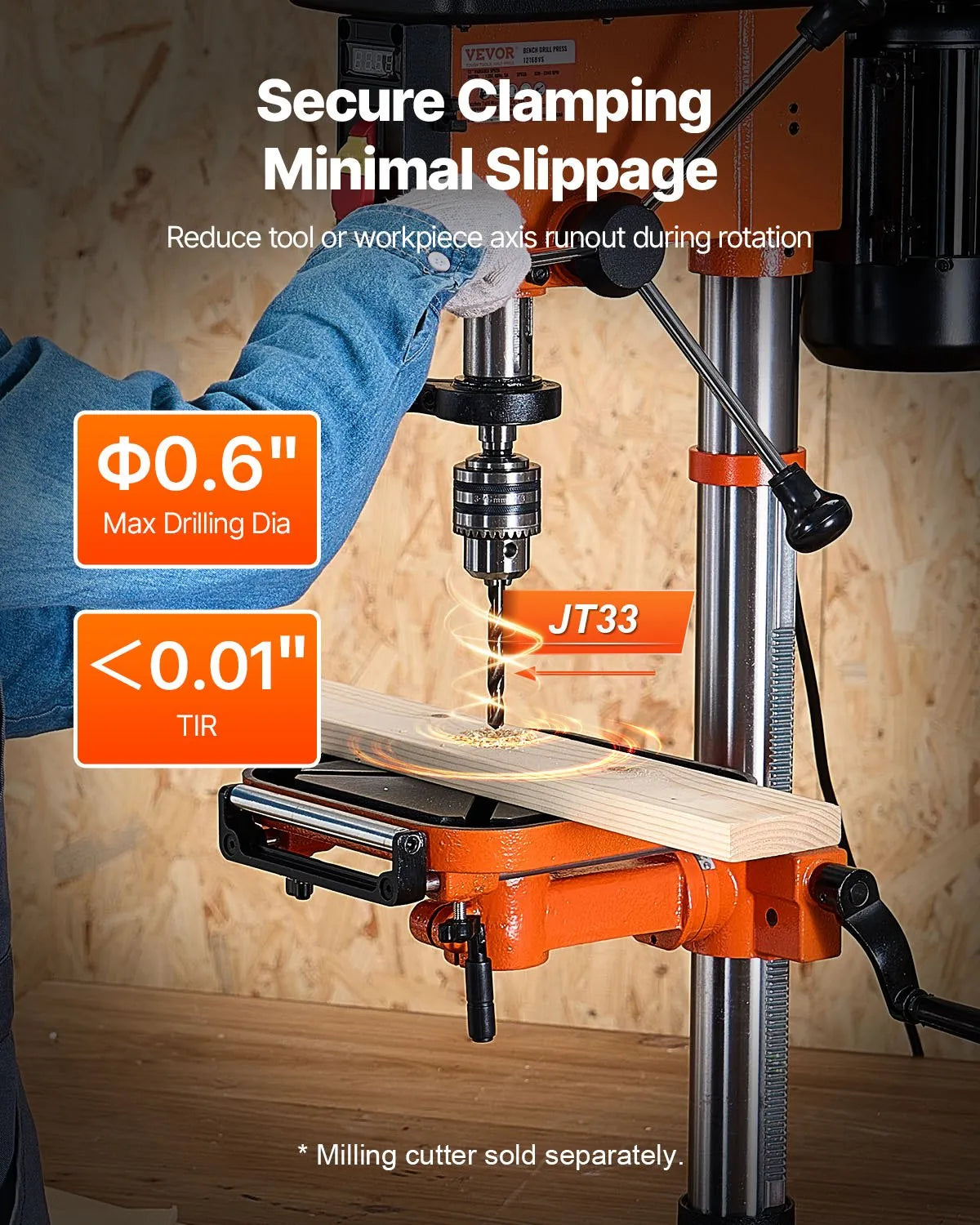

Chuck capacity: 1/32 – 5/8 in (Φ16 mm)
-
Chuck taper: JT3
-
Spindle taper: MT2
-
Capacity (chuck to base): 23 in / 595 mm
-
Table bevel: 0–45° left and right
-
Laser: Class III, transformer powered, 650 nm, <2.5 mW
-
Product size: 21.25 x 13.5 x 37.5 in / 340 x 540 x 950 mm
-
Net weight: 78.5 lbs / 35.75 kg
-
Application: Woodworking and metal drilling
