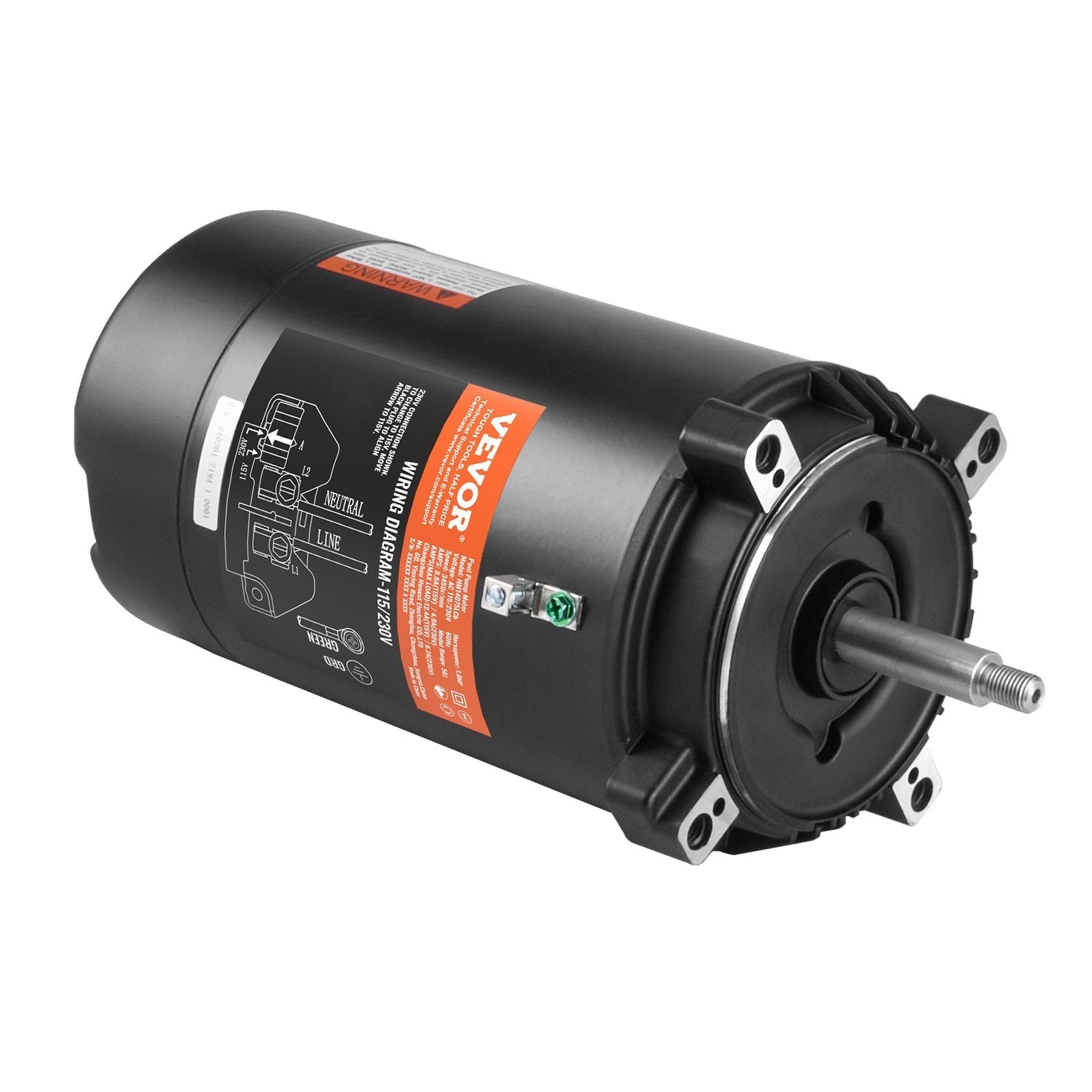

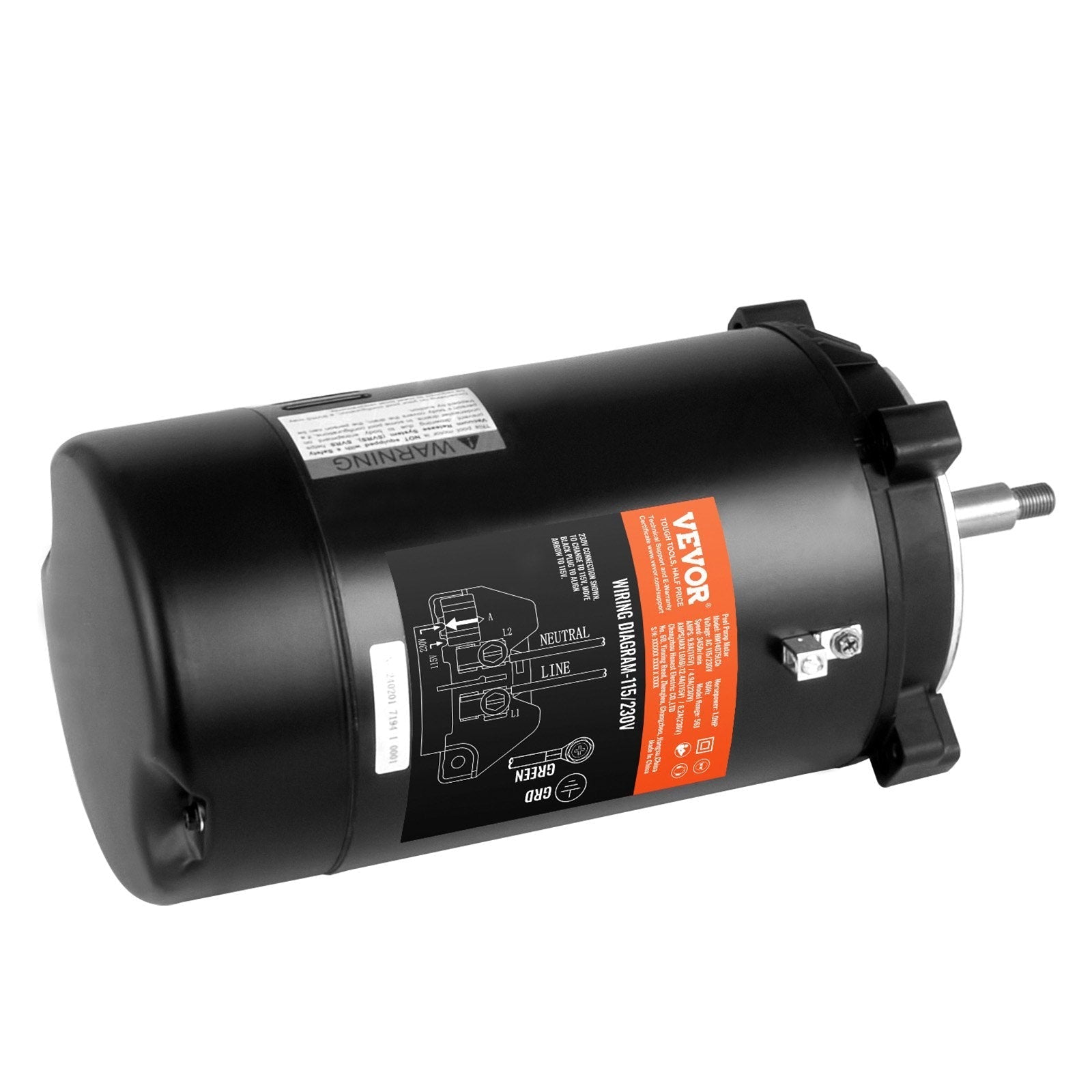

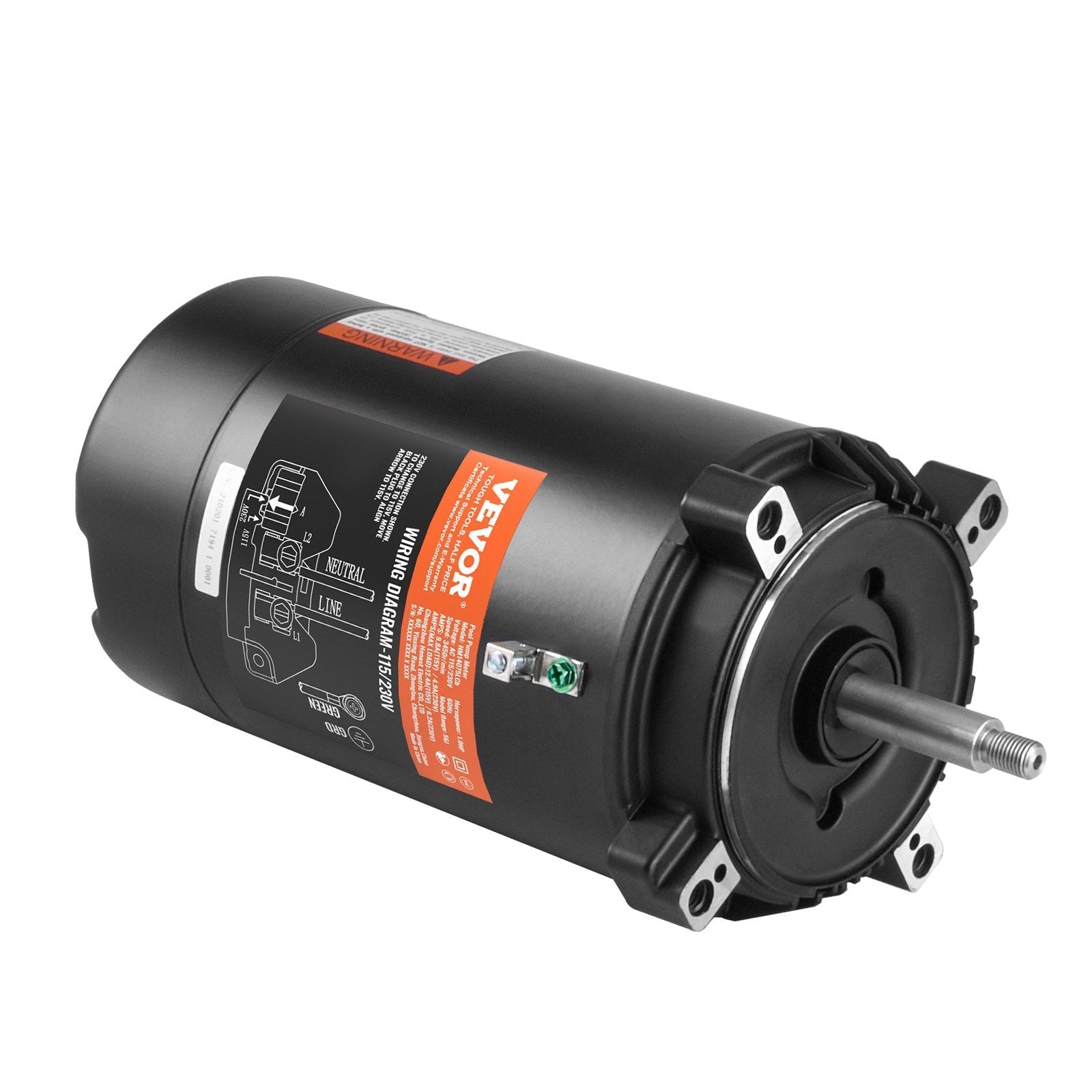

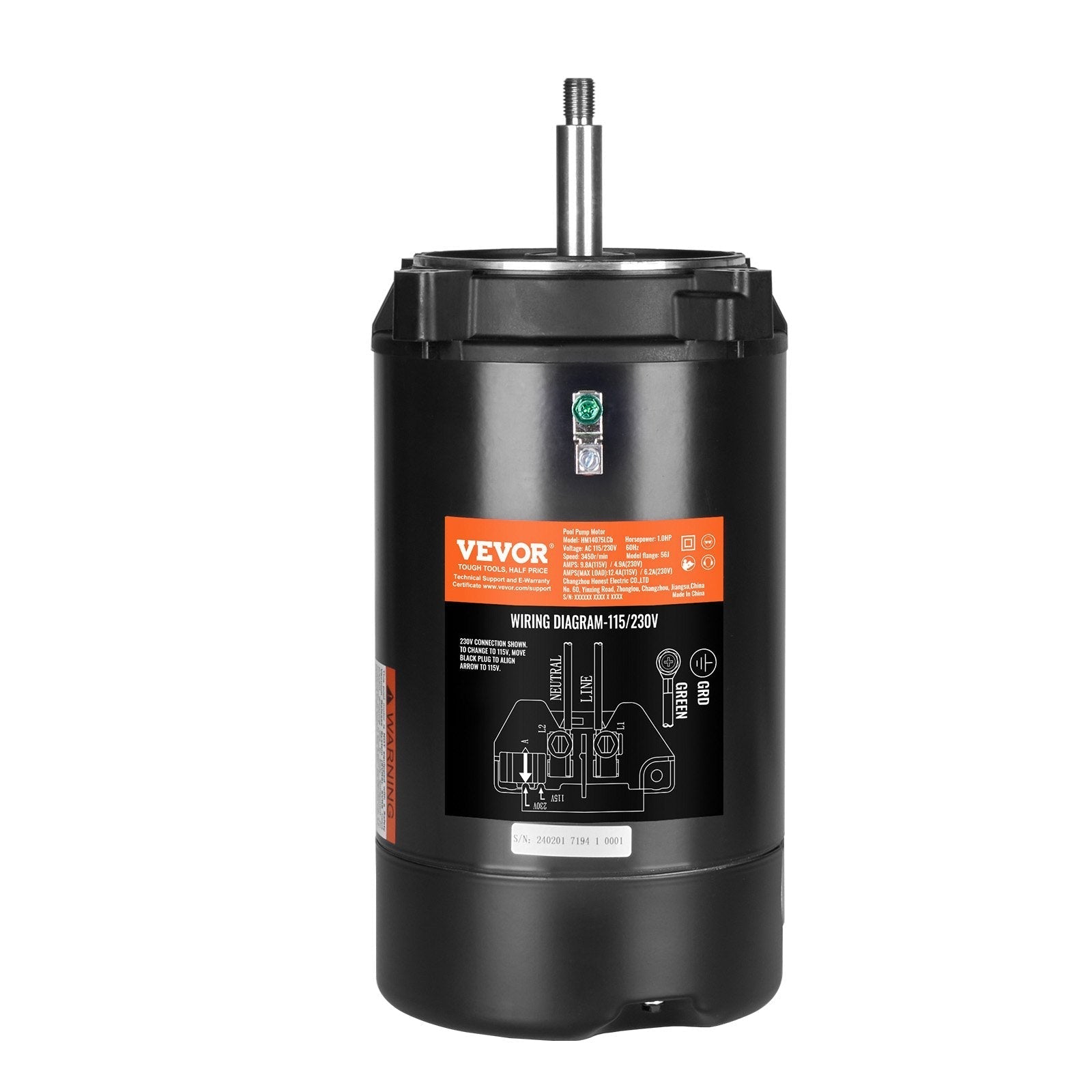

The VEVOR 1 HP Pool Pump Motor is engineered for performance, durability, and quiet operation—making it an ideal replacement for standard pool and spa systems. With a 56J round flange frame and counter-clockwise rotation, this motor offers broad compatibility and effortless installation. It supports both 115V and 230V inputs, delivering a powerful 3450 RPM speed while keeping noise levels at or below 65 dB. A high-quality 90μF/250V capacitor ensures smooth and reliable startup. Whether you're upgrading or replacing an old motor, this unit provides a stable and long-lasting solution for maintaining optimal pool circulation.

Features

• 1 HP High-Speed Motor: Offers strong and consistent 3450 RPM water movement.

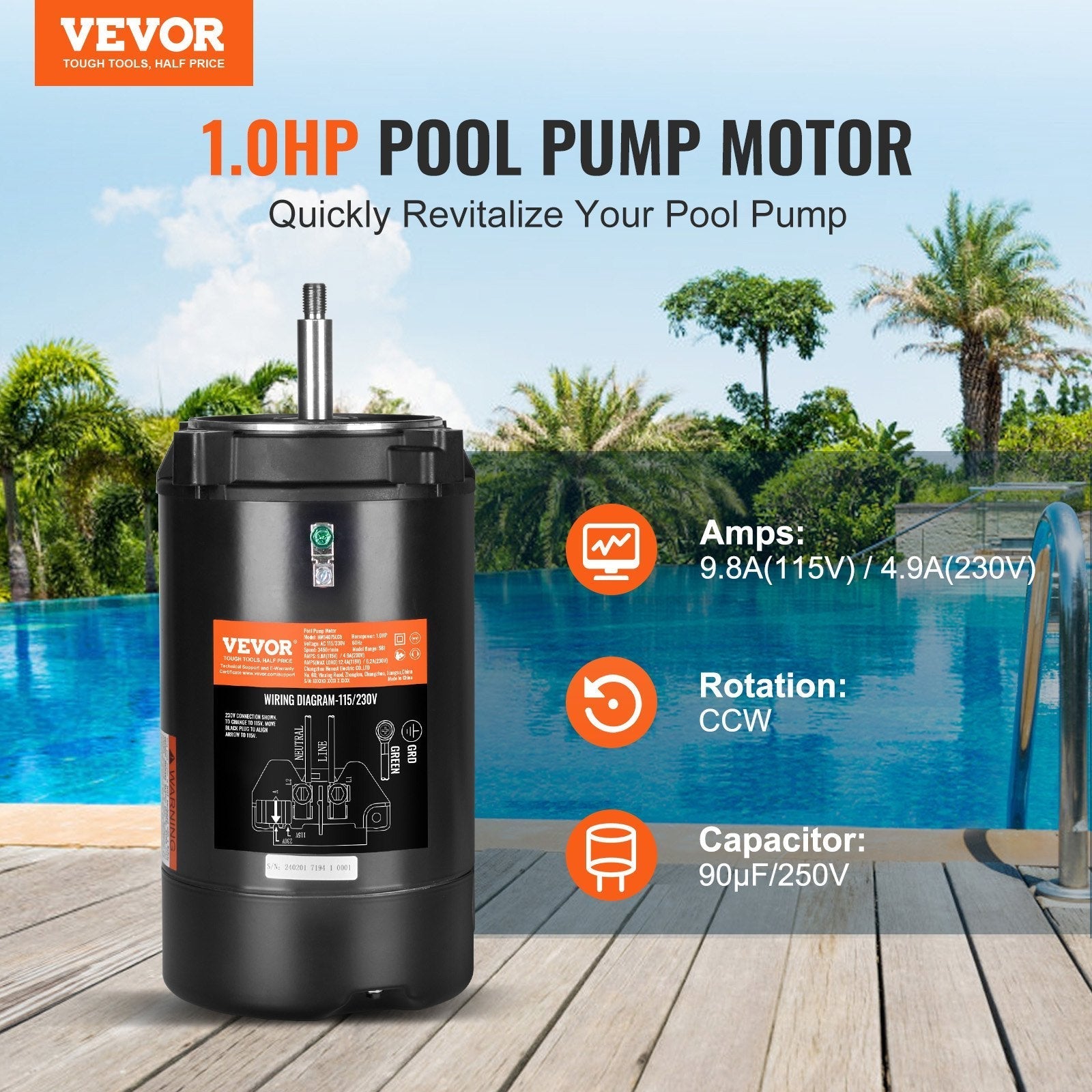

• Dual Voltage Support: Operates on 115V (9.8A) or 230V (4.9A) for flexible setup.

• Quiet Operation: Maintains noise levels ≤65 dB for a more peaceful environment.

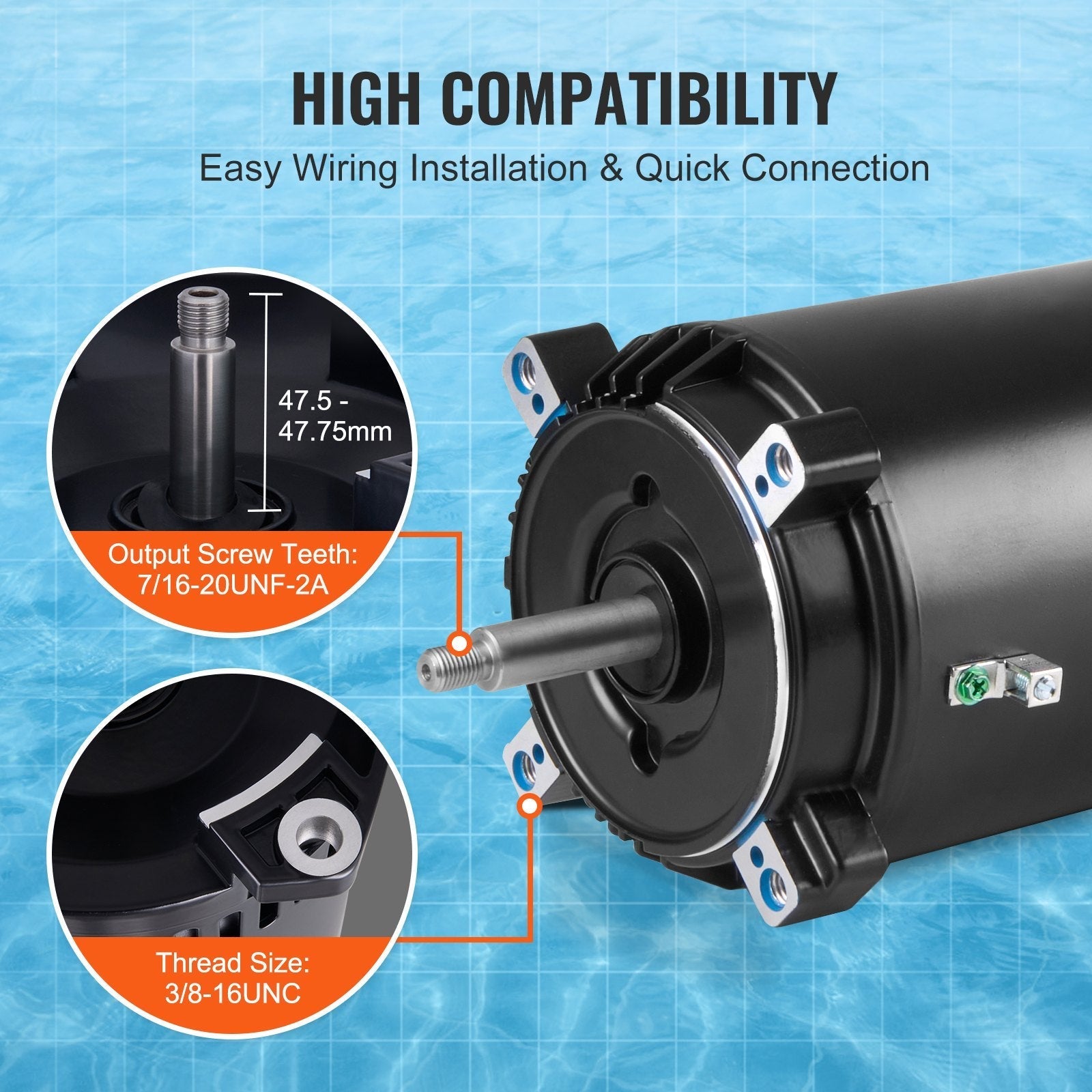

• Standard 56J Frame: Round flange design fits many common pool pump systems.

• Durable Build: Designed with long-lasting materials for dependable performance.

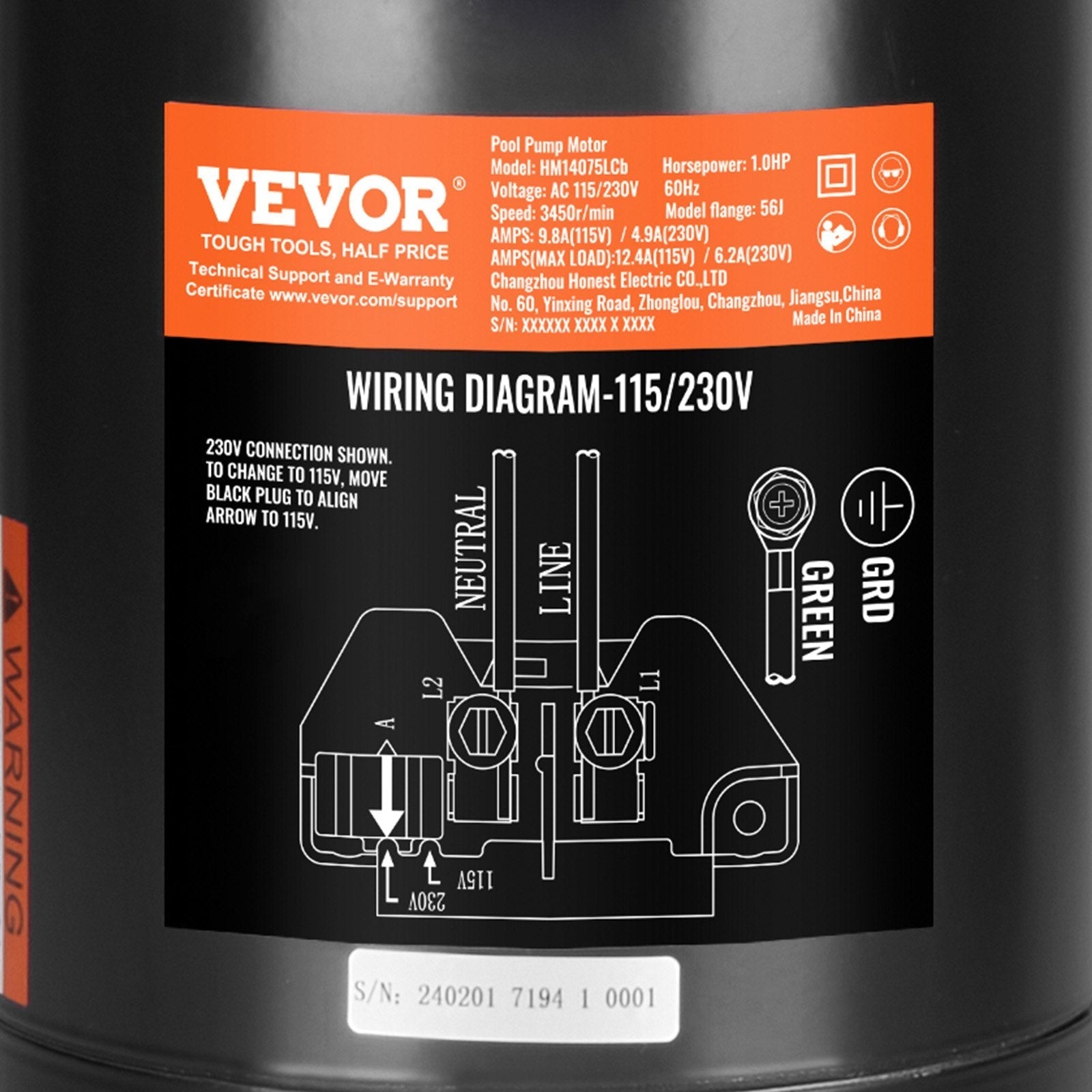

• Easy Installation: Pre-configured wiring and mounting simplify replacement and setup.

• Reliable Startup: Equipped with a 90μF/250V capacitor for smooth motor operation.

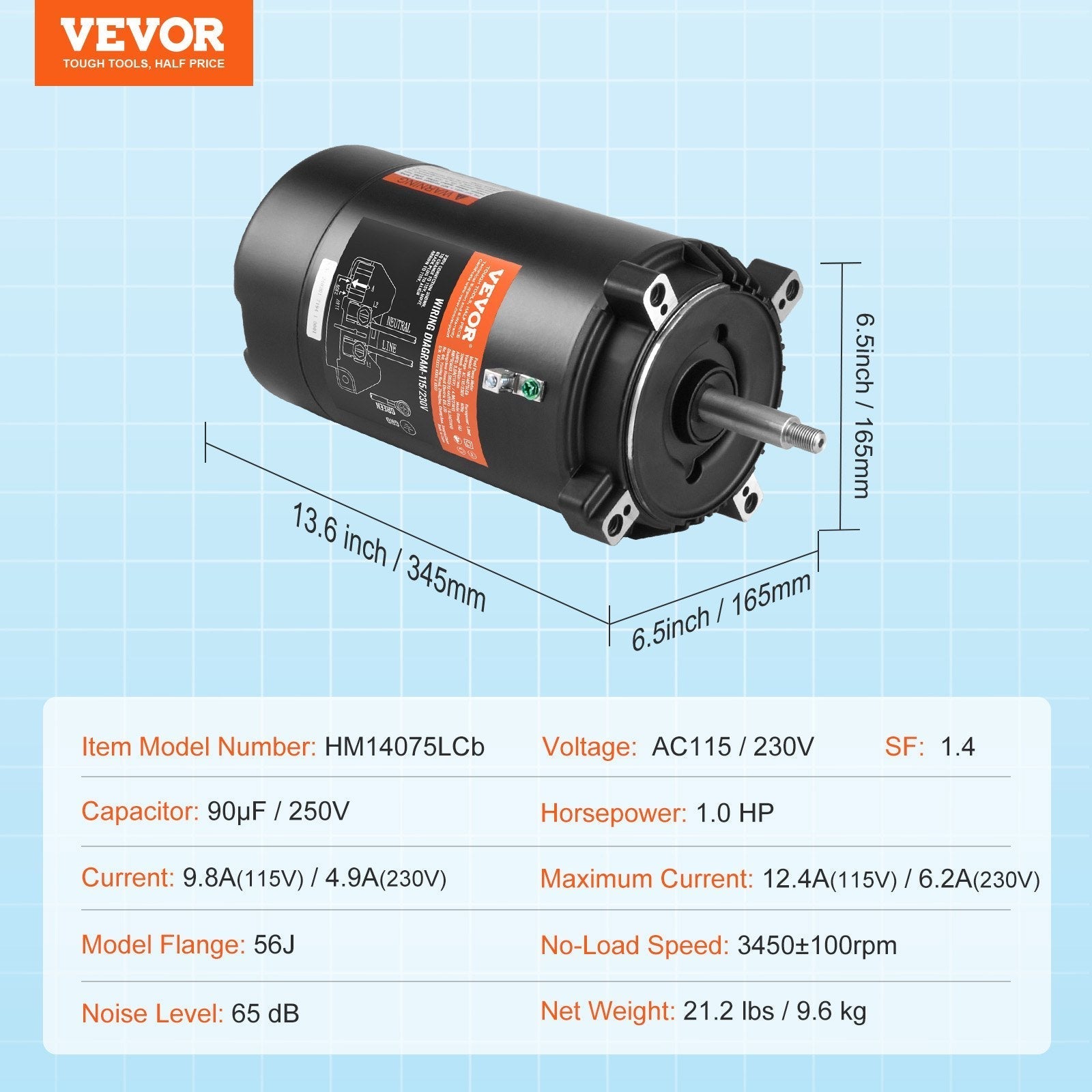

Specifications

• Item Model Number: HM14075LCb

• Horsepower: 1 HP

• Voltage: 115V (9.8A) / 230V (4.9A)

• Max Current: 12.4A (115V) / 6.2A (230V)

• No-Load Speed: 3450 RPM

• Service Factor: 1.4

• Noise Level: ≤ 65 dB

• Rotation: CCW (Counter-Clockwise)

• Frame Type: 56J Round Flange

• Capacitor: 90μF / 250V

• Product Dimensions: 13.6 x 6.5 x 6.5 in / 345 x 165 x 165 mm

• Net Weight: 21.2 lbs / 9.6 kg
