Trimline Components

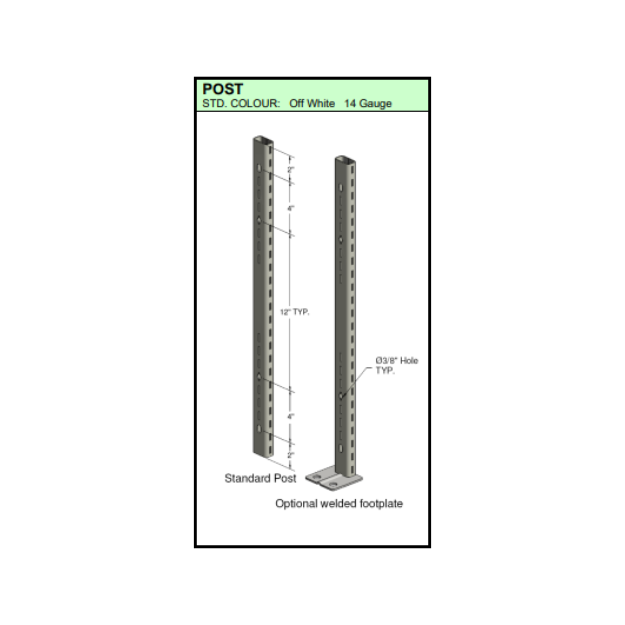

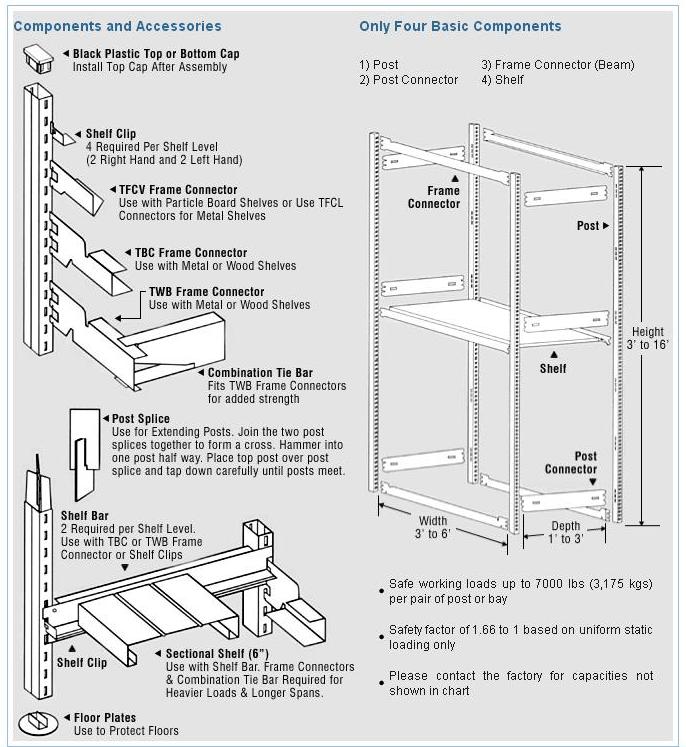

Assembly Instruction
Trim-Line shelving provides strong, adaptable storage with load capacities varying by connector type and shelf width. For light-duty options, 4 Shelf Clips support up to 350 lb (159 kg) at 36″, while TFCV handles up to 390 lb (177 kg) and TBC up to 600 lb (272 kg) at the same width. For wider shelves, TWB connectors support 395–570 lb (179–259 kg) from 60″ to 72″, and adding a Combination Tie Bar boosts capacity to 729–972 lb (331–441 kg).
Load Capacities
Max. Evenly Distributed Static Load Per Pair Of Connectors
|
36" (914 mm) |
39 1/2" (1,003 mm) |
48" (1,219 mm) |
60" (1,524 mm) |
66" (1,676 mm) |
72" (1,829 mm) |
| 4 Shelf Clips |
350 lb (159 kg) |
290 lb (132 kg) |
200 lb (91 kg) |
– |
– |
– |
| TFCV |
390 lb (177 kg) |
350 lb (159 kg) |
290 lb (132 kg) |
– |
– |
– |
| TBC |
600 lb (272 kg) |
550 lb (249 kg) |
500 lb (227 kg) |
– |
– |
– |
| TWB |
– |
– |
– |
570 lb (259 kg) |
470 lb (213 kg) |
395 lb (179 kg) |
| TWB with one Combination Tie Bar |
– |
– |
– |
972 lb (441 kg) |
810 lb (368 kg) |
729 lb (331 kg) |
![]()
![]()
![]()
