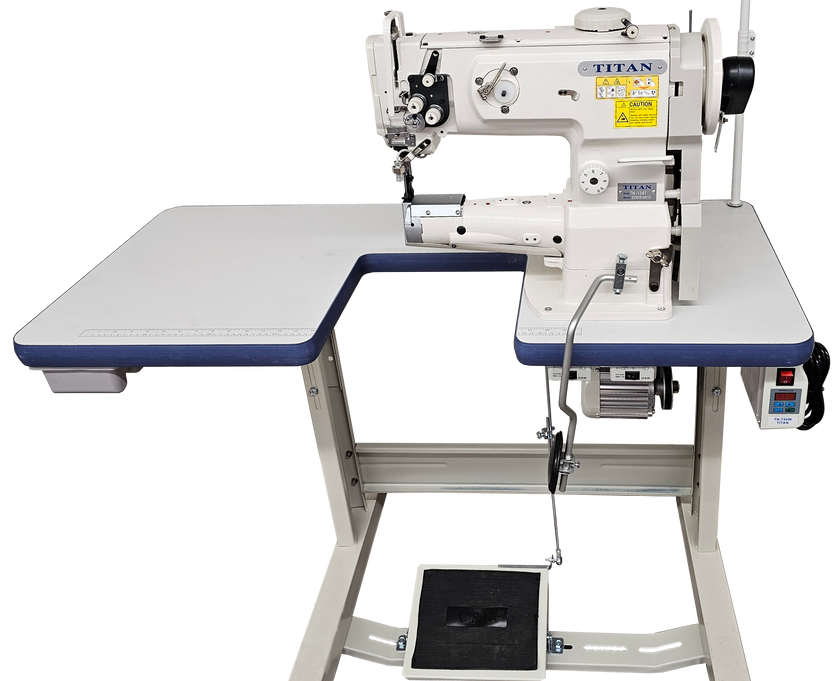

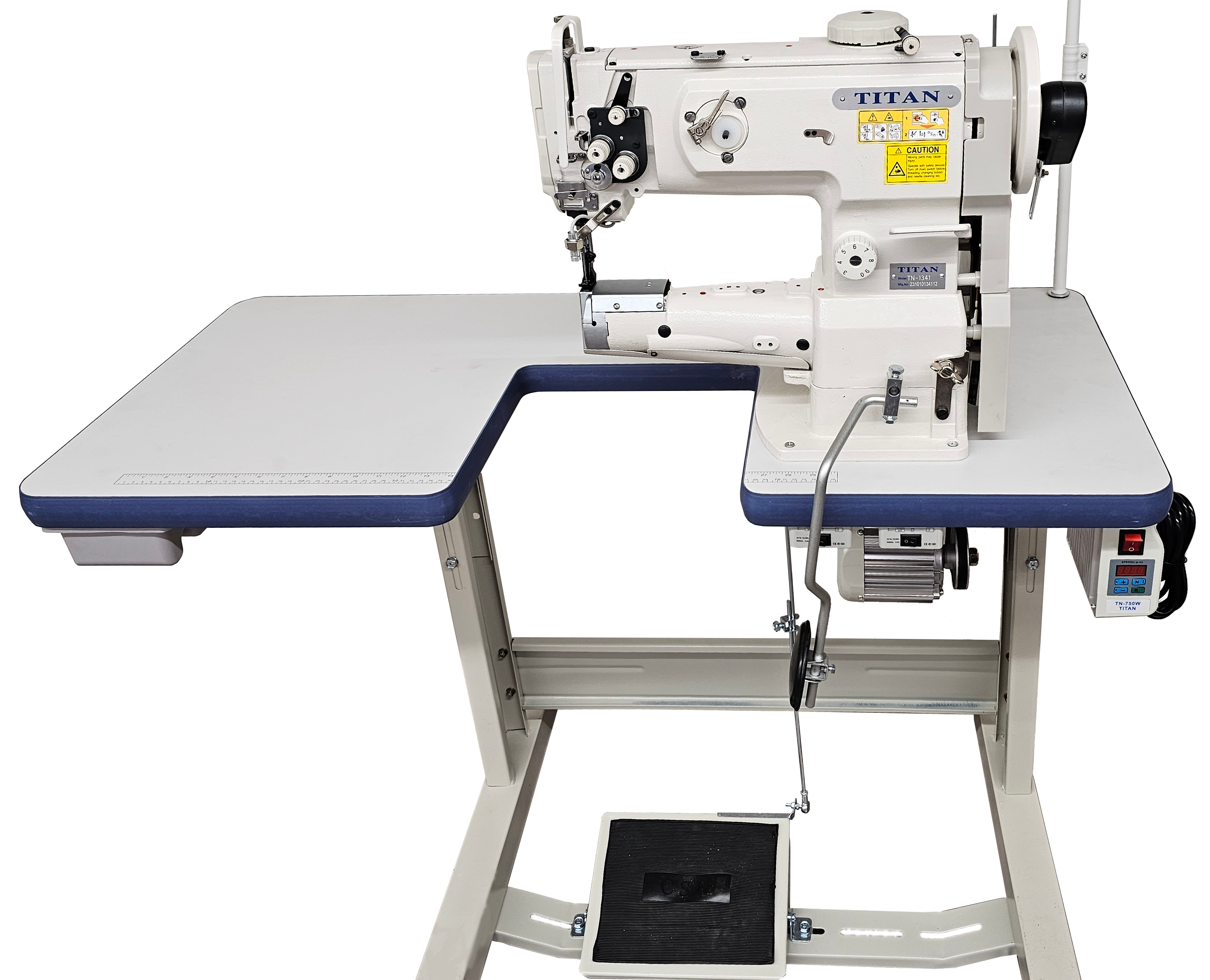

The Titan TN-1341 is a professional-grade cylinder arm walking foot sewing machine engineered for sewing medium to heavy-weight materials with precision and control. Designed for tight, hard-to-reach areas, this machine excels where flatbed machines can't perform — making it ideal for bags, belts, wallets, footwear, and cylindrical products.

Equipped with a compound triple feed system and dual tension control, the TN-1341 delivers consistent stitch quality, strong material feeding, and reliable performance in demanding production environments.

Key Features

• Cylinder arm design — narrow arm for easy sewing inside bags, tubular items, and curved assemblies
• Compound walking foot feed system (needle feed + walking foot + bottom feed) — smooth, even feeding across layered materials
• Maximum speed: 2,000 SPM | Maximum stitch length: 9mm forward & reverse
• Presser foot lift: 16mm (knee), 9mm (hand)
• Large capacity vertical axis hook — longer run times between bobbin changes
• Dual tension control — improved stitch balance with heavier threads (TEX 45–TEX 210)
• Needle bar stroke: 36mm | Needle: DP×17 | Stitch adjustment: dial control

Applications

• Leather goods (belts, wallets, bags)
• Footwear and shoe components
• Upholstery and automotive interiors
• Cases, covers & technical products
• Cylindrical and hard-to-access sewing jobs

What’s Included

• Fully laminated plywood tabletop with rubber trim
• Titan Deluxe 2.0 T-stand with locking wheels
• Drawer with accessories (oil, tools, manuals)
• LED light
• Full technical support (phone, email, video)

Every TN-1341 is assembled, calibrated, and fully tested in Canada to ensure reliable, production-ready performance right out of the box.

Each machine is set up and tested for your application.

⚠️ Freight Sensitive — freight charges are additional. Please review our shipping policy for details.
