NOTICE: This radio transmits on Amateur Radio bands only. A valid Amateur Radio license is required. Not for commercial use. Cannot be programmed to FRS/GMRS/Marine or other commercial frequencies.

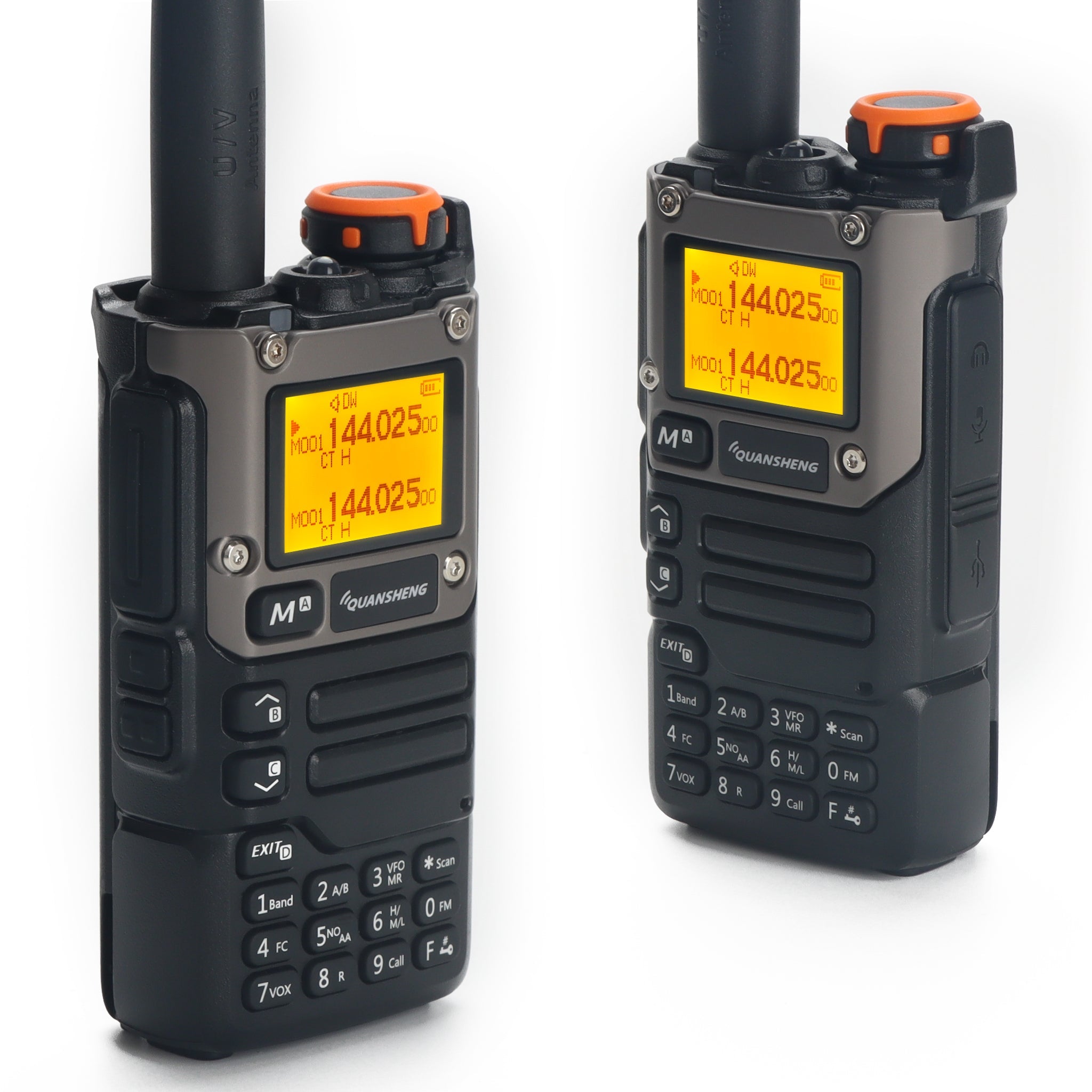

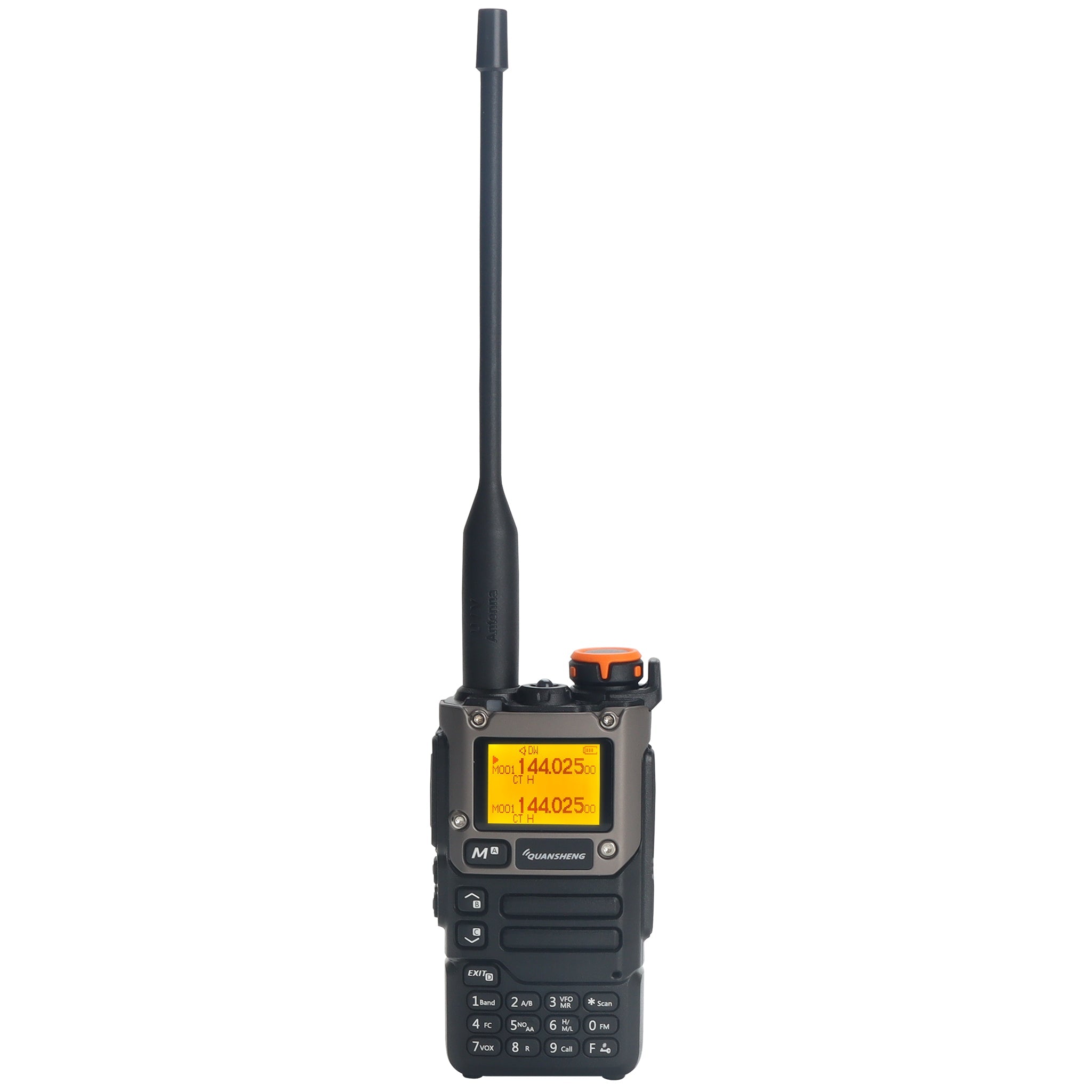

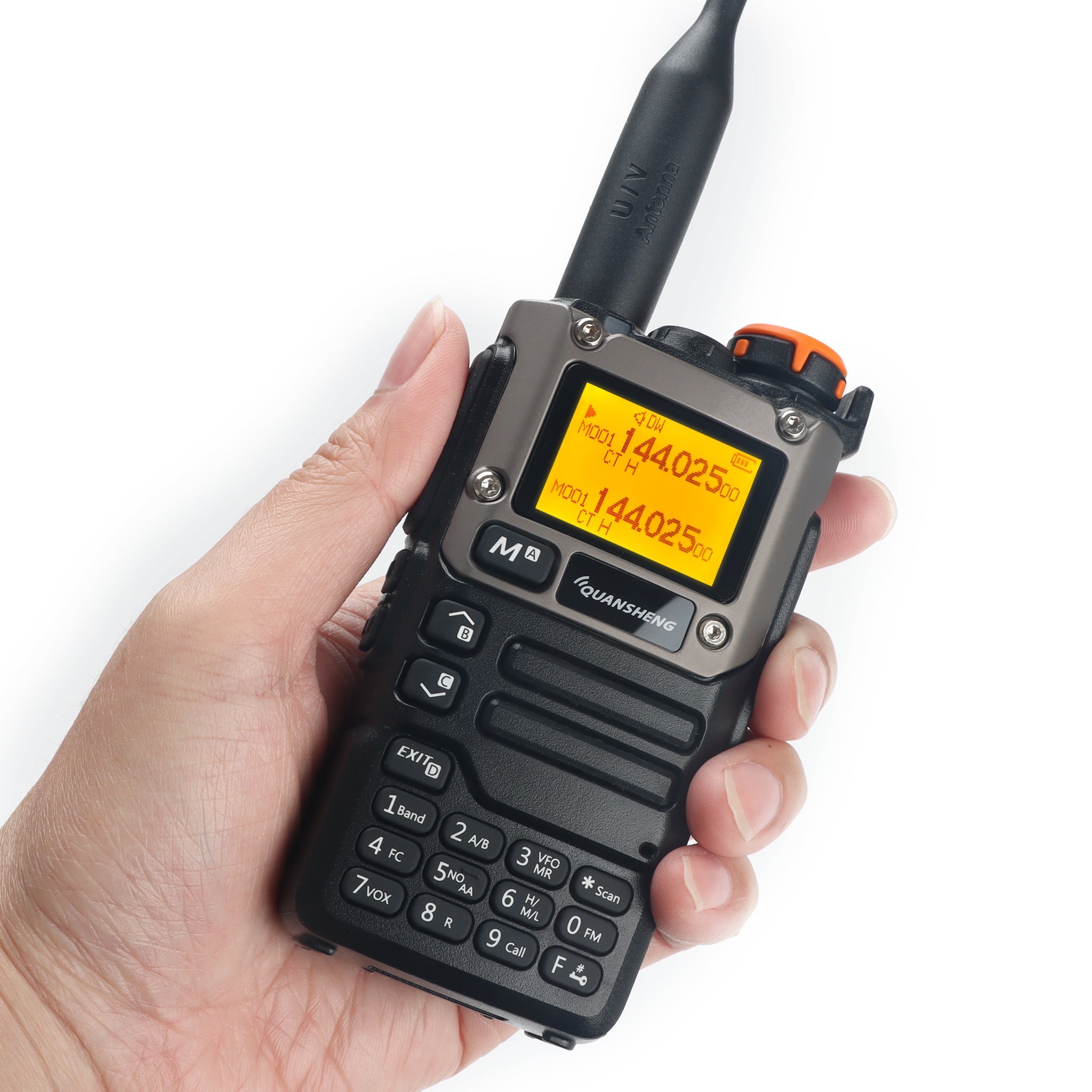

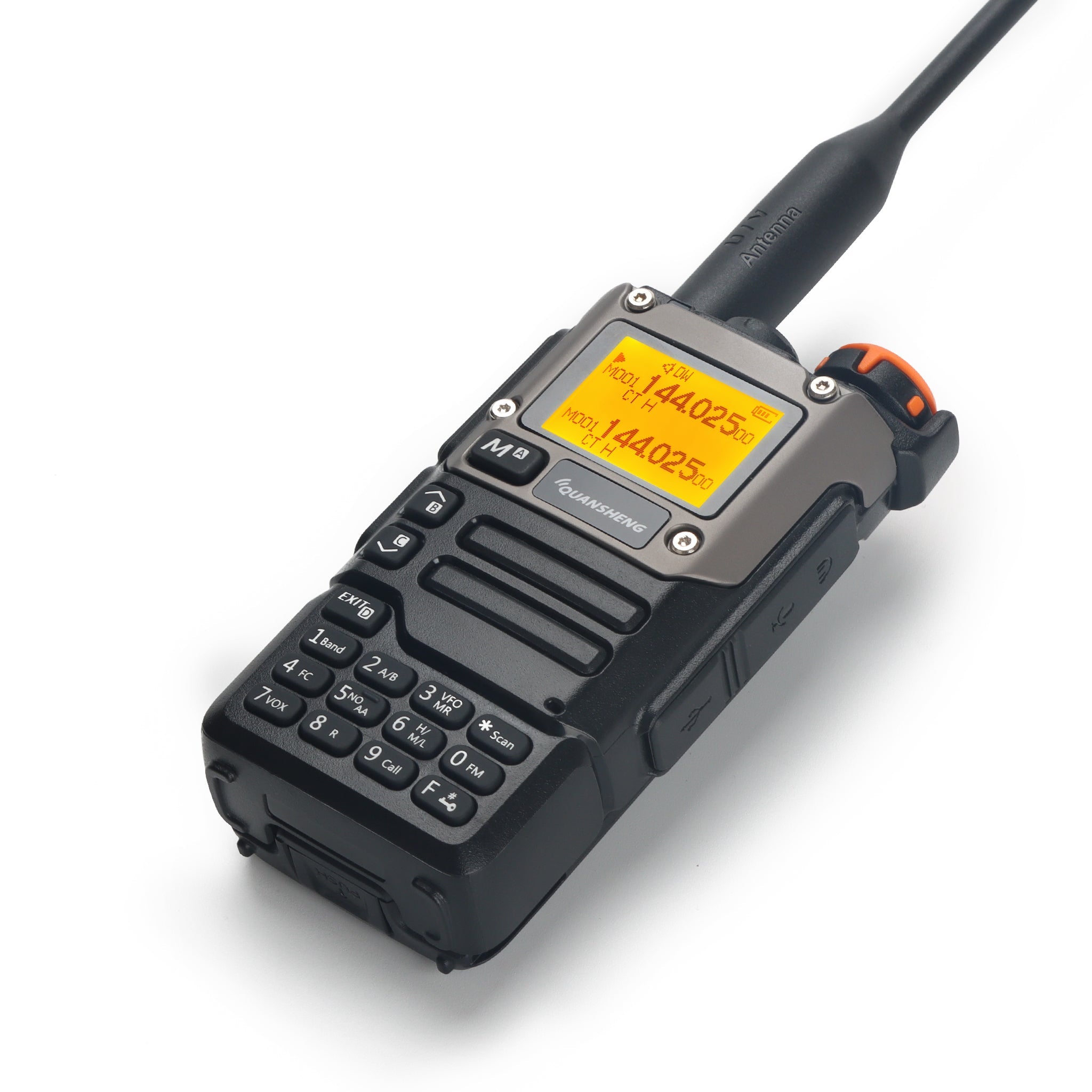

Quansheng UV-K5(8) Amateur Radio
Professional dual-band handheld with NOAA Emergency Weather Receiver. Clear audio, long-range performance, and dependable build—ideal for licensed ham operators and emergency preparedness.
Frequency Range
-
144–148 / 430–450 MHz (Tx / Rx)

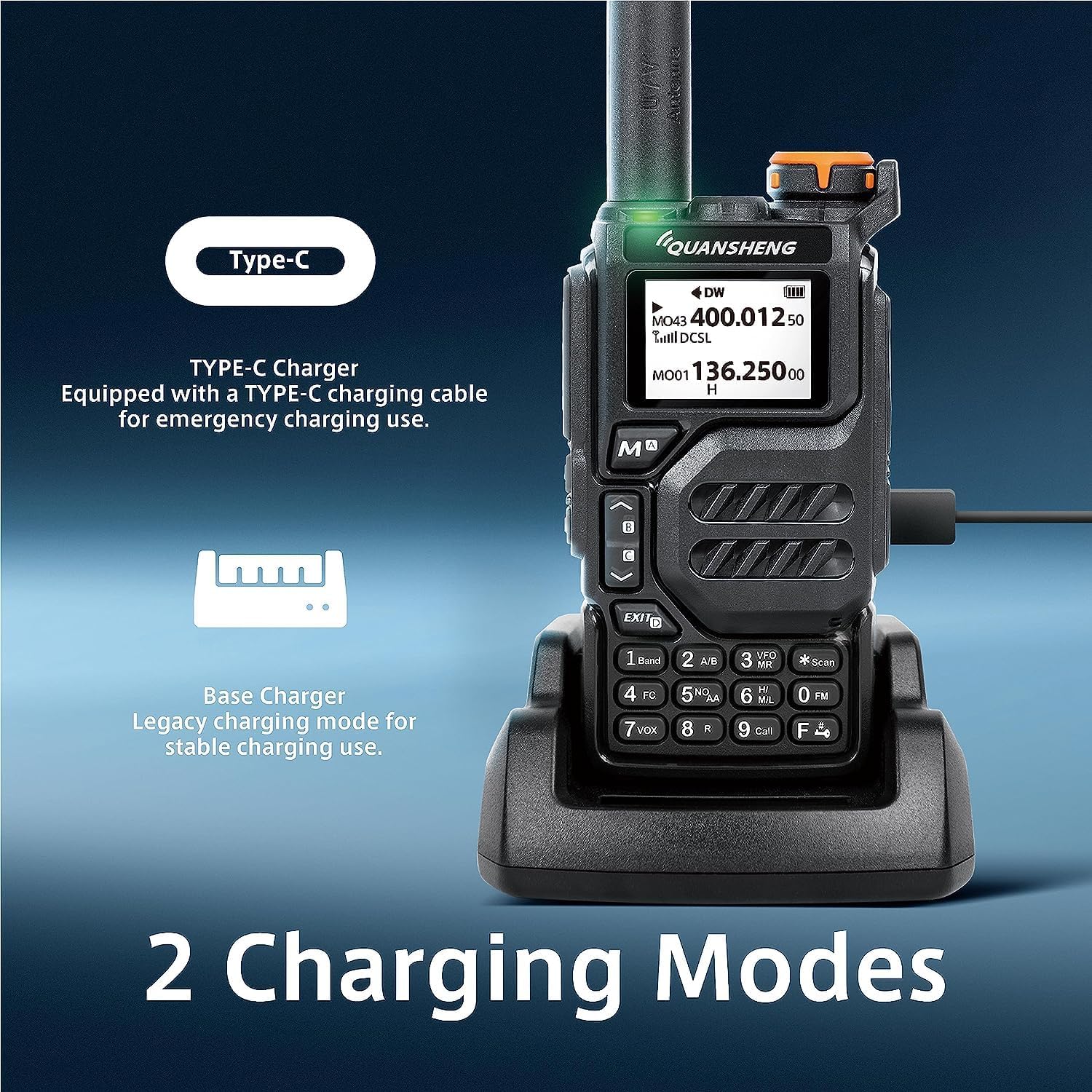

NOAA Weather Receiver CTCSS/DCS Privacy Codes* DTMF 10-Group Scrambler Emergency Alert Type-C / Base Charging Multi-Scan One-Key Call Channel Flashlight 200 Channels H/M/L Power Wide/Narrow Band
*Privacy codes help reduce channel chatter; they are not encryption.
Quick to start, clear audio, dependable build for everyday use.
Fast copy one channel, frequency-counter mode for certain devices, wireless radio replication. IC ID: 30518-UVK5.
| GENERAL SPECIFICATIONS |
| Number of Channels |
200 |
| Number of FM Radios |
16 |
| Frequency Stability |
±1 ppm |
| Size |
115 × 60 × 37.5 mm |
| Weight |
234 g |
| Operating Temperature |
-20 ℃ ~ +60 ℃ |
| Antenna Impedance |
50 Ω |
| Modulation Mode |
FM: 11K0F3E (12.5 kHz), 16K0F3E (25 kHz) |
| NOAA Channels |
10 |
| Battery Capacity |
1600 mAh |
| RECEIVE (RX) |
| Reference Sensitivity |
FM (12 dB SINAD) — F1 (50–76) −121 dBm; F2 (108–135.9975) −121 dBm;
F3 (136–173.9975) −123 dBm; F4 (174–349.9975) −123 dBm;
F5 (350–399.9975) −123 dBm; F6 (400–469.9975) −123 dBm; F6 (470–599.9975) −121 dBm
WFM (20 dB SINAD) — 76–108: −110 dBm
AM (10 dB S/N) — 108–135.9975: −113 dBm |
| Audio Power |
≥ 0.5 W |
| Audio Distortion |
≤ 10% |
| TRANSMIT (TX) |
| Frequency Band |
VHF: 144–148 MHz UHF: 430–440 MHz |
| Transmitting Power |
≤ 5 W |
| Emission Current |
≤ 1.5 A |
| Max Frequency Deviation |
≤ 5 kHz (25 kHz), ≤ 2.5 kHz (12.5 kHz) |
| Modulation Distortion |
≤ 5% |
| Spurious Emission |
≤ 7.5 µW |
| Adjacent Channel Power |
70 dB (25 kHz), 60 dB (12.5 kHz) |
| Residual Modulation |
40 dB |
