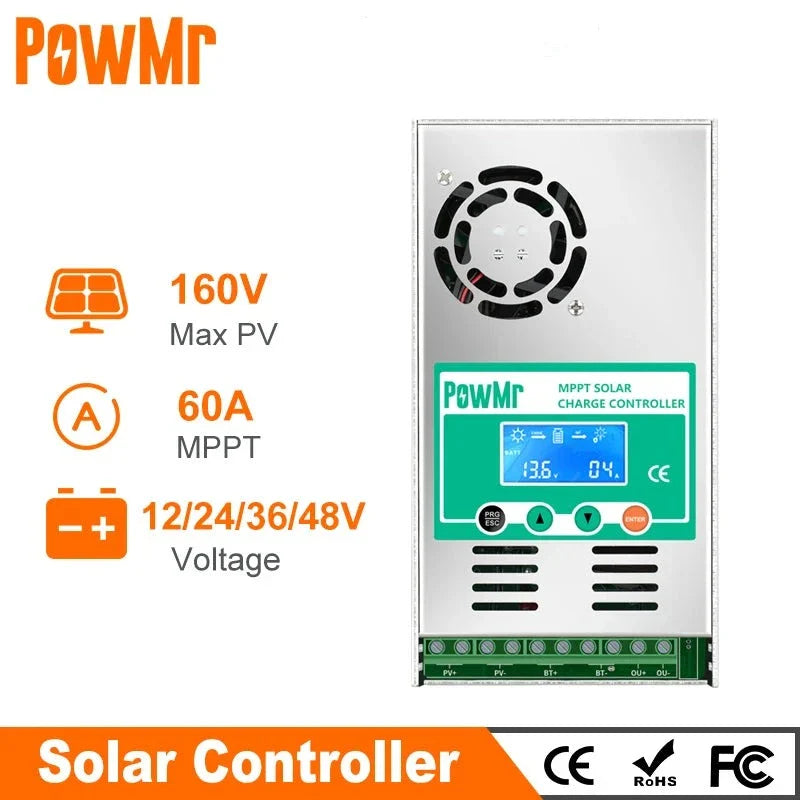

    MPPT 60A Solar Panel Charge Controller Regulator

    Art : 32956247199-MPPT 60A-12V 24V 36V 48V Auto-CHINA
      Saja Kaizen Inc.

      MPPT 60A Solar Panel Charge Controller Regulator

      Art : 32956247199-MPPT 60A-12V 24V 36V 48V Auto-CHINA
      Current:
      Rated Voltage:
      Ships From:
      Prix de vente $181.98Prix normal $0.00
      Prix normal $181.98

      Description

      SPECIFICATIONS



      Brand Name: PowMr

      Model: MPPT Solar Charge Controller Solar Regulator

      Maximum Current: MPPT 60A

      Customisable: Yes



      Applications:

      • Charger Controller
      • Solar System Controller
      • Voltage Controller
      • Lighting Controller

      Charging mode: MPPT Maximum power point tracking automatically



      Battery type(default is Sealed): Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other)

      Rated output current: MPPT 60A

      The maximum PV input power: 12V system (720W) 24V system (1440W) 36V system (2100W) 48V system (28

      The maximum PV input voltage (Voc): DC190V

      Enclosure: IP21

      Version: PowMr 2024






      PowMr MPPT 60A 50A 40A 30A Solar Charge and Discharge Controller 12V 24V 36V 48VAuto for Max PV 190VDC Lead Acid Lithium Battery





      Feature:


      * 100% MPPT controller!

      * Intelligent Maximum Power Point Tracking technology

      * Built-in DSP controller with high performance

      * Automatic battery voltage detection 12V/24V/36V/48V

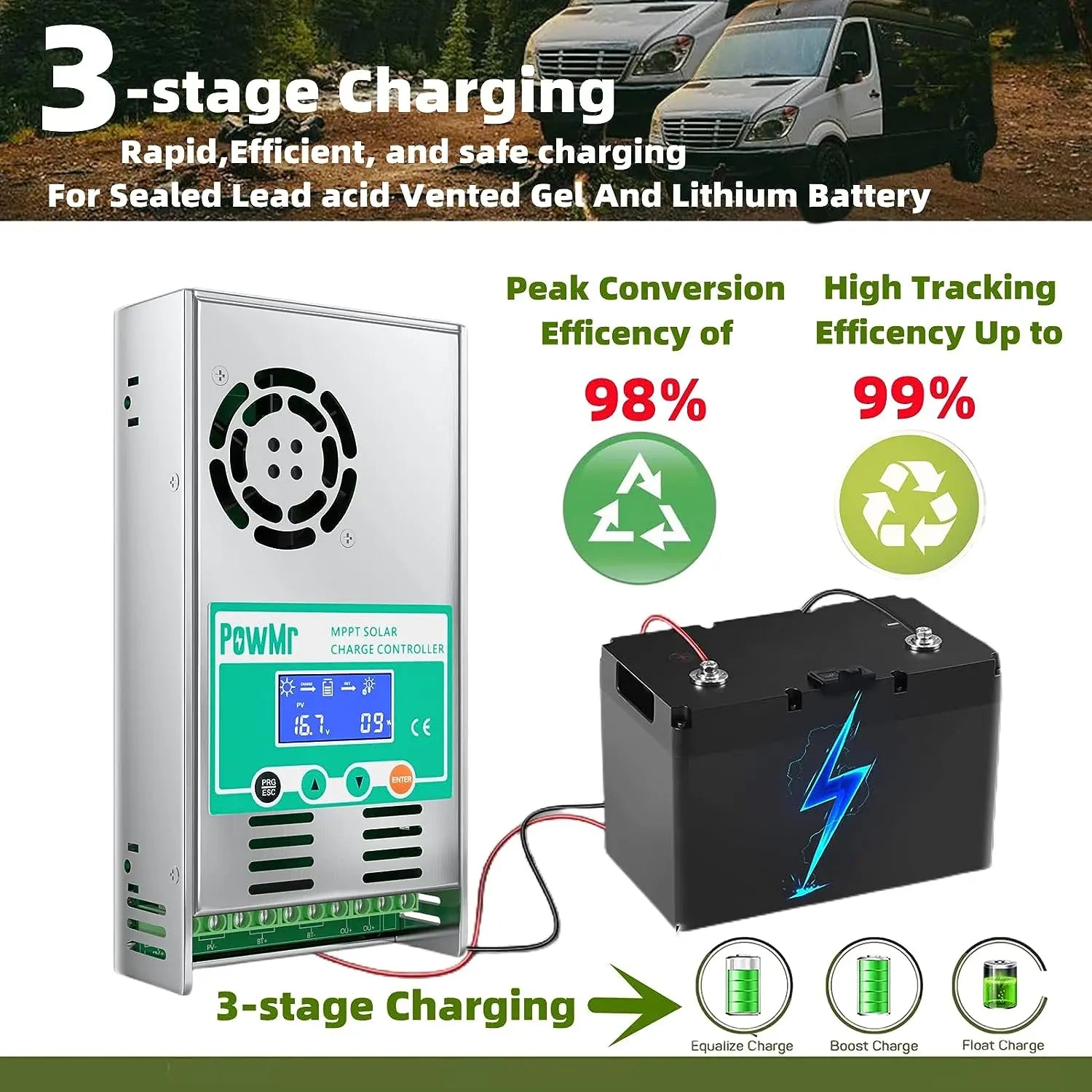

      * Three-stage charging optimizes battery performance

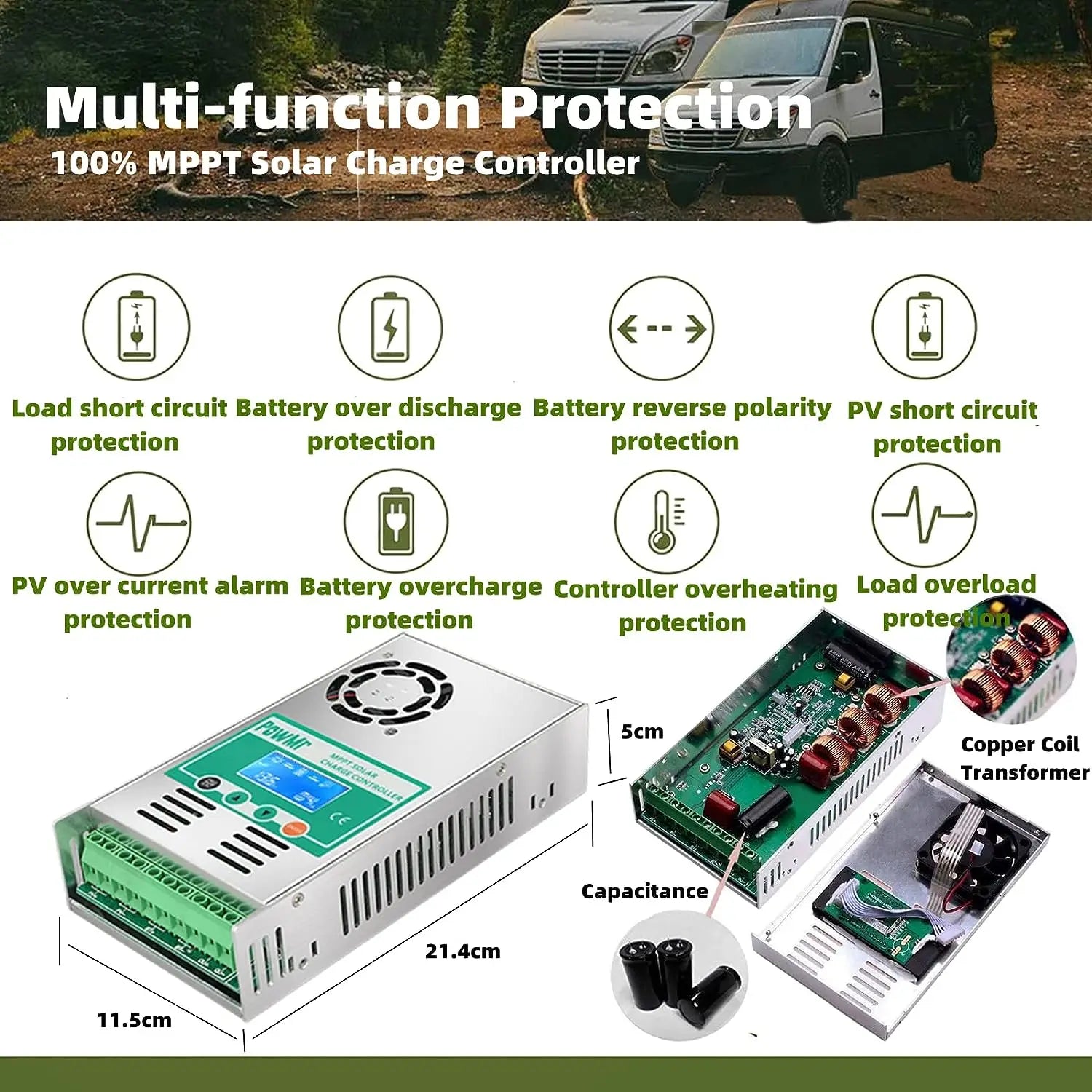

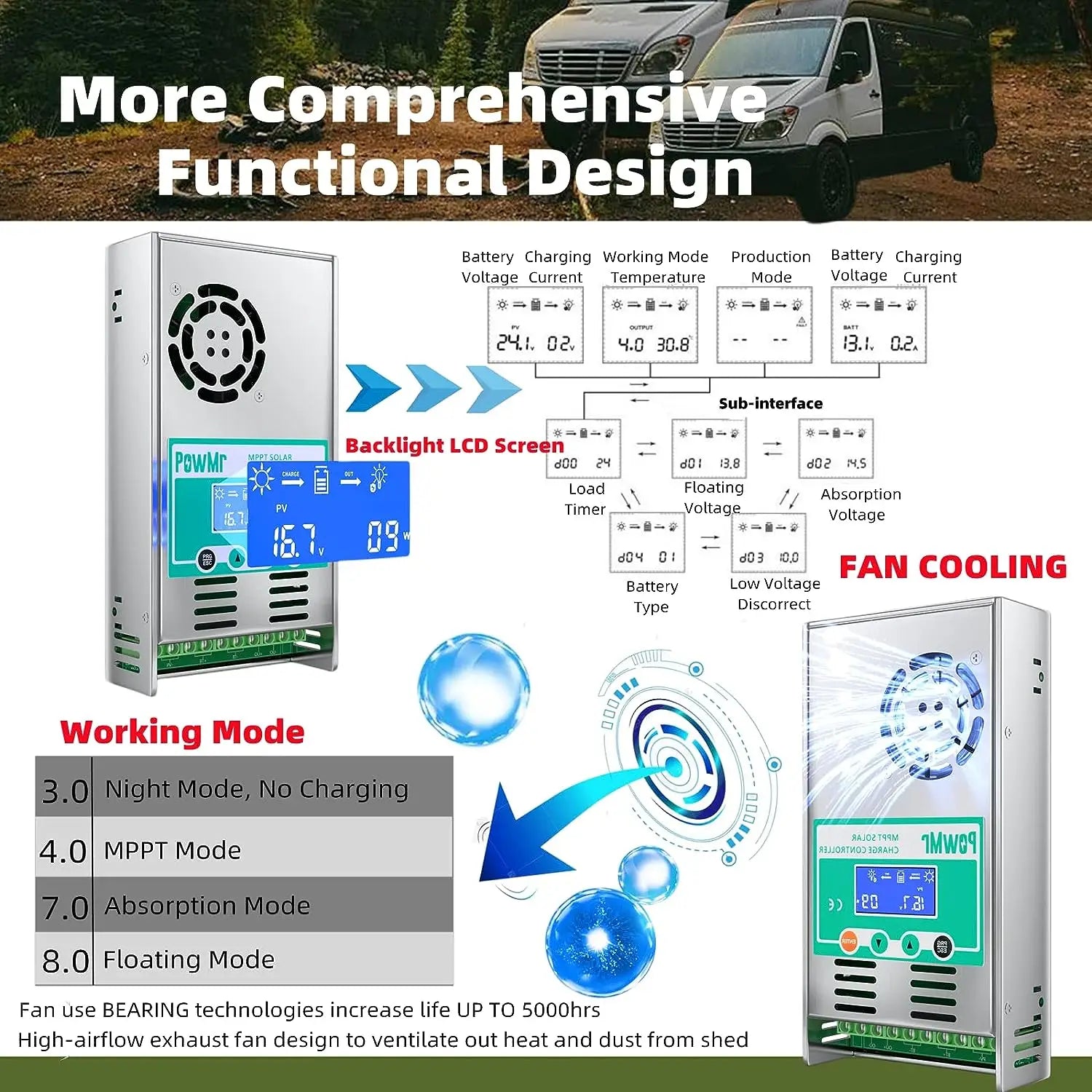

      * Multi-function LCD displays, Reverse polarity protection of solar panel

      * Overcharge protection, Can be mounted easily

      * Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery



      Package Including:


      1PC MPPT Solar Controllers

      1PC User Manual (English)


      Notes: The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.




      Specifications:

      Model Name

      MPPT-30A

      MPPT-40A

      MPPT-50A

      MPPT-60A

      Charging mode

      MPPT Maximum power point tracking automatically

      Charging

      3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge

      System type

      DC12V/24V/36V/48V Recognition automatically

      System voltage automatic recognition

      12V system (DC9V-DC15V)

      24V system (DC18V-DC29V)

      36V system (DC30V-DC39V)

      48V system (DC40V~DC60V)

      Soft start time

      ≤1S

      Dynamic response and recovery time

      ≥98.1%  (Voc is 1.5 or 2 times than battery, then it’s best efficiency)

      PV utilization

      ≥99%

      Input specification

      Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. )

      12V system (DC20V~DC80V)

      24V system (DC37V~DC105V)

      36V system (DC50V~DC160V)

      48V system (DC72V~DC160V)

      The maximum PV input voltage (Voc)

      DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.)

      The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.)

      12V system  (360W)

      12V system (480W)

      12V system  (600W)

      12V system  (720W)

      24V system (720W)

      24V system (960W)

      24V system (1200W)

      24V system (1440W)

      36V system (1080W)

      36V system (1400W)

      36V system (1800W)

      36V system (2100W)

      48V system (1440W)

      48V system (1700W)

      48V system (2200W)

      48V system (2800W)

      Output specification

      Selectable battery type(default is Sealed)

      Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)

      Absorption Charging Voltage

      Refer to Batteries charging reference

      Floating Charging Voltage

      Refer to Batteries charging reference

      Overcharging protection voltage

      12V system (15V)

      24V system (30V)

      36V system (45V)

      48V system (60V)

      Rated output current

      30A

      40A

      50A

      60A

      Temperature Coefficient

      ±0.02%/ centi-degree

      Automatic temperature compensation

      14.2V-(Max temperature-25 centi-degree)*0.3

      Output voltage ripple-peak

      100mV

      Output voltage accurac

      ≤±1%

      Input Anti-intrusion protection

      yes

      Temperature Protection

      75°C

      Temperature increased protection

      Output power will reduce when it’s more 70 °C

      Output power will be normal when it’s less 55 °C

      Fan-on temperature

      >40 °C

      Fan-off temperature

      <35 °C

      Acoustic noise

      ≤40dB

      Cooling way

      Forced air cooling

      Components

      Imported materials, Accord  to EU standards, Industrial grade range.

      Environmental requirements

      Meet 2002/95/EC; No cadmium, hydrides and fluorides

      Security Level

      Accord to CE, PSE, FCC, EMC, EN60950

      Electromagnetic Compatibility

      Accord to EN61000, EN55022, EN55024

      Enclosure

      IP21

      Net weight(Kg)

      1.2

      Gross weight(Kg)

      1.3

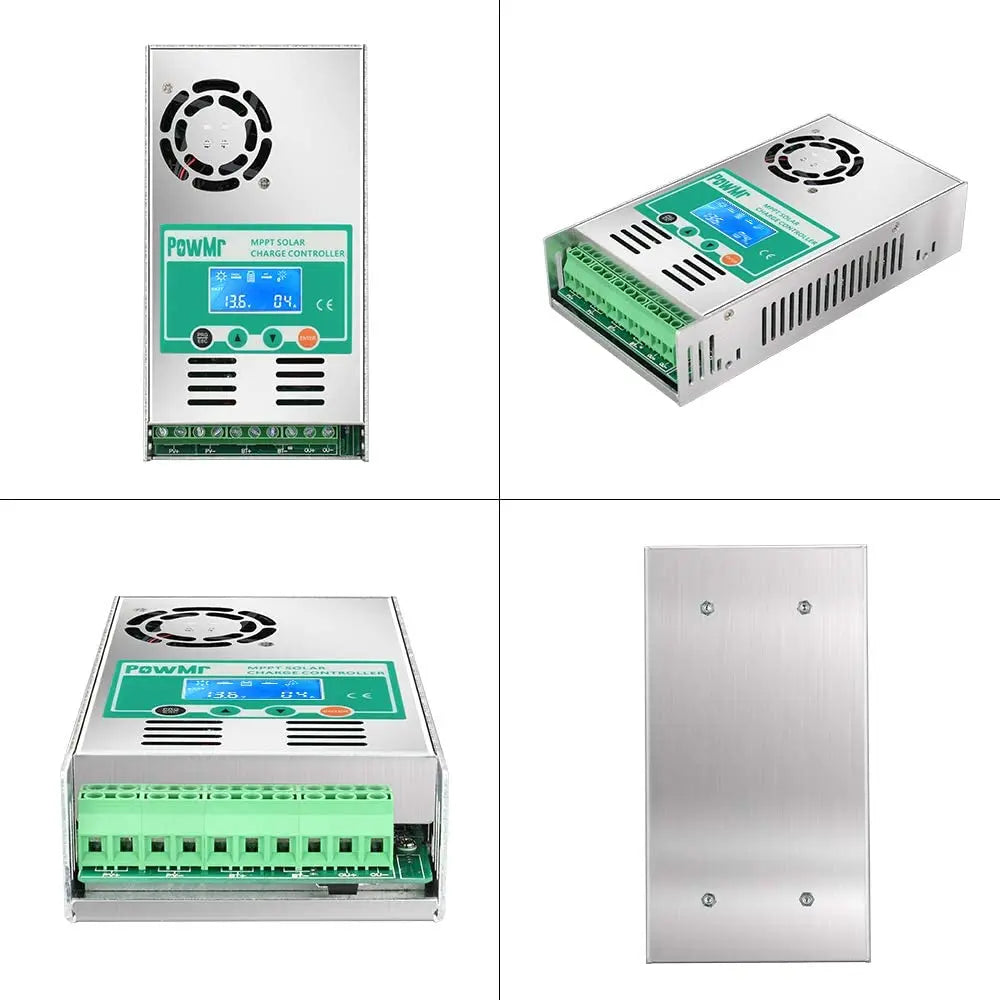

      Pictures:
