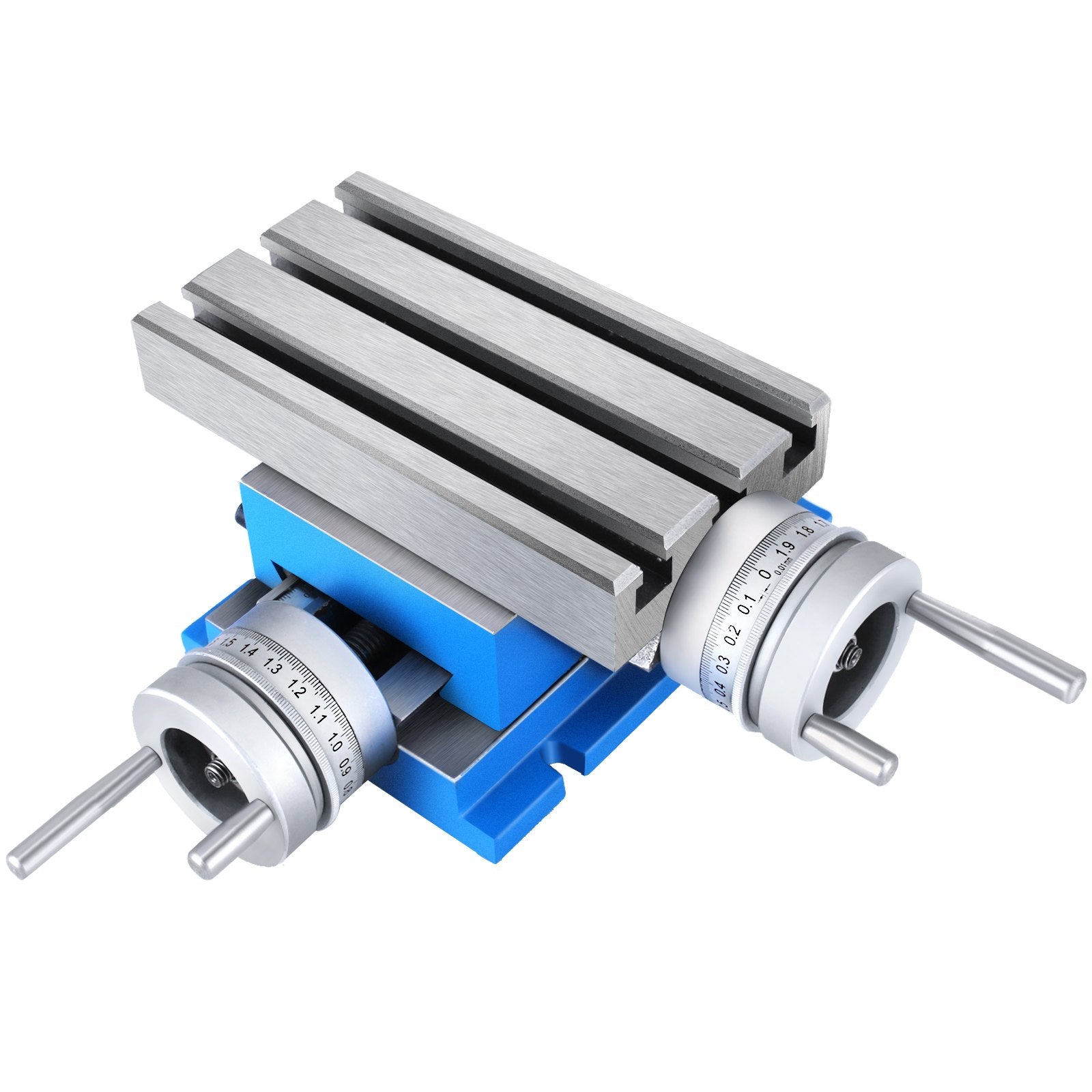

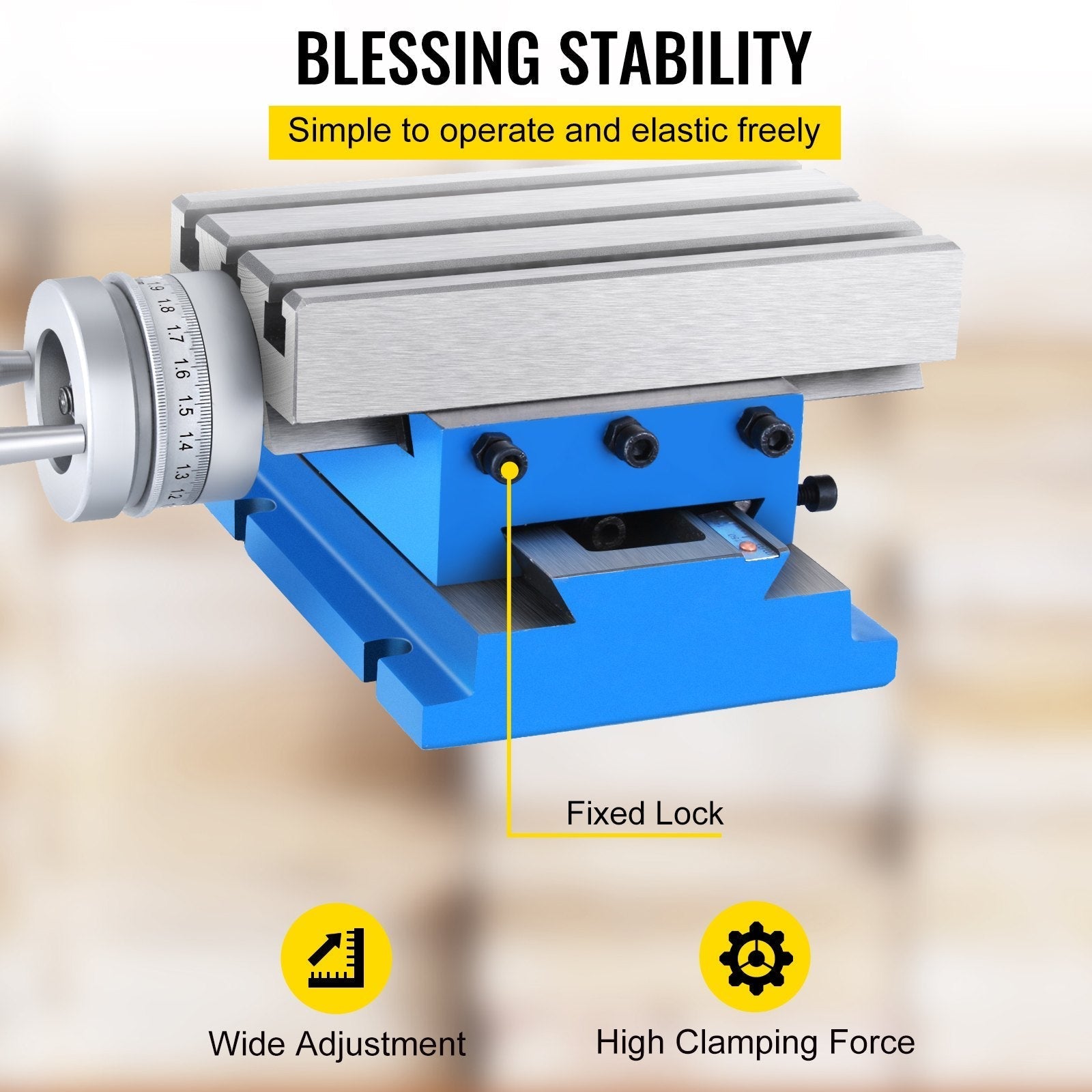

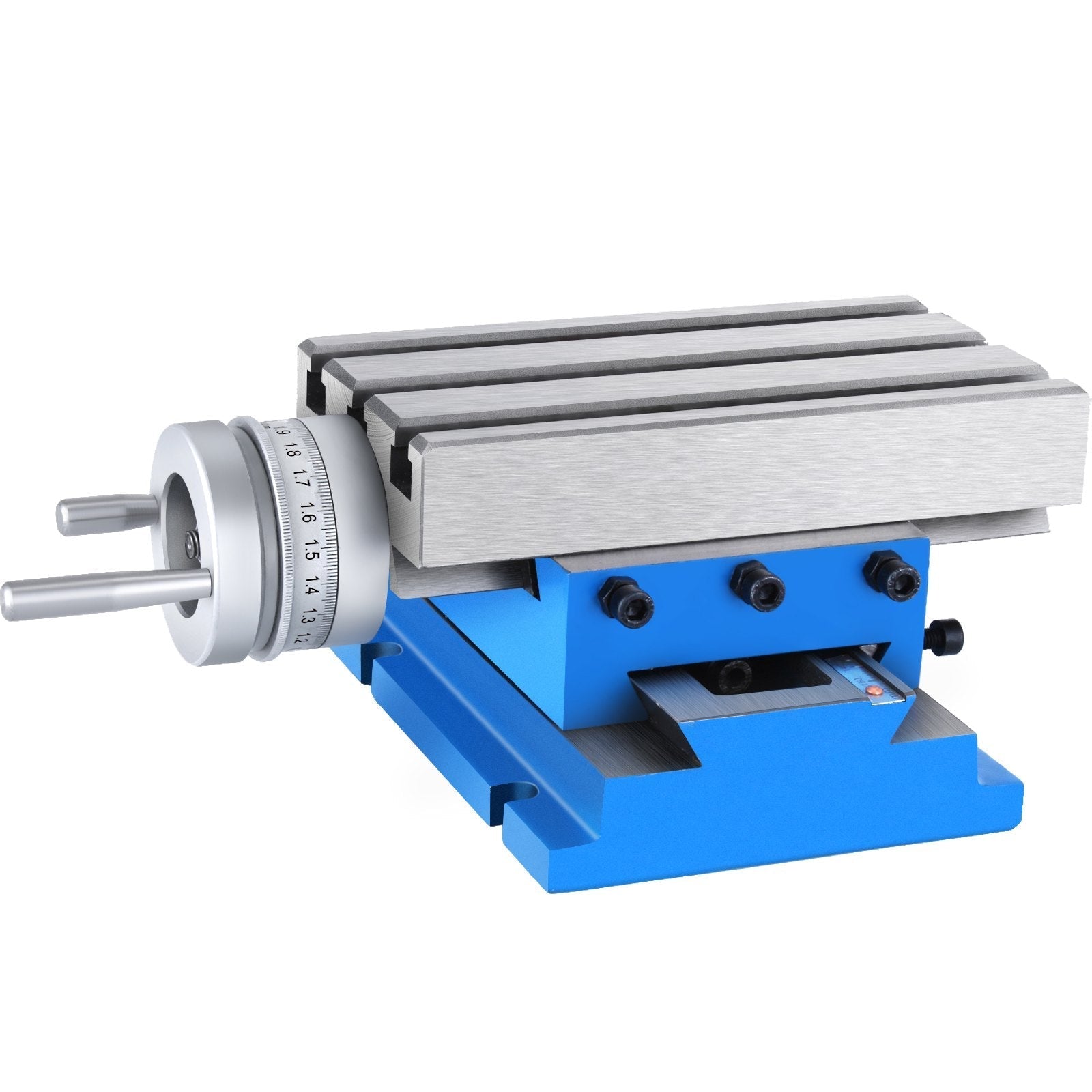

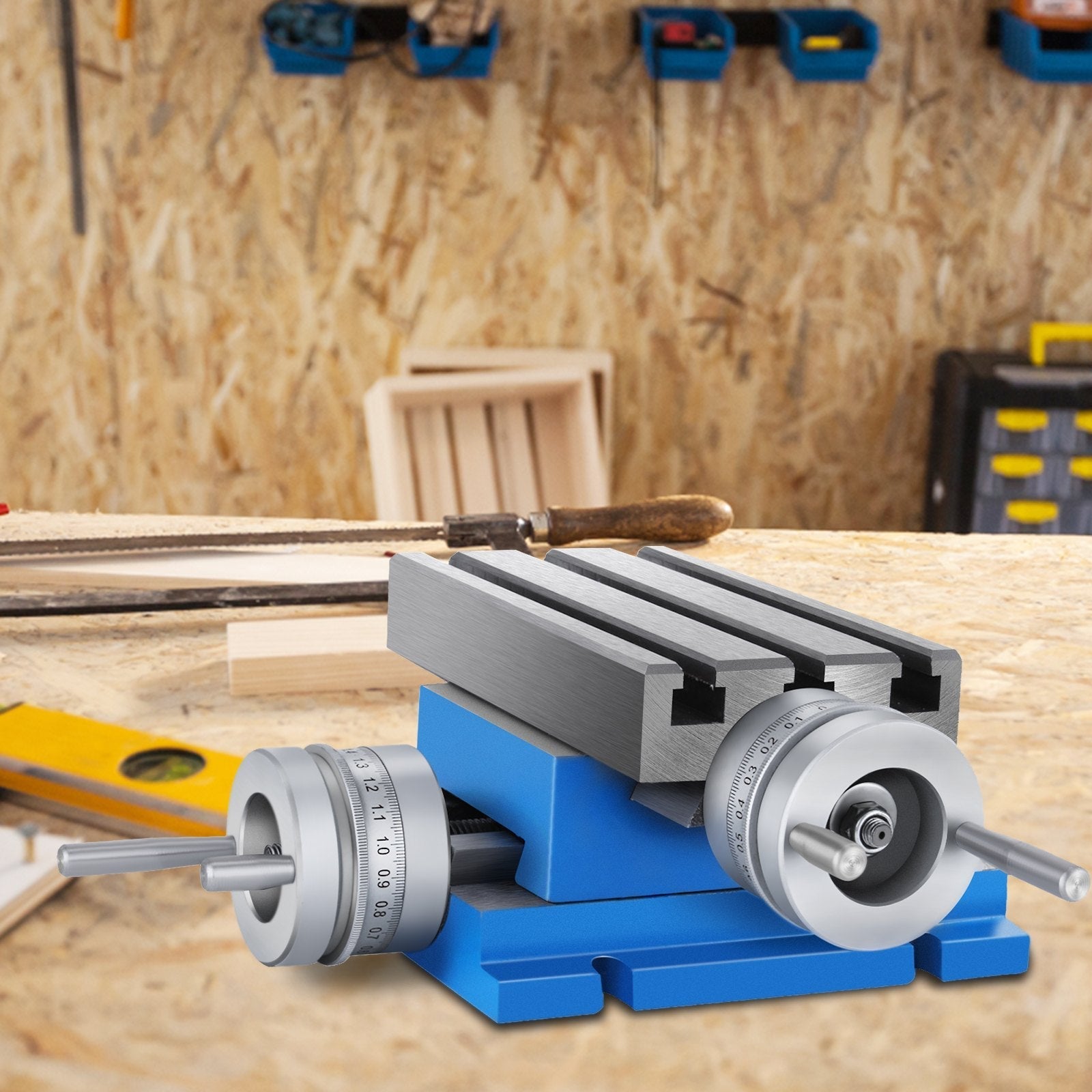

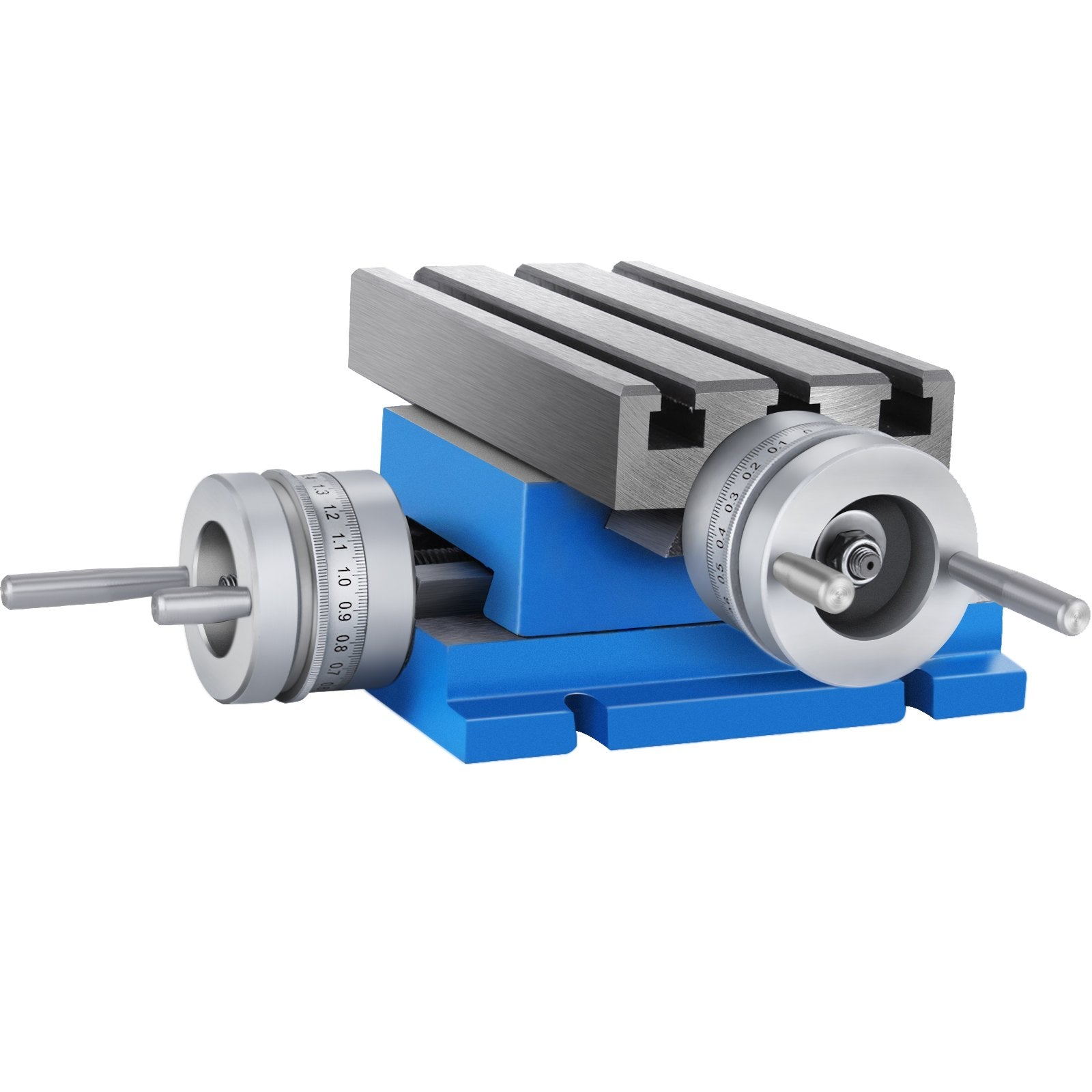

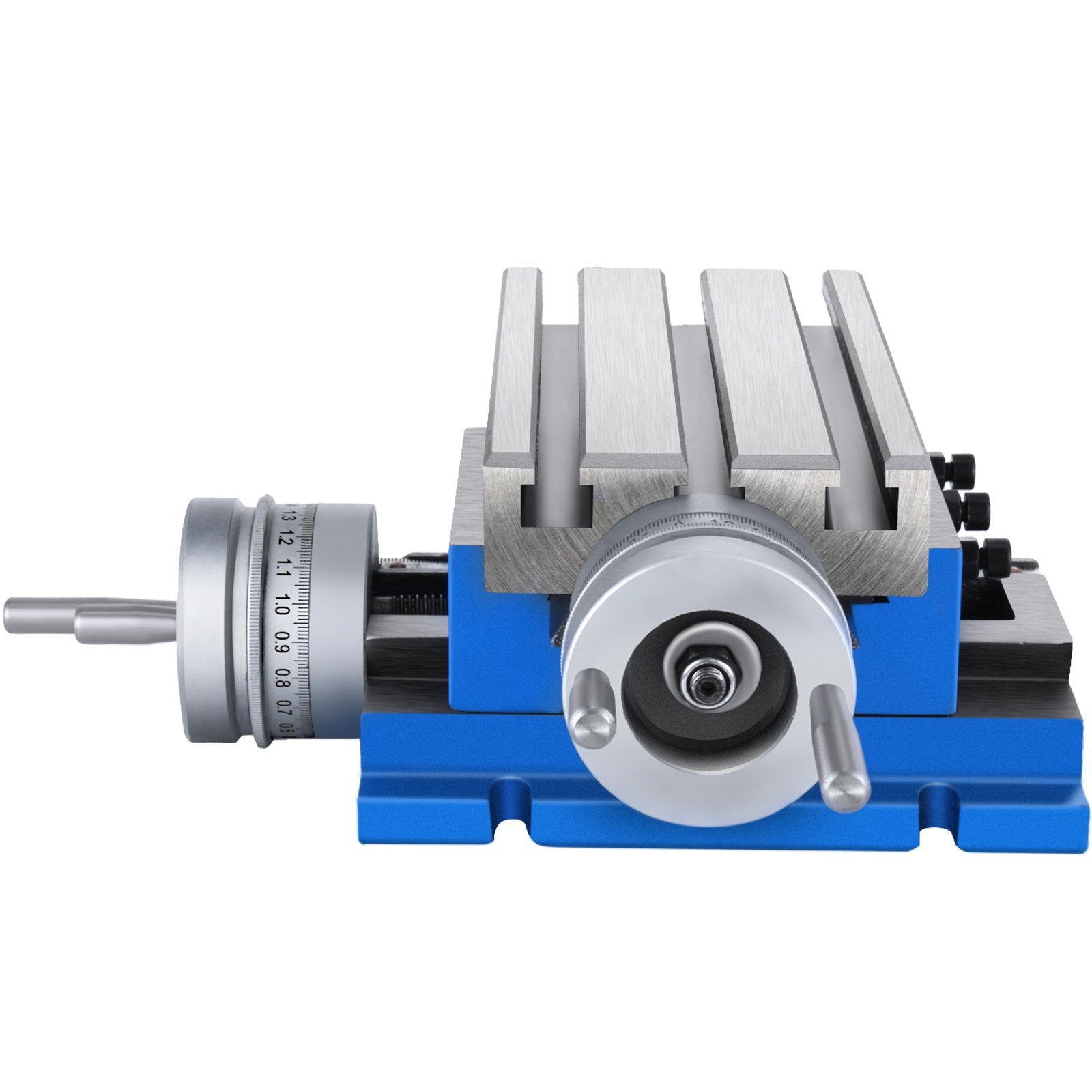

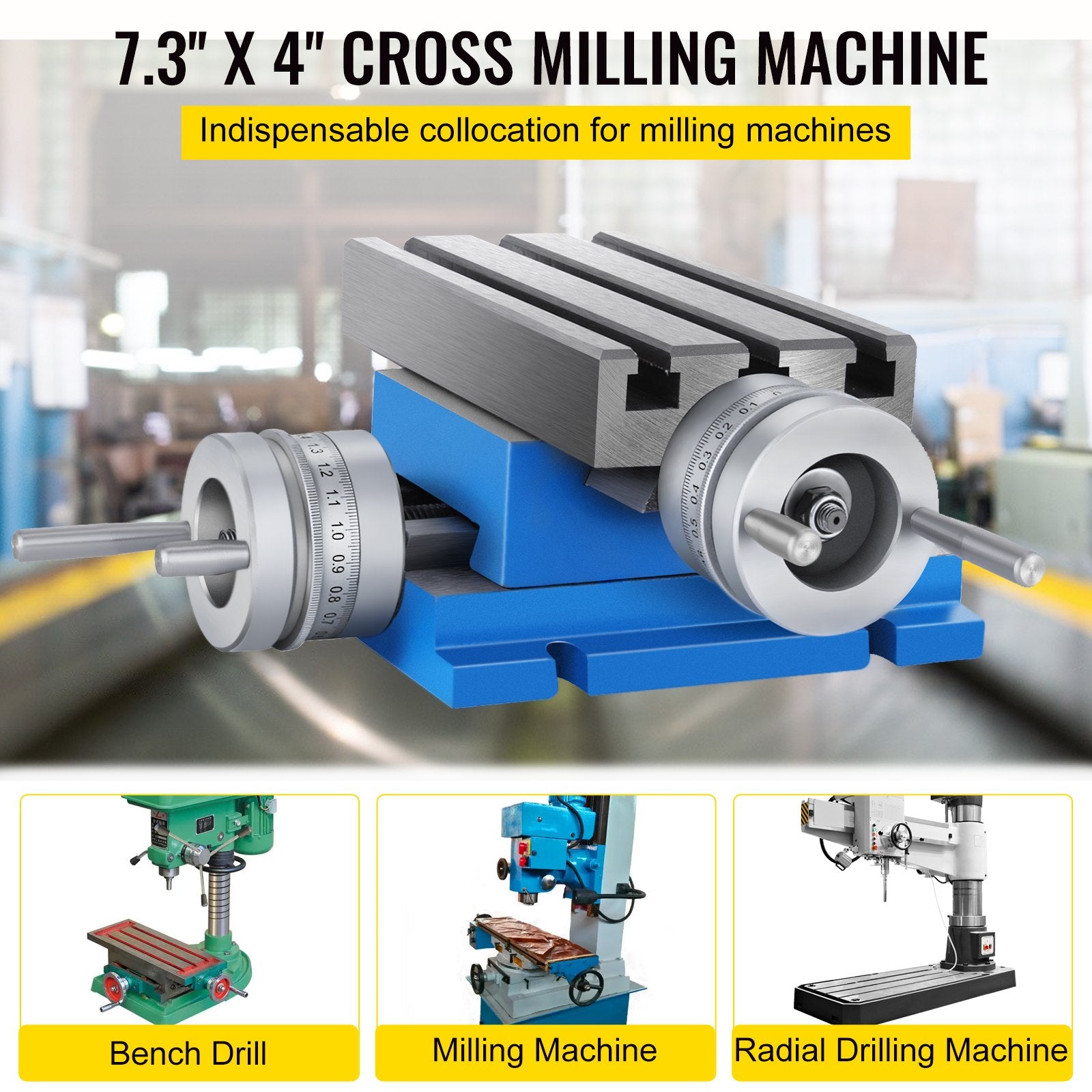

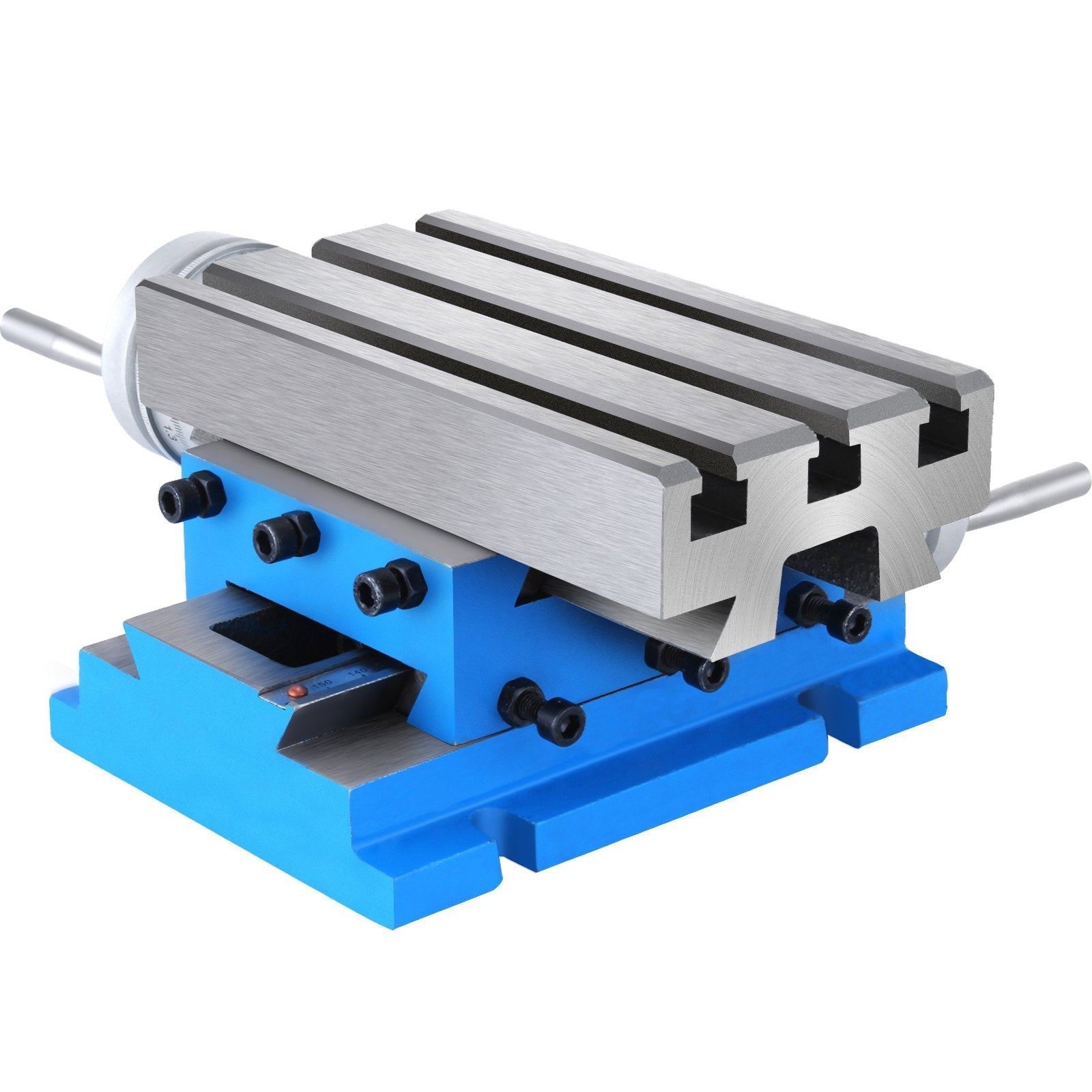

The VEVOR Milling Machine Work Table Slide is a compact and precise compound cross slide worktable designed for small milling and drilling tasks. With a working area of 7.3 x 4 inches, it features smooth cranks, stable construction, and accurate dial graduations for fine-tuning adjustments. The widened table-board and T-shaped grooves offer flexibility for securing various workpieces, while the stable base ensures consistent performance. Ideal for use with drill presses and milling machines in workshops or home garages.

Features

• Compact 7.3" x 4" worktable ideal for precision milling

• Smooth cranks for easy adjustment

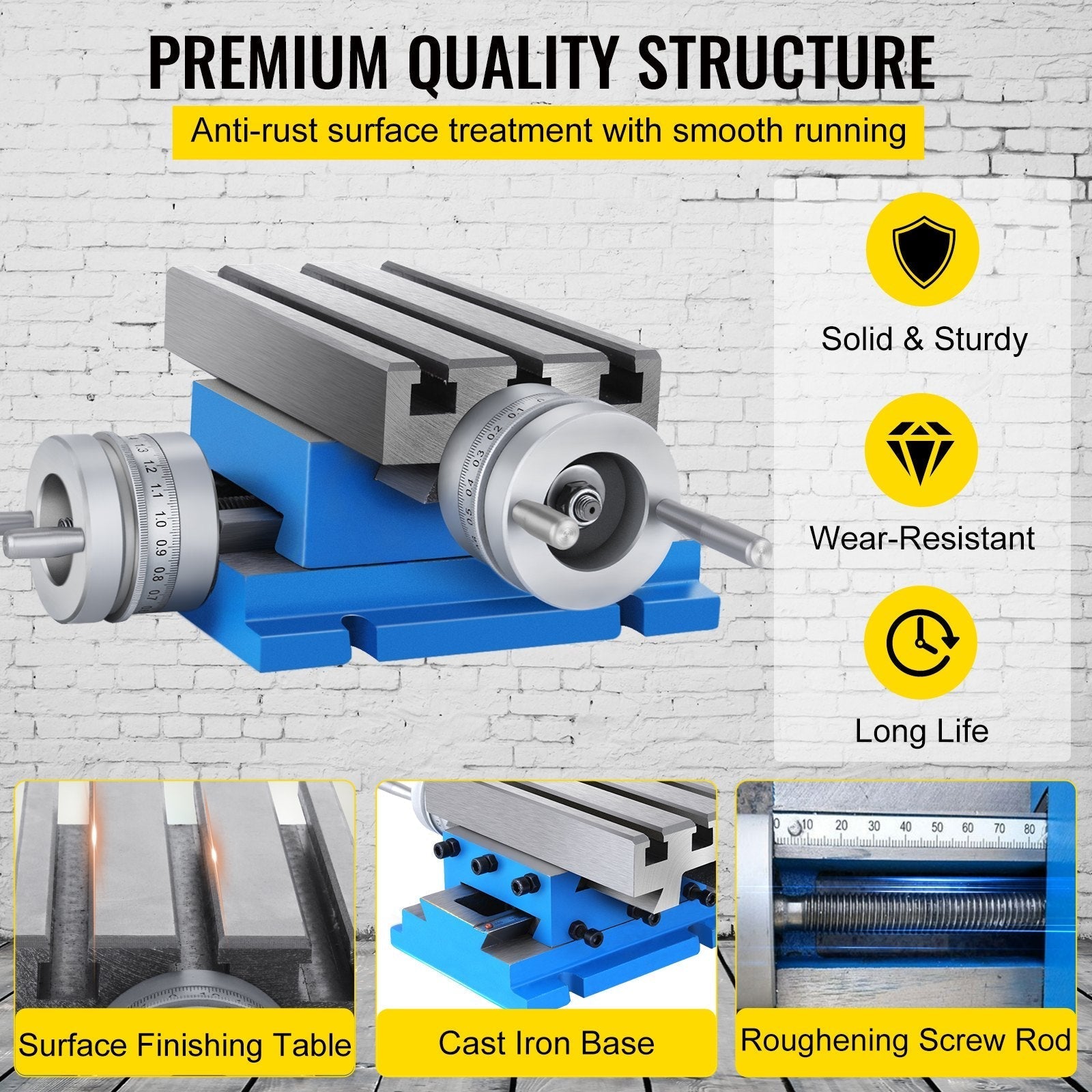

• Widened table-board with T-shaped grooves for secure clamping

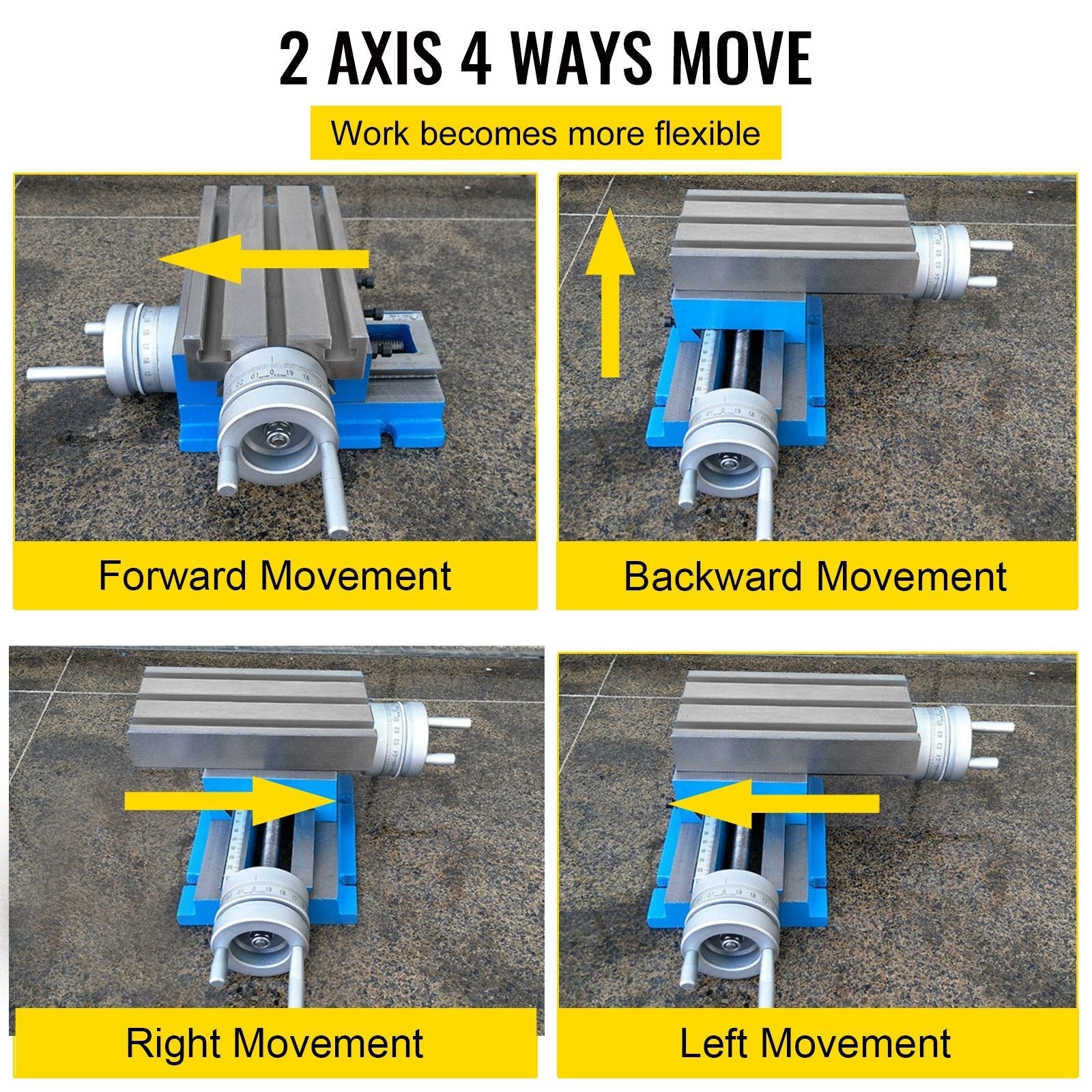

• Travel length up to 3 inches in both directions

• Supports workpieces up to 66 lbs

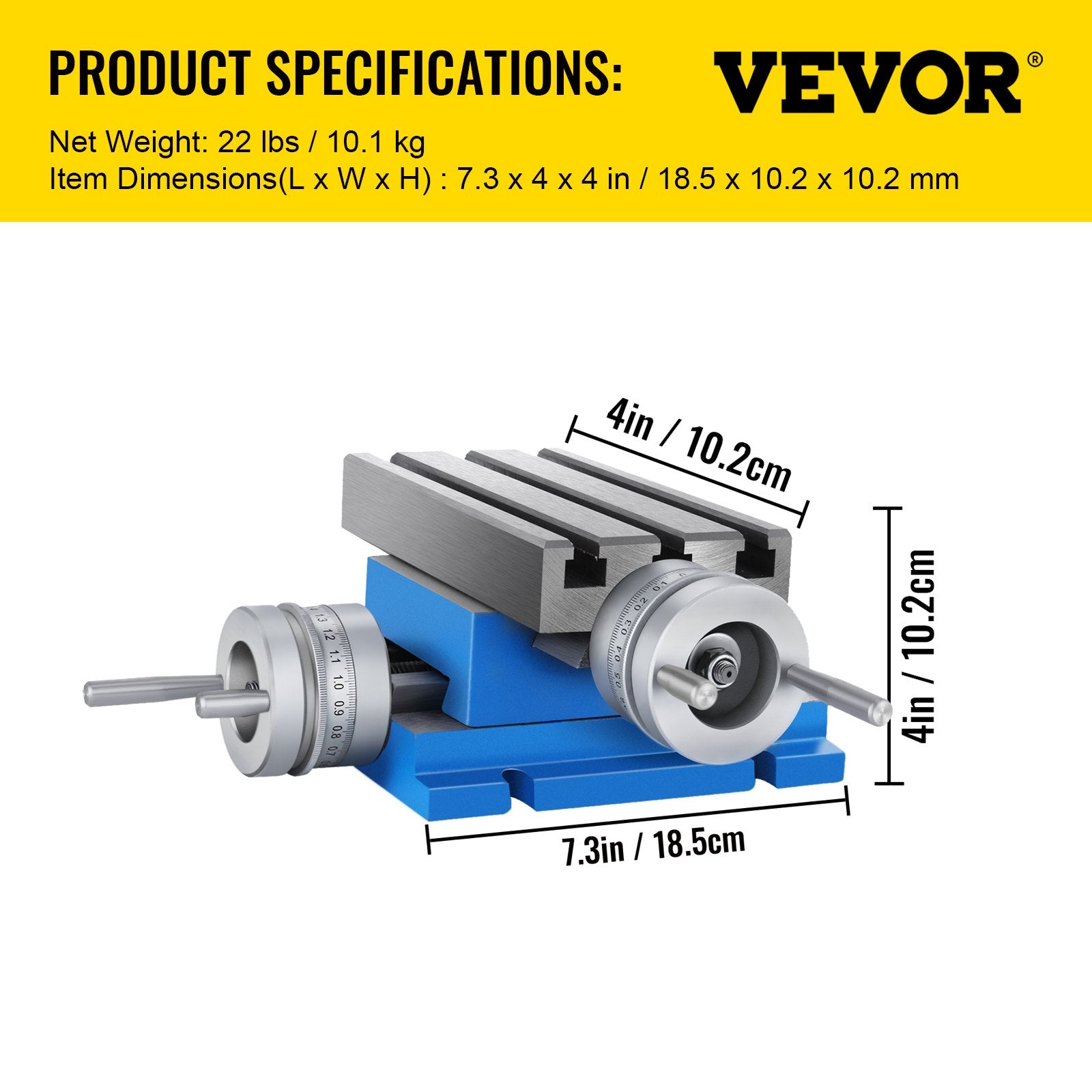

Specifications

• Working Table Size: 7.3 x 4 in / 185 x 100 mm

• Vertical Travel: 3 in / 75 mm

• Travel Length: 3 in / 80 mm

• Working Height: 4 in / 102 mm

• T-Groove Length: 2/5 in / 10 mm

• Groove Interval: 1.3 in / 33 mm

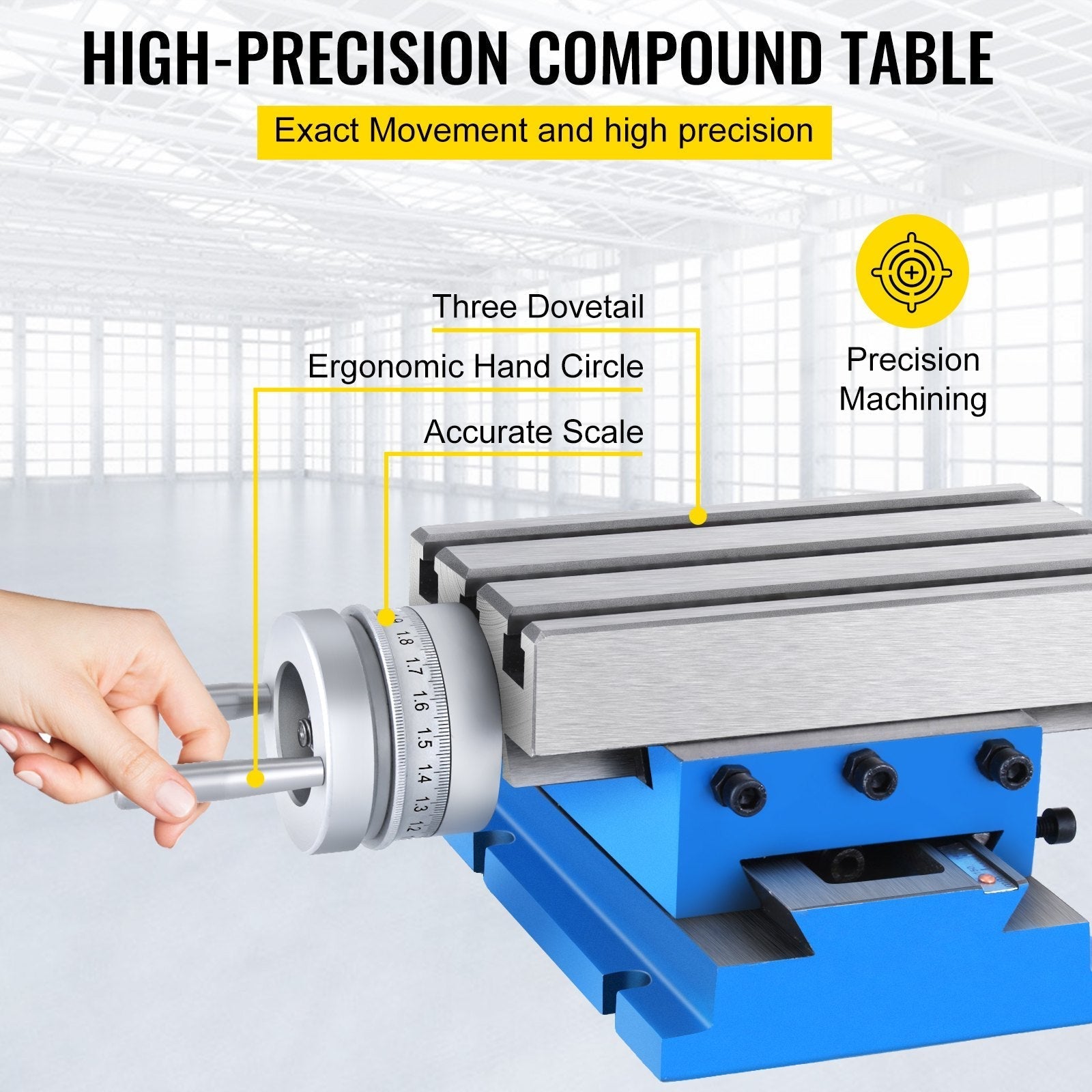

• Dial Spacing: 0.0004 in / 0.01 mm

• Maximum Workpiece Weight: 66 lbs / 30 kg

• Net Weight: 22 lbs / 10.1 kg

• Bottom Size: 6.7 x 5 in / 170 x 130 mm
