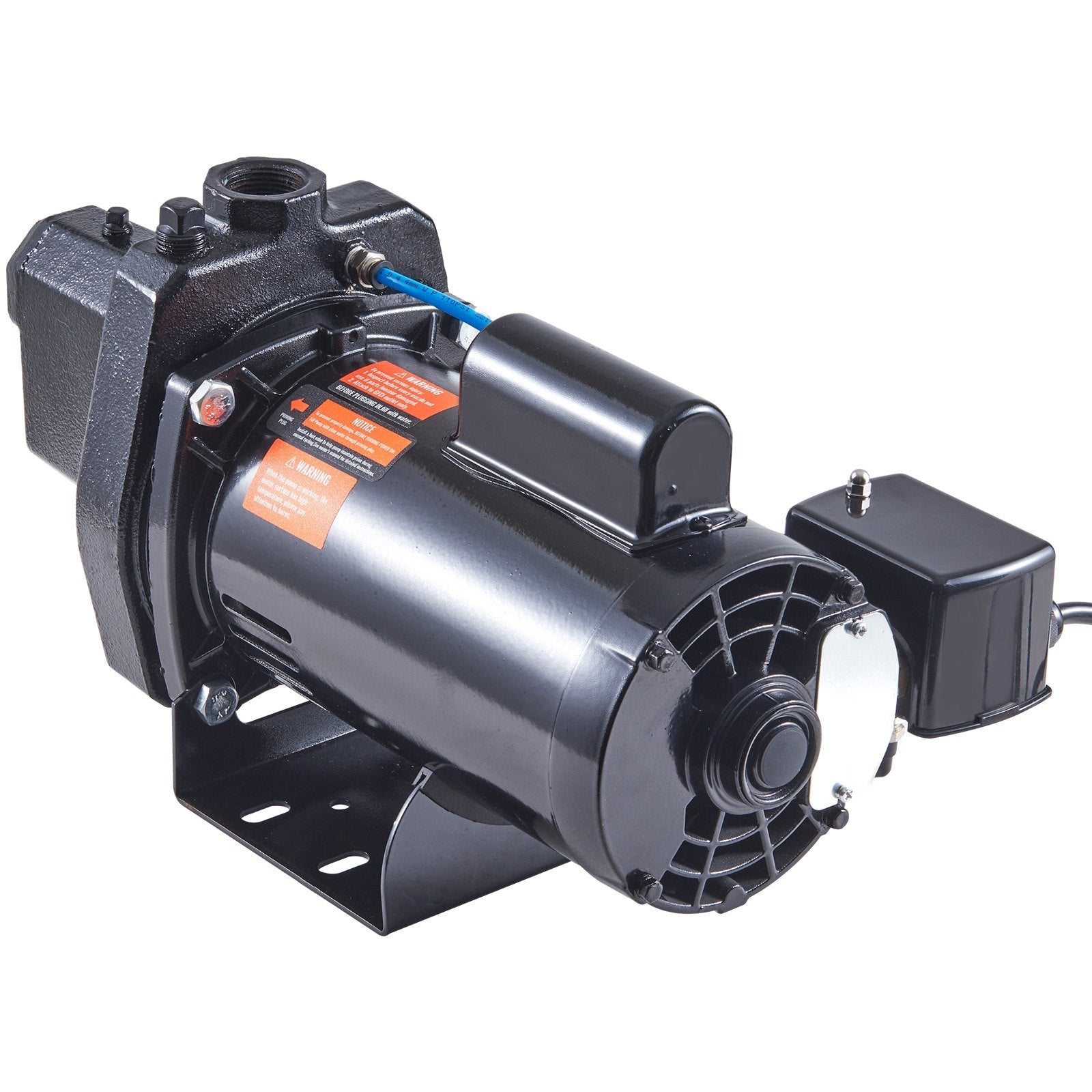

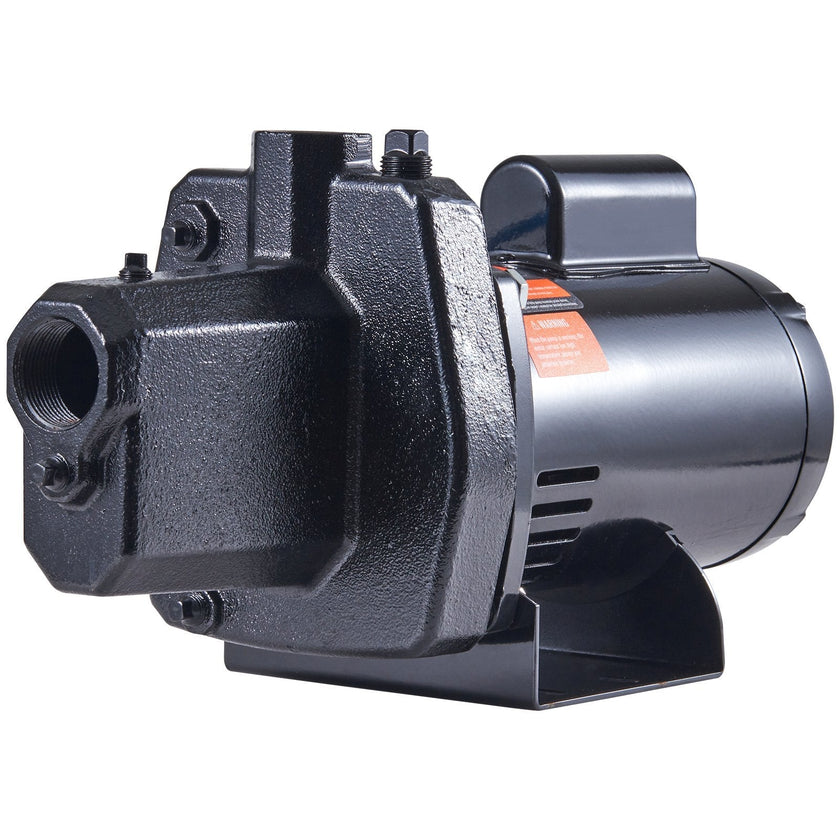

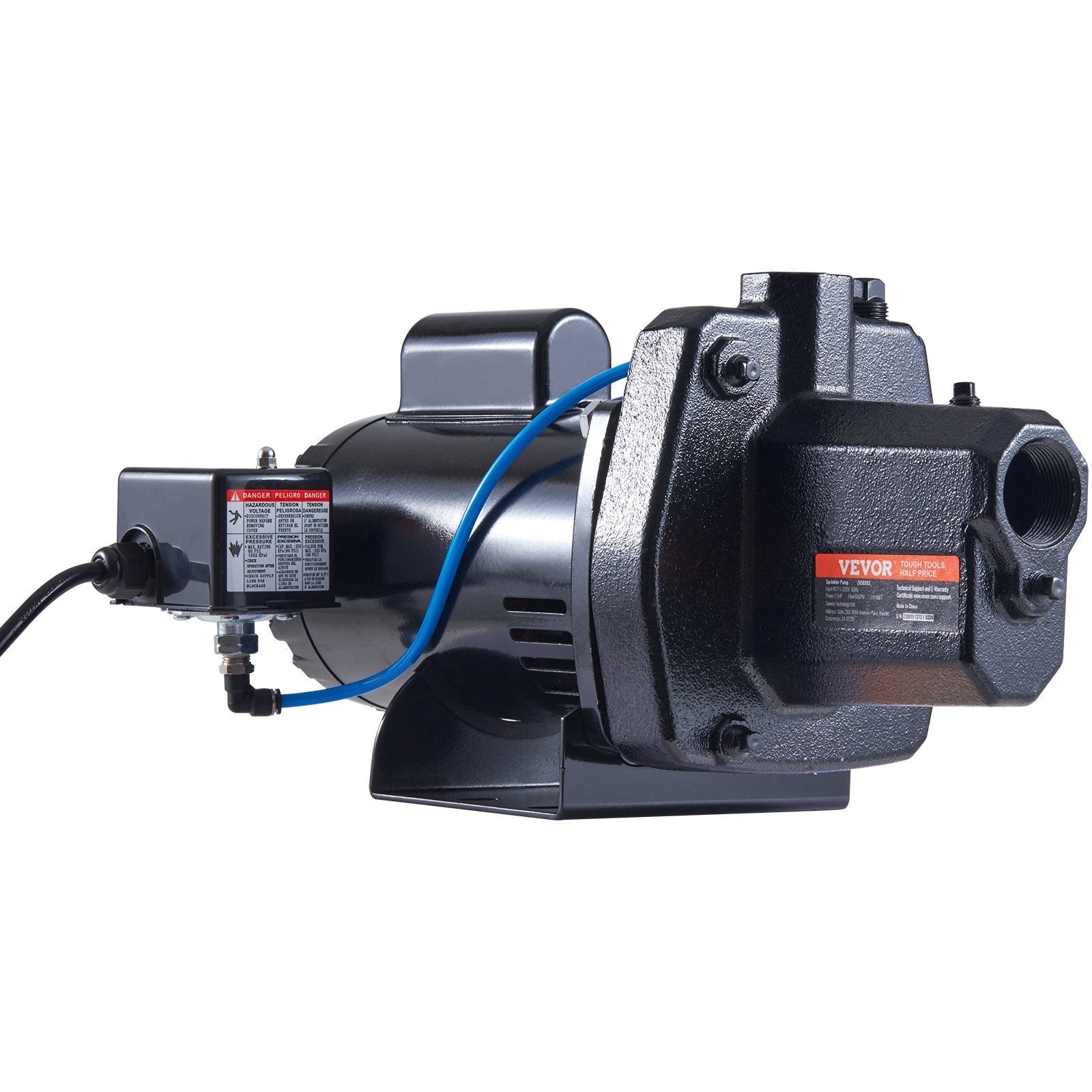

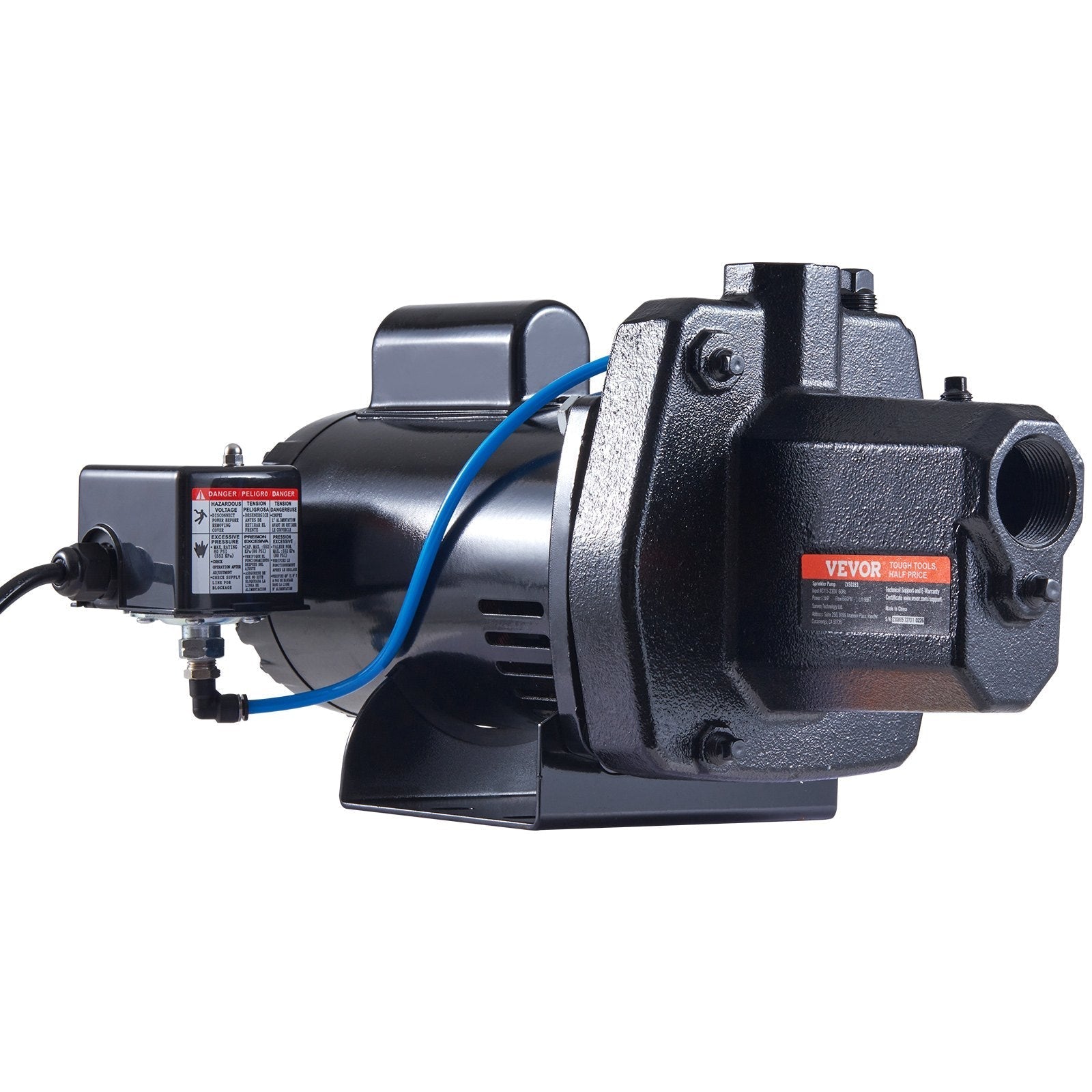

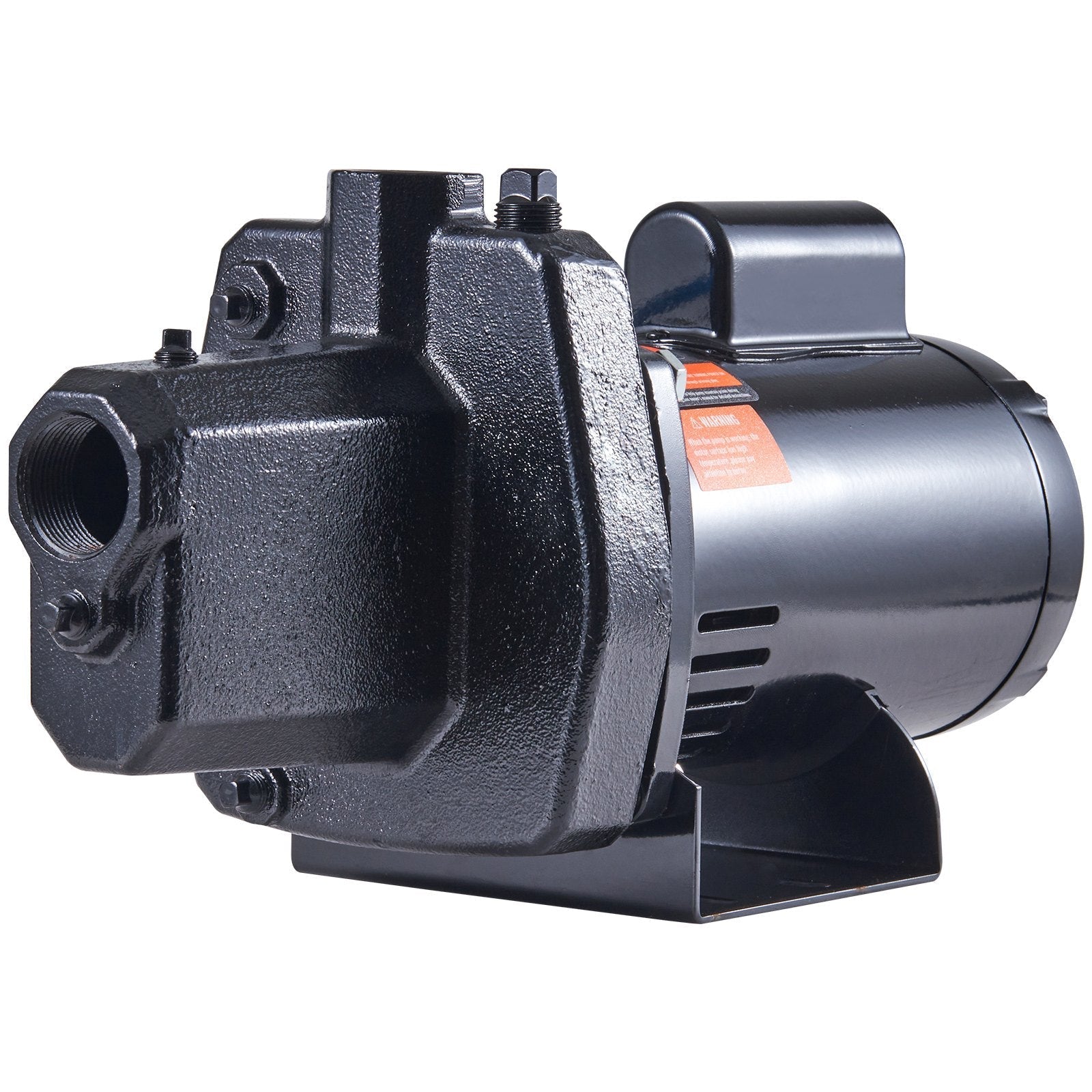

The VEVOR 1.5 HP Cast Iron Sprinkler Pump is designed for efficient irrigation and water boosting applications. Built with robust cast iron construction, it delivers a powerful 66 GPM flow at 3450 RPM, ideal for shallow wells, lakes, and lawn sprinkler systems. This pump features automatic start/stop operation and supports dual voltage input (115/230V) for versatile installation. Its whisper-quiet performance and proper priming system ensure reliable, low-maintenance operation. Equipped with a 1" NPT outlet and 1-1/4" NPT inlet, it handles a maximum head of 98 feet, making it perfect for consistent water pressure needs in irrigation setups.

Features

• Powerful 1.5 HP Motor: Provides 1118.5 W of pumping power for efficient water flow

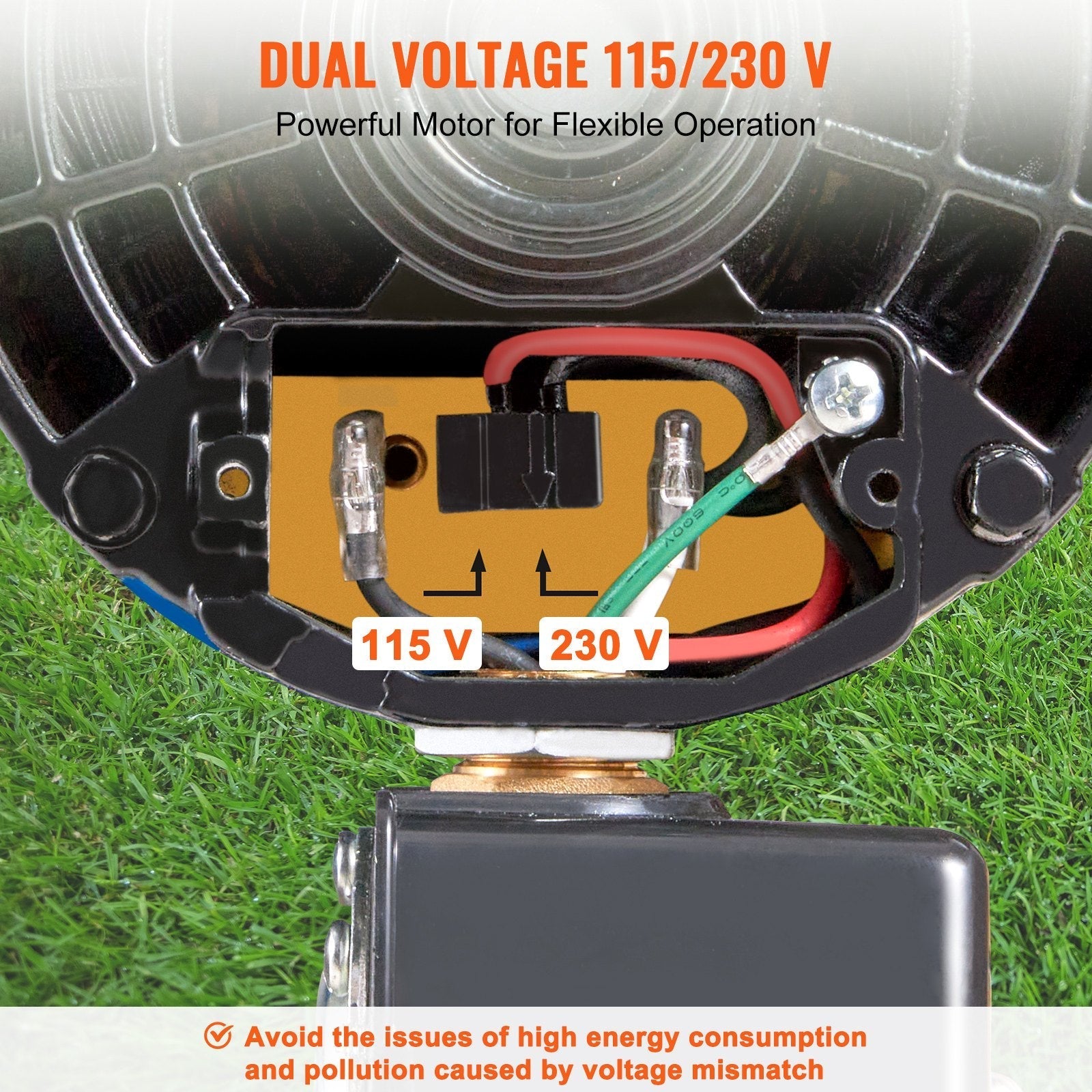

• Dual Voltage Compatibility: Operates on 115V or 230V AC, 60 Hz for flexible use

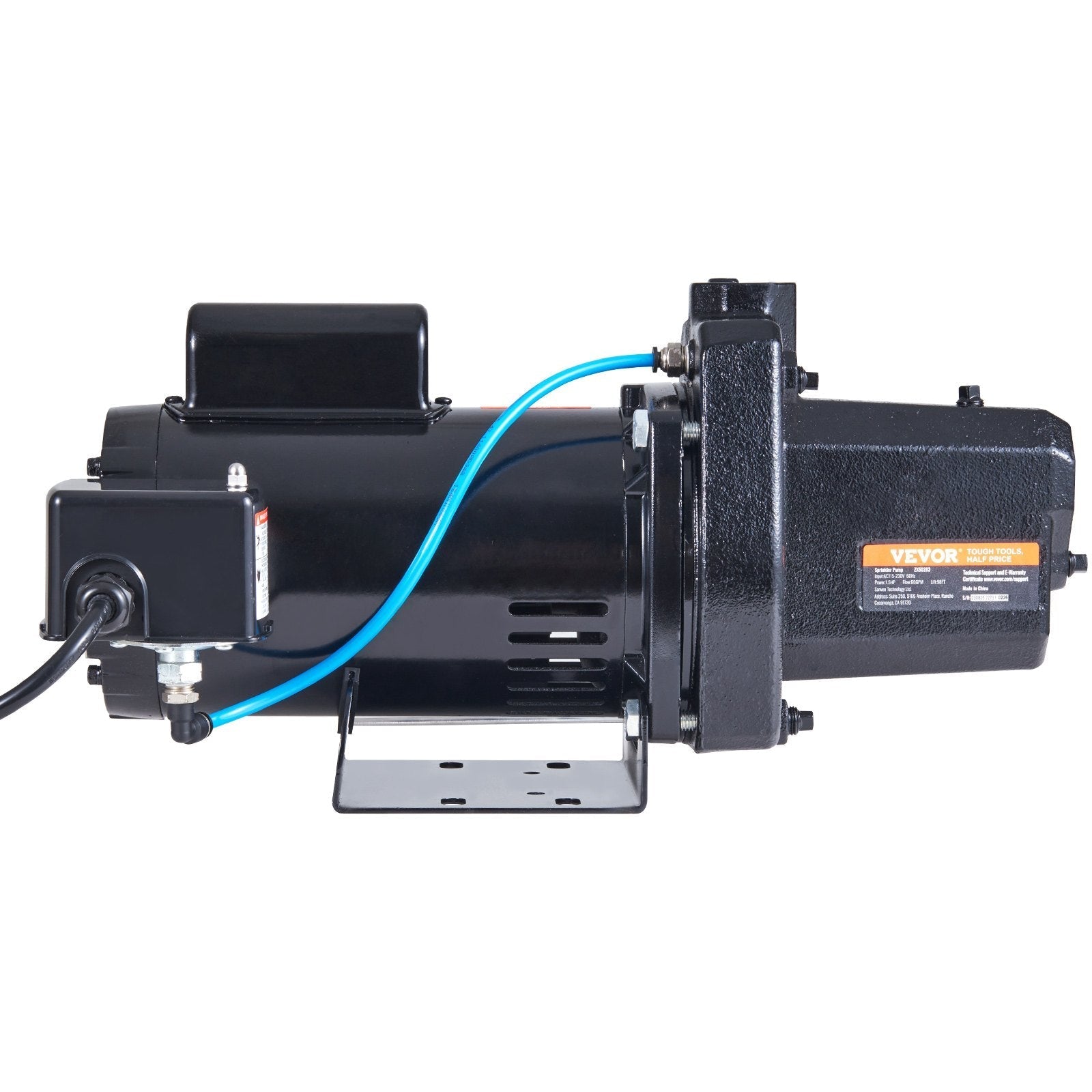

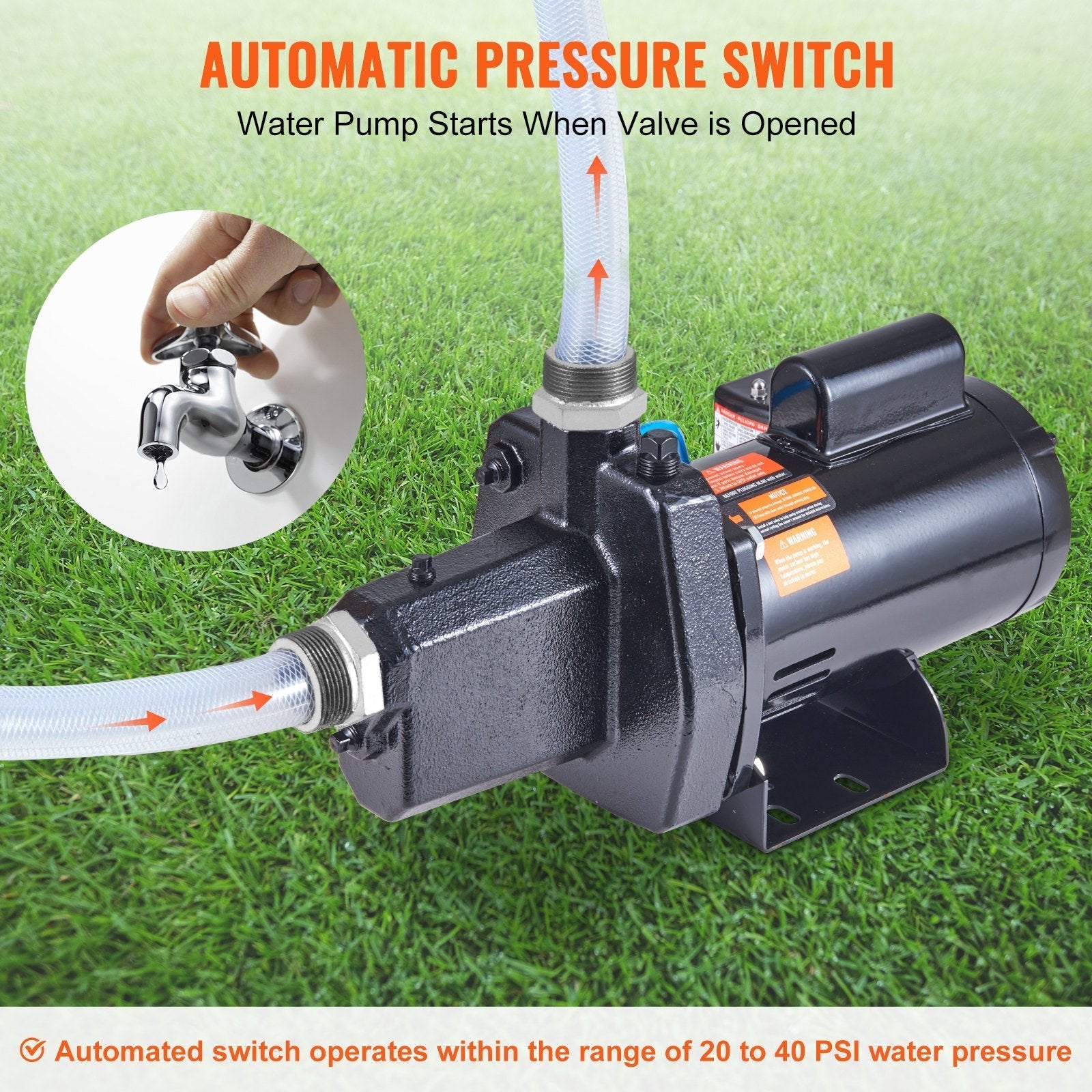

• Automatic Start/Stop: Pressure switch controlled operation between 20-40 PSI

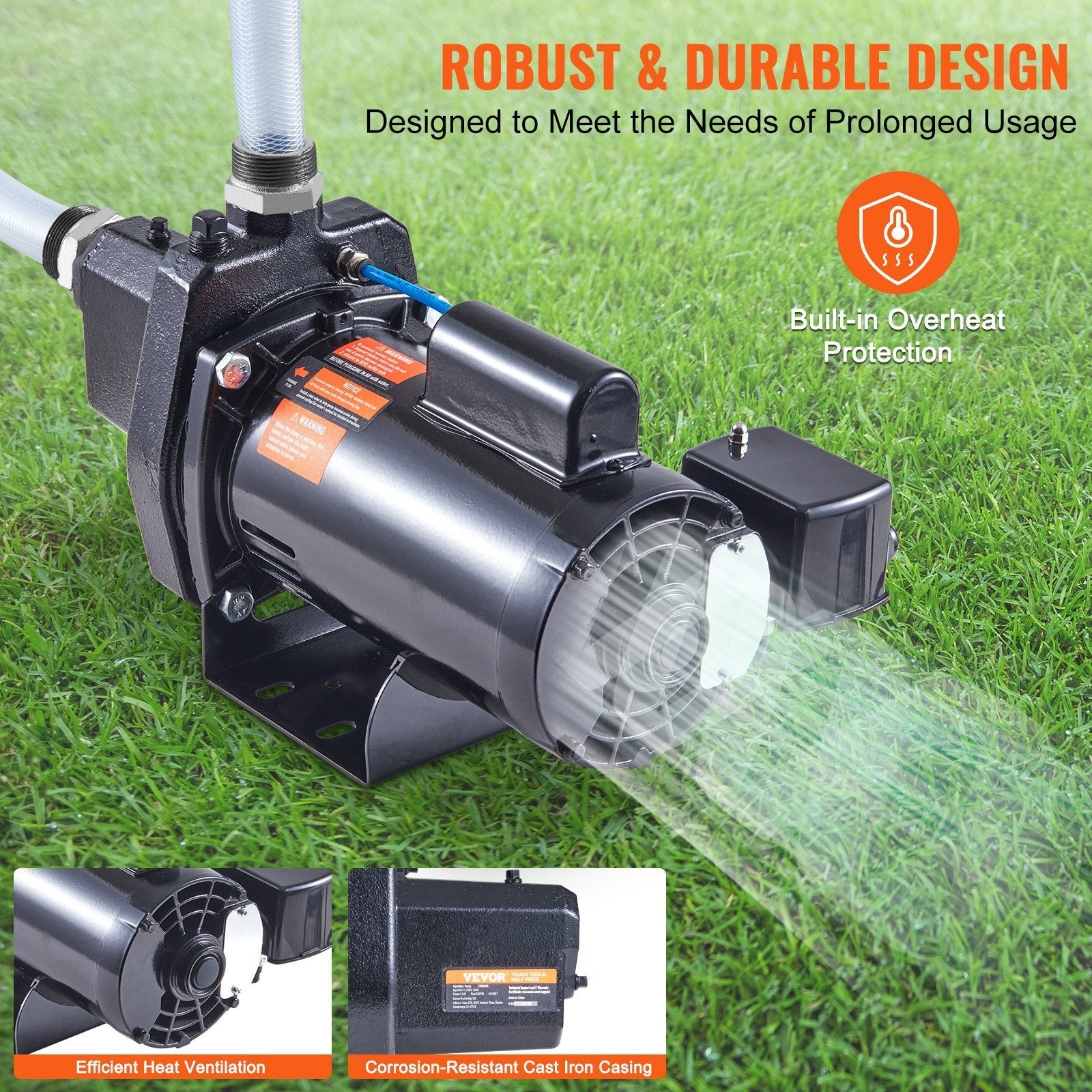

• Durable Cast Iron Construction: Ensures long-lasting reliability and corrosion resistance

• Optimal Priming System: For smooth and consistent pump performance

• Quiet Operation: Minimizes noise during use for a peaceful environment

• High Flow Rate: 66 GPM with a max head of 98 feet (29.9 m)

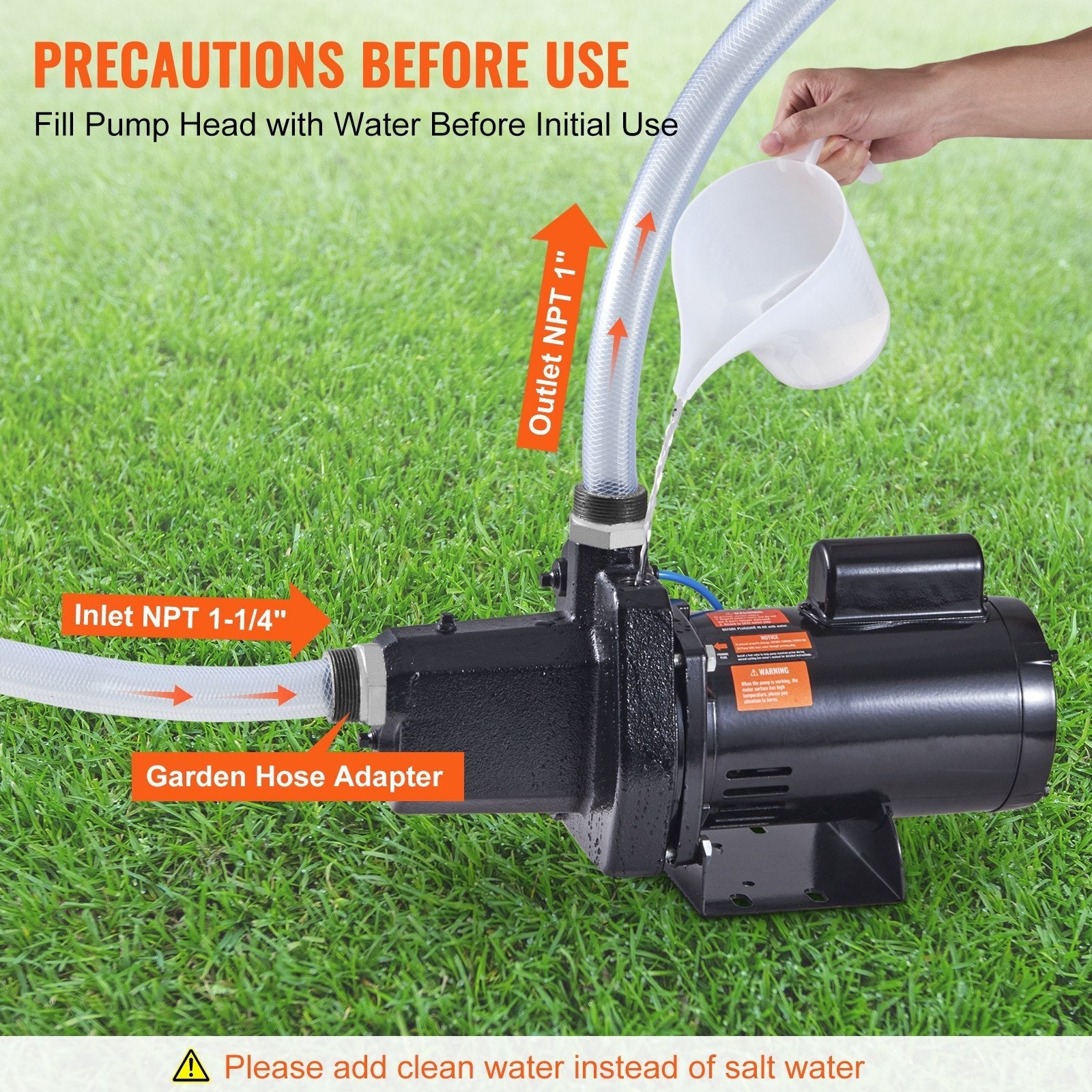

• Standard Plumbing Sizes: 1-1/4" NPT inlet and 1" NPT outlet

Specifications

• Model Number: ZX50283

• Rated Power: 1.5 HP / 1118.5 W

• Rated Voltage: AC 115-230V, 60 Hz

• Rated Current: 12A (115V) / 6A (230V)

• Flow Rate: 66 GPM ±10%

• Max Head: 98 ft / 29.9 m ±10%

• Operating Pressure: 20 - 40 PSI (controlled by pressure switch)

• Speed: 3450 RPM

• Material: Cast Iron

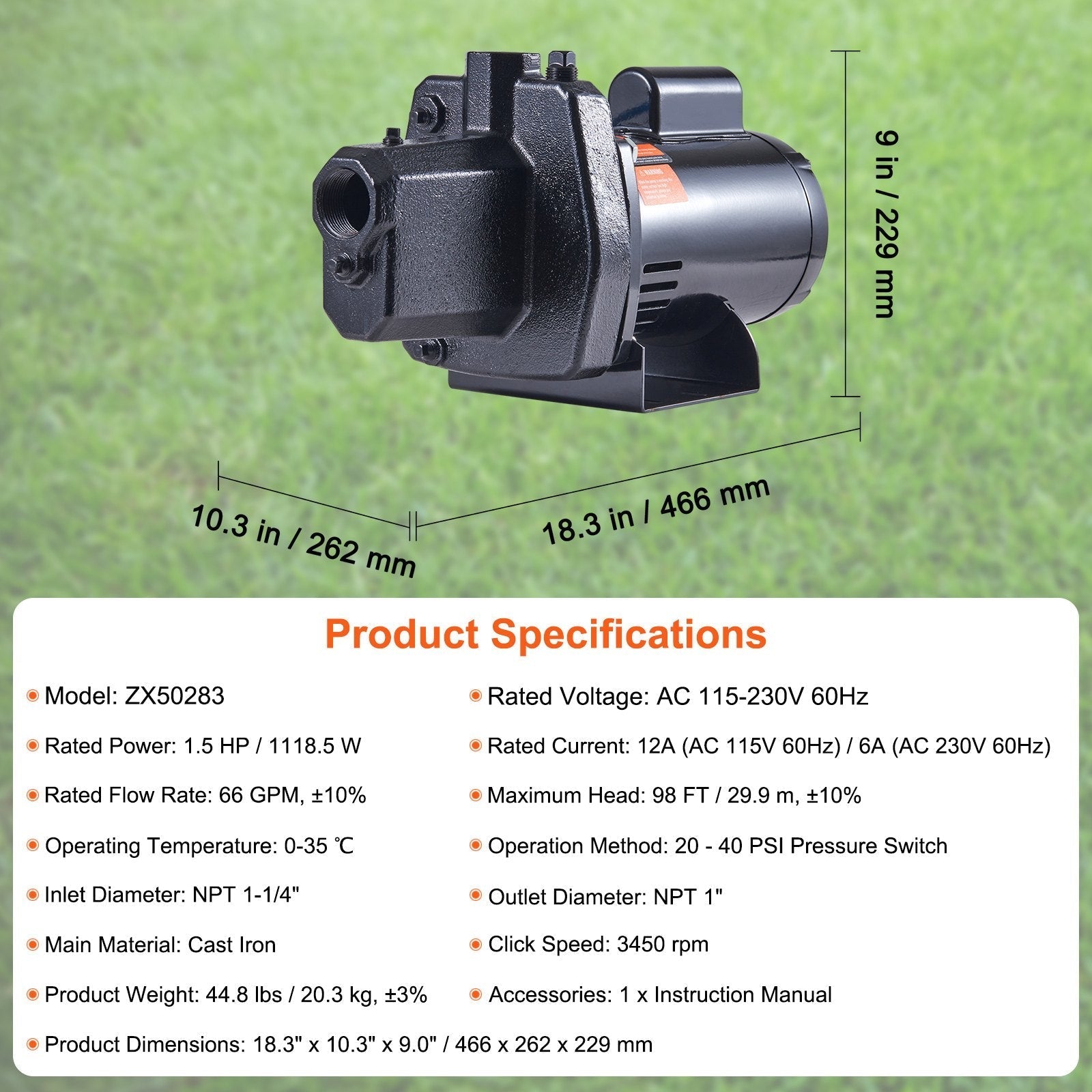

• Dimensions: 18.3" x 10.3" x 9.0" (466 x 262 x 229 mm)

• Weight: 44.8 lbs / 20.3 kg

• Operating Temperature: 0-35 °C
