E-Z-Rect Shelving System – Type 1 Components
Build your ideal shelving configuration with E-Z-Rect’s 4 Basic Type 1 Components, engineered for strength, flexibility, and ease of assembly.

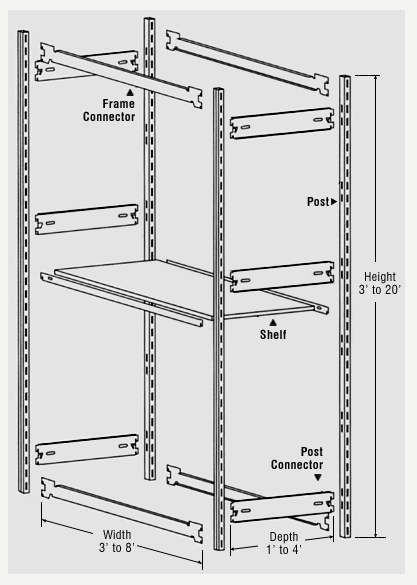

Included Components:
-
Frame Connectors Join End Frames together and support metal or particleboard shelves.
-
The shelf is designed to support heavy loads with full-width usability.
-
Post Vertical support structure for the shelving system.
-
Post Connectors securely connect two posts to form a stable End Frame.
System Highlights:
-
Modular & Versatile: Easily configure shelving to suit any space or storage need.
-
Instant Shelf Adjustment: Shelves adjust on 2″ centers for maximum flexibility.
-
High Load Capacity: Safe working loads up to 7,000 lbs (3,175 kg) per pair of posts or bay.
-
Safety Rated: Built with a 1.66:1 safety factor under uniform static loading.
-
Durable Finish: Standard grey electrostatic baking enamel; custom colours available upon request.
-
Optimized Shelf Space: Full shelf width is usable thanks to E-Z-Rect’s efficient design.
Layout Planning Notes:
To accommodate outside frame dimensions, allow for:
-
Depth: ±1 ¼″ (32mm)
-
Length per Frame: ±1 ½″ (38mm)

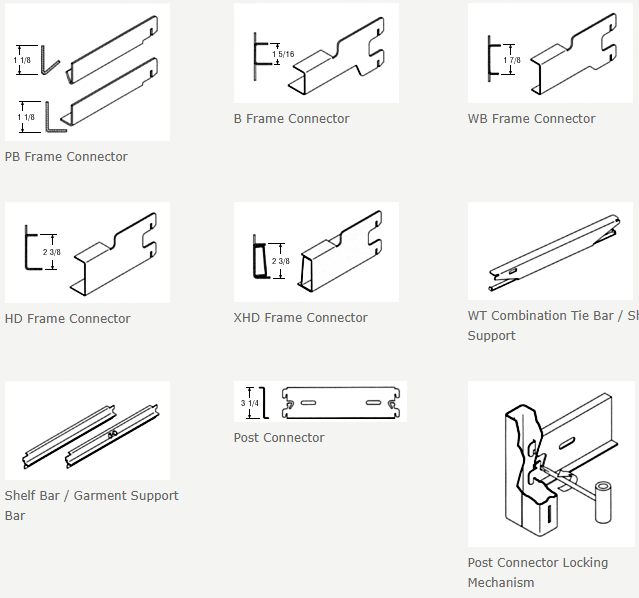

Available Accessories:

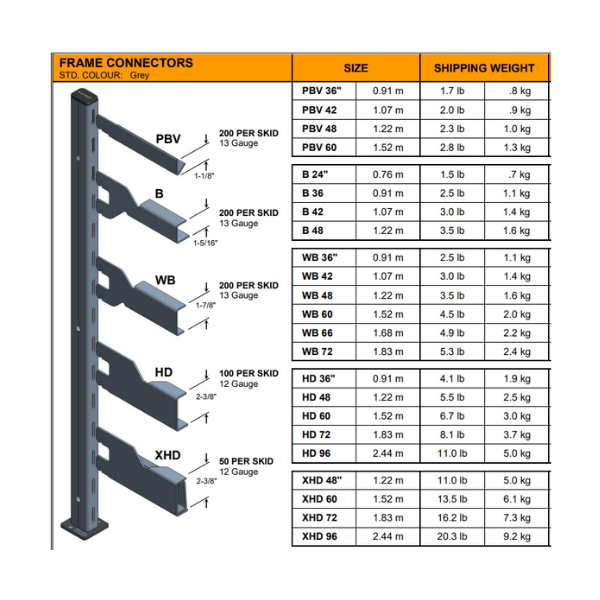

- PB, B, WB, HD, and XHD Frame Connectors
- WT Combination Tie Bar / Shelf Support
- Shelf Bar / Garment Support Bar
- Post Connector Locking Mechanism
