General Components

BISON 2200A Heater Kit

Name: BISON 2200A Heater Kit
Brand: General Components
SKU: GC0644
Price: 1169.0 CAD
Availability: OutOfStock

Art: GC0644

General Components

Art: GC0644

Fuel:

Diesel

Voltage:

12V

24V

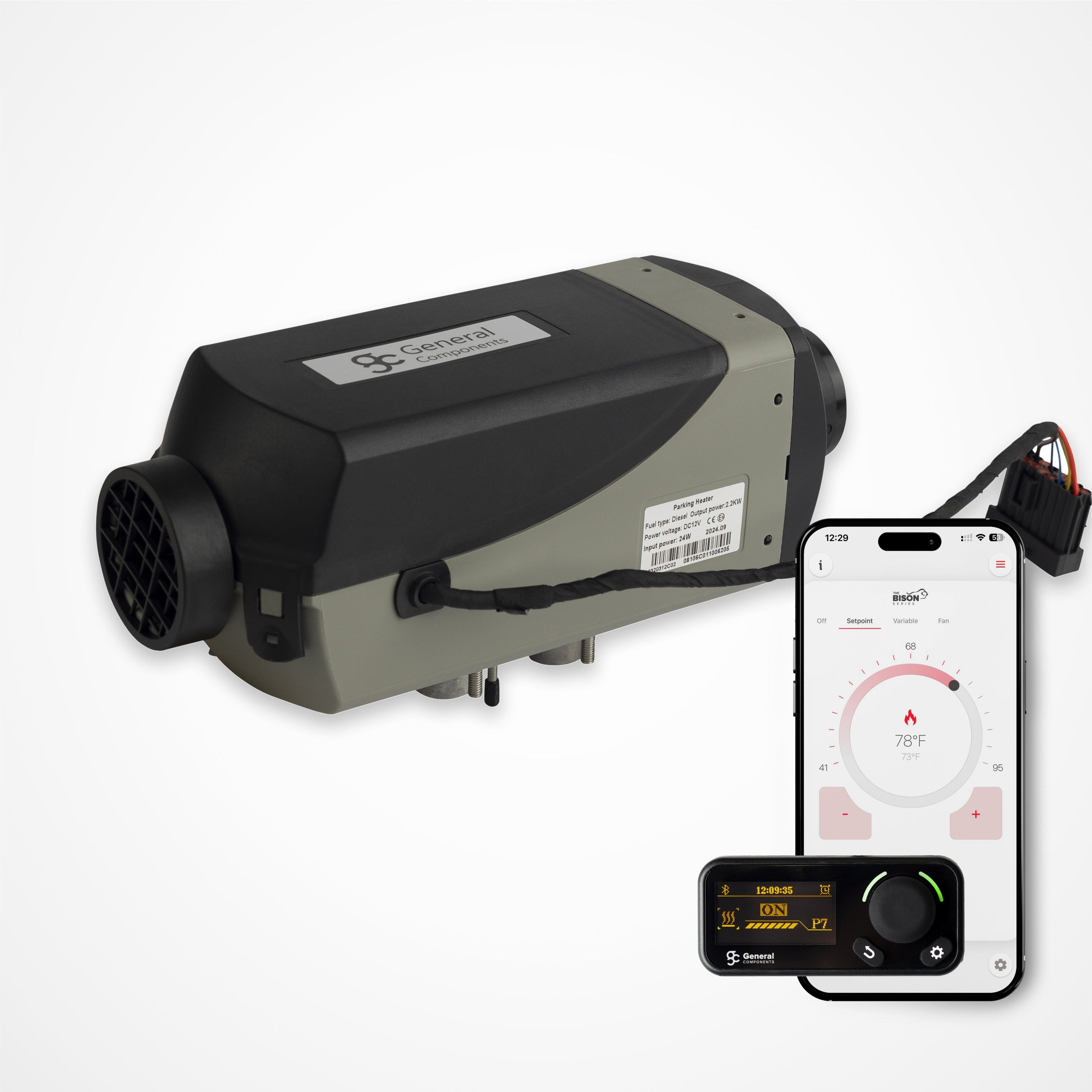

Controller Type:

Digital

Analog

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

$1,169.00

Description

High-Performance Heating: Provides 2.2kW (7500 BTU) of consistent forced air heating.
Automatic Altitude Adjustment: Adjusts for optimal performance at elevations up to 5000 meters.
Quiet and Efficient Operation: Engineered to deliver powerful heat with minimal noise, creating a peaceful environment.
Versatile Fuel Options: Compatible with diesel/kerosene or gasoline fuels in both 12V and 24V versions.

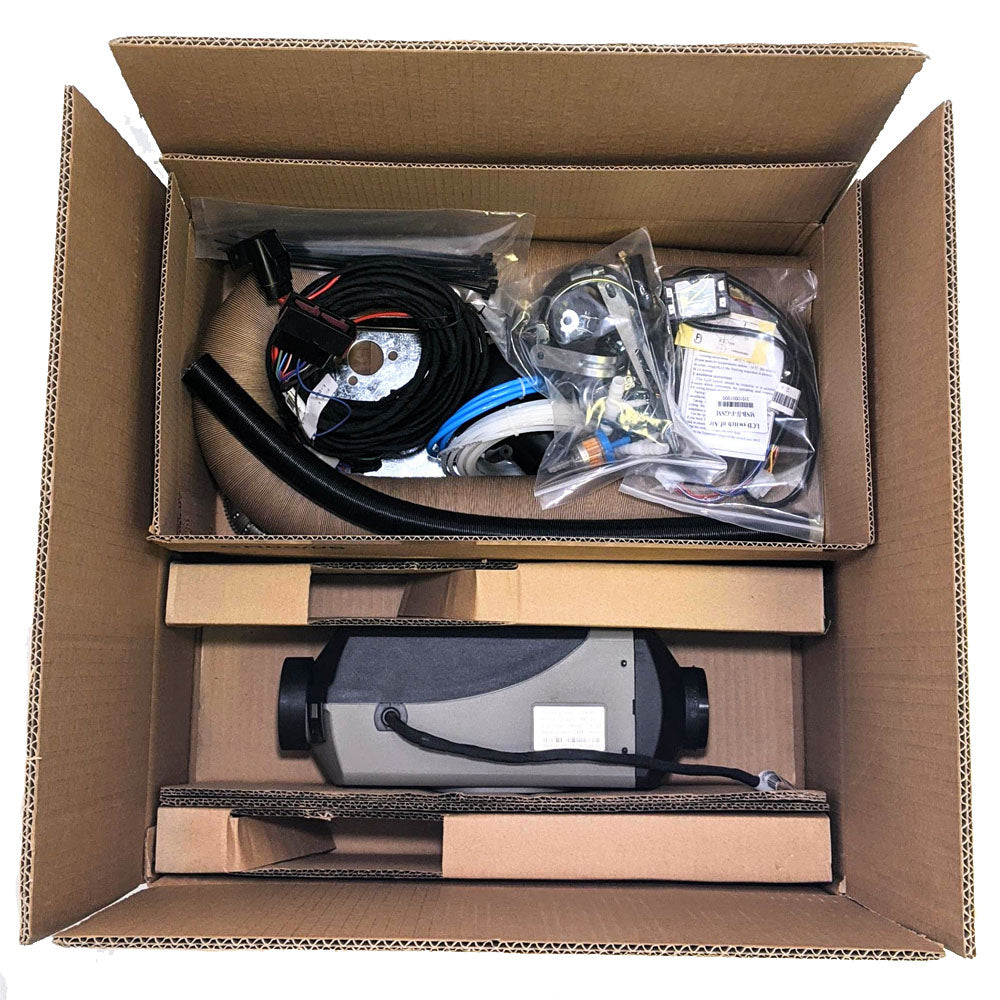

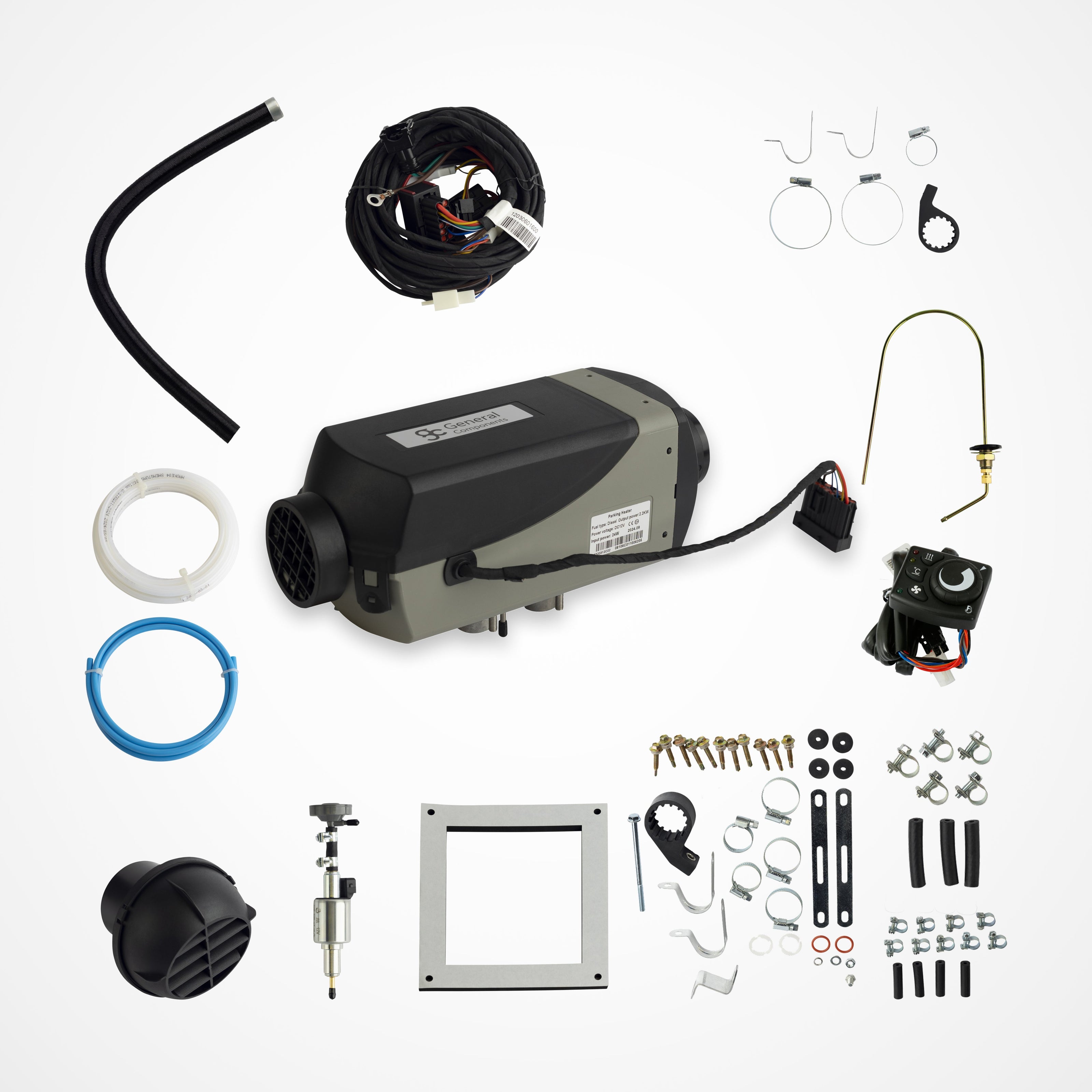

Complete Installation Kit: Comes with all necessary hardware and components for straightforward installation.
Eco-Friendly Design: No-idle functionality reduces fuel consumption, making it an environmentally responsible choice.
Rugged and Reliable: Built to endure harsh conditions, guaranteeing long-lasting performance.

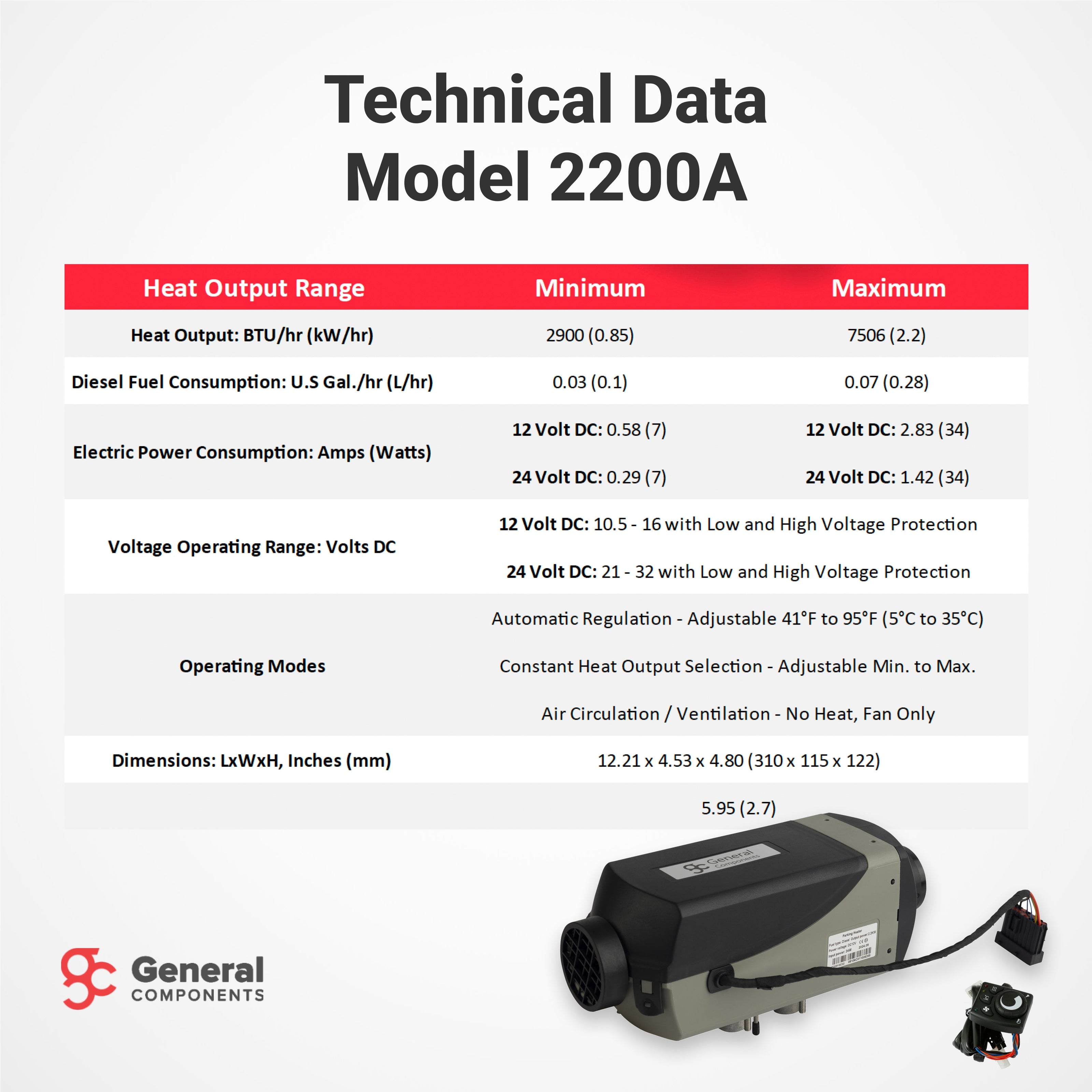

Specification	Value
Heat Output: BTU/hr (kW/hr)	2900(0.85) – 7506(2.2)
Diesel Fuel Consumption: U.S Gal./hr (L/hr)	0.03 (0.1) – 0.07 (0.28)
Electric Power Consumption: Amps (Watts) @12VDC	0.58 (7) – 2.83 (34)
Electric Power Consumption: Amps (Watts) @24VDC	0.29 (7) – 1.42 (34)
Voltage Operating Range: Volts DC (for 12V models)	10.5 – 16 with Low and High Voltage Protecton
Voltage Operating Range: Volts DC (for 24V models)	21 – 32 with Low and High Voltage Protecton
Operating Modes	Setpoint – Adjustable 41°F to 95°F (5°C to 35°C) Constant Heat Output Selection – Adjustable Min. to Max. Air Circulation / Ventilation – No Heat, Fan Only

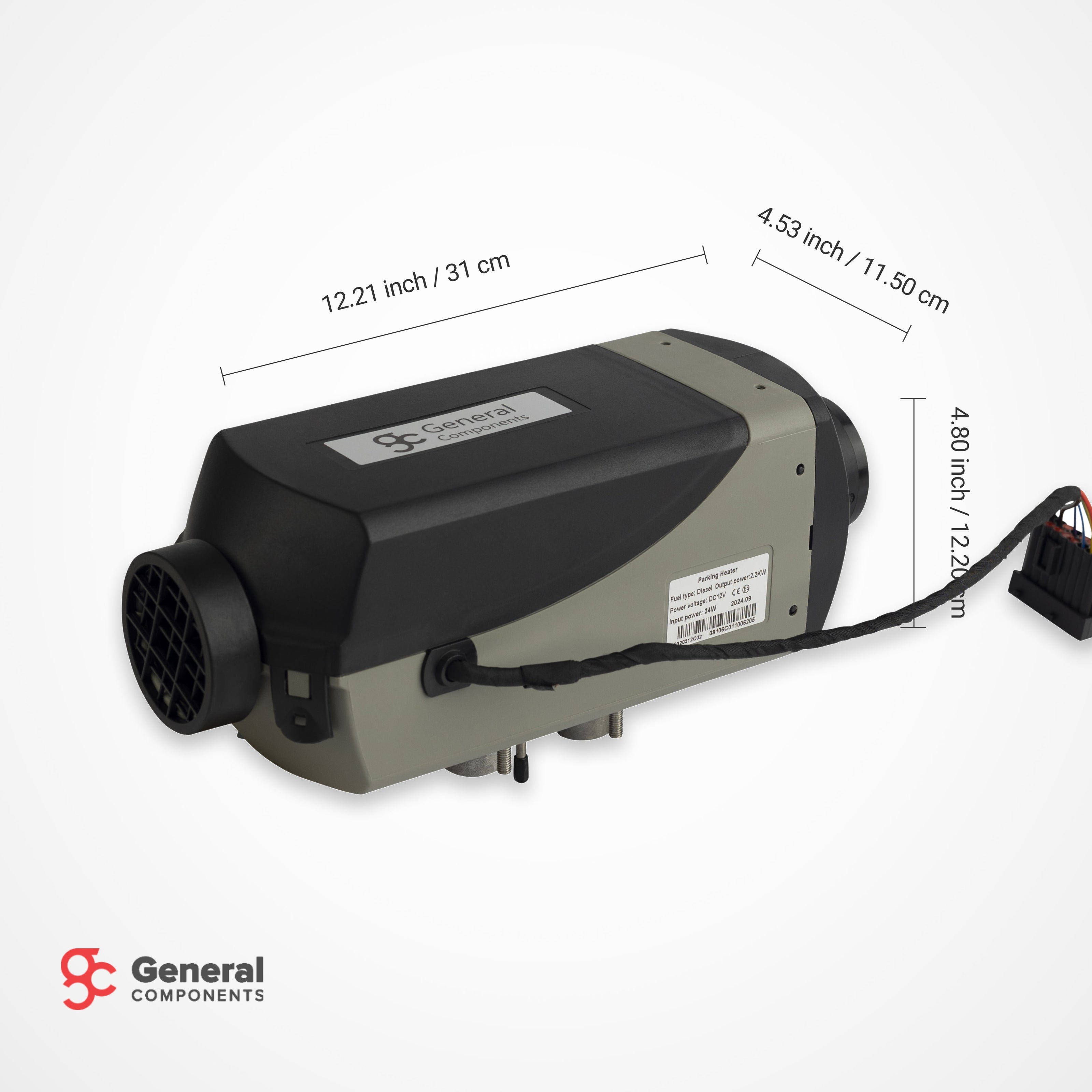

Unit Dimensions: LxWxH, Inches (mm)	12.21 x 4.53 x 4.80 (310 x 115 x 122)
Unit Weight: lbs (kg)	5.95 (2.7)
