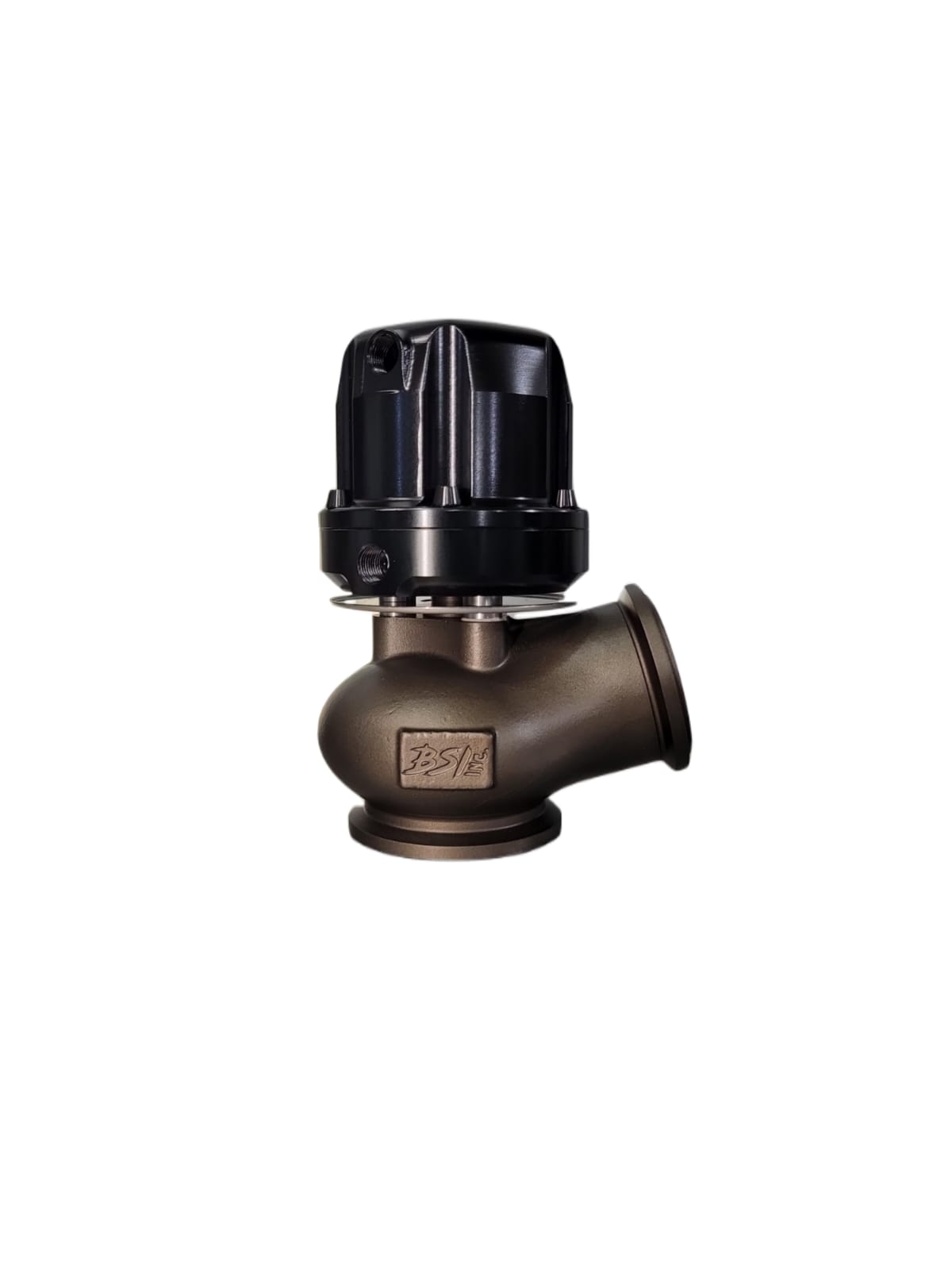

45mm Wastegate

• Designed with a two-piece Billet dome made from 6061 aluminum, and a black anodized finish.
• The piston inside replaces the conventional diaphragm, which is a two-piece serviceable part.  We pressure-tested and rated it for 150 psi working pressure.
• On our piston we use a Hi-Temp O-ring. We use a nominal O-ring size, so if you have any mishaps replacements are easy.

• The wastegate valve is constructed from a super alloy mix to handle the hottest and harshest conditions your engine can throw at it. We also use this alloy mix to ensure fuels don't corrode the valve.
• All reference ports are 1/8 inch npt.
• Body is casted from stainless steel.

What's Included!

• Stainless inlet and outlet flanges
• Stainless clamps with hardware
• (3pcs) spring kit (approximate ratings for 5psi , 7psi and 14psi with a combined capability approximating 26psi depending on application)
• (2pcs) 1/8npt Stainless Barbs
• (1pcs) 1/8npt Stainless Plugs
