Description

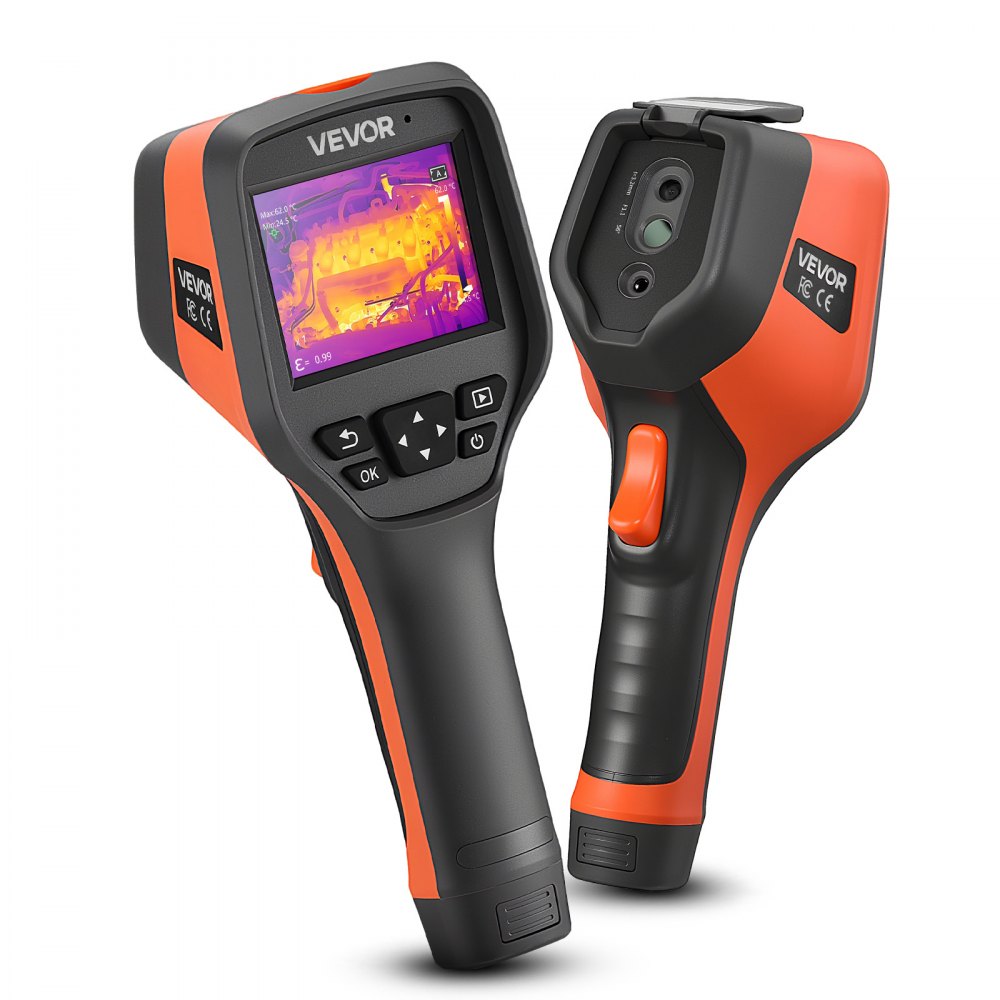

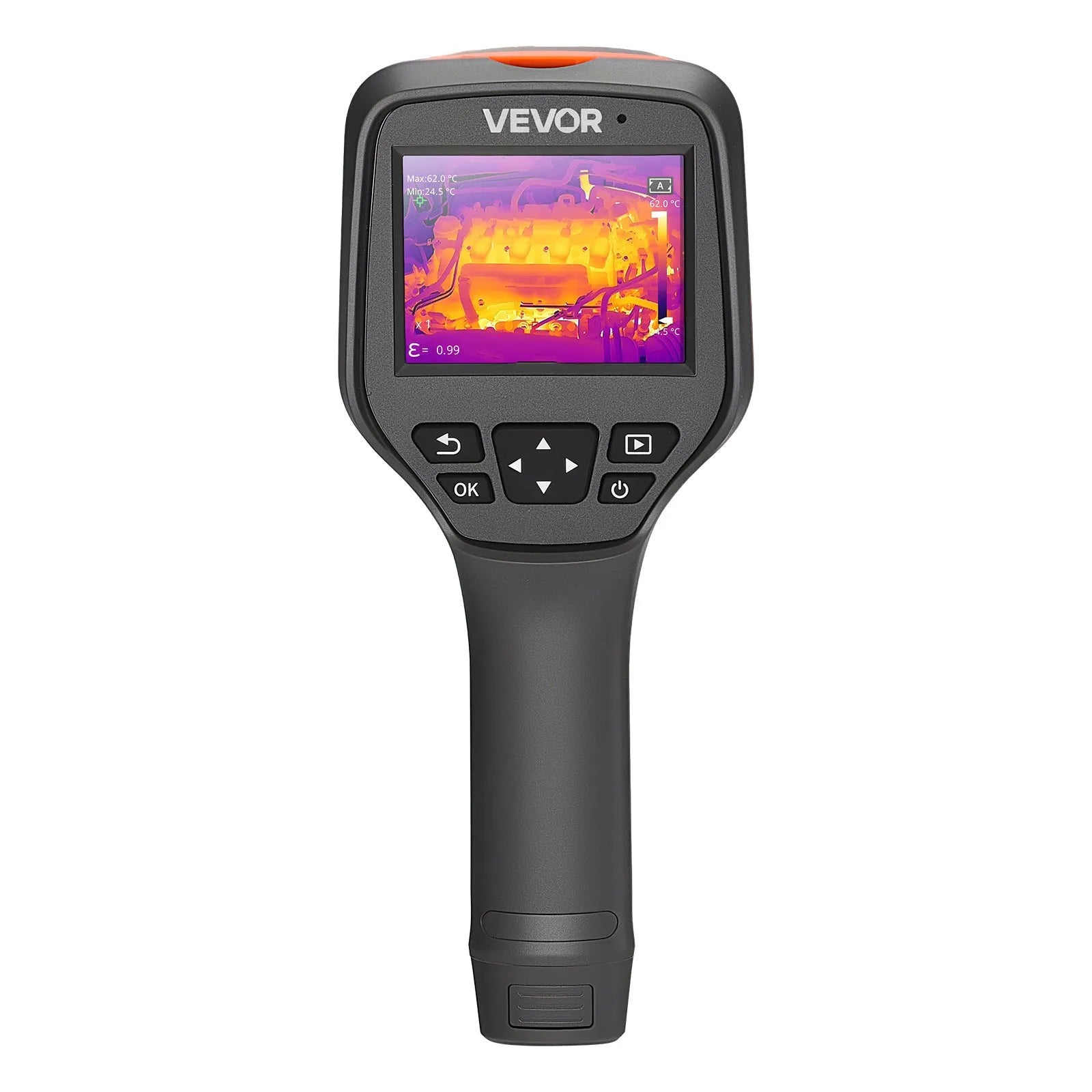

Identify temperature differences quickly and accurately with this handheld thermal imaging camera. Featuring a 256 × 192 infrared resolution and a built-in 2MP visual camera, this device captures clear thermal and visual images for inspections and diagnostics. The large 3.5-inch touchscreen allows easy navigation, while advanced imaging modes and color palettes help highlight temperature variations. With WiFi connectivity, built-in storage, and long battery life, this thermal camera is ideal for equipment inspection, HVAC diagnostics, electrical maintenance, and building evaluations.
Features
High-Resolution Thermal Imaging
Equipped with a 256 × 192 infrared sensor and a 2MP visual camera to capture detailed thermal and visual images.
Wide Temperature Detection Range
Measures temperatures from -4°F to 1022°F (-20°C to 550°C), allowing accurate monitoring across a wide range of applications.

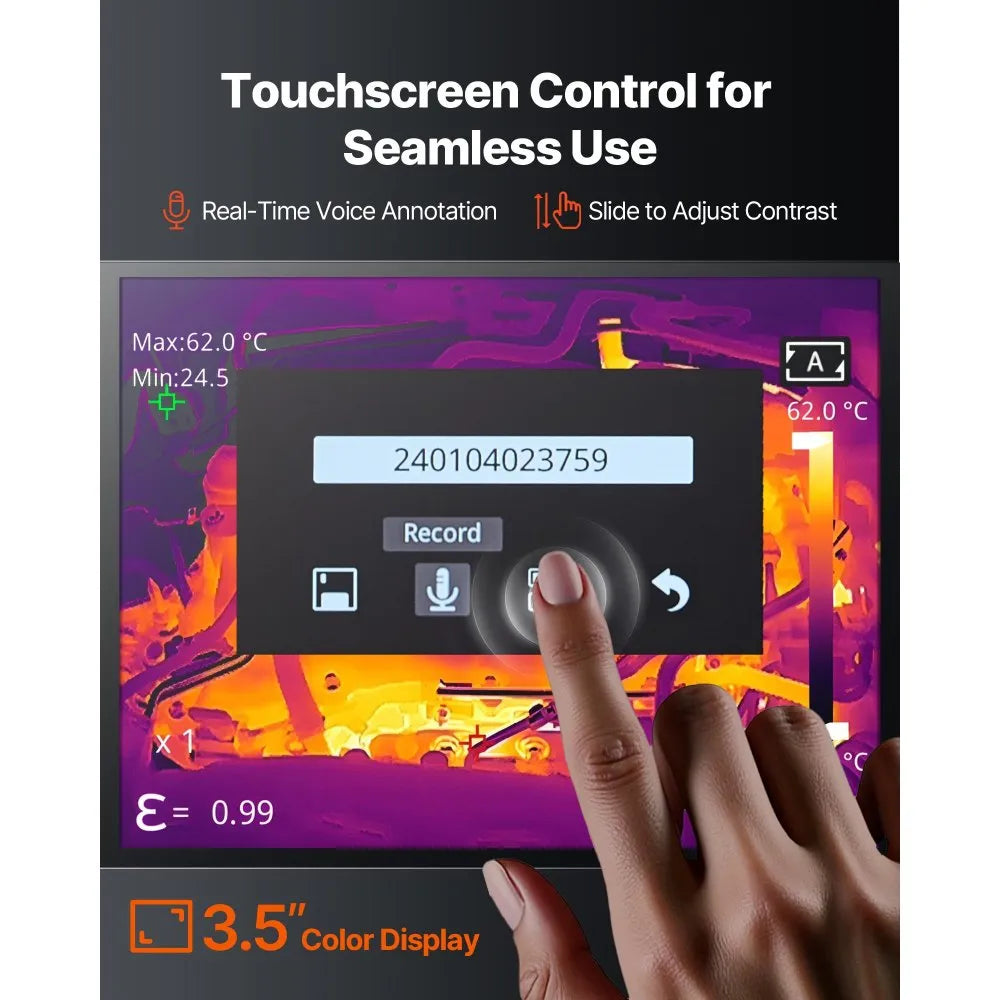

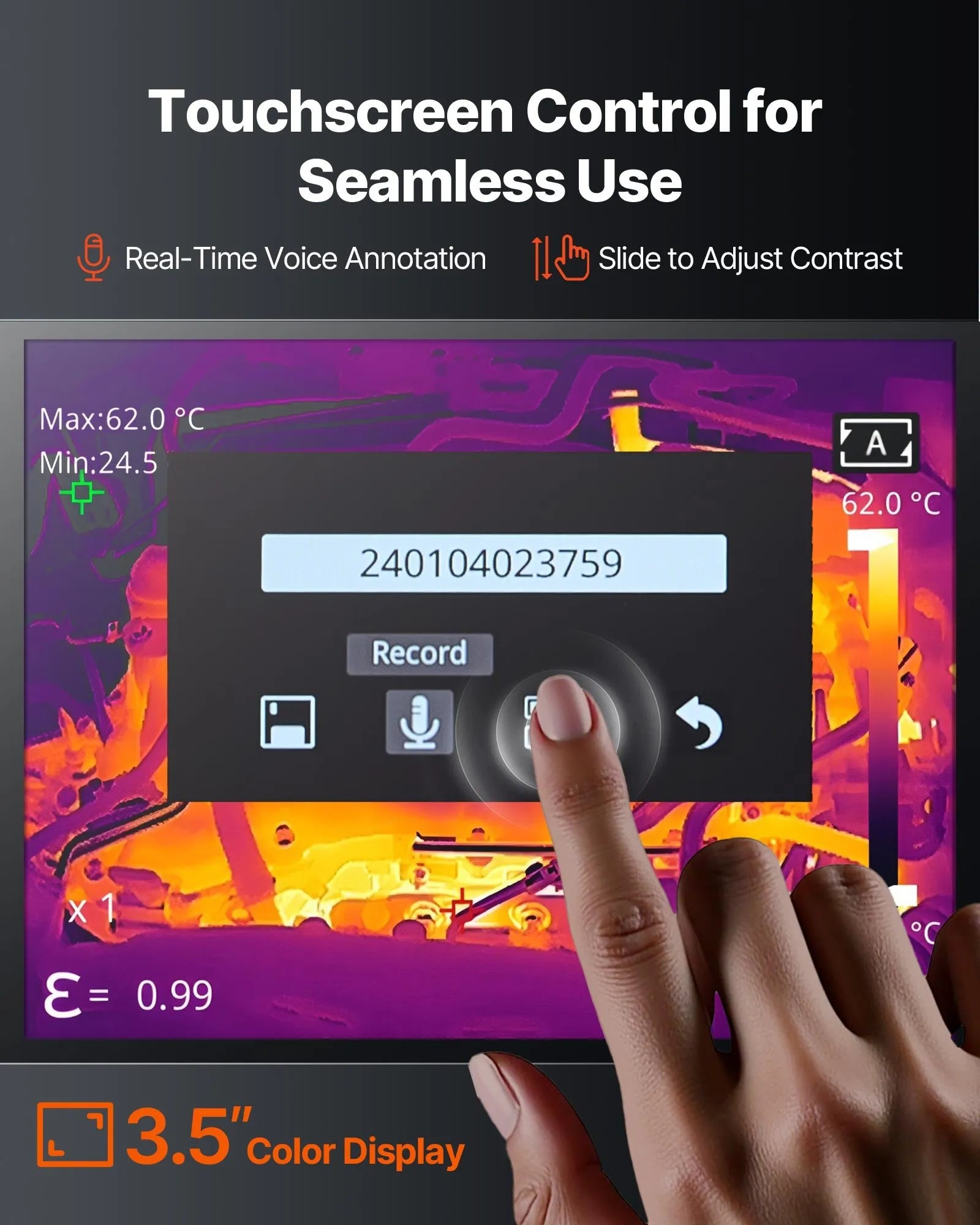

3.5-Inch Touchscreen Display
Large touch display provides easy viewing and navigation for captured images and measurement settings.
Multiple Imaging Modes

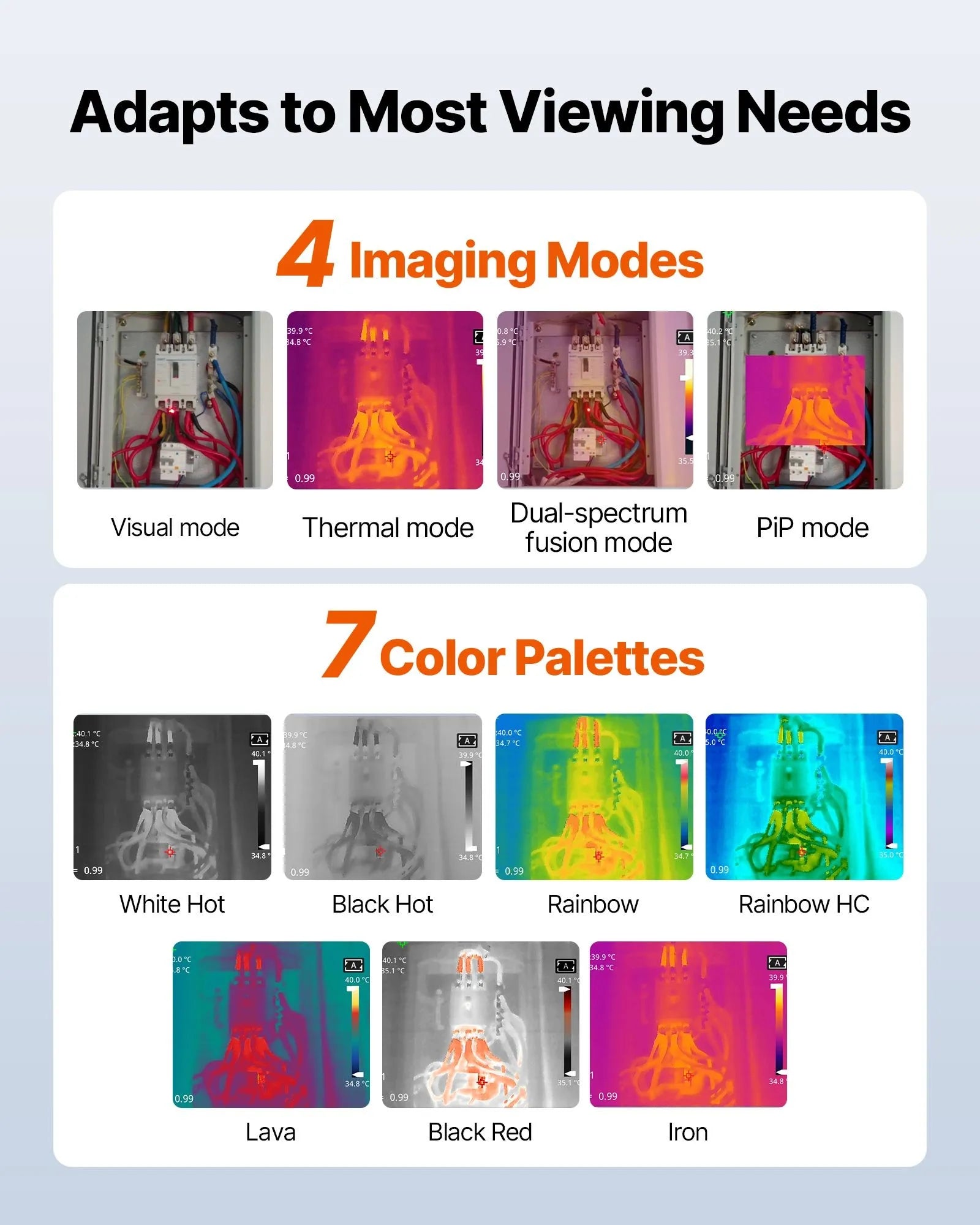

Includes 4 thermal imaging modes, 7 color palettes, and digital zoom (1× / 2× / 4×) for detailed inspection.
Automatic Temperature Tracking
Identifies hot, cold, and center points to help locate temperature variations quickly.
WiFi Connectivity & Storage
Supports wireless image transfer and includes 32GB internal storage capable of saving thousands of images.
Durable Portable Design
Lightweight handheld device with IP54 protection and drop resistance up to 2 meters.
Specifications
Infrared Resolution: 256 × 192 pixels
Visible Light Resolution: 1600 × 1200 pixels
Display Size: 3.5 inch Touchscreen
Frame Rate: 25 Hz
Thermal Sensitivity: ≤ 35 mK
Focus Mode: Focus-Free
Temperature Range: -4°F to 1022°F (-20°C to 550°C)
Temperature Resolution: 0.1°C
Temperature Accuracy: ±2°C / ±2%
Temperature Display: Center / Hot / Cold Spot

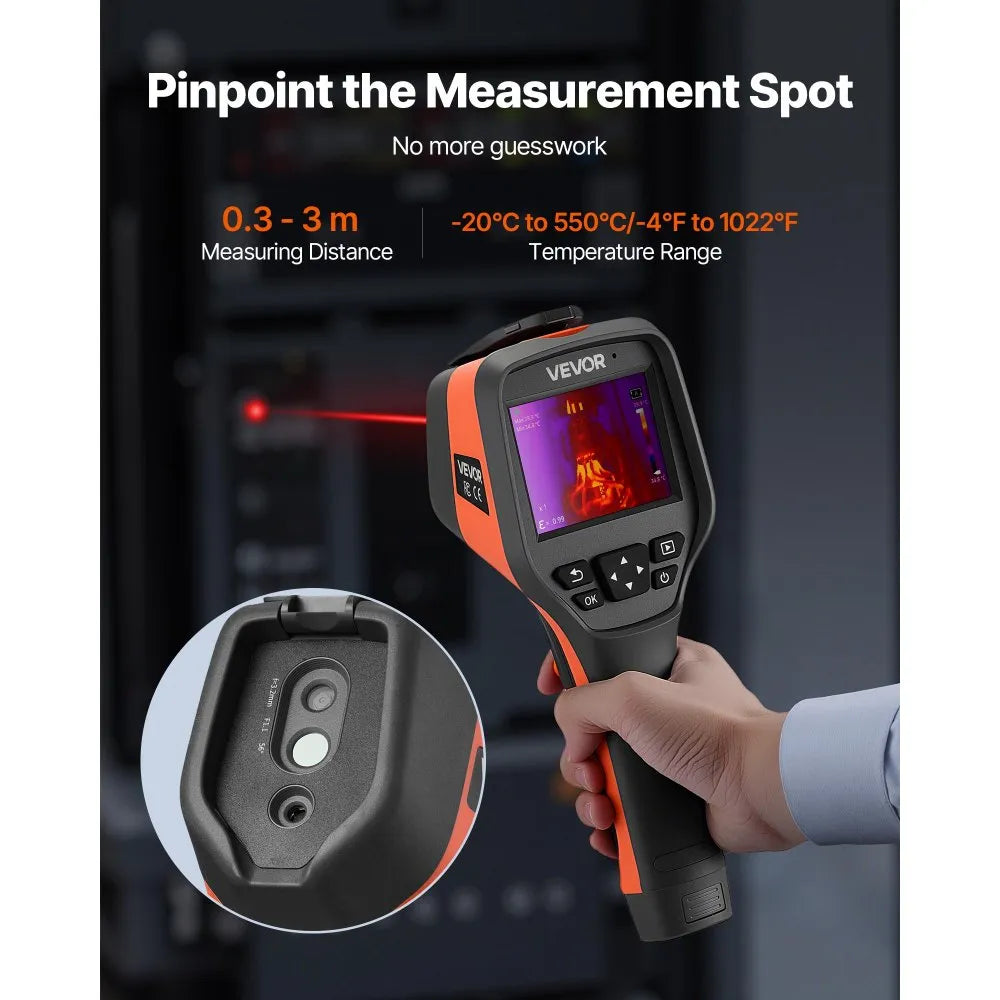

Measuring Distance: 0.3 – 3 m
Emissivity Range: 0.01 – 1.0
Battery Capacity: 2 × 4500 mAh
Internal Storage: 32 GB
Water Resistance: IP54
Drop Resistance: 2 m
Operating Temperature: 14°F – 122°F (-10°C – 50°C)
Storage Temperature: -4°F – 140°F (-20°C – 60°C)
Tripod Mount: Standard 1/4" Thread
Net Weight: 1.4 lbs (0.64 kg)
